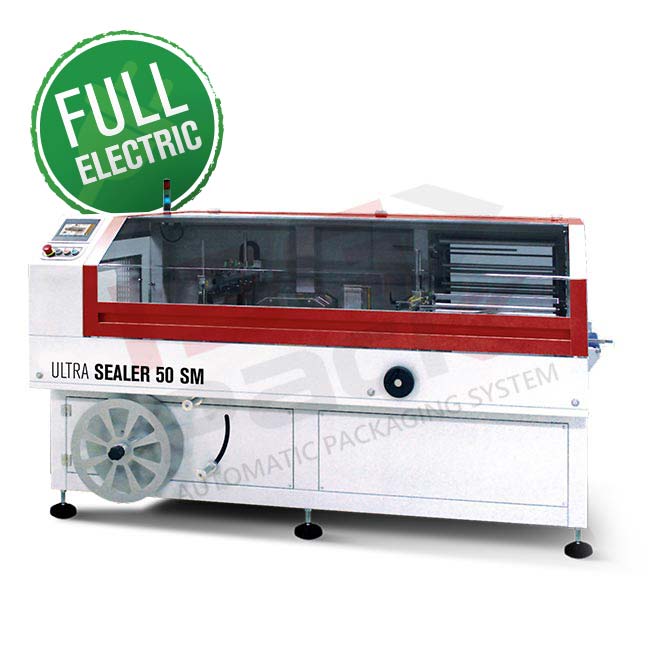

Angular shrinking machine Ultra Sealer 50 SM

In stock

REQUEST QUOTE NOW



The Ultra Sealer 50 SM machine is an automatic angular packaging machine that stands out for its excellent value for money and its modularity. It can satisfy productions up to 7200 packages per hour. It 'a packaging continuously with 3 carpets managed by brushless servomotor. All models in this range can be supplied with and without retraction tunnel.

WITHOUT
OPERATOR

INSTALLED
POWER 8,5 kW

MAX. PACK
HEIGHT 250 mm.

SEALING BAR
L 520 mm



The continuos automatic sealers with tunnel Ultra Sealer series

The continuos automatic sealers Ultra Sealer 50 SM, have high quality and a very good price and is possible to get it with or without the shrinking tunnel. Compare to traditional L-sealer,this range offers several advanteges such as:packaging product with unlimited lenght,increase the production capacity,a significant reduction of film waste. The Ultra Sealer series with continuos sealing and BOX MOTION cycle can handle polyolefin and polyethylene,polypropylene centefolded or flat film with film folder and is suited to meet outputs of up to 7200 packs/hour.

Use, optionals and features

USE
The power conveyor moves the products into the center folded film, the photocells detect the products and the working cycle starts. The power supply, the film unwinding, the sealing and the product outfeed are fully automatic.
OPTIONAL
  • Vacuum belt
  • Printed film centering device
  • Save product photocell
  • Sealing bar for polyethylene from 15 to 80 my
  • Film cold perforator
  • Protected outfeed roller conveyor pitch 46mm length 1000 mm
FEATURES
  • Continuous automatic packer with 3 belts controlled by brushless servomotor
  • Continuous working cycle (box motion) by cam electronics self-configuring
  • Side sealing system by friction with hot blade
  • Continuous motion cross sealing bar with PTFE-coated
  • Sealing blade controlled by brushless servomotor
  • FLXMOD® control system equipped with: Operator Interface with Panel PC and 7” full-colour touch screen display PLC
  • Power and control section consisting of: Drivers and inverters for each motor IN/OUT control modules with 16 digital inputs/outputs
  • Analog inputs control modules
  • Thermocouple-reading control modules
  • This system is able to check all operations, simply and precisely, such as: Gap of products automatically controlled
  • Electronic checking of the film tension
OPERATIONS CONTROL
  • Adjustment of cross bar height
  • Dual sealing temperature adjustment, both for the longitudinal and the cross sealer
  • Sealing time adjustment
  • Possibility of packaging individual packs or groups of products
  • Electronically controlled conveyor belt speed
  • Process statistics
  • Motorized center seal system
  • 20 storable programs
  • Infeed conveyor released from the square to facilitate the film insertion
  • Systems for the leading guide and the decrease of the film tension placed before the cross bar and the longitudinal
  • Height adjustment of the longitudinal sealer
  • Emergency button
  • Reduced power consumption

confezionatrici; angolari; automatiche; termoretraibili, termoretraibile; film termoretraibile,

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Machine dimensions

L 2725 x W1550 x 1505-1665 mm

Net weight

830 Kg.

Power supply

380 Volts 3 ph

Power supply frequency

50 Hz

Air pressure

6 bar

Air consumption

0,3 Nlitri/min

Installed power

8,5 kW

Dimension sealing bar

520 mm.

Speed conveyor

5/35 mt/min.

Max height product

250 mm.

Max production

7200 pph

Max dimension film roll

600 – ø 350 mm

Packaging material

Poliolefin

Film roll thickness

Up to 30 my

Automatic angular shrink machine Ultra Sealer 50 SM

Angular shrinking machine Ultra Sealer 50 SM
