A wide range of semi-automatic angular wrapping machines with electronic control welding system

Semi-automatic angular wrapping machines are the ideal solution for those who want to combine maximum flexibility with a high quality of the product. Our angular shrink wrap machines do not only assure you the utmost reliability during packaging, but they are also able to produce packaging of great aesthetic value. The electronic control welding system is among the most advanced in its industry and the custom packaging programs make it extremely easy to use the packaging machine.

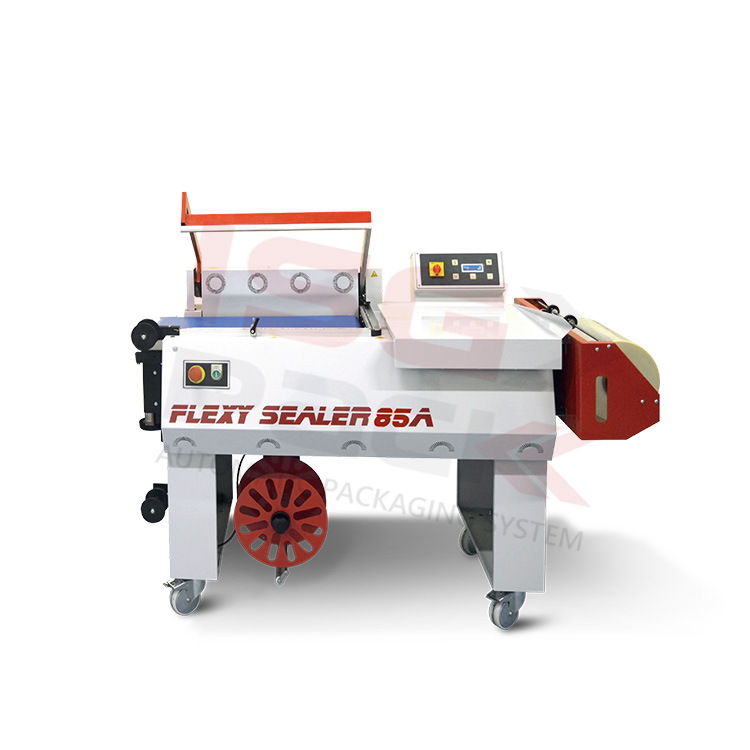

The semi-automatic L-sealers, Flexi Sealer 85A, are very functional machines with high quality and competitive price. Flexy Sealers use a sealing system controlled electronically and advanced safety systems. Thank to the semiautomatic or automatic mode and the creation of customized working programs, these machines are easy to use and have a high production capacity. The Flexy Sealer 55A and 85A can be coupled with the shrinking tunnel S 55 and S 85.

Features and use of the angular packaging machine

MACHINE USE

The operator put the product on the working table into the shrink film, guides it inside the sealing area and pushes the start button. The motorized sealing bar goes down and the product is sealed. After sealing, the power bel conveyor moves the product to the shrinking tunnel and then the packed products outfeed.

OPTIONAL

Double coil support
Worktable in stainless steel
Start cycle pedal

FEATURES

Continuous cycle sealing
Pack deviation device
Film waste winding device as standard supply
PTFE-coated sealing blade
Closed-circuit liquid cooling of the sealing bars
Viewer of the coolant level
Working height of the sealer and of the tunnel adjustable by means of an external crank
Mobile product-holding plate, loose from the film reel support to allow a better adjustment of the film to the pack size
Emergency button
Automatic pack discharge by means of a motorized conveyor
Flextron® control system equipped with: Alphanumeric LCD control panel provided with a 16-bit microprocessor card and solid state relays
Modular power section, separated from the control panel and characterized by: Longer-lasting solid state relays providing easier maintenance
In case of failure, possibility of replacing just the damaged module, without losing the data stored in the memory
Compliance with CE regulations

CONTROL OF OPERATIONS

Machine status
Number of packs produced by an electronic packcounter
Real-time production
Adjustment of the sealing temperature
Pack discharge speed
Automatic hood closing and re-opening, motorized and managed by inverter
Delay in the opening of the sealing arm sealing arm safety device
Possibility of scheduling up to 10 different work cycles, thus resulting in increased productivity and simplified use
Troubleshooting
Reduced power consumption

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

Additional information

Machine size	L 3050 W 1055 x H 1125 mm
Net weight
Power supply	220 Volt 1Ph
Power supply frequency	50/60 Hz
Installed power	3,1 kW
Dimension sealing bar
Max production	Up to 900 pph
Max dimension film roll	800 – ø 300 mm
Packaging material	Pvc, Poliolefin and Polietilene
Film roll thickness	Up to 50 my
