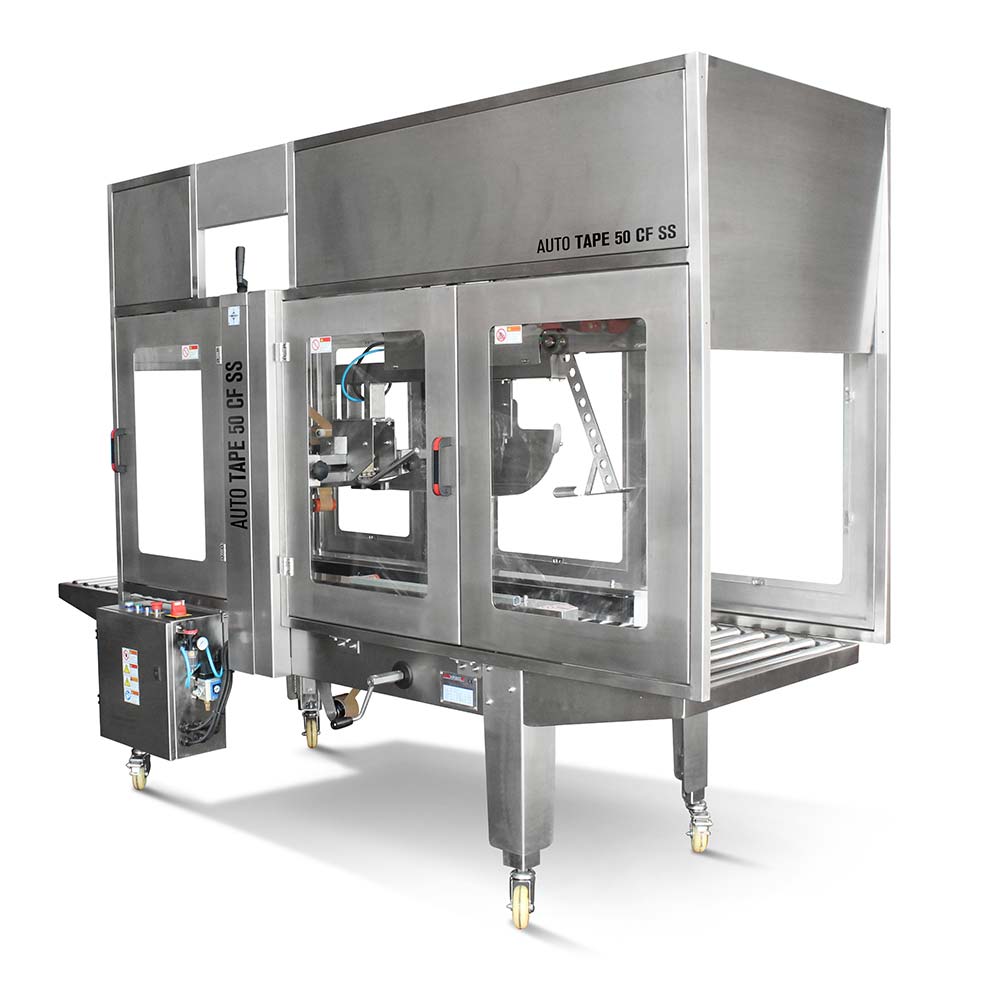

Automatic carton sealer Auto Tape 50 CF SS

In stock

REQUEST QUOTE NOW



The Auto Tape 50 CF SS carton sealer is an automatic machine to be used on completely automatic lines without the supervision of an operator. Equipped with inlet and outlet rollers, it is a simple and practical packing station.

WEIGHT
MACHINE 280 kG

WITHOUT
OPERATOR

ADESIVE TAPE
KRAFT PP, PVC

TOP/BOTTOM
SEALING



Stainless steel taping machine to be used on completely automatic lines

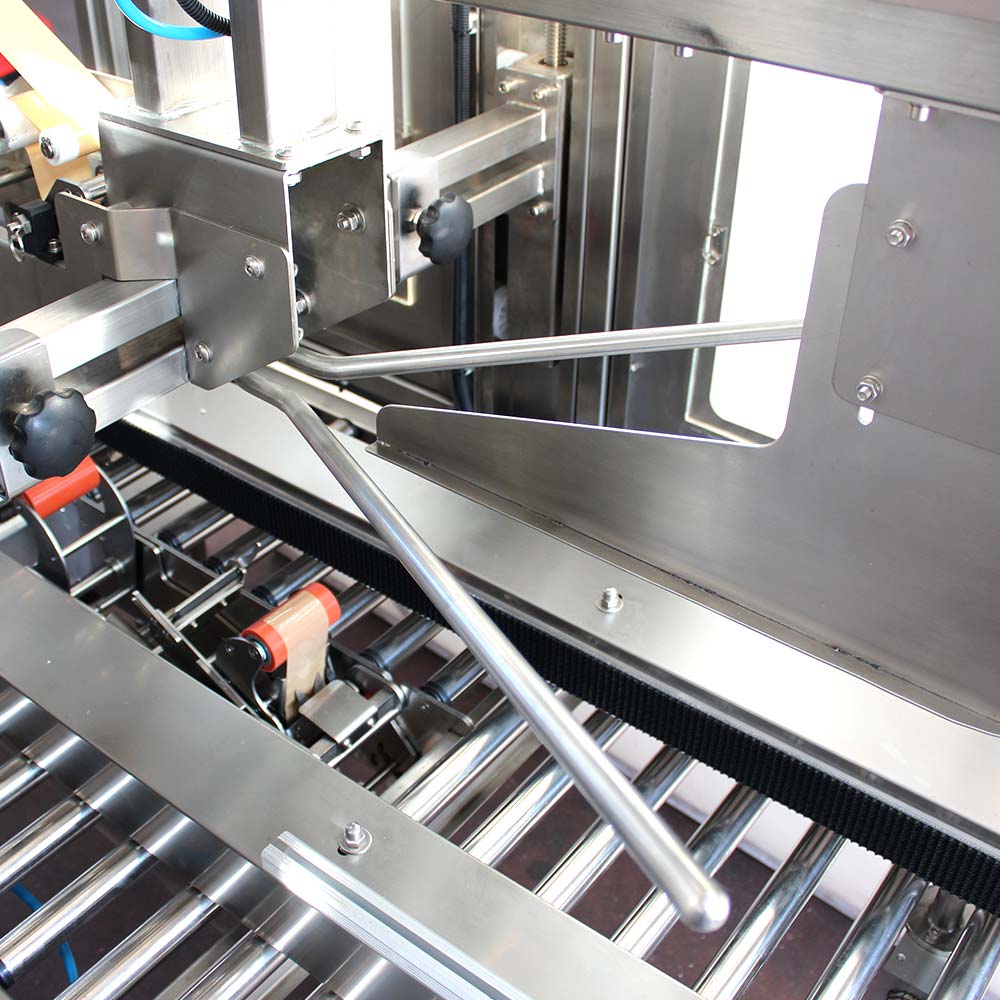

Automatic carton sealer with manual dimensioning and flap closing system. It folds the four upper flaps and seals, the top and bottom of uniform size American-type boxes. The regulations are fast and easy. To be used on fully automatic lines without operators. Machine includes infeed and outfeed rollers and represents a practical and simple packaging station.

Features
  • Weight: 280 kg
  • Power supply: 380 Volts 3 PH 50/60 Hz
  • Environmental humidity conditions ≤ 90%
  • Box transfer speed: 19 mt / min
  • Air Supply: 4-6 kgf / cm2
  • Use temperature : + 0 ° C to + 40 ° C
  • Maximum box weight: 35 kg
  • Maximum Noise: 75 db
  • Electrical protection: IP 54
  • Adhesive tape: Kraft, polypropylene, PVC
  • Standard taping head: 50 – 75 mm
  • Working table height: 550 – 750 mm
  • Installed power: 0,40 Kw

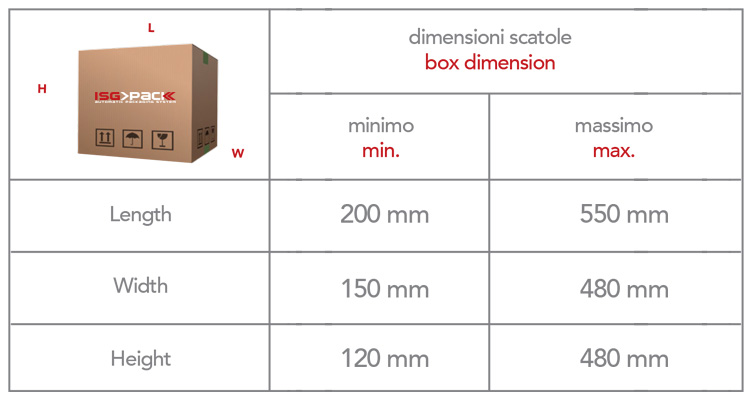

formati scatola nastratrice automatica Auto Tape 50 CF
formato nastro adesivo per macchina nastratrice automatica Auto Tape 50 CF

nastratrici; macchine; automatiche; automatica; linea;

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

How did you find our Company??


Additional information

Machine size

L 2536 x W 1021 x H 2153 mm

Net weight

280 Kg.

Power supply

380 Volts

Power supply frequency

50/60 Hz

Installed power

0,4 kW

Air pressure

6 bar

Air consumption

7 Nlitri/min

Adhesive tape

Kraft, polipropilene, pvc

Sealing speed

8/10 scatole min.

Transfer speed

19 mt/min

Working table height

660 – 860 mm

Dimension Min. product

L 200 x W 150 x H 120 mm

Max product size

L 600 x W 500 x H 480 mm

Type of boxes

American type
