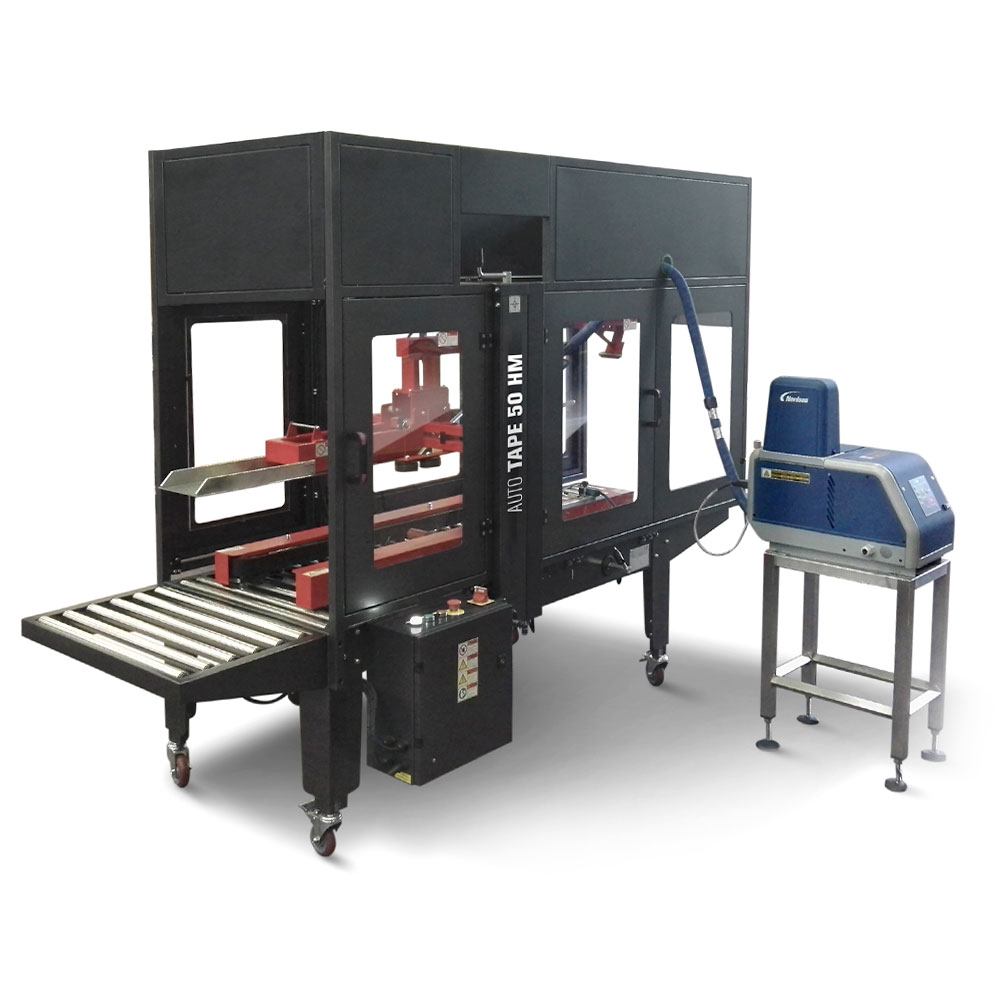

Automatic carton sealer Auto Tape 50 HM

In stock

REQUEST QUOTE NOW



The Auto Tape 50 HF carton sealer is an automatic machine to be used on completely automatic lines without the supervision of an operator. Thanks to the Nordson® glue unit model "Mesa 6.2 H / G" allows a perfect closing of the flaps of the box. Ideal to be implemented with fully automatic lines not manned.

WEIGHT
MACHINE 280 kG

WITHOUT
OPERATOR

CLOSING WITH
GLUE

TOP HOTMELT
SEALING

Nastratrice automatica con chiudifalde a colla e nastratura inferiore delle scatole

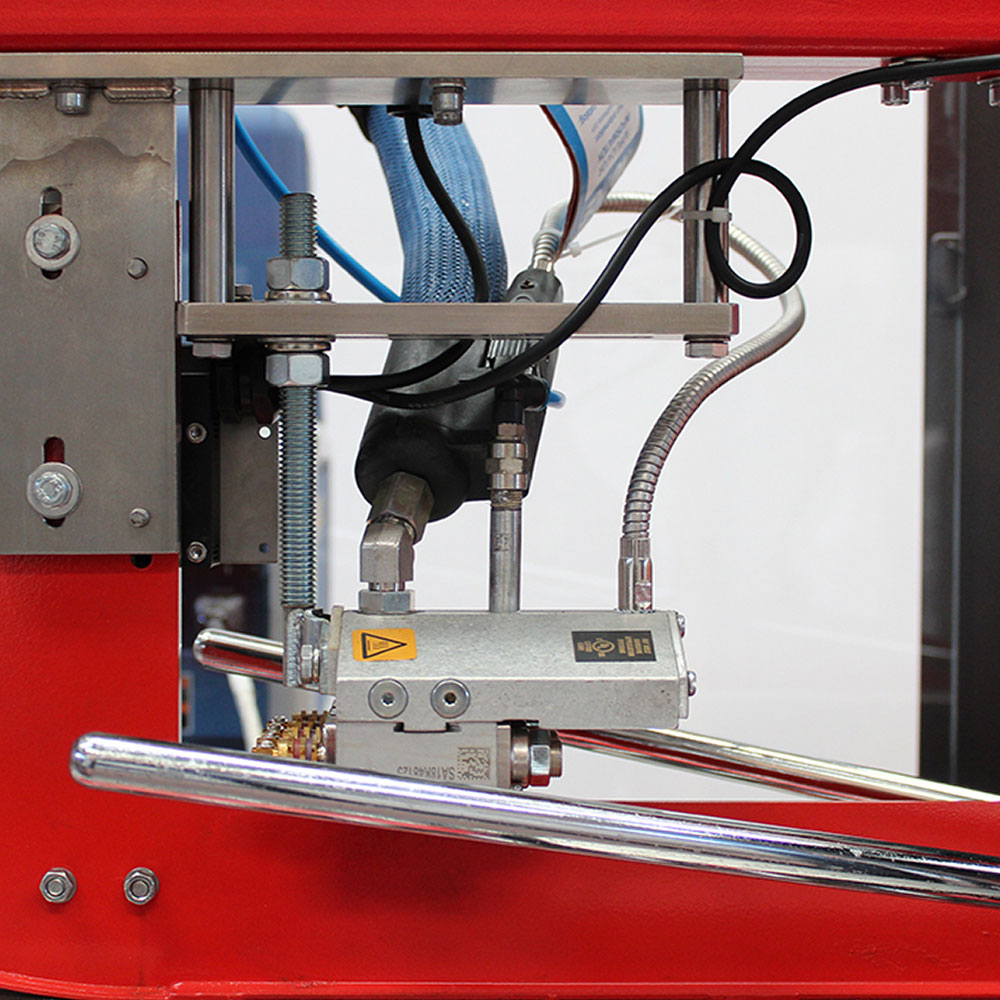

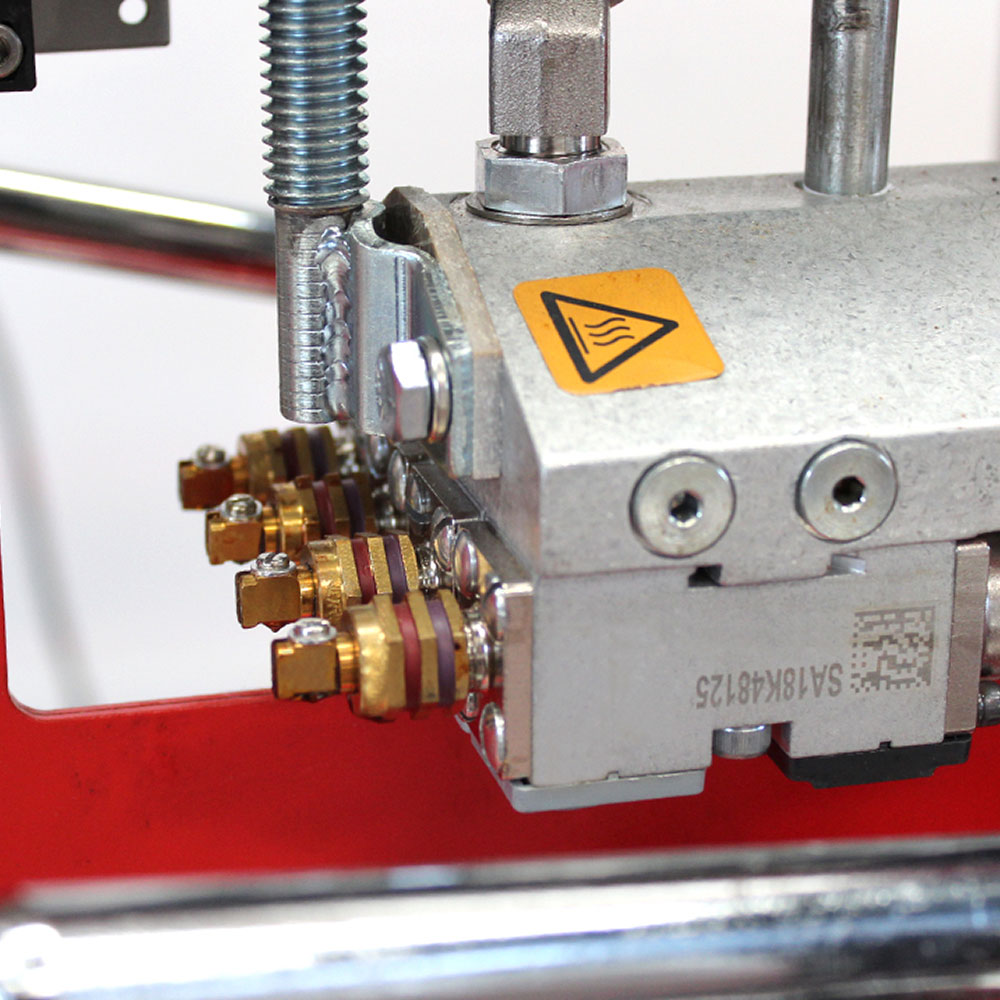

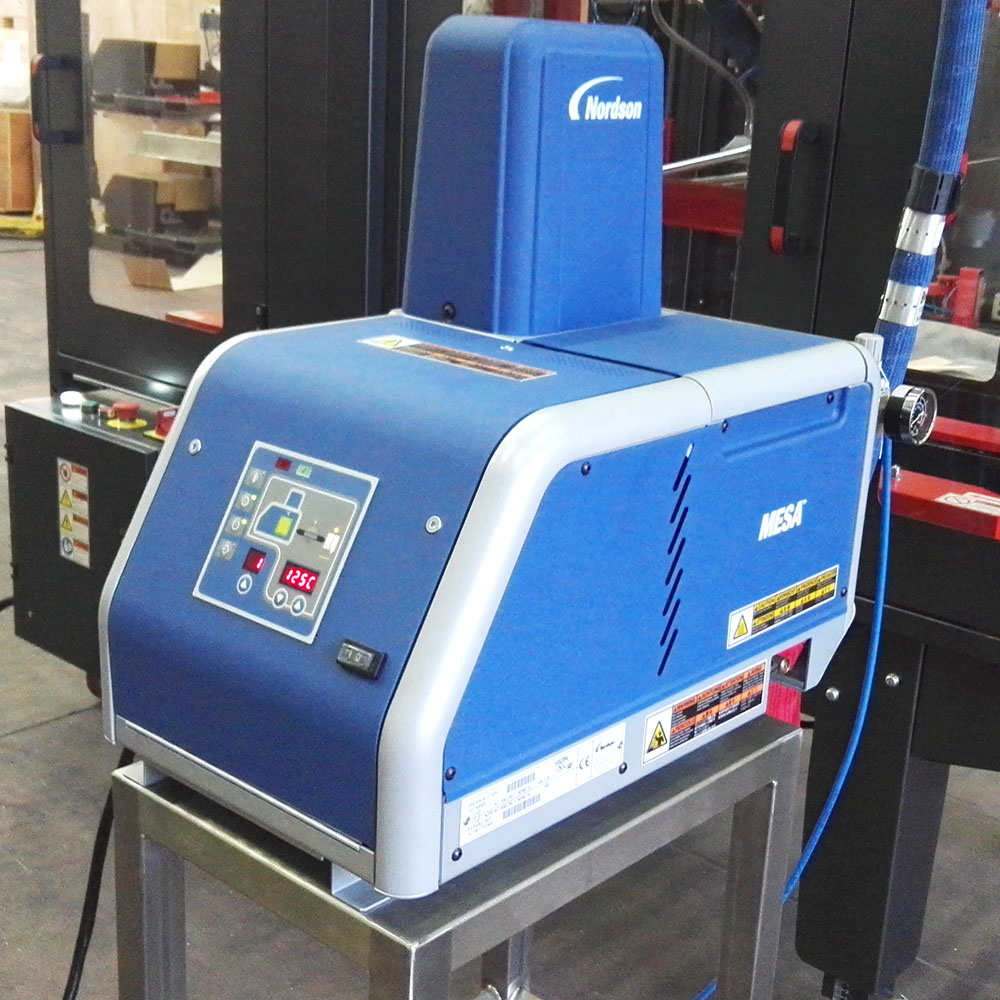

Automatic carton sealer with manual dimensioning and flap closing system. It folds the four upper flaps and seals the top and bottom uniform sized American-type boxes automatically. Easy and fast regulations. To be used on fully automatic lines without operators. Machine includes infeed and outfeed rollers and can work with the most important hot melt systems on the market. Auto Tape 50 HM is equipped with the Nordson hot melt system,mod. “MESA 6,2 H/G”.



nastratrici; macchine; automatiche; automatica; linea;

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Machine dimensions

L 2536 x W 1021 x H 2043 mm

Net weight

280 Kg.

Power supply

380 Volts

Power supply frequency

50/60 Hz

Installed power

0,4 kW

Electrical protection

IP 54

Air pressure

6 bar

Air consumption

7 Nlitri/min

Maximum noise

75 dB

Taping head

50 – 75 mm

Closing system

Glue

Sealing speed

8/10 scatole min.

Transfer speed

19 mt/min

Working table height

550 / 750 mm

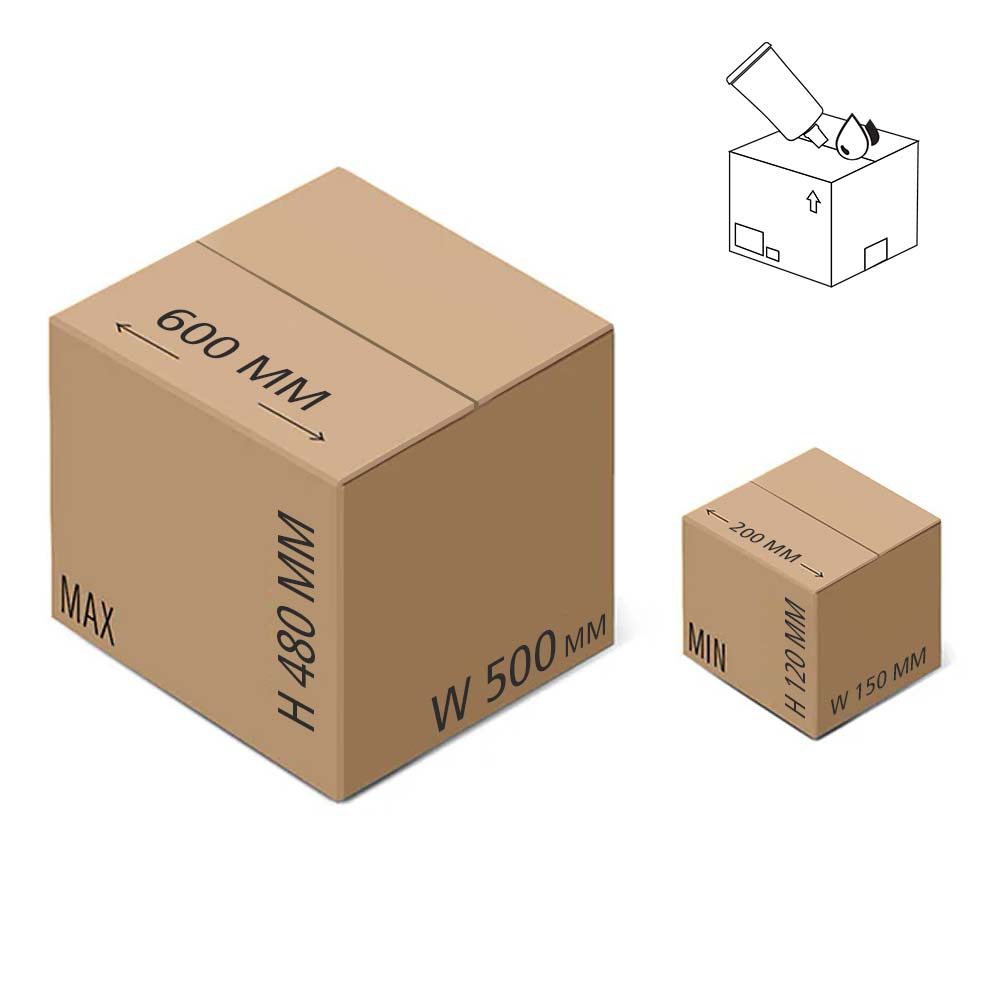

Dimension Min. product

L 200 x W 150 x H 120 mm

Max product size

L 550 x W 480 x H 480 mm

Type of boxes

American type
