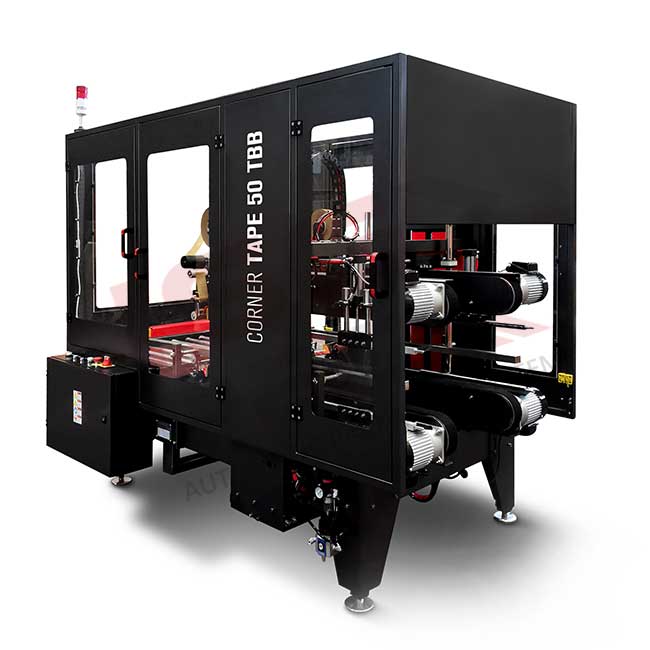

Automatic taping machine Corner Tape 50 TBB

In stock

REQUEST QUOTE NOW

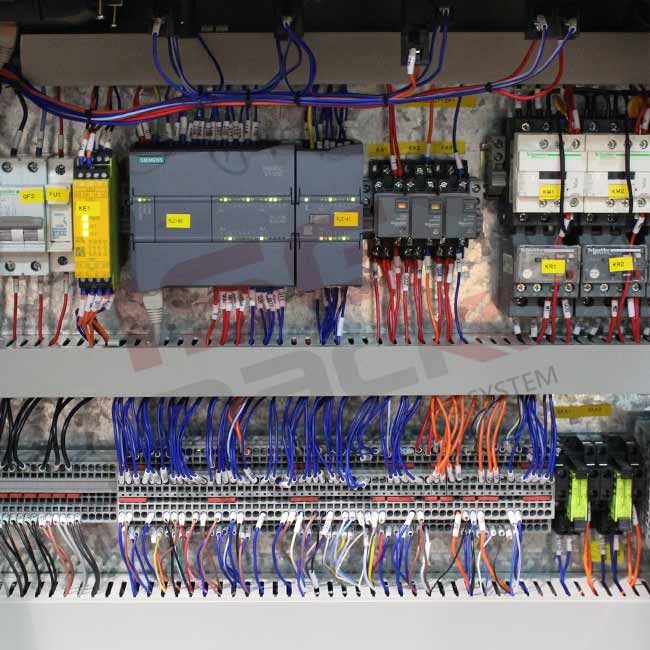

The Corner Tape 50 CF taping machine is an automatic machine to be used on completely automatic lines without the supervision of an operator. The taping machine can also tap the 4 edges of the box. Equipped with inlet and outlet rollers, it is a simple and practical packing station. The drives are of the pneumatic type and the electronic management is governed by SIEMENS® PLC.



Automatic taping machine that hermetically seals the four sides of the box.

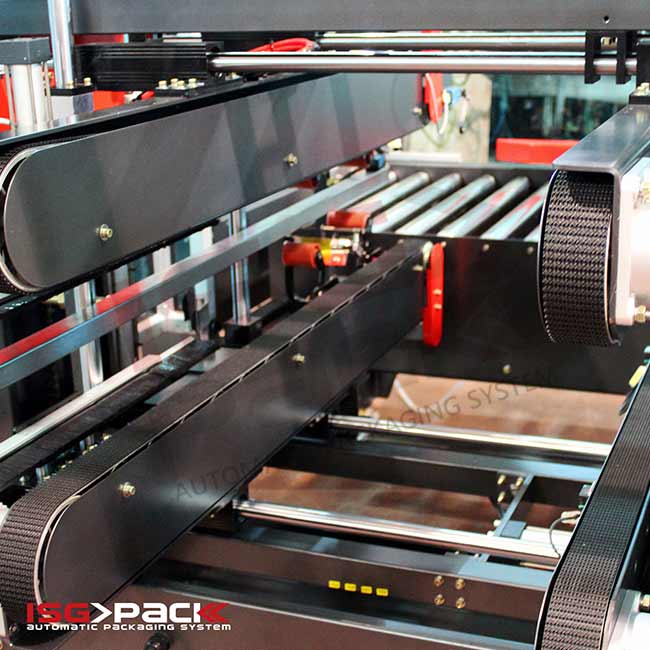

The Corner Tape 50 TBB automatic taping machine is a manual sizing machine for different formats. Automatically drag and tape the top and bottom sides of the cardboard box. The operator sets the machine adjustments according to the dimensions of the inserted box, varying the width and height of the drive belts. Push the box (previously taped in the central part above and below) towards the direction of entry. At this point the motorized rollers will guide the box towards the sensor that will activate the pusher, transferring it 90 ° with respect to insertion.

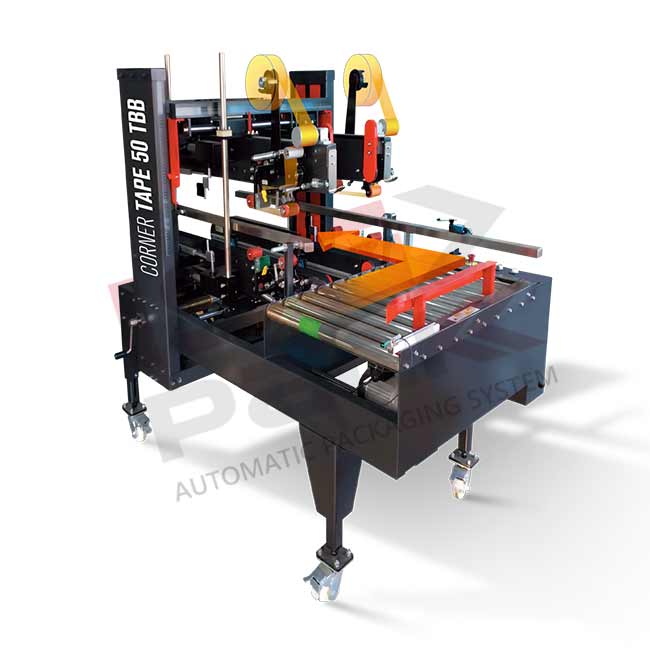

Automatic taping machine Corner Tape 50 TBB

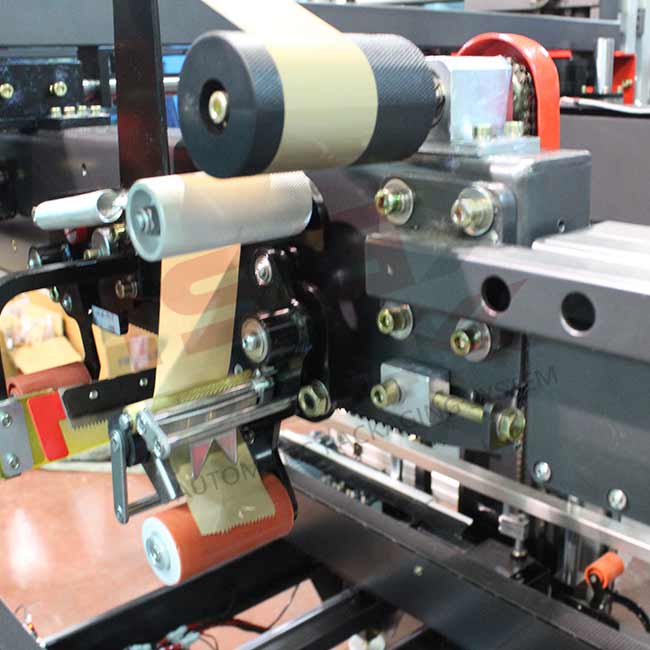

The four taping heads will seal laterally by applying 4 “U” strips and a system of air cylinders will activate to lower the edges of the tape and hermetically seal the box on all sides. This taping machine can also be inserted in automatic lines not manned by operators.

Features
  • Weight: 480 kg
  • Power supply: 220 Volts 50 /60 Hz
  • Environmental humidity conditions ≤ 90%
  • Box transfer speed: 19 mt / min

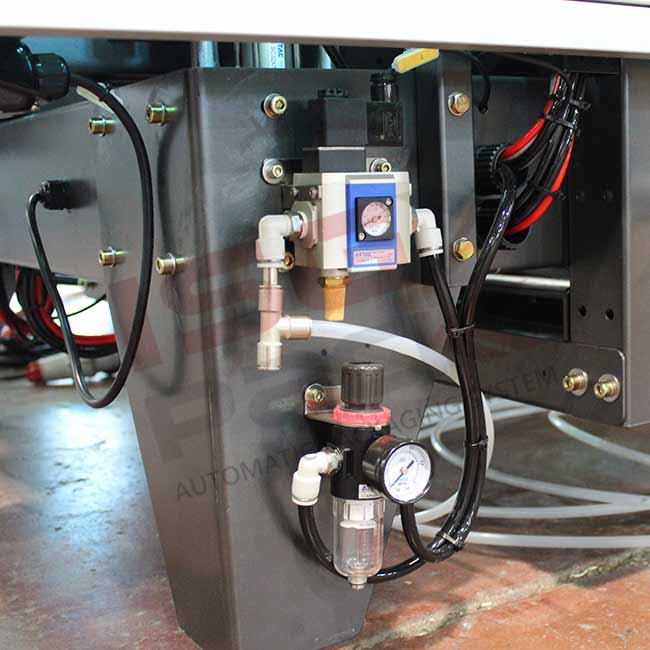

  • Air Supply: 5 kgf / cm2
  • Air consuption: 11 L/min
  • Use temperature: + 0 ° C to + 40 ° C
  • Maximum box weight: 35 kg
  • Maximum Noise: 75 db
  • Electrical protection: IP 54
  • Adhesive tape: Kraft, polypropylene, PVC
  • Standard taping head: 50 – 75 mm
  • Working table height: 600 – 750 mm
  • Installed power: 1,00 Kw

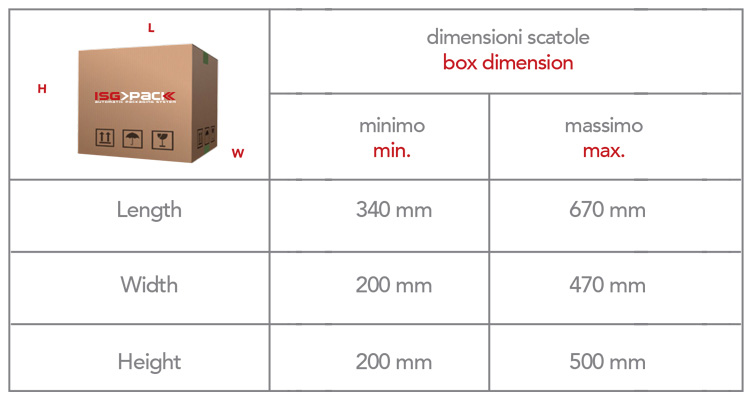

Formato scatole nastratrice automatica
Formato nastri adesivo per nastratrice automatica

nastratrici; macchine; automatiche; automatica; linea;

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

    How did you find our Company??

    Additional information

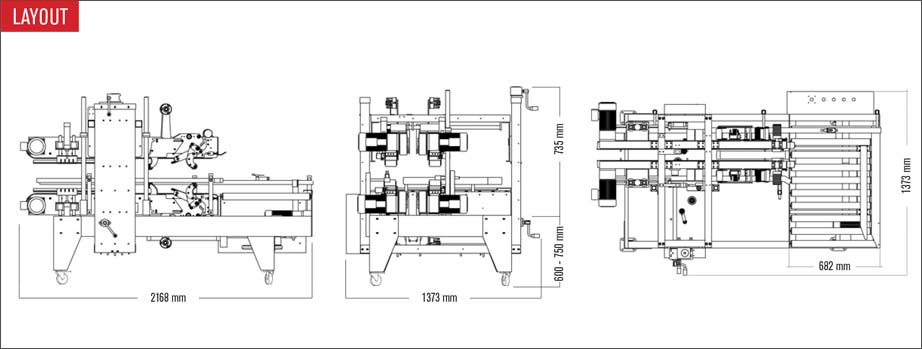

    Machine size

    L 2168 x W 1373 x H 1335 – 1485 mm

    Net weight

    480 Kg.

    Power supply

    220 Volt 1Ph

    Power supply frequency

    50/60 Hz

    Installed power

    1 Kw

    Air pressure

    6 bar

    Air consumption

    11 Nlitri/min.

    Adhesive tape

    Kraft, polipropilene, pvc

    Sealing speed

    4/6 scatole/min.

    Transfer speed

    19 mt/min

    Working table height

    H 600/750 mm

    Dimension Min. product

    L 340 x W 200 x H 200 mm

    Max product size

    L 670 x W 470 x H 500 mm

    Type of boxes

    American type
