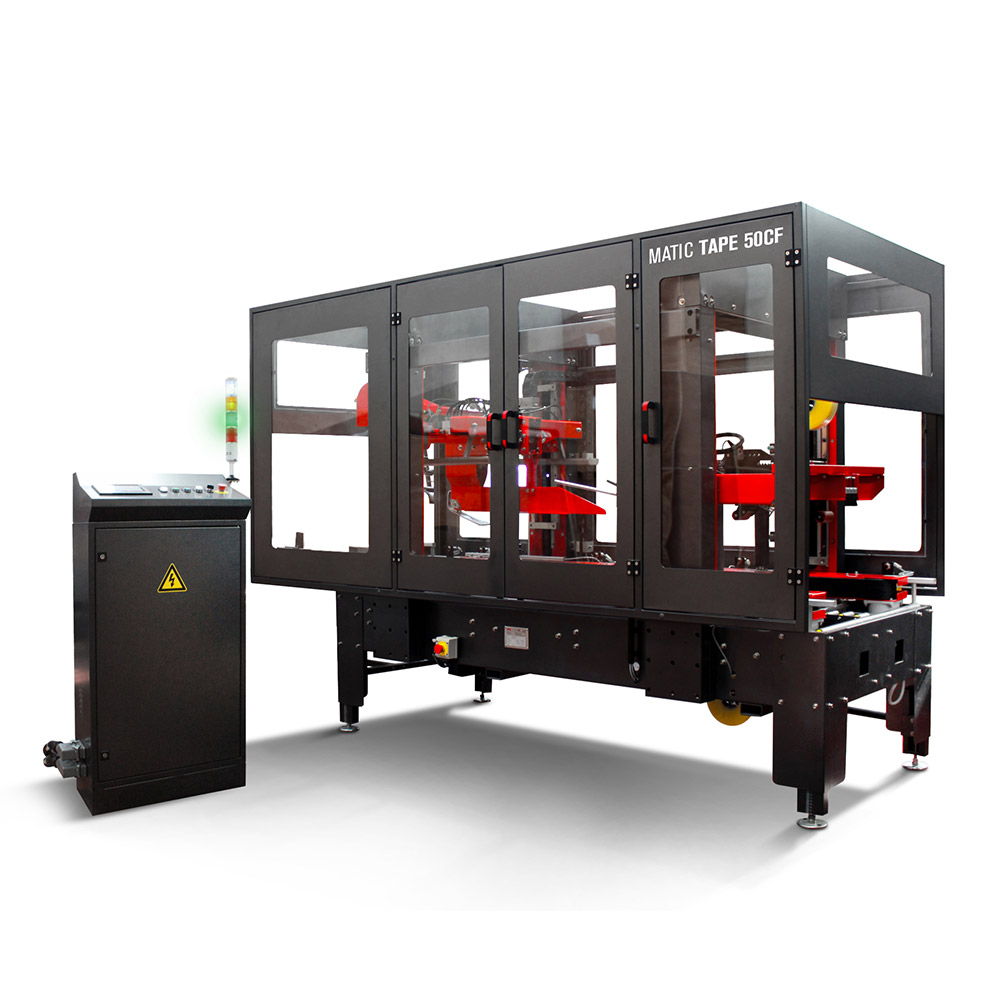

Automatic carton sealer Matic Tape 50 CF

In stock

REQUEST QUOTE NOW

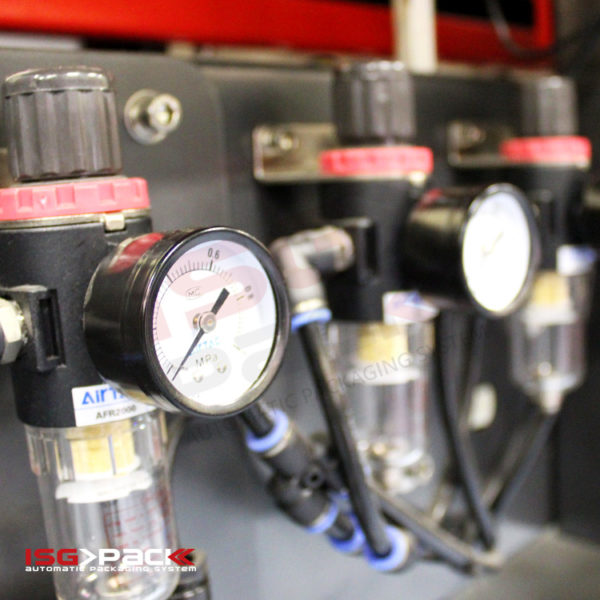

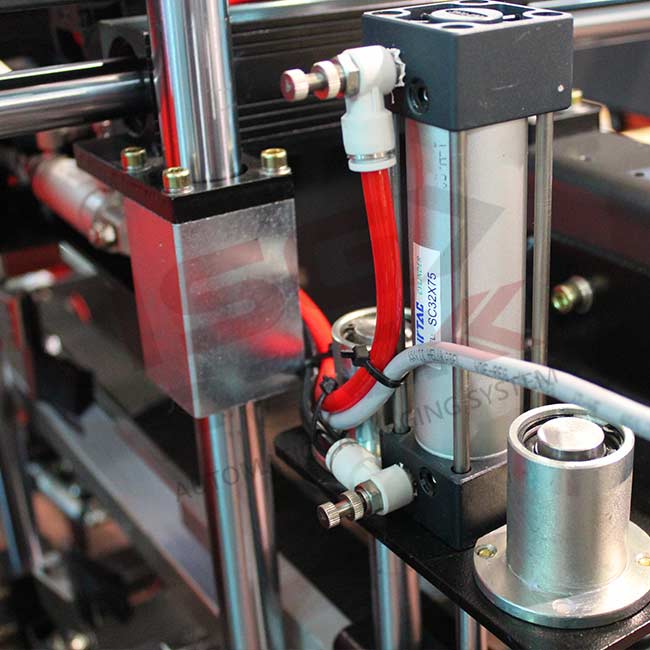

The Matic Tape 50 CF carton sealer is an automatic machine to be used on completely automatic lines without the supervision of an operator. Equipped with inlet and outlet rollers, it is a simple and practical packing station. The drives are of the pneumatic type and the electronic management is governed by SIEMENS® PLC.

WEIGHT
MACHINE 820 kG

WITHOUT
OPERATOR

ADESIVE TAPE
KRAFT PP, PVC

TOP/BOTTOM
SEALING

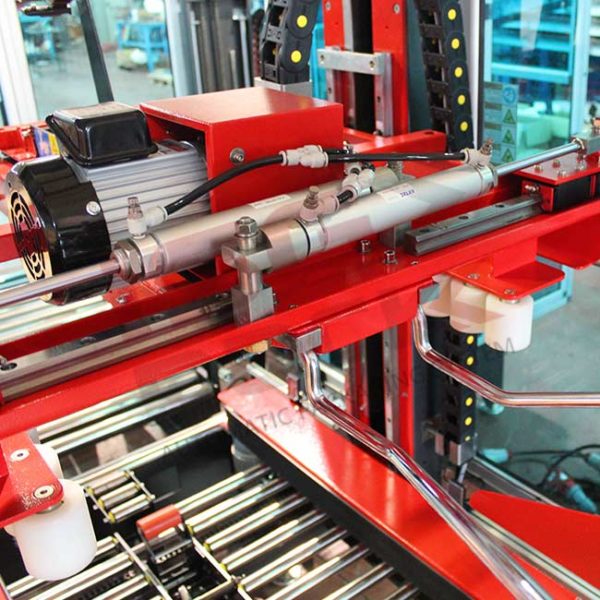

Automatic and self dimensioning carton sealer whit flap closing system

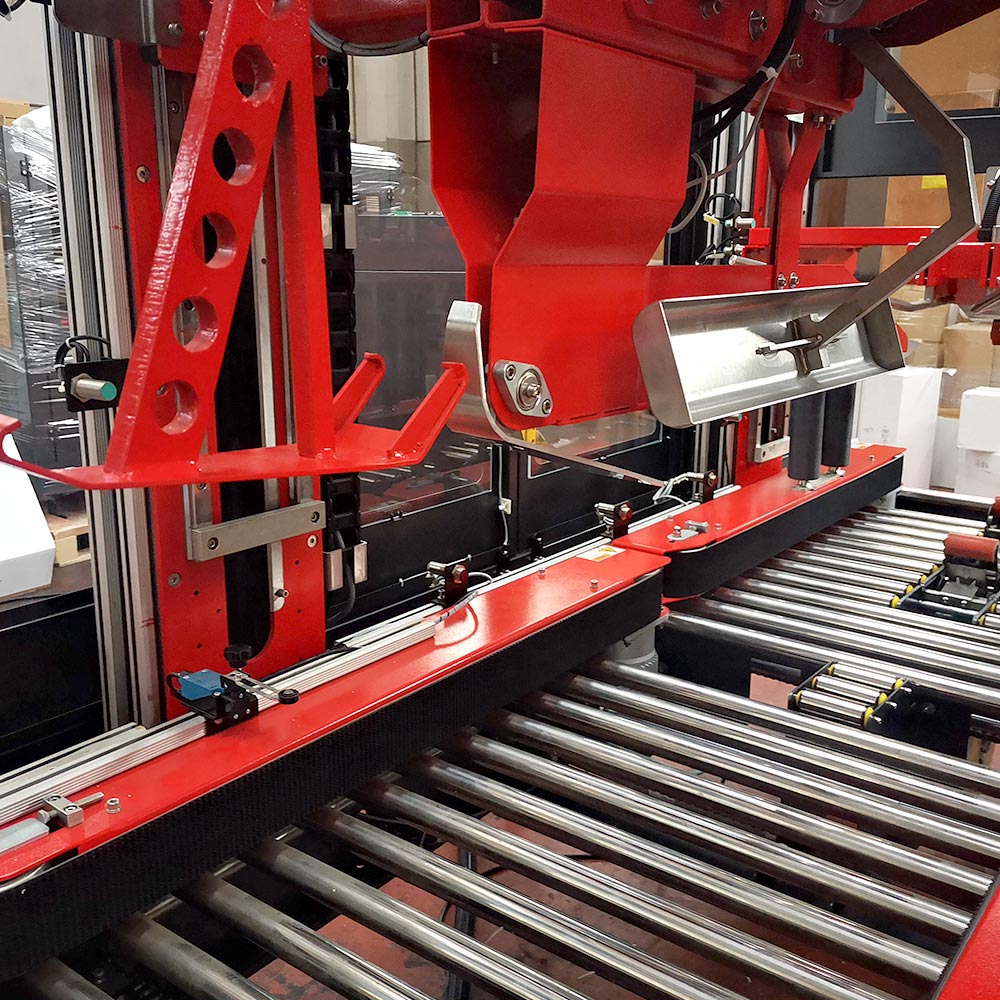

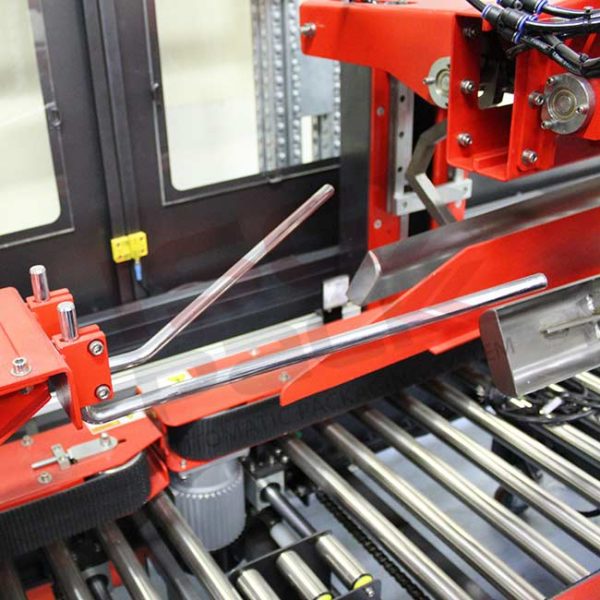

Automatic and self dimensioning carton sealer with flap closing system. It folds the four upper flaps and seals the top and bottom variable sized american-type boxes automatically. To be used on fully automatic lines without operators. Machine structure in folded, welded and painted steel sheet. Box feeding is regulated by four lateral bottom belts controlled by four motors. The machine self adjusts to the boxes, automatically folds the four upper flaps and seals them. Pneumatic drives and electronic system controlled by SIEMENS plc.

Cadence and centering device

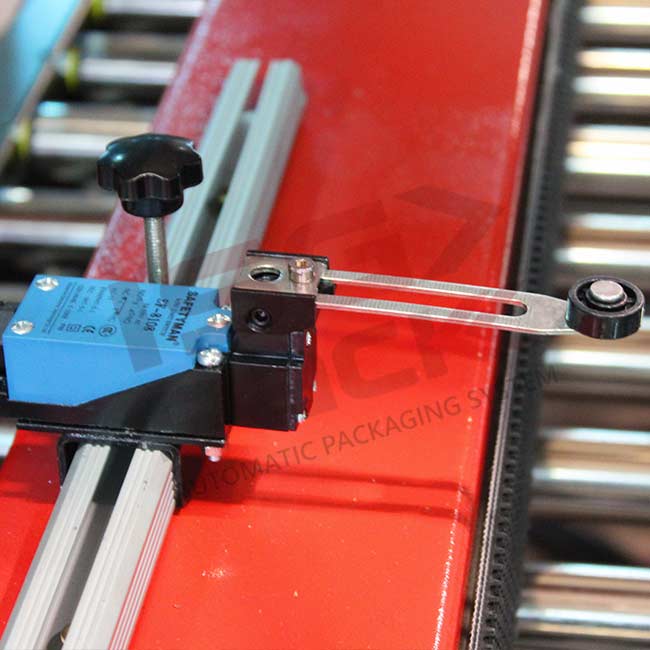

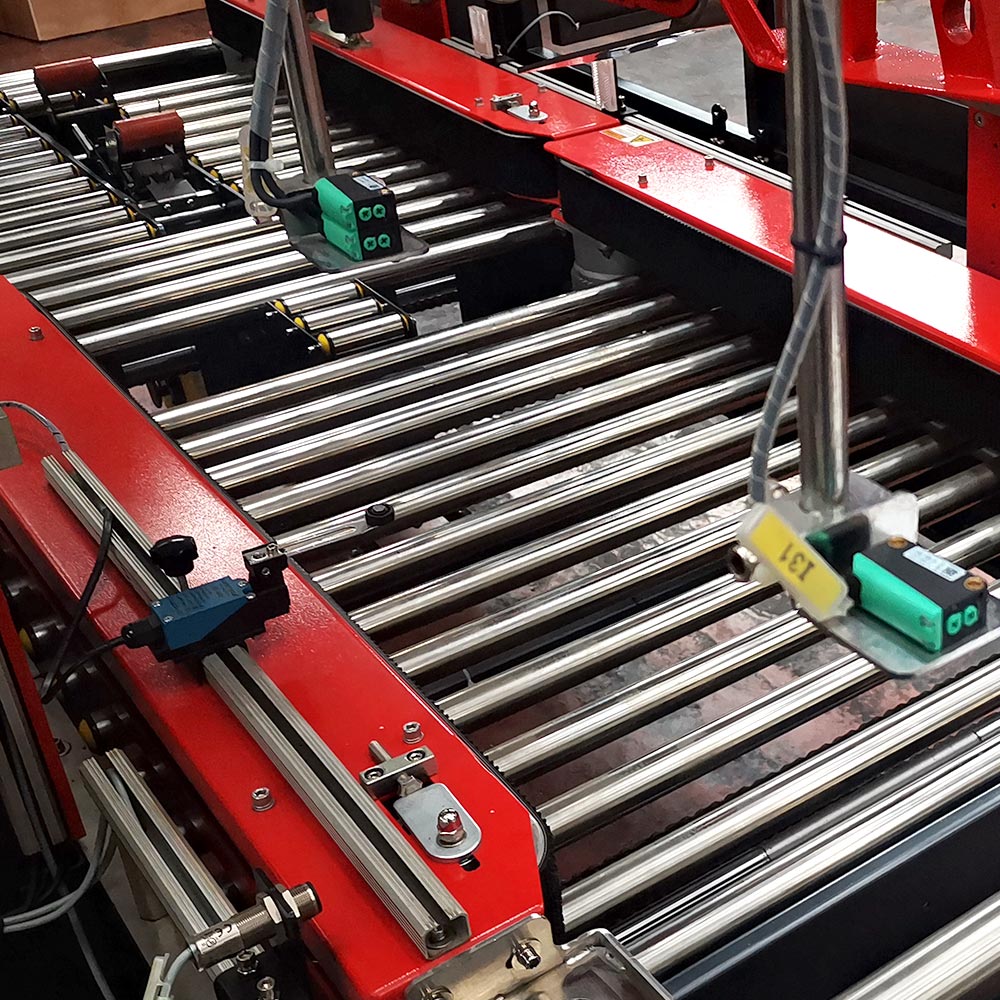

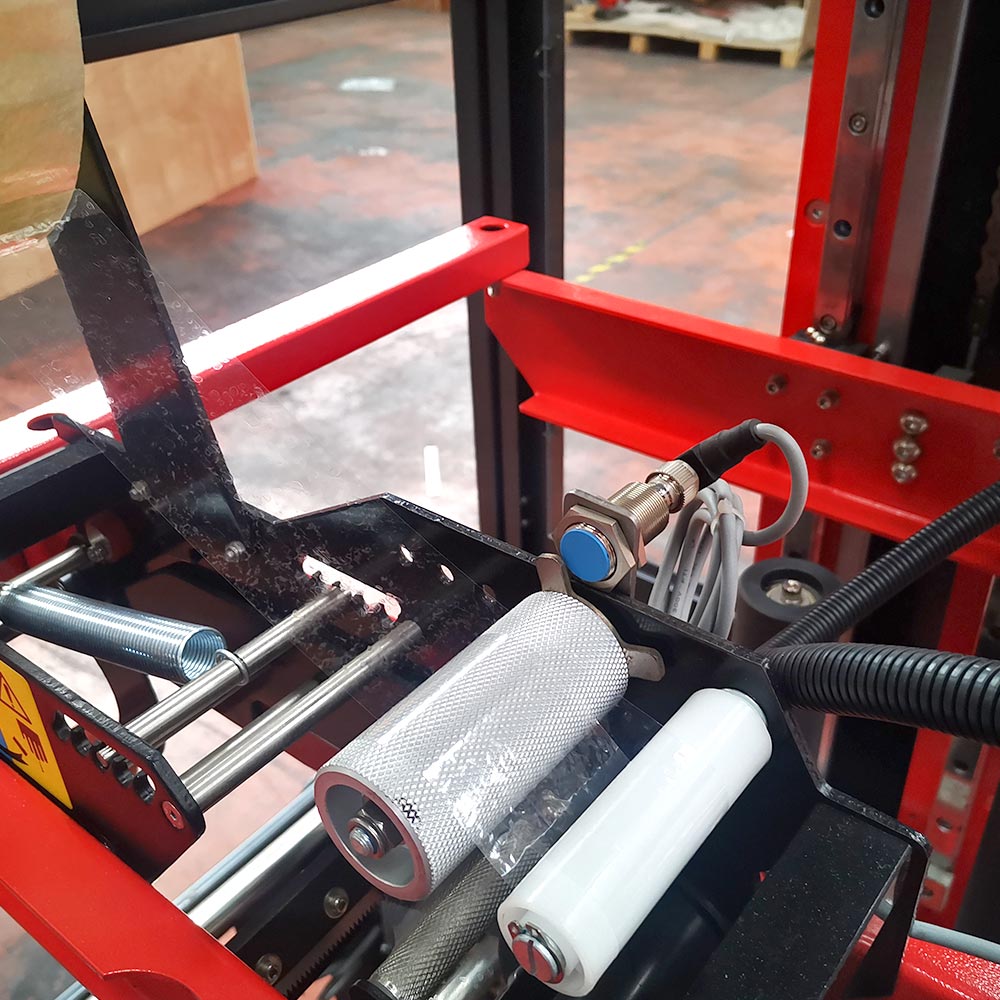

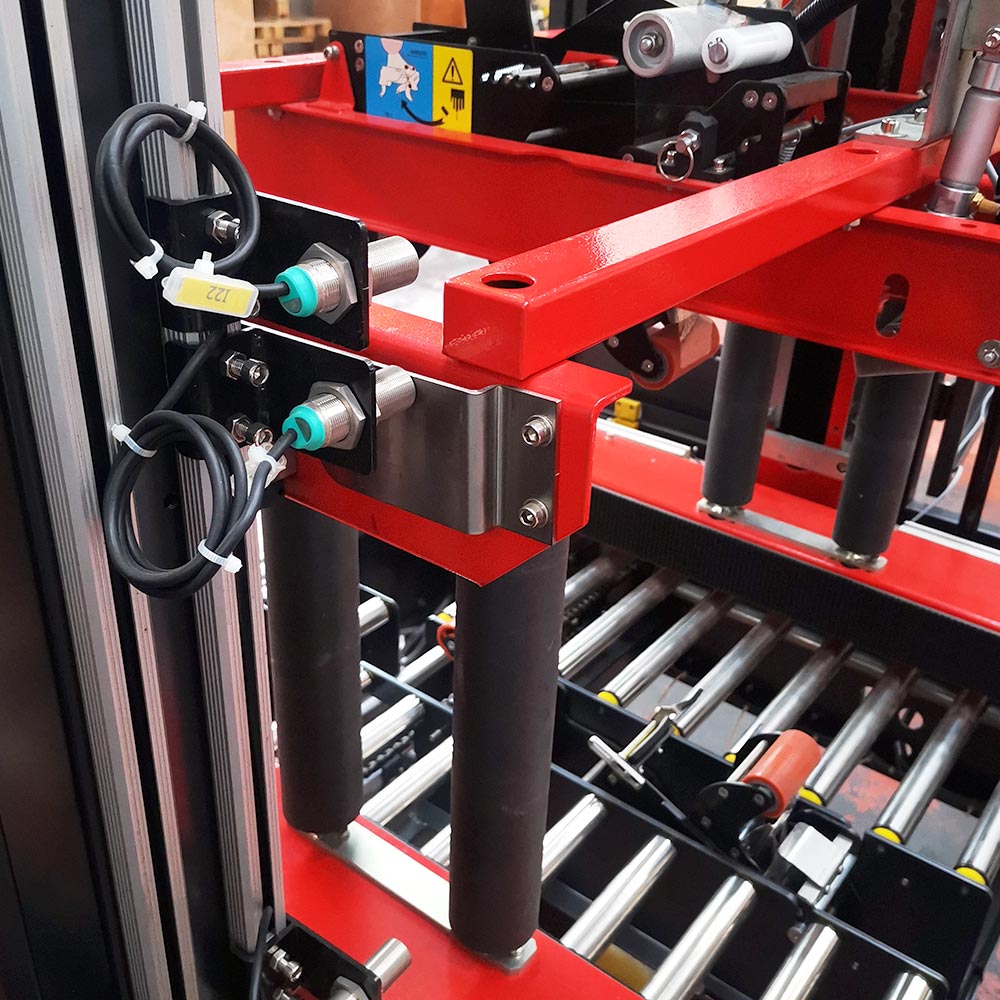

On this automatic taping machine Matic Tape 50 CF the infeed roller conveyor can be replaced with the insertion of an automatic centering device / cadence which, through the installation of special sensors placed on the guide of the conveyor belt of the boxes, allows to cadence at the machine infeed the cartons to be taped.

Features
  • Weight: 820 kg
  • Power supply: 380 Volts 50 /60Hz
  • Environmental humidity conditions ≤ 90%
  • Box transfer speed: 19 mt / min
  • Air Supply: ≥4kgf / cm2
  • Use temperature : + 0 ° C to + 40 ° C
  • Maximum box weight: 35 kg
  • Maximum Noise: 75 db
  • Electrical protection: IP 54
  • Adhesive tape: Kraft, polypropylene, PVC
  • Standard taping head: 50 – 75 mm
  • Working table height: 550 – 750 mm
  • Installed power: 1,20 Kw

nastratrici; macchine; automatiche; automatica; linea;

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Machine dimensions
Net weight

820 Kg.

Power supply

380 Volts

Power supply frequency

50/60 Hz

Installed power

1,20 kW

Air pressure

6 bar

Air consumption

5/6 Nlitri/min.

Maximum noise

75 dB

Taping head

50 – 75 mm

Closing system

Tape

Adhesive tape

Kraft, polipropilene, pvc

Sealing speed

6/8 scatole min.

Transfer speed

19 mt/min

Working table height
Dimension Min. product

L 250 x W 200 x H 150 mm

Max product size

L 500 x W 450 x H 400 mm

Type of boxes

American type

Type of cartons

Various sizes

Taping type

Top and the bottom

Box forming

Self-dimensioning
