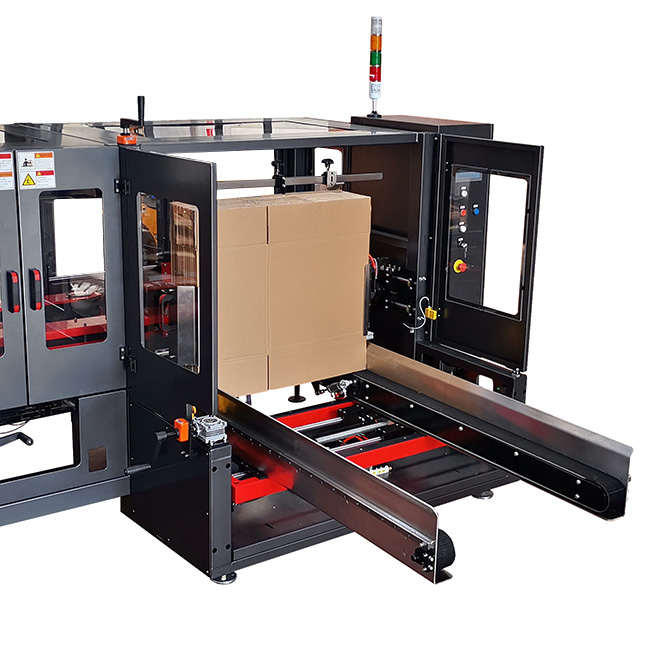

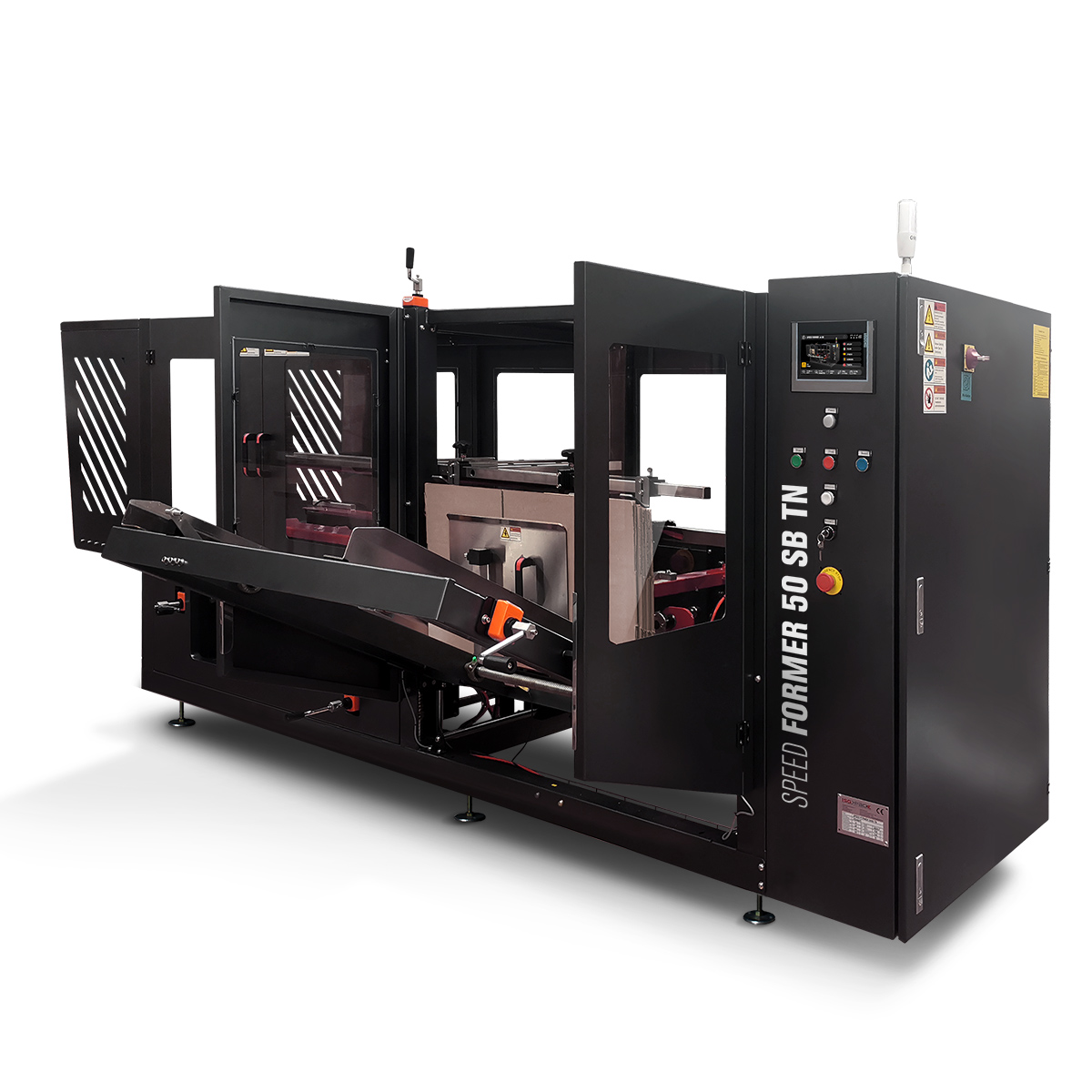

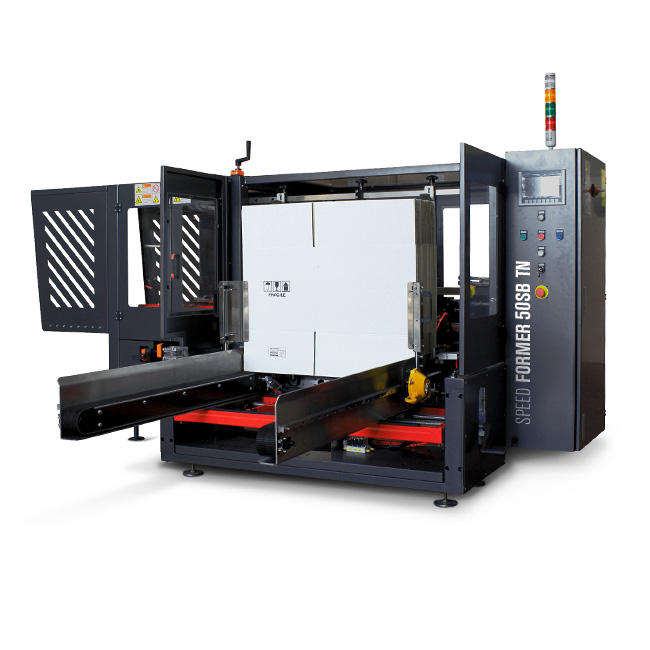

Automatic case former Speed Former 50 SB TN

In stock

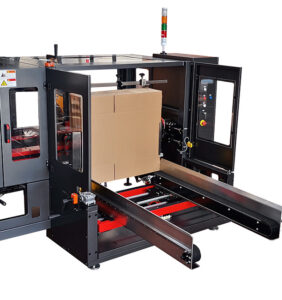

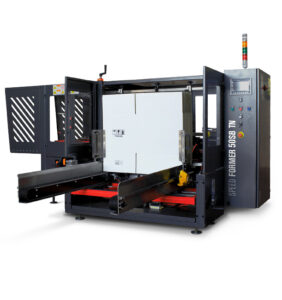

The Speed Former 50 SB TN is a automatic case formers machine equipped with a motorized magazine with a capacity of 150 cartons. It automatically molds and tapes the bottom of the cardboard. It is powered both by air and by current and has a production speed of 12 minute boxes. Machine available on request also in ASI 304 stainless steel.

Automatic case former machines with touch screen for setting box sizes and forming speed up to 16 cartons per minute.

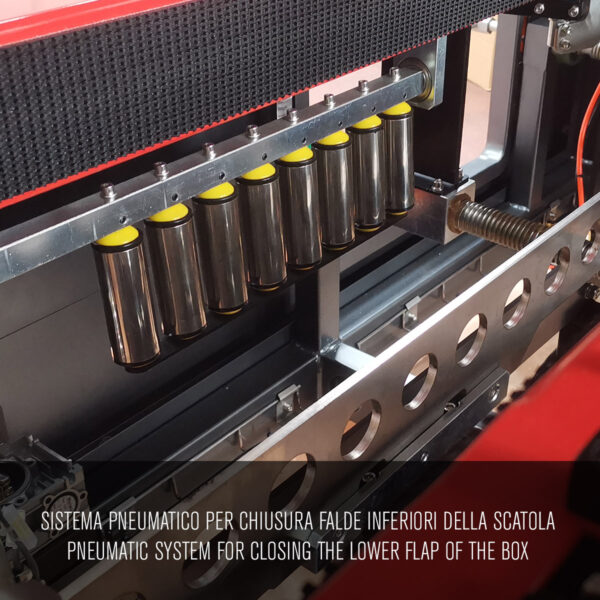

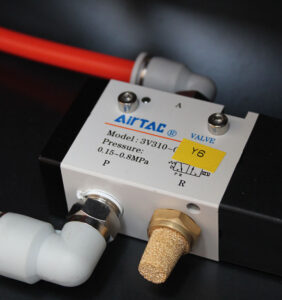

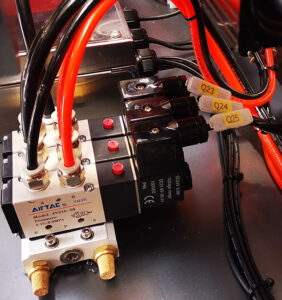

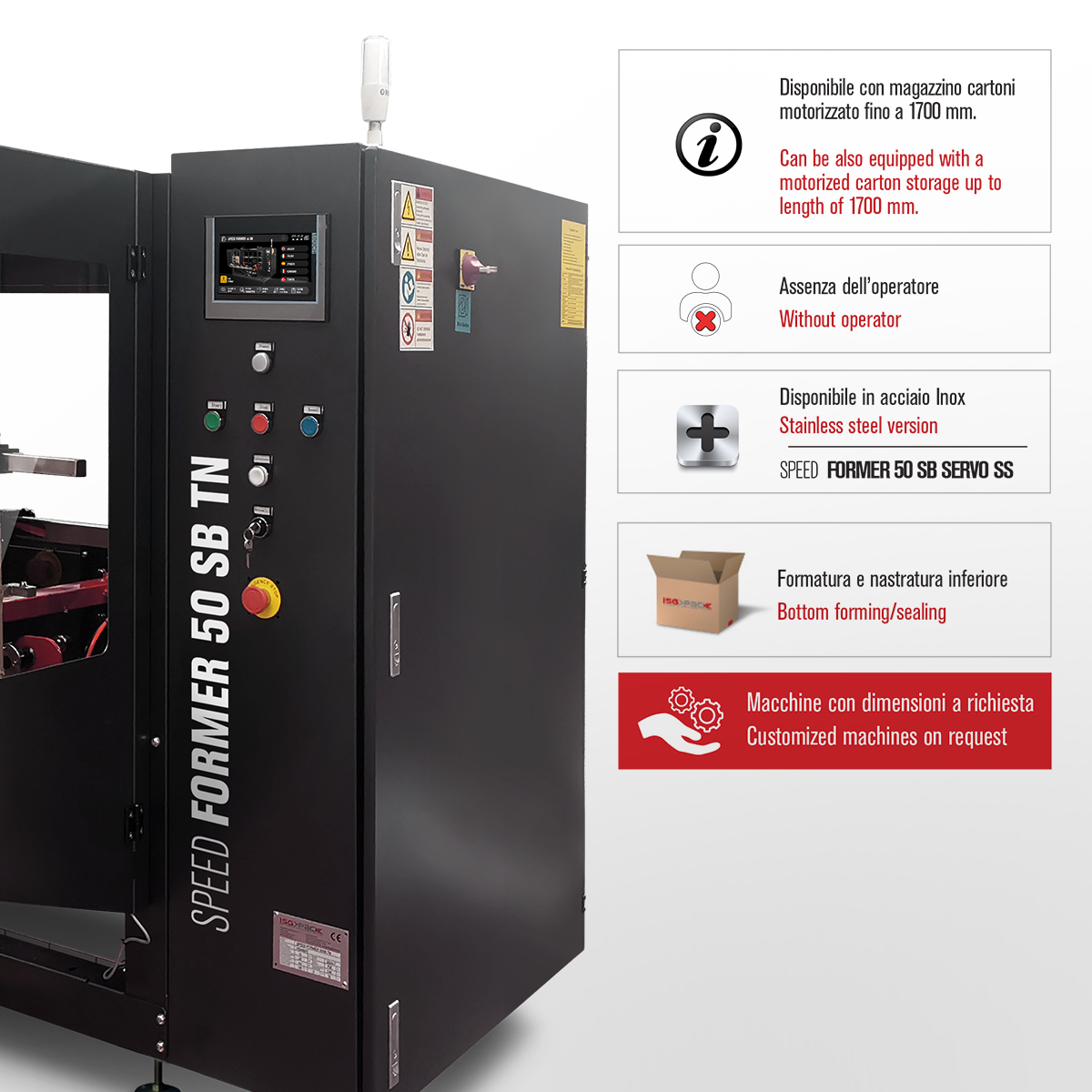

The automatic case former, mod. Speed Form 50 SB TN, formes the bottom of same sized american-type boxes automatically, folding the four bottom flaps. The bottom carton form is made in complete reliability thanks to a perfectly synchronized closing movement. Forming speed up to 16 boxes per minute. Electropneumatic devices guarantee a perfect box forming and squared-folding. A gripping head with suction cup system, activated by a Venturi group, picks up the box from the lateral storage and holds it during the opening thanks to a contrast system. All regolations such as width and lenght during the box opening, width during the sealing and box storage height are regulated by touch screen and are controlled by four servo motors. The box sizes and 30 storable programs can be regulated by touch screen SIEMENS PLC. The box can be closed with adhesive tape or Nordson hot melt system, “MESA”. This machine can be also equipped with a motorized carton storage up to a lenght of 1700 mm. Case erectors available left/right box outfeed.

Operation of the machine

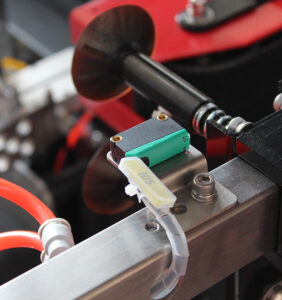

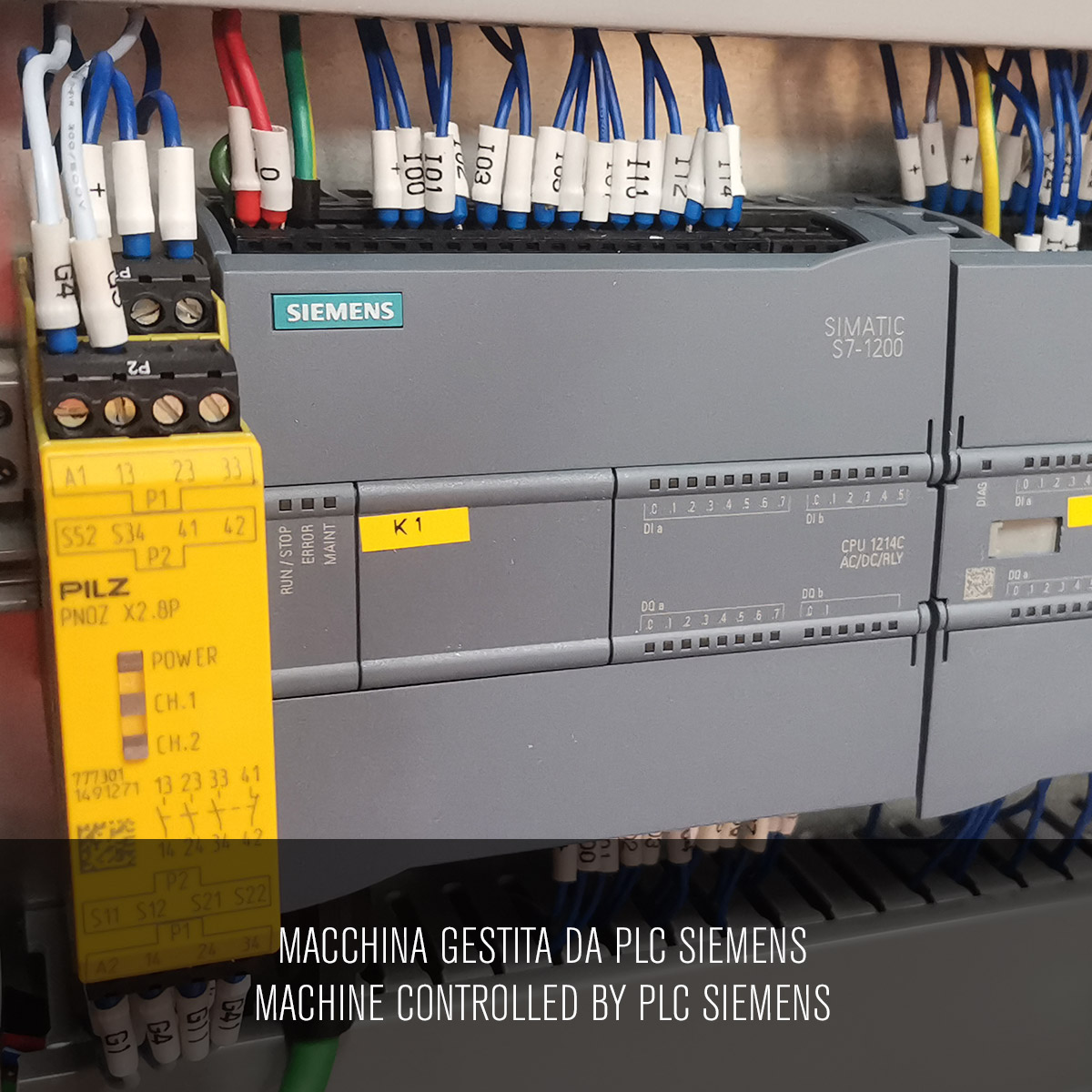

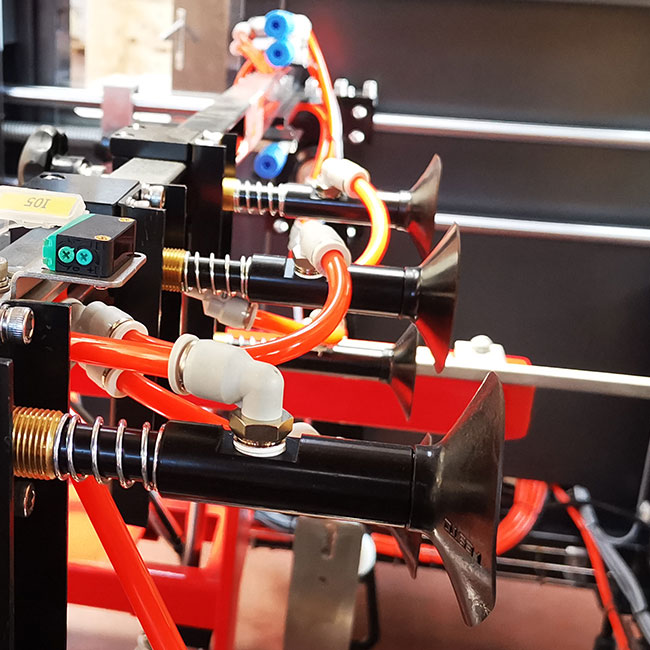

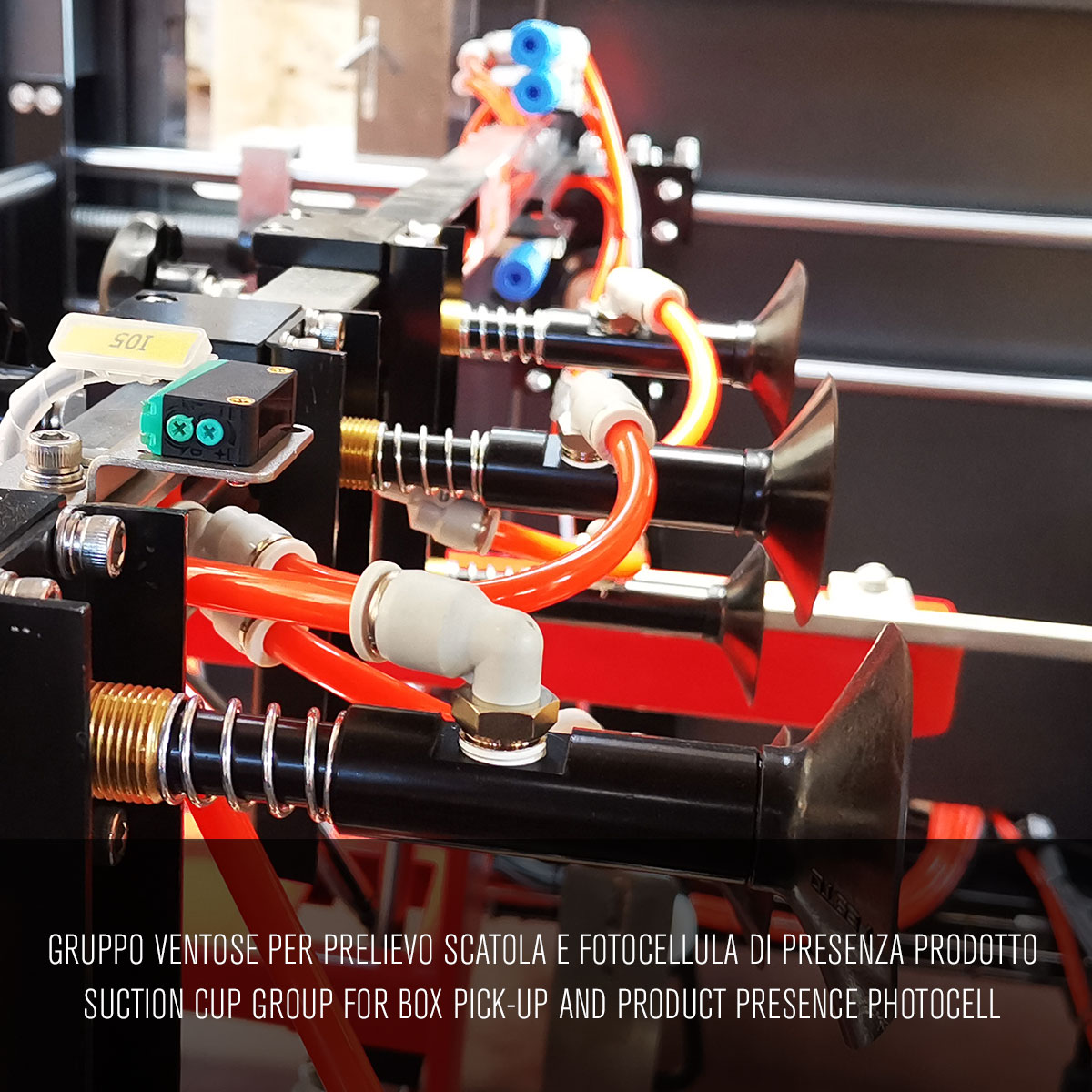

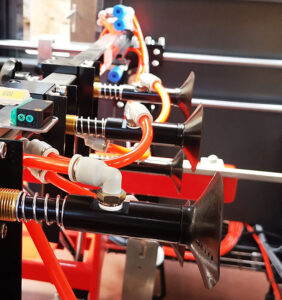

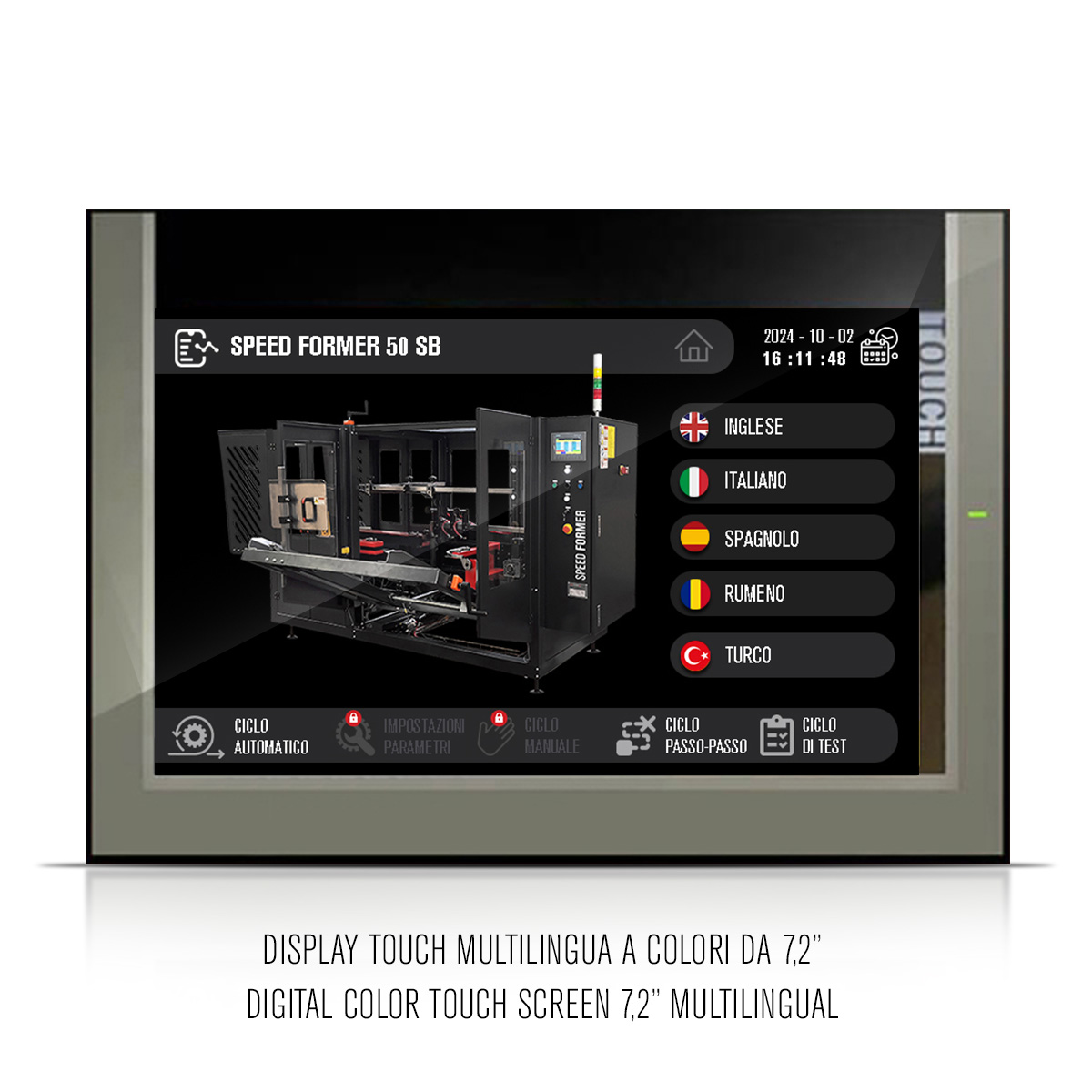

A gripping head with suction cups, driven by a Venturi unit, picks up the box from the side magazine while holding it during opening, which is done by a contrasting system. Adjustments of the width, the length of the box during unwrapping, the width of the box during taping in addition to adjusting the height of the carton magazine are managed via touch screen by four servo motors. Operation management by Siemens PLC with touch screen for format management with 30 available memories recallable from panel.

Box closing can be done by tape or hot glue with Nordson melting unit mod. “Mesa” . Machine with motorized carton magazine up to 1500 mm. Available in right or left exit version.

Misure scatola utilizzate dal formatore per scatole
Misure nastro adesivo utilizzato dalla formacartoni automatica


  • Power supply: 380 Volts – 50 / 60 Hz – 3 ph
  • Installed power: 1.2 kW

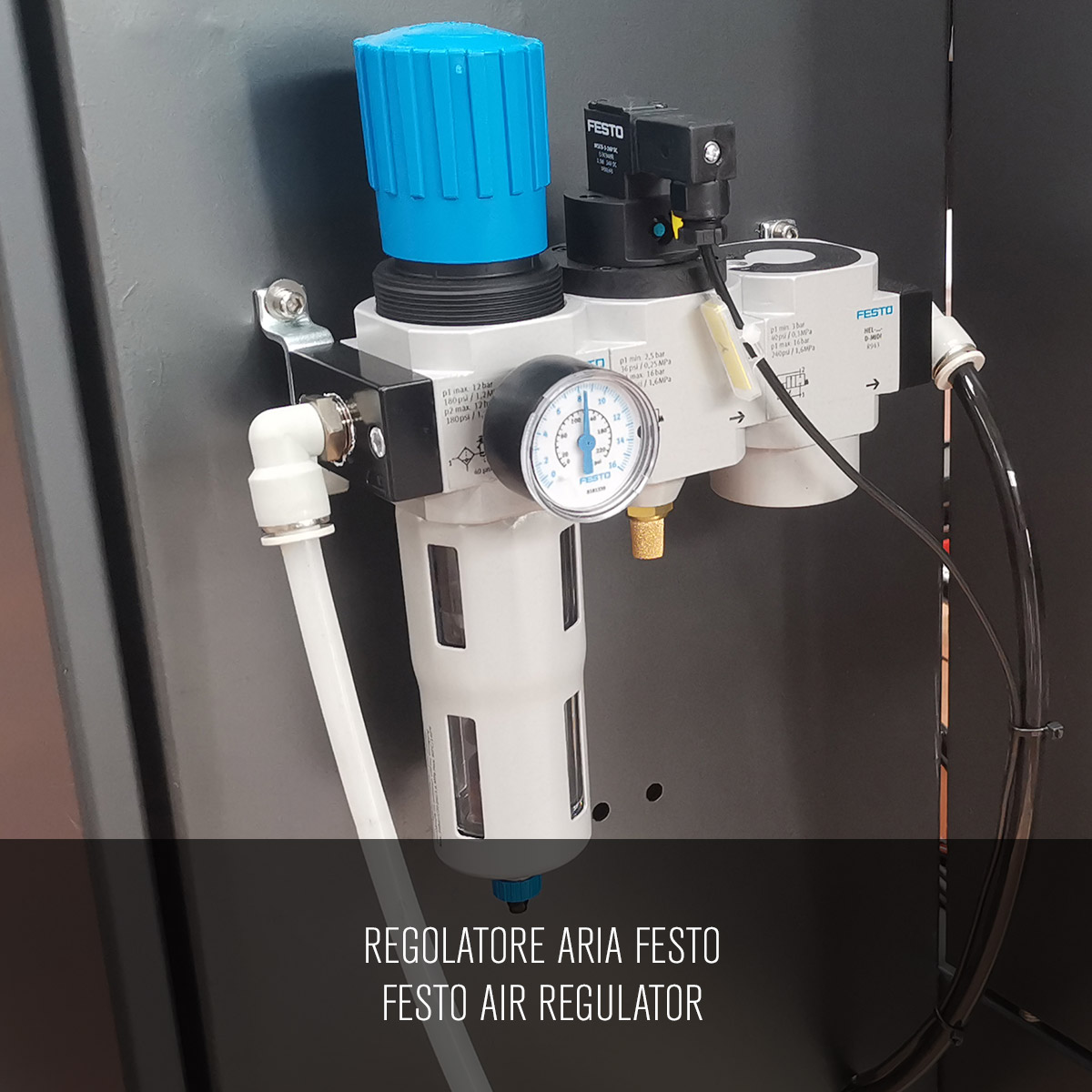

  • Air pressure: 6 bar
  • Air consumption: 220 Liter / min.
  • Motorized box magazine: 150 (variable according to box thickness)
  • Production capacity: o to 12 boxes min. (depending on box characteristics)
  • Machine weight: 950 kg.

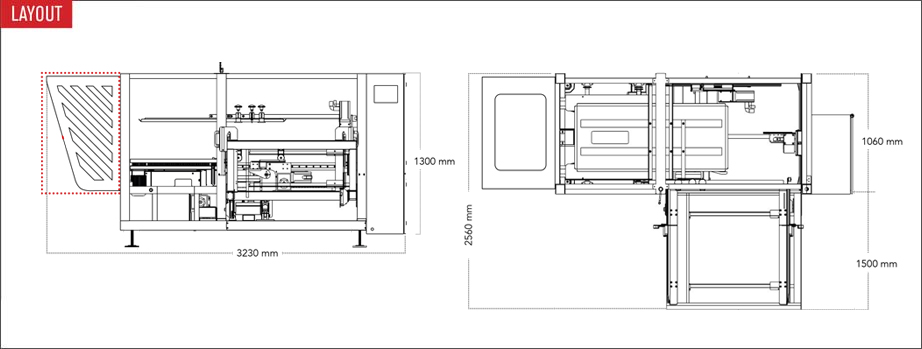

  • Machine dimensions: L 2630 mm × W 2560 mm × H 1300 mm – 1450 mm
  • Max noise level: ≤ 75 db

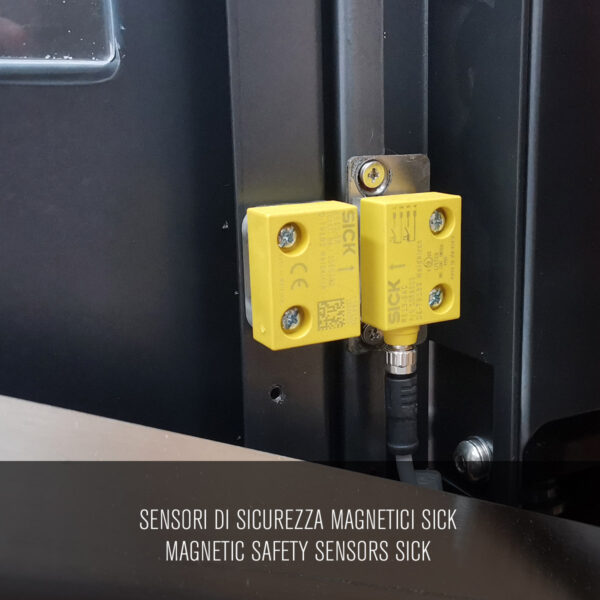

  • Emergency mushroom for CE regulations
  • Adhesive tape: Kraft, Polypropylene, PVC

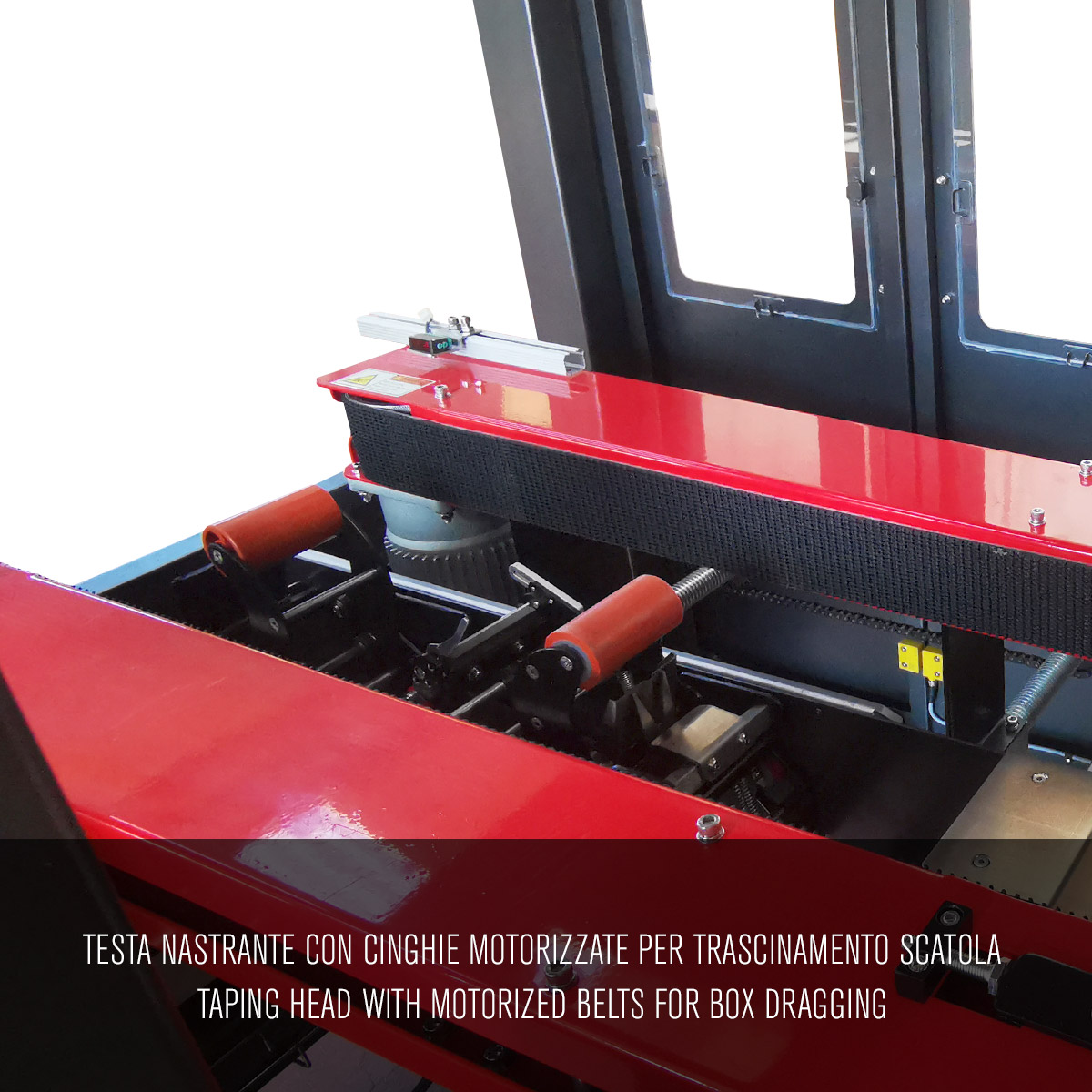

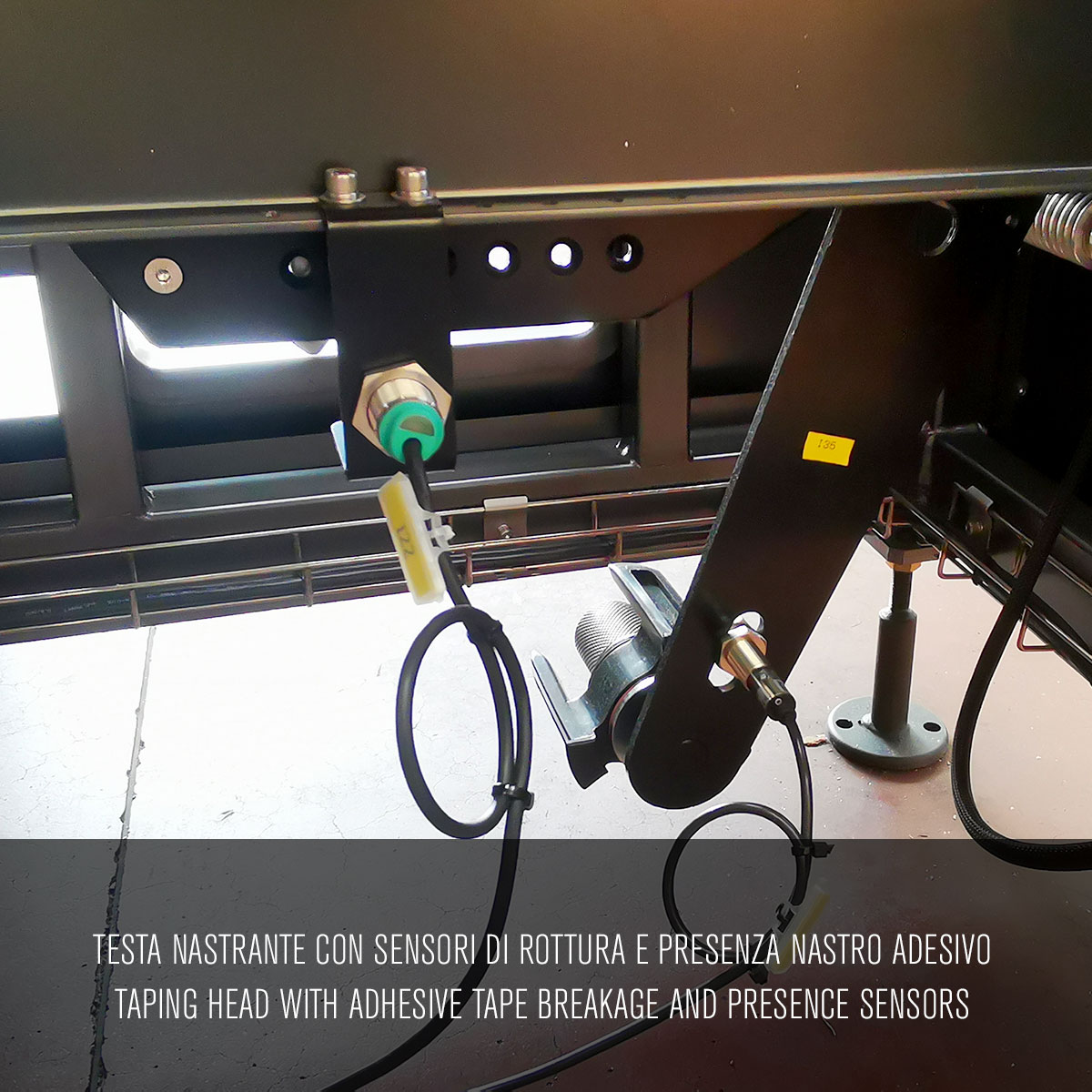

  • Standard taping heads: 50 – 75 mm
  • Work surface height: 650 + 100 mm
  • 30 available memories manageable from touch screen panel


Save time! Request a quote for this product without obligation. Fill in all the fields below correctly. One of our sales staff will answer you as soon as possible. Alternatively contact us at +39 06 9160 7561

Additional information

Machine size

L 2630 mm × W 2560 mm × H 1300 – 1450 mm

Net weight

950 Kg.

Power supply

380 Volts 3 ph

Power supply frequency

50/60 Hz

Installed power

1,20 kW

Air consumption

220 Litri/min

Air pressure

6 bar

Box storage

150 boxes

Dimension Min. product

L 250 x W 150 x H 150 mm

Max product size

L 530 x W 400 x H 400 mm

Type of boxes

American type
