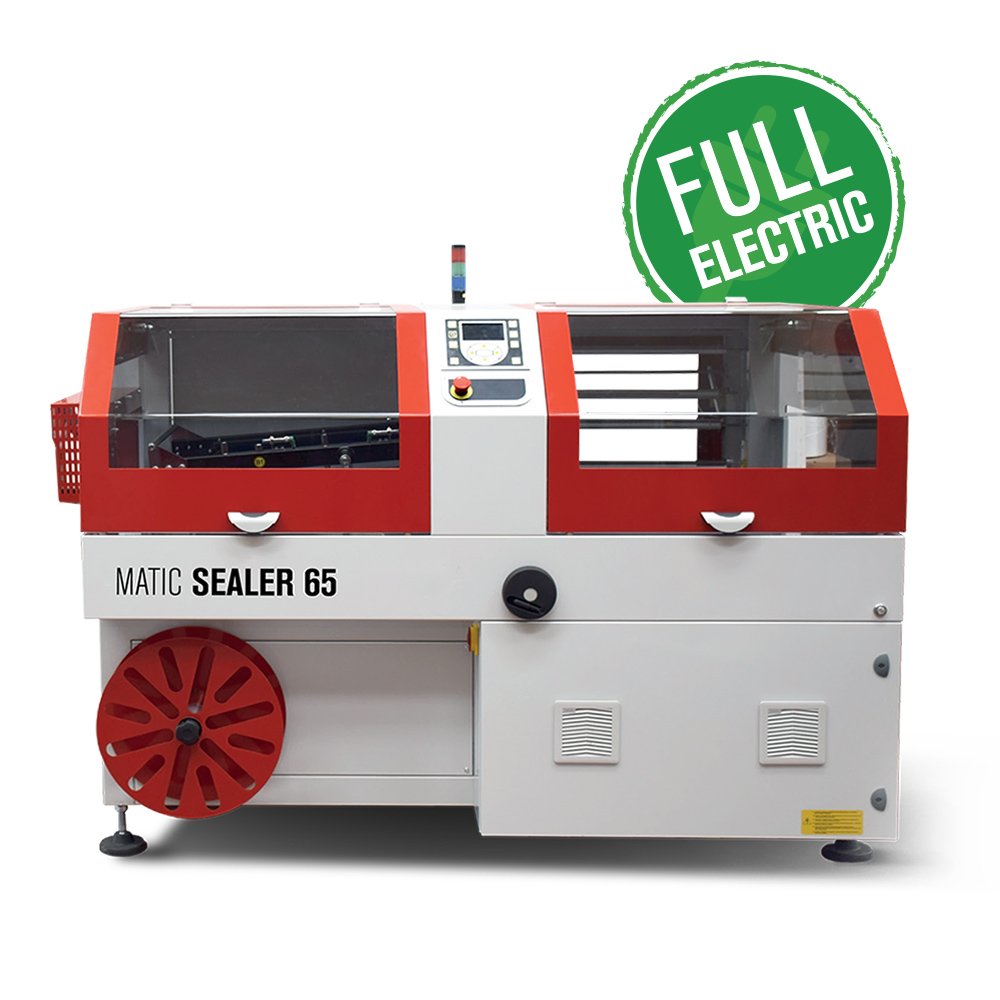

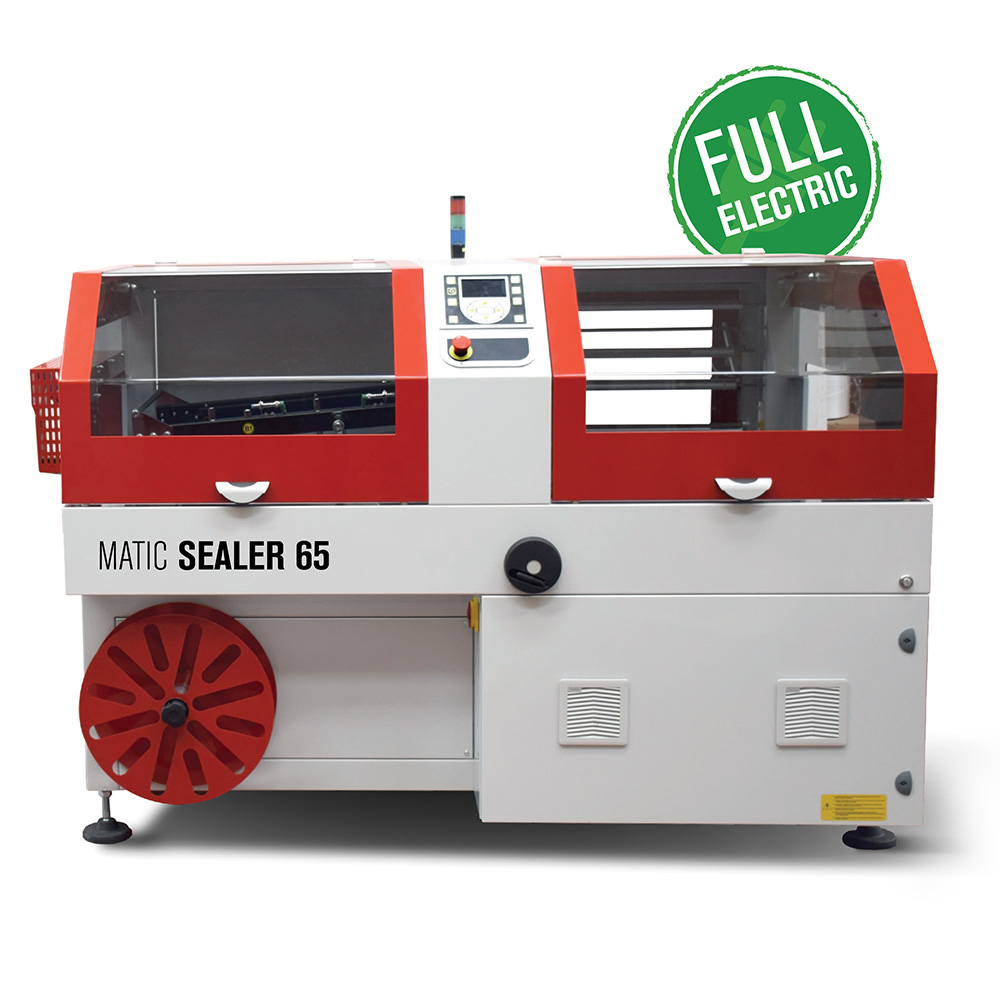

Automatic shrinking machine Matic Sealer 65

In stock

REQUEST QUOTE NOW



The Matic Sealer 65 packaging machine is a fast and reliable automatic angular machine, with a working production up to 3000 pph. It guarantees maximum flexibility in packaging, guaranteeing product quality and limited investment. All models in this range can be supplied with and without shrink tunnel. The machine can be used with polyethylene and single-fold polyolefin.

WITH
OPERATOR

INSTALLED
POWER 3,3 kW

MAX. PACK
HEIGHT 150 mm.

SEALING BAR
L 640 x W 510 mm



The automatic L-sealers with tunnel, Matic Sealer 65, have high quality and a very good price and is possible to get it with or without the shrinking tunnel. These machines can work with center folded polyethylene and polyolefin shrink film and the production capacity is up to 3000 packages per hour.

USE
The power conveyor moves the products into the center folded film, the photocells detect the products and the working cycle starts. The power supply, the film unwinding, the sealing and the product outfeed are fully automatic.

OPTIONAL
  • Printed film centering device
  • Sealing bar for polyethylene from 15 to 60 my
  • Film cold perforator
  • Infeed roller conveyor increased by 500 mm
  • Protected outfeed roller conveyor pitch 46mm length 1000mm
FEATURES
  • Automatic L-sealer with shrink tunnel
  • Motorized sealing bar controlled by inverter and encoder
  • Conveyor closing system included
  • PTFE-coated sealing blade
  • Emergency button
  • Safety device
  • Continuous cycle sealing
  • FLXMOD® control system equipped with: 4,3” graphic LCD control panel with PLC
  • Modular power section made up by: inverter IN/OUT (inlet/outlet) digital and analog control modules
  • This system allows a simple and precise control of all the machine operations, such as: possibility of storing up to 20 different operation programs
  • Compliance with CE regulations
OPERATIONS CONTROL
  • Automatic control of the sealing bar height
  • Double adjustment of the sealing blade temperature, both lengthways and broadways sealing time adjustment
  • Possibility of packing single packs or multipacks
  • Fixed conveyor speed
  • Process statistics
  • Reduced power consumption

confezionatrici; angolari; automatiche; termoretraibili, termoretraibile; film termoretraibile,

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

Additional information

Machine dimensions

L 2180 x W 1545 x H 1505/1665 mm

Net weight

580 Kg.

Power supply

380 Volts 3 ph

Power supply frequency

50 Hz

Installed power

3,3 kW

Dimension sealing bar

640 x 510 mm

Speed conveyor

10/30 mt/min.

Max height product

150 mm.

Max production

3000 pph

Max dimension film roll

600 – ø 350 mm

Packaging material

Pvc, Poliolefin

Film roll thickness

Up to 30 my
