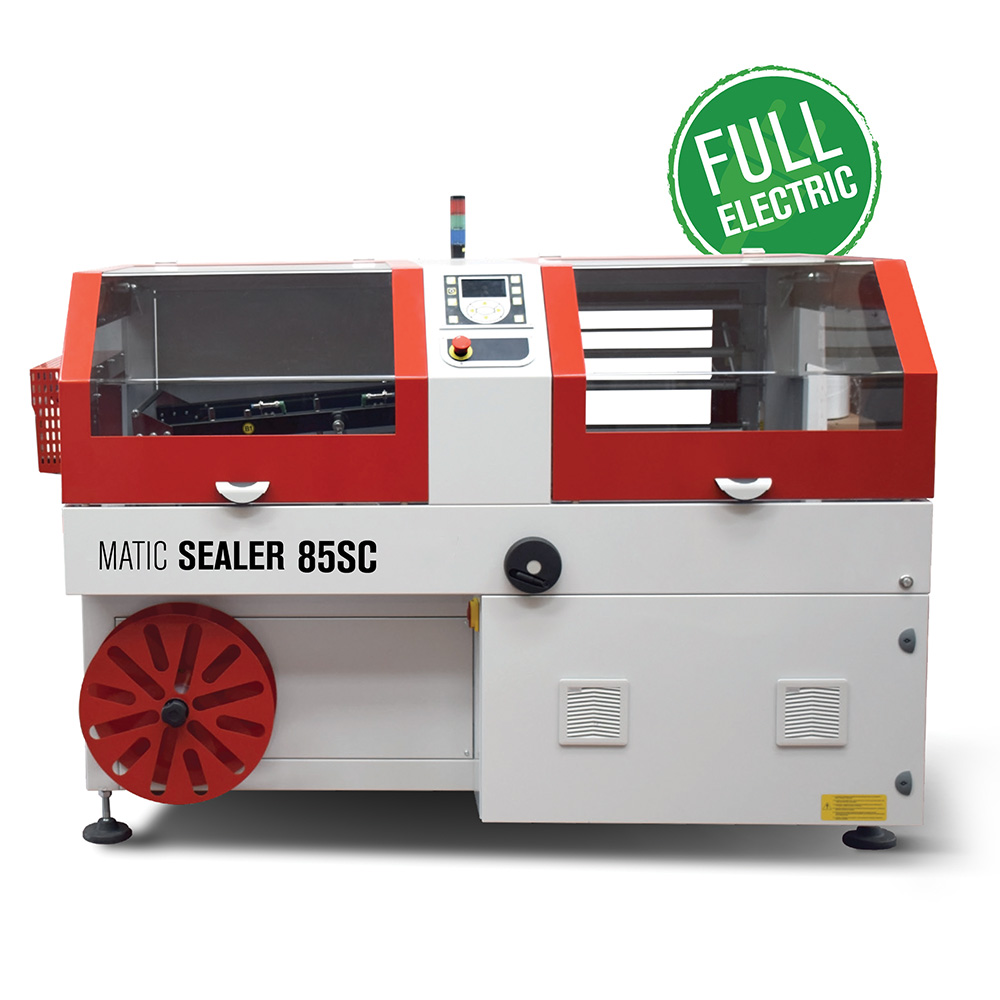

Automatic shrink wrapping machine Matic Sealer 85 SC

In stock

REQUEST QUOTE NOW



The Matic Sealer 85 SC packaging machine is a fast and reliable automatic angular machine, electrically and air powered with a working production up to 2700 pph. It guarantees maximum flexibility in packaging, guaranteeing product quality and limited investment. All models in this range can be supplied with and without shrink tunnel. The machine can be used with polyethylene and single-fold polyolefin.

WITHOUT
OPERATOR

INSTALLED
POWER 4 kW

MAX. PACK
HEIGHT250 mm.

SEALING BAR
L 840 x W 410 mm



The automatic L-sealers with tunnel, Matic Sealer 85 SC, have high quality and a very good price and is possible to get it with or without the shrinking tunnel. These machines can work with center folded polyethylene and polyolefin shrink film and the production capacity is up to 3600 packages per hour.These model are characterized by the motorized of the sealing centering.

USE
The power conveyor moves the products into the center folded film, the photocells detect the products and the working cycle starts. The power supply, the film unwinding, the sealing and the product outfeed are fully automatic.
OPTIONAL
  • Dispositivo per centratura film stampato
  • Barra saldante per polietilene da 15 a 60 my
  • Dispositivo perforatore film a freddo
  • Nastro d’ingresso maggiorato di 500 mm
  • Rulliera uscita protetta a rulli folli passo 46 mm lungh. 1000 mm.
FEATURES
  • Automatic L-sealer with shrink tunnel
  • Motorized sealing bar controlled by inverter and encoder
  • Conveyor closing system included
  • Motorized center seal system
  • PTFE-coated sealing blade
  • Emergency button
  • Safety device
  • Continuous cycle sealing
  • FLXMOD® control system equipped with: 4,3” graphic LCD control panel with PLC
  • Modular power section made up by: inverter for all motors IN/OUT (inlet/outlet) digital and analog control modules
  • This system allows a simple and precise control of all the machine operations, such as: possibility of storing up to 20 different operation programs.
OPERATIONS CONTROL
  • Automatic control of the sealing bar height
  • Double adjustment of the sealing blade temperature, both lengthways and broadways
  • Sealing time adjustment
  • Possibility of packing single packs or multipacks
  • Speed of conveyorselectronically adjustable from the control panel process statistics
  • Reduced power consumption
[/su_accordion

confezionatrici; angolari; automatiche; termoretraibili, termoretraibile; film termoretraibile,

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

Additional information

Machine dimensions

L 2180 x W 1545 x H 1505/1665 mm

Net weight

820 Kg.

Power supply

380 Volts 3 ph

Power supply frequency

50 Hz

Air pressure

6 bar

Air consumption

0,4 Nlitri/min

Installed power

4 kW

Dimension sealing bar

840 x 710 mm.

Speed conveyor

10/30 mt/min.

Max height product

250 mm.

Max production

Up to 2700 pph

Max dimension film roll

850 – ø 350 mm

Packaging material

Pvc, Poliolefin

Film roll thickness

Up to 30 my
