Easy Strap 309 – 312

In stock

REQUEST QUOTE NOW

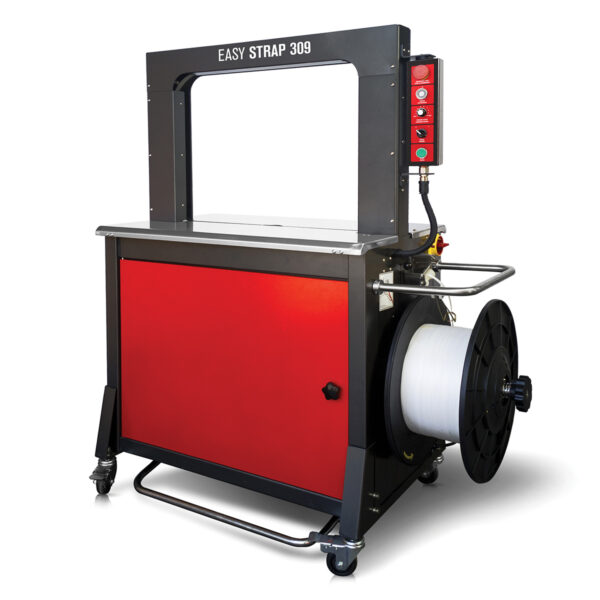

Automatic strapping machine with operator model Easy Strap 309 - 312. Uses 9 or 12 mm PP strap. Robust and compact, designed for general use and medium-high work volumes. 180 ° rotating control panel to work on both sides of the machine. Bar strapping pedal to facilitate cycle start-up. Available on request with various measures of strapping arches.



Funzioni della reggiatrice automatica Easy Strap 309 - 312

Automatic strapping machine with operator

Automatic strapping machine with operator, Easy Strap 309 – 312 is a new generation automatic machine for strapping packages. It works with DC motors arranged for each function of the machine. Compared to a traditional strapping machine, more than 30% of mechanical components have been eliminated. It is a solid and compact strapping machine, designed for common uses and medium-high work volumes. 180 ° rotable control panel for working on both sides of the machine. It includes a bar strapping pedal to facilitate cycle start-up. Available also with double pneumatic stabilizer version and in SUS 304 stainless steel version.

General characteristics of the strapping machine

The Easy Strap 309 – 312 automatic strapping machine uses a 220 V power supply | 1 ph | 50/60 Hz and has an adjustable worktop height from H 875 to 975 mm. It has a strapping speed of 40 cycles per minute with a maximum adjustable tensioning force up to 45 Kg. The strapping machine is equipped with four pivoting wheels, two of which with brakes and an easyfast® strap guide disassembly system (without tools). There is also: automatic ejection of a piece of strap at the end of the reel, adjustment of the cooling time of the welding (COOL TIME), adjustment of the temperature of the sealing blade, cutter for cutting the strap, automatic strap loading system, magnetic safety sensors, etc. The strapping machine is available on request with various arch sizes.

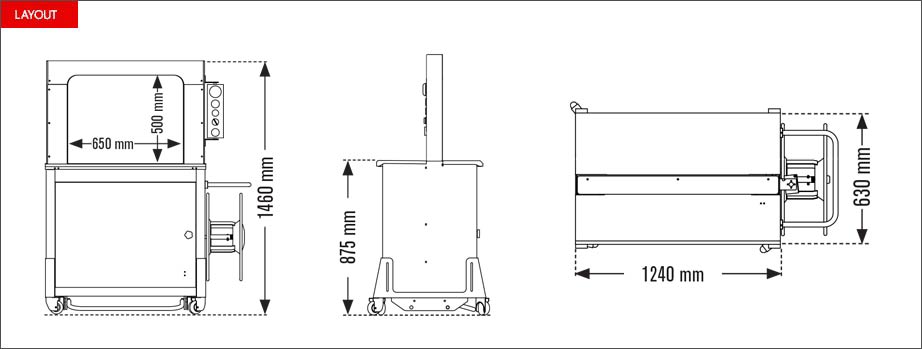

Layout reggiatrice automatica Easy Strap 309 - 312

Features and parameters of the strapping machine

Technical features
  • Stainless steel working table
  • Stainless steel protective handle
  • Magnetic safety switches
  • Strapping group with dc motors
  • Automatic loading of the strap
  • Unlock strap coil holder through pedal
  • Ejection loop in case of accidentally start of the cycle
  • 180° rotable analog control panel
  • Strap cutter
  • Height-adjustable working table
  • Four pivoting wheels, two of which with brake
  • Bar strapping pedal
  • Easyfast strap disassembly system (without any tools)
  • Emergency stop button
  • Automatic ejection of the strap at the end of the coil
  • Re-feed strap system
  • Available with different dimensions of archs
Parametri regolabili da quadro comandi
  • Welding cooling time adjustment
  • Strapping tensioning adjustment through potentiometer
  • Temperature adjustment of the sealing blade
Product features
  • Min. Product dimensions: L 600 x H 450 mm.
  • Product weight: 50 Kg.
Strap roll features

Internal diameter: 200 – 210 mm.


External diameter: 400 – 500 mm.

Strap width: 9 – 12 mm.

Strap thickness: 0,45 – 0,65 mm.
Strap type: PP (polipropilene)

Scarica la scheda tecnica della reggiatrice

REQUEST A FREE QUOTE NOW

Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

Additional information

Power supply

220 volts

Power supply frequency

50/60 Hz

Installed power

0,70 kW

Machine dimensions

L 1240 x W 630 x H 1460 mm.

Dimension strapping arch size

L 1050 x H 1000 mm., L 1050 x H 800 mm., L 1250 x H 1000 mm., L 1250 x H 500 mm., L 1250 x H 800 mm., L 1650 x H 600 mm., L 650 x H 500 mm, L 850 x H 500 mm., L 850 x H 600 mm., L 850 x H 800 mm.

Strapping speed

40 cycles/min.

Tension strength

0 – 45 Kg

Type

Standard

Control panel

Analog control panel

Max product weight

50 kg

Reel internal diameter

200 – 210 mm.

Coil outer diameter

400 – 500 mm.

Strap width

9 – 12 mm

Strap thickness

0,45 – 0,65 mm

Strap type

PP (polypropylene)
