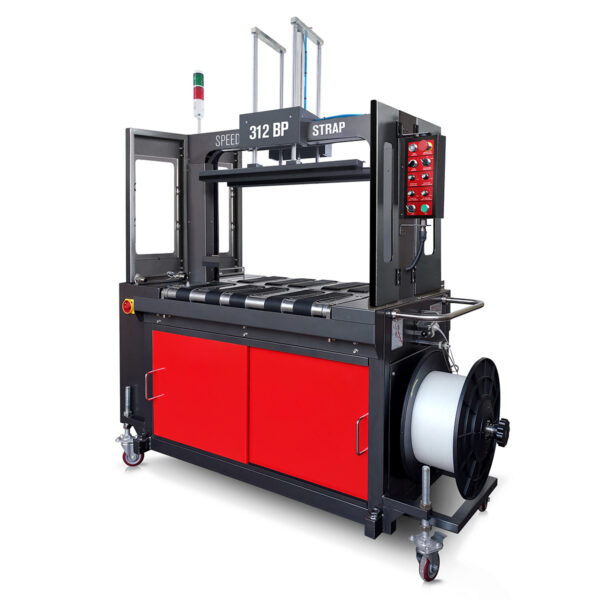

Easy Strap 309BP – 312BP

In stock

REQUEST QUOTE NOW



Automatic strapping machine with motorized belts and double stabilizing press. Thanks to its configurations it is possible to insert it in fully automated production lines. It works with direct current motors arranged for each function of the machine. Possibility to carry out multiple, double or single strapping through a photocell reader. Uses 9 or 12 mm PP strap. Robust and compact, designed for general use and medium-high work volumes. Its control panel can be rotated 180 ° to work on both sides of the machine.

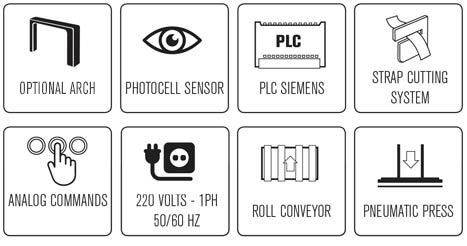

Parametri reggiatrice Easy Strap 309BP - 312BP

Automatic strapping machine with motorized belts and pneumatic press

The Easy Strap BP strapping machine is part of the range of fully automatic machines suitable for production cycles in which it is necessary to stabilize the products to be strapped. Thanks to its configurations it is possible to insert it in fully automated production lines. The working table is composed by 10 motorized conveyor belts and by a system of photocells for the automatic execution of single, double or multiple straps, which can be managed through the analogue control panel, which has a 180 ° rotating system to work on both sides of the machine. It works with DC motors arranged for each function of the machine. In addition to mechanical optimization (30%) compared to traditional strapping machines, it is a compact and solid machine designed for common uses and medium-high work volumes. Also available in SUS 304 stainless steel versions.

General characteristics of the strapping machine

The Easy Strap 309BP and 312BP automatic strapping machine use a 220V power supply | 1 ph | 50/60 Hz and has an adjustable worktop height from H 850 – 950 mm. It has a strapping speed of 40 cycles per minute with a maximum adjustable tensioning force up to 45 Kg. The strapping machine is equipped with four pivoting wheels, two of which with brakes and an easyfast® strap guide disassembly system (without tools). There is also: automatic ejection of a piece of strap at the end of the reel, adjustment of the welding cooling time (COOL TIME), temperature adjustment of the sealing blade, strap cutting cutter, automatic strap loading system, magnetic safety sensors and top with motorized belts adjustable in speed by potentiometer, motorized belts on the work surface and double pneumatic press. The strapping machine is available on request with various arch sizes.

Layout reggiatrice automatica Easy Strap 309BP - 312BP

Features and parameters of the strapping machine

Technical features

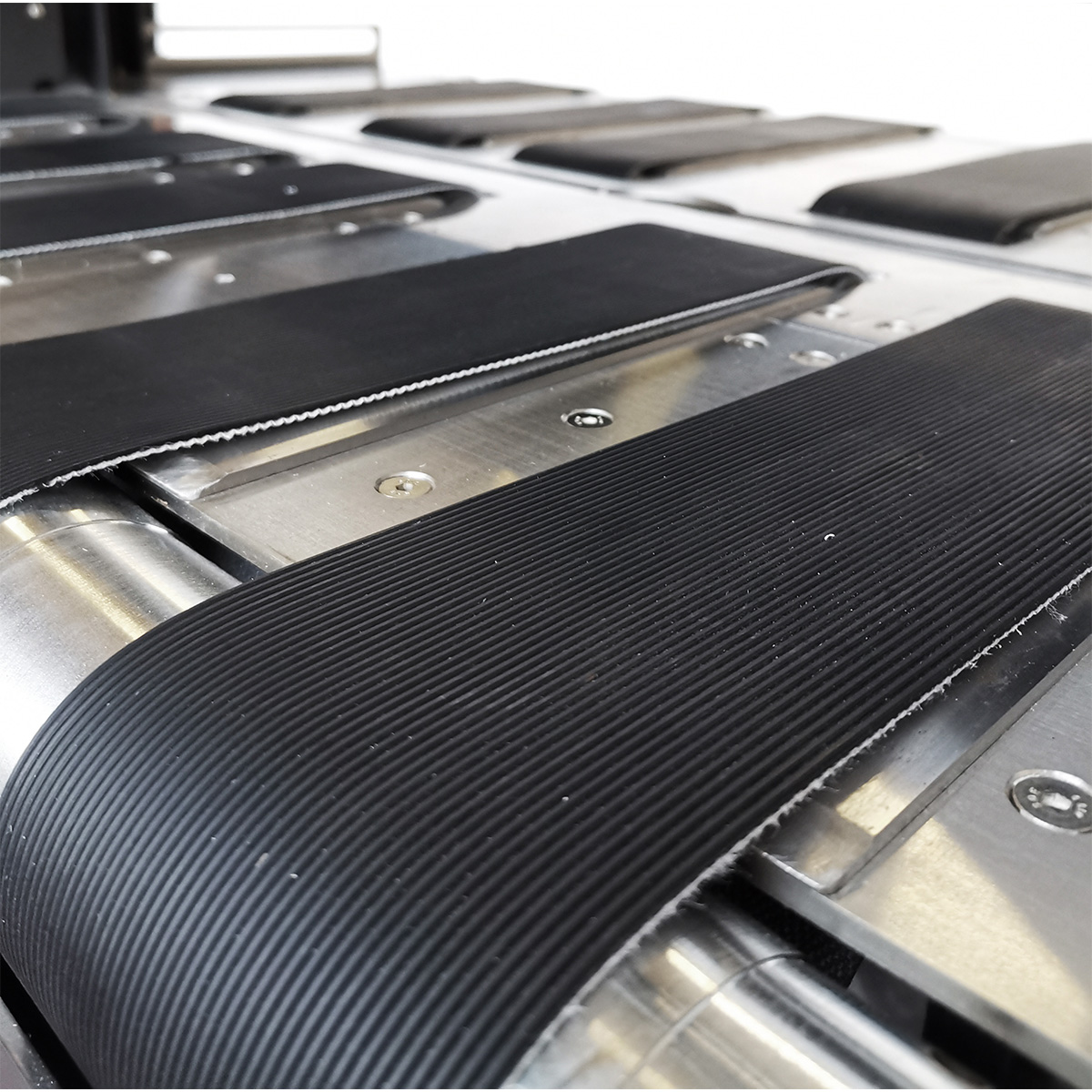

  • Working table with motorized conveyor belts
  • Stainless steel protective handle

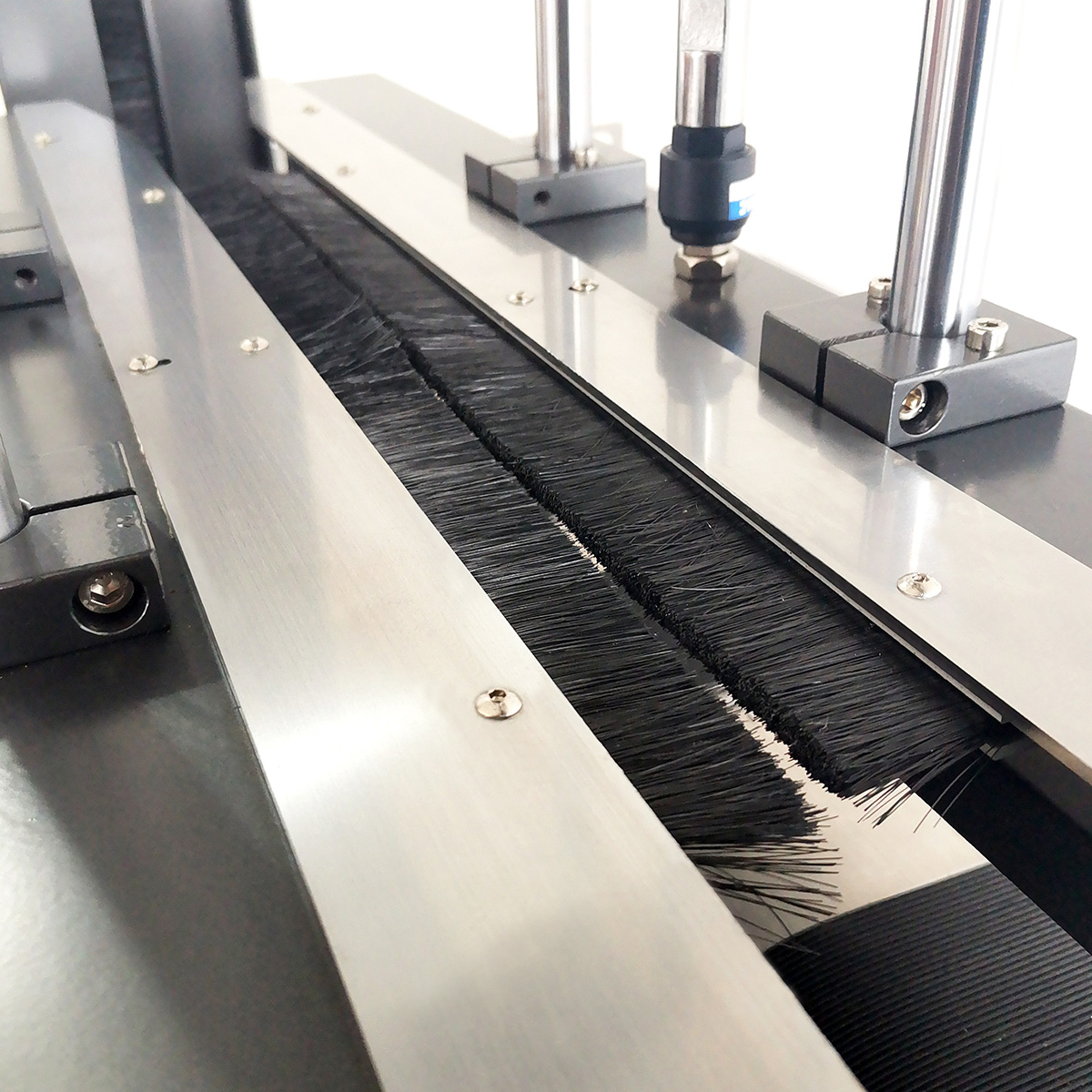

  • Double pneumatic stabilizing press
  • Enabling and disarming press through button
  • Enabling and disarming motorized conveyor belts through button
  • Safety doors with magnetic switches on each side
  • Automatic loading of the strap
  • Single, double or multiple strapping system through photocells
  • Strapping management through analog control panel
  • Transit mode without strapping the product
  • Scustic alarm system with 3-color flashing column
  • Emergency stop button
  • Ejection loop in case of accidentally start of the cycle
  • 180 ° rotable control panel
  • Strap cutter
  • Height-adjustable working table
  • Automatic ejection of the strap at the end of the coil
  • Re-feed strap system
  • Works ith different strap sizes
  • Available with different dimensions of archs
  • Strapping tensioning adjustment up to 45 kg through potentiometer
Parameters adjustable from the control panel
  • Weld cooling time adjustment (COOL TIME)
  • Strap tension adjustment via potentiometer
  • Belt speed adjustment on the work surface by means of a potentiometer
  • Temperature adjustment of the sealing blade
  • Press enabling and disabling by switch
  • Enabling of single, double or multiple strapping, by means of photocells
Product features
  • Max. Product dimensions: L 1200 x H 450 mm.
  • Product weight: 80 Kg.
Strap roll features

Internal diameter: 200 – 210 mm.


External diameter: 400 – 450 mm.

Strap width: 9 – 12 mm.

Strap thickness: 0,45 – 0,65 mm.
Strap type: PP (polipropilene)

Scarica la scheda tecnica della reggiatrice

REQUEST A FREE QUOTE NOW

Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

Additional information

Power supply

220 Volts

Power supply frequency

50/60 Hz

Installed power

1 Kw

Air pressure

0.4 – 0.6 MPa

Machine dimensions

L 1780 x W 720 x H 2100 mm.

Dimension strapping arch size

L 650 x H 500 mm, L 850 x H 500 mm., L 850 x H 600 mm., L 850 x H 800 mm.

Strapping speed

40 cycles/min.

Tension strength

0 – 45 Kg

Type

Momorized tapes and press

Control panel

Analog control panel

Max product weight

80 Kg

Reel internal diameter

200 – 210 mm.

Coil outer diameter

400 – 450 mm.

Strap width

9 – 12 mm

Strap thickness

0,45 – 0,65 mm

Strap type

PP (polypropylene)
