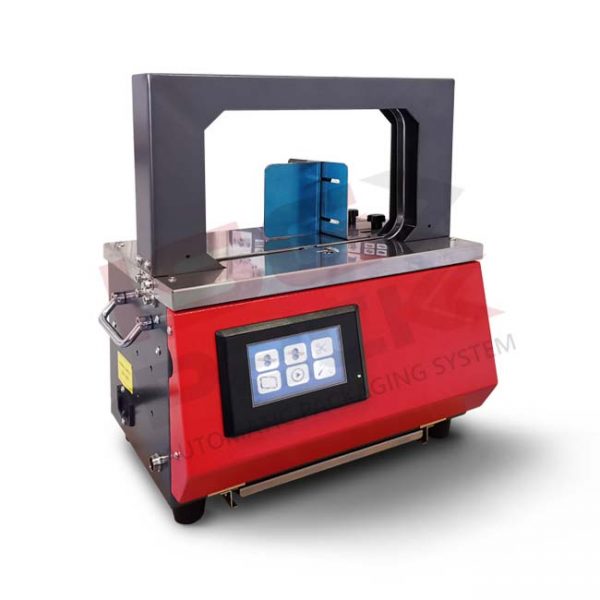

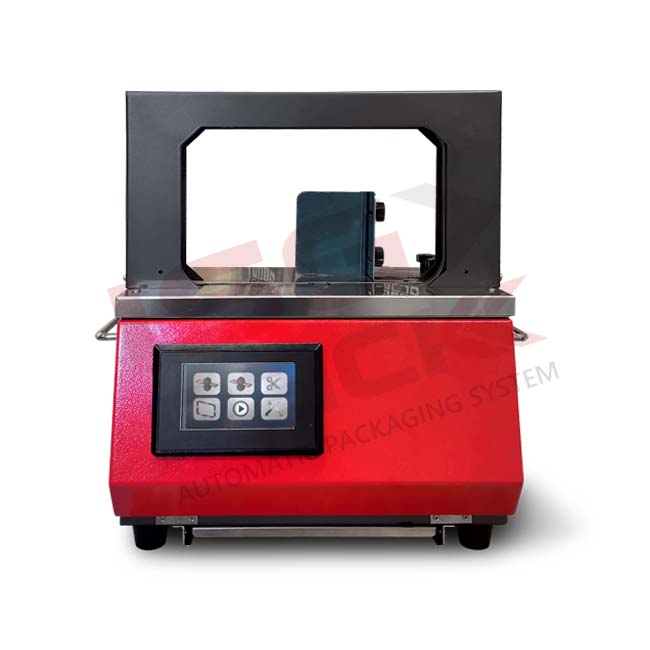

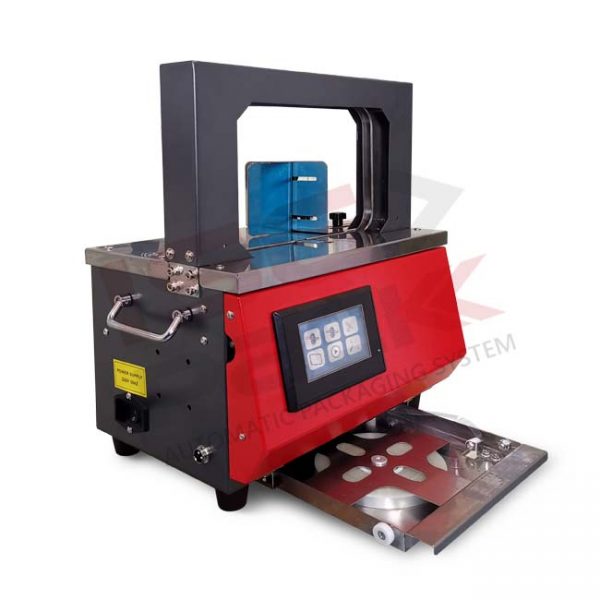

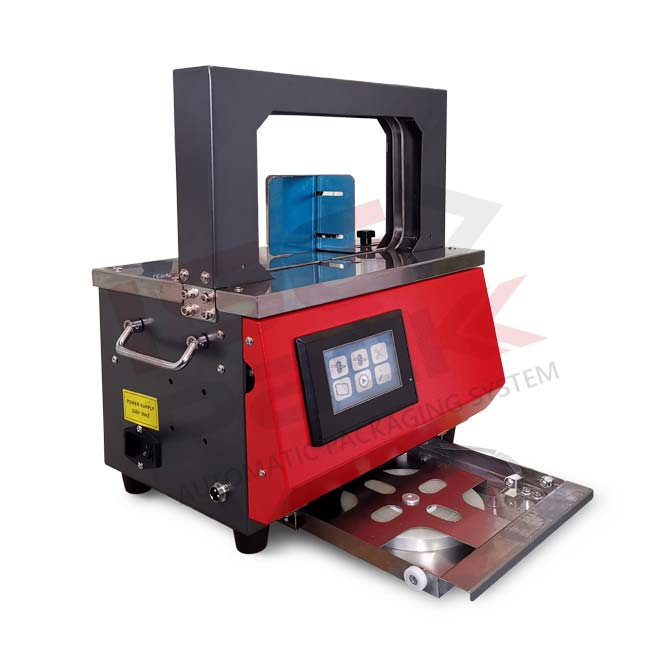

Banding machine Easy Band 25-200

In stock

REQUEST QUOTE NOW



The Easy Band 25-200 La is a simple to use bench banding machine particularly suitable for use in graphic arts, combining multiple products in promotional sales, perfumeries, fruit shops, etc. It is able to guarantee a banding speed of 25 cycles / min and uses 12 mm wide ribbons. Its maximum banding span is W 220 x H 170 mm.



Fascettatrice da banco per utilizzo di nastri in carta o polipropilene con larghezza da 12 mm

Easy Band 25-200, simple and reliable, are part of the range of tabletop automatic banding machines. They can work with paper and polypropylene bands of 12mm width. Manual or automatic functioning by sensor and settings adjustable by color touch screen located on the front of the machine. Both machines have a band roll holder placed at the bottom of machine. They are used in particular in the graphic arts for packing various products for promotional offers, in fruit shops, perfumery etc

Layout fascettatrice Easy band 25-200 con arco interno da W260 x H170

METHOD OF USE

Selecting the automatic mode and just placing the product on the worktable of the banding machine, the banding and sealing cycle is activated by a photocell that reads the product. When the product is removed, the machine re-feeds the band and prepares itself for the next banding. Selecting the manual cycle, the operator starts a manual banding by button. The replacement of the band roll is quick and easy.

Technical details
  • Compact design
  • Coil holder inside the machine
  • Digital display
  • Parameters adjustable by control panel
  • Removable worktable for a fast maintenance
  • Banding head with 24 vcc motors
  • Band tensioning adjustable by screw
  • Manual or automatic banding by sensor
  • Adjustable welding time
  • Adjusttable time between one banding and another (only auto mode)
  • Adjustable out feeding time of the band
  • Language selection
  • The machine complies with CE directives
Caratteristiche del prodotto lavorabile
  • Min. product size: W 30 x H 10 mm.
  • Max. product size: W 220 x H 170 mm.
Download the PDF of the machine

fascettatrici; elettrica; tavolo; elettriche; automatiche; reggiatura; reggiatrici; fascette;

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

    How did you find our Company??

    Additional information

    Machine size

    L 382 x W 280 x H 413 mm

    Net weight

    18 Kg

    Power supply

    220 Volt

    Power supply frequency

    50/60 Hz

    Production capacity

    25 cycles/min

    Coil holder

    Integrated

    Band type

    OPP Film

    Band widht

    12 mm

    Band thickness

    120 my

    Banding tension

    5 – 40 N

    Closing system

    Heat sealing

    Reel internal diameter

    40 mm

    Coil outer diameter

    160 mm

    Dimension Min. product

    W 30 x H 10 mm

    Max product size

    W 220 x H 170 mm

    RICHIEDI ORA UN PREVENTIVO

    Request a free quote now

    Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

      How did you find our Company??

      Fascettatrice automatica da banco mod. Easy Band 25-200 per nastri da 12 mm
