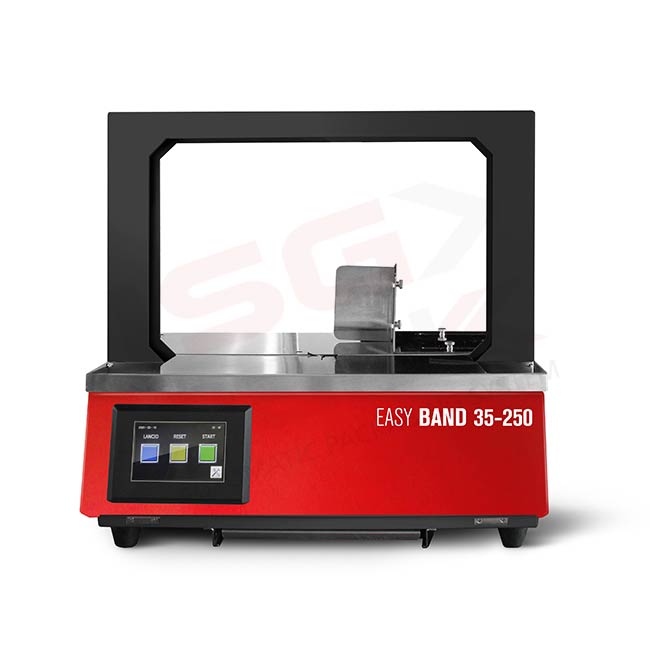

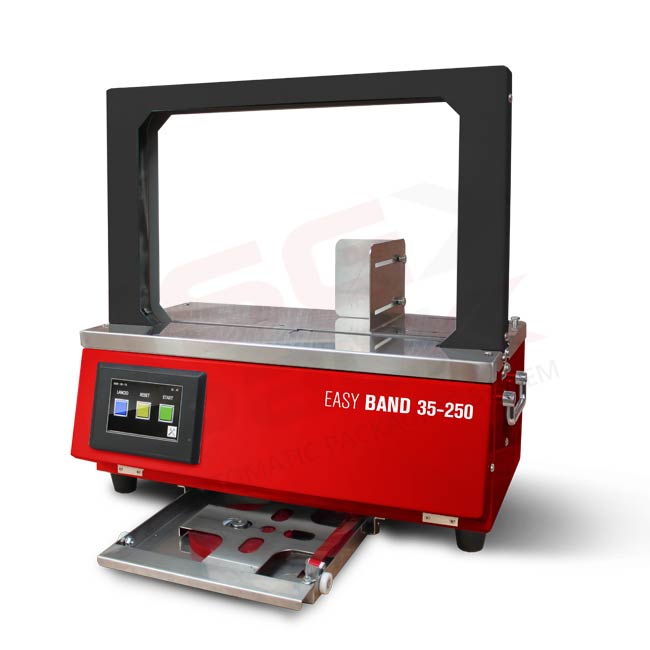

Automatic banding machine Easy Band 35-250

In stock

REQUEST QUOTE NOW

The Easy Band 35-250 is a simple to use bench banding machine particularly suitable for use in graphic arts, combining multiple products in promotional sales, perfumeries, fruit shops, etc. It is able to guarantee a banding speed of 25 cycles / min and uses 12 mm wide ribbons. Its maximum banding light is equivalent to W 360 x H 260 mm.

Automatic banding machine for using paper or polypropylene tapes with a width of 12 mm

Easy Band 35-250, simple and reliable, are part of the range of tabletop automatic banding machines. They can work with paper and polypropylene bands of 12mm width. Manual or automatic functioning by sensor and settings adjustable by color touch screen located on the front of the machine. Both machines have a band roll holder placed at the bottom of machine. They are used in particular in the graphic arts for packing various products for promotional offers, in fruit shops, perfumery etc

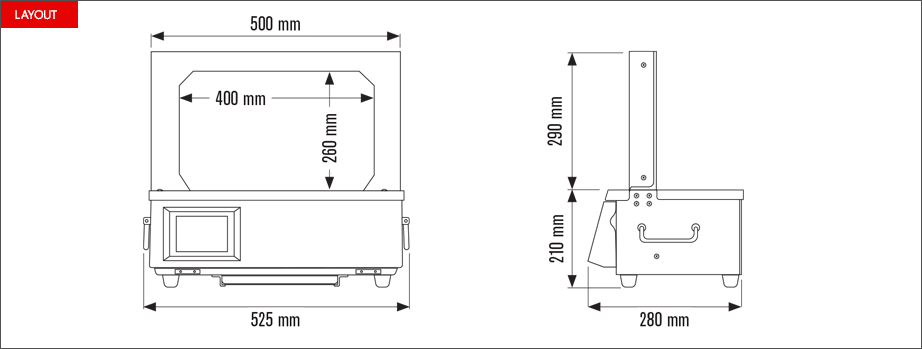

Layout fascettatrice Easy band 356-250

METHOD OF USE

Ciclo automatico

Selecting the automatic mode and just placing the product on the worktable of the banding machine, the banding and sealing cycle is activated by a photocell that reads the product. When the product is removed, the machine re-feeds the band and prepares itself for the next banding. Selecting the manual cycle, the operator starts a manual banding by button. The replacement of the band roll is quick and easy.

Technical details
  • Compact design
  • Coil holder inside the machine
  • Digital display
  • Parameters adjustable by control panel
  • Removable worktable for a fast maintenance
  • Banding head with 24 vcc motors
  • Band tensioning adjustable by screw
  • Manual or automatic banding by sensor
  • Adjustable welding time
  • Adjusttable time between one banding and another (only auto mode)
  • Adjustable out feeding time of the band
  • Language selection
  • The machine complies with CE directives
Caratteristiche del prodotto lavorabile
  • Min. product size: W 30 x H 10 mm.
  • Max. product size: W 360 x H 260 mm.
Download the PDF of the machine

fascettatrici; elettrica; tavolo; elettriche; automatiche; reggiatura; reggiatrici; fascette;

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Machine dimensions

L 525 x W 280 x H 500 mm

Net weight

22 Kg

Power supply

220 Volt

Power supply frequency

50/60 Hz

Maximum noise

Conforming to DIN 45635/27

Production capacity

25 cycles

Coil holder

Integrated

Band type

OPP Film

Band widht

12 mm

Band thickness

120 my

Banding tension

5 – 40 N

Closing system

Thermal welding

Reel internal diameter

40 mm

Coil outer diameter

160 mm

Dimension Min. product

W 30 x H 10 mm

Max product size

W 360 x H 260 mm
