Carton sealer Easy Tape 50 SB

In stock

REQUEST QUOTE NOW



The Easy Tape 50 SB is a semi-automatic taping machine equipped with an Energy Saving system, inlet and outlet roller conveyors and a system of 3 flaps for a perfect closure of the box. It allows the upper and lower taping of the box by adhesive tape.

WEIGHT
MACHINE 250 kG

WITH
OPERATOR

ADESIVE TAPE
KRAFT PP, PVC

TOP/BOTTOM
SEALING

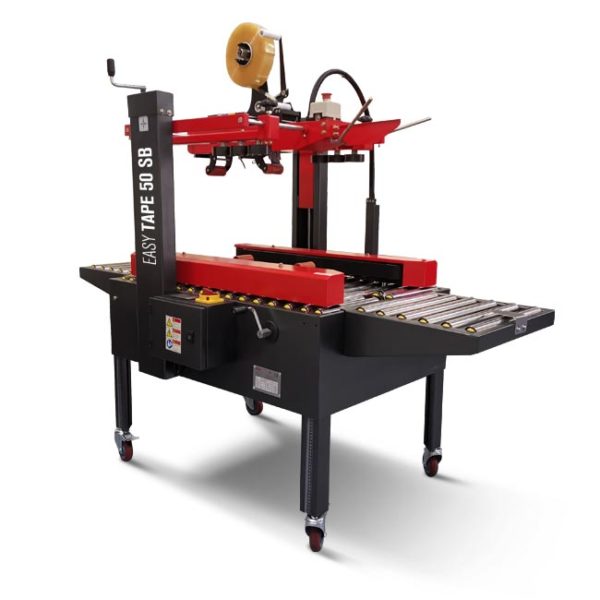

Semi-automatic Easy Tape 50 SB taping machine with automatic flap closer to facilitate the closure of the box

Semi-automatic manual dimensioning carton sealer, which seals the top and the bottom of American-type fixed size boxes, with adhesive tape. The machine is equipped with a 3 flaps closing system to facilitate the box closure and can be used by non-specialized operators because it requires easy adjustments. Box feeding is regulated by two lateral belts controlled by two motors, this system ensures the maximum sliding uniformity. The result is a perfect alignment of the box flaps and optimum sealing, performed by the efficient taping head.

The carton sealer is equipped with an ‘Energy Saving’ timing stop system when box taping and sealing operation finishes. Includes infeed and outfeed rollers and represents a practical and simple packaging station.

Features
  • Weight: 250 kg
  • Power supply: 220 Volts 50/60 Hz 1
  • Environmental humidity conditions ≤ 90%
  • Box transfer speed: 20 mt / min
  • Maximum box weight: 40 kg
  • Use temperature : + 0 °C to + 40 ° C
  • Maximum Noise: 75 db
  • Electrical protection: IP 54
  • Adhesive tape: Kraft, polypropylene, PVC
  • Standard taping head: 50 – 75 mm
  • Working table height: 590 – 750 mm
  • Installed power: 0,40 Kw
dimensioni scatole per nastratrici semiautomatiche
caratteristiche nastri adesivi per nastratrici semiautomatiche

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

    How did you find our Company??

    Additional information

    Machine size

    L 1940 x W 900 x H 1410-1510 mm

    Net weight

    250 Kg.

    Power supply

    220 Volt

    Power supply frequency

    50/60 Hz

    Installed power

    0,4 kW

    Adhesive tape

    Kraft, polipropilene, pvc

    Sealing speed

    Fino a 15 scatole min

    Transfer speed

    20 mt/min

    Cinghie di trascinamento
    Working table height
    Dimension Min. product

    L 150 x W 150 x H 110 mm

    Max product size

    L ∞ x W 500 x H 500 mm

    Type of boxes

    American type

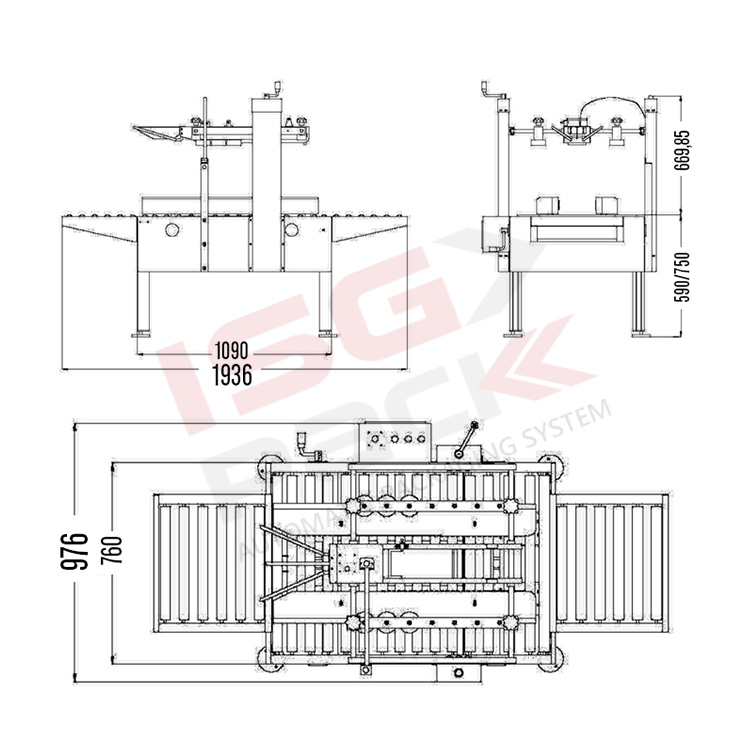

    Layout Easy Tape 50SB
    Layout Easy Tape 50SB
    Easy Tape 50SB
