Stainless steel taping machine Eco Tape 50 TBB SS

In stock

REQUEST QUOTE NOW

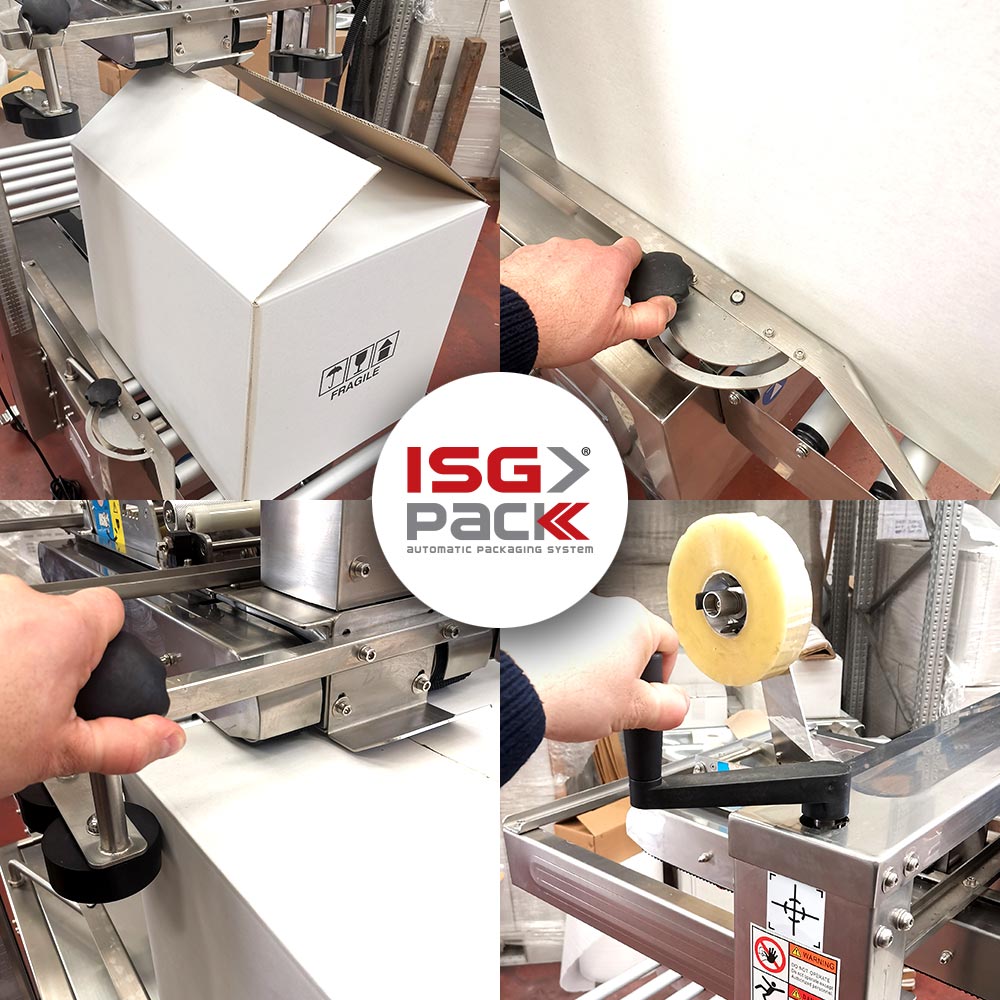

The Eco Tape 50 TBB is a semi-automatic "entry level" taping machine for taping boxes with a maximum size of L ∞ W 480 H 500 mm. The machine can be used by non-specialized operators as it requires very simple adjustment operations.

WEIGHT
MACHINE 100 kG

WITH
OPERATOR

ADESIVE TAPE
KRAFT PP, PVC

TOP/BOTTOM
SEALING



Semi-automatic taping machine Eco Tape 50 TBB a manual sizing

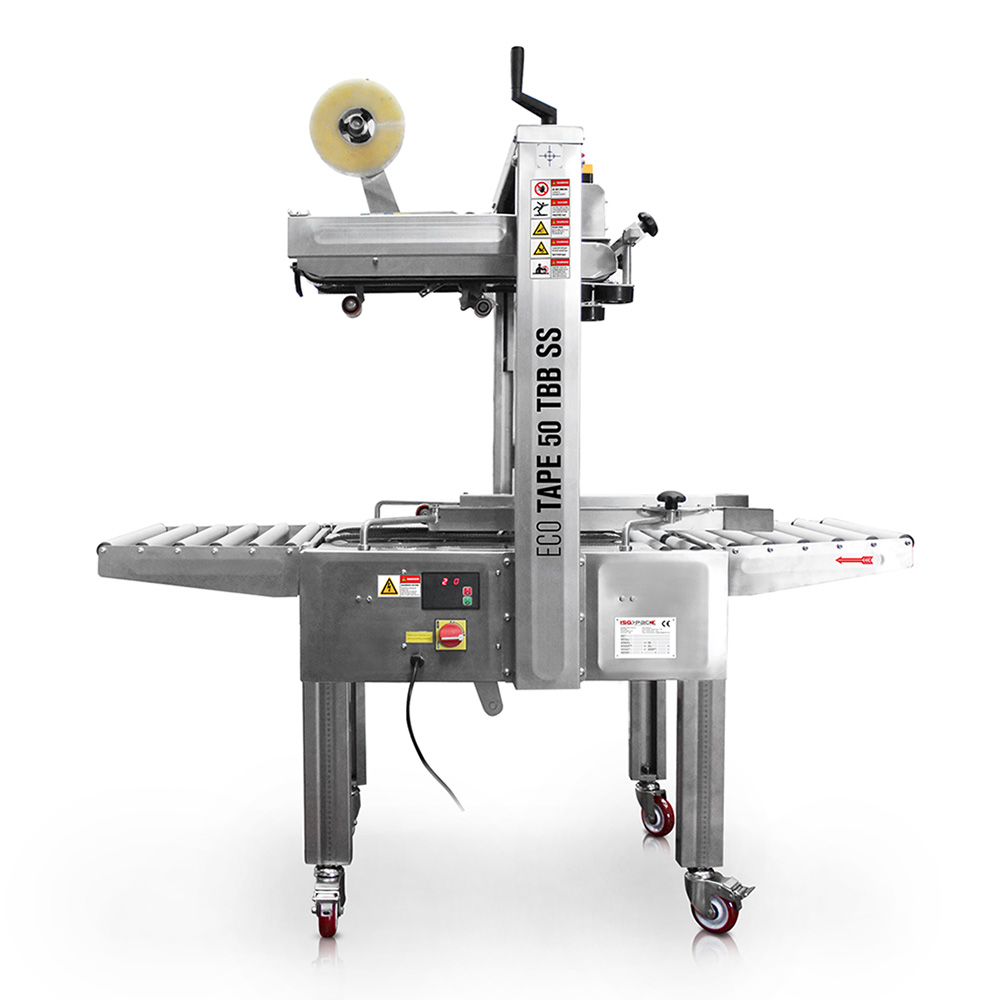

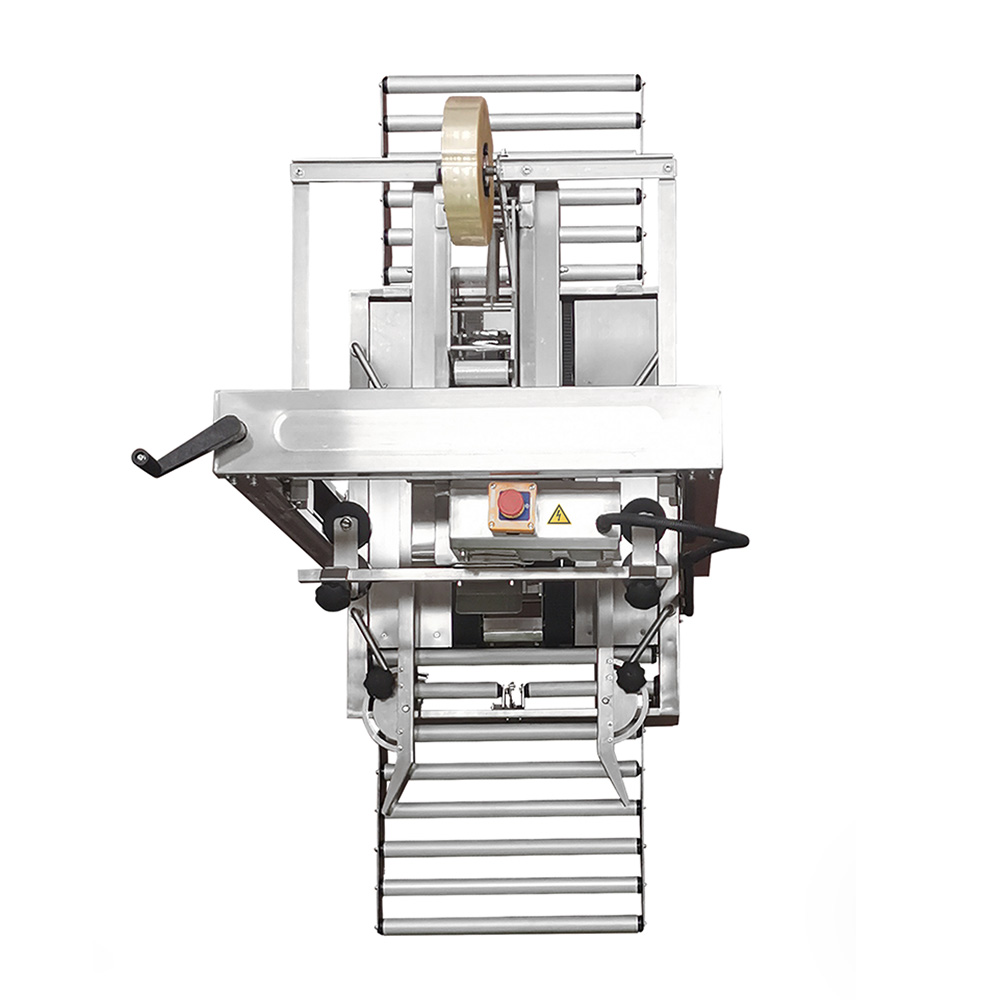

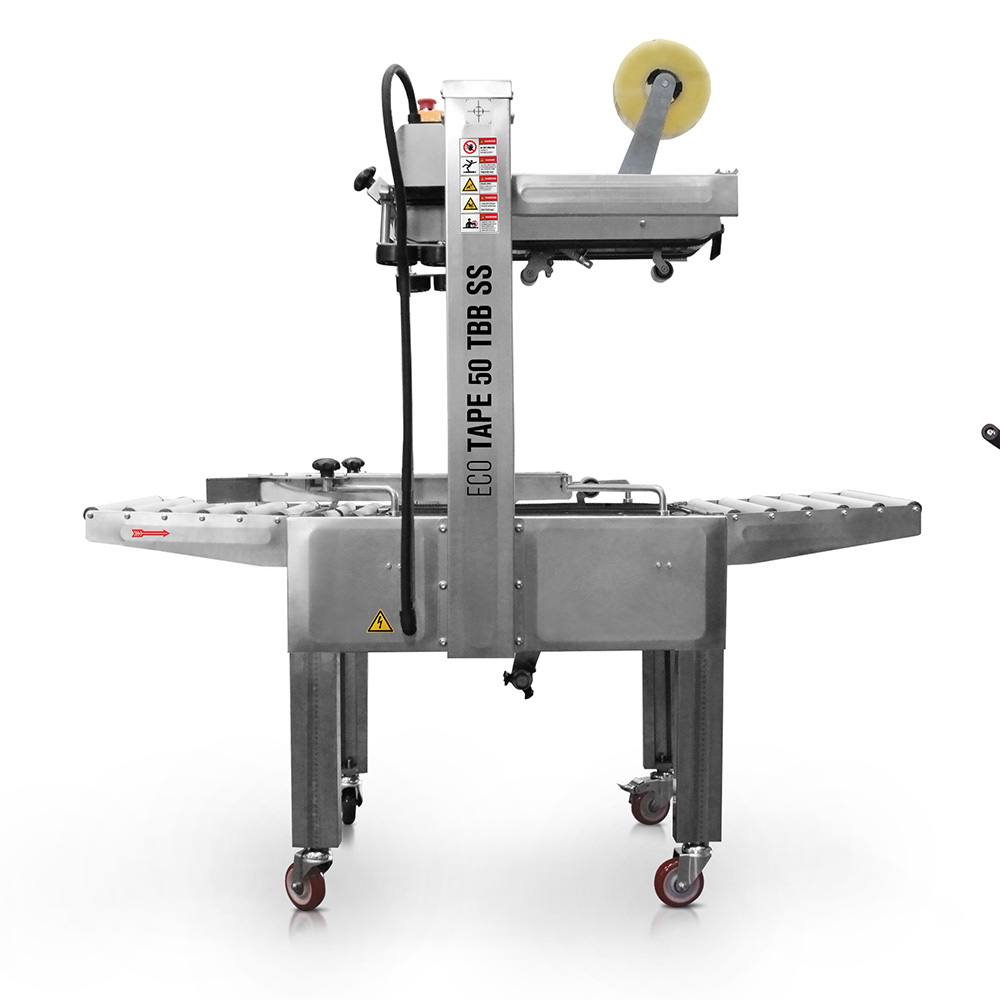

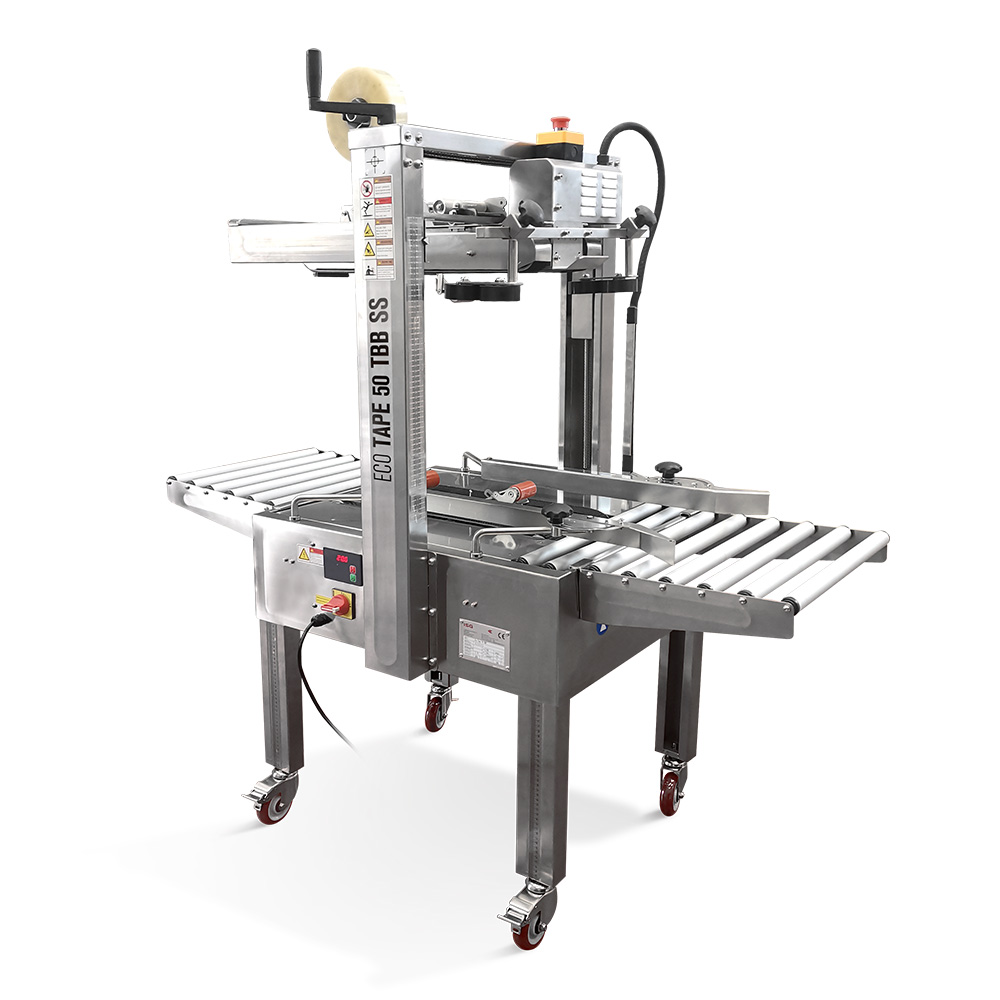

The Eco Tape 50 TBB SS semi-automatic stainless steel taping machine is an “entry level” machine with manual sizing, which seals the lower and upper parts of American-type fixed-format boxes with self-adhesive tape. The feature introduced in this model is to have an interchangeable system of the taping head. The machine can be used by non-specialized operators as it requires very simple adjustment operations.

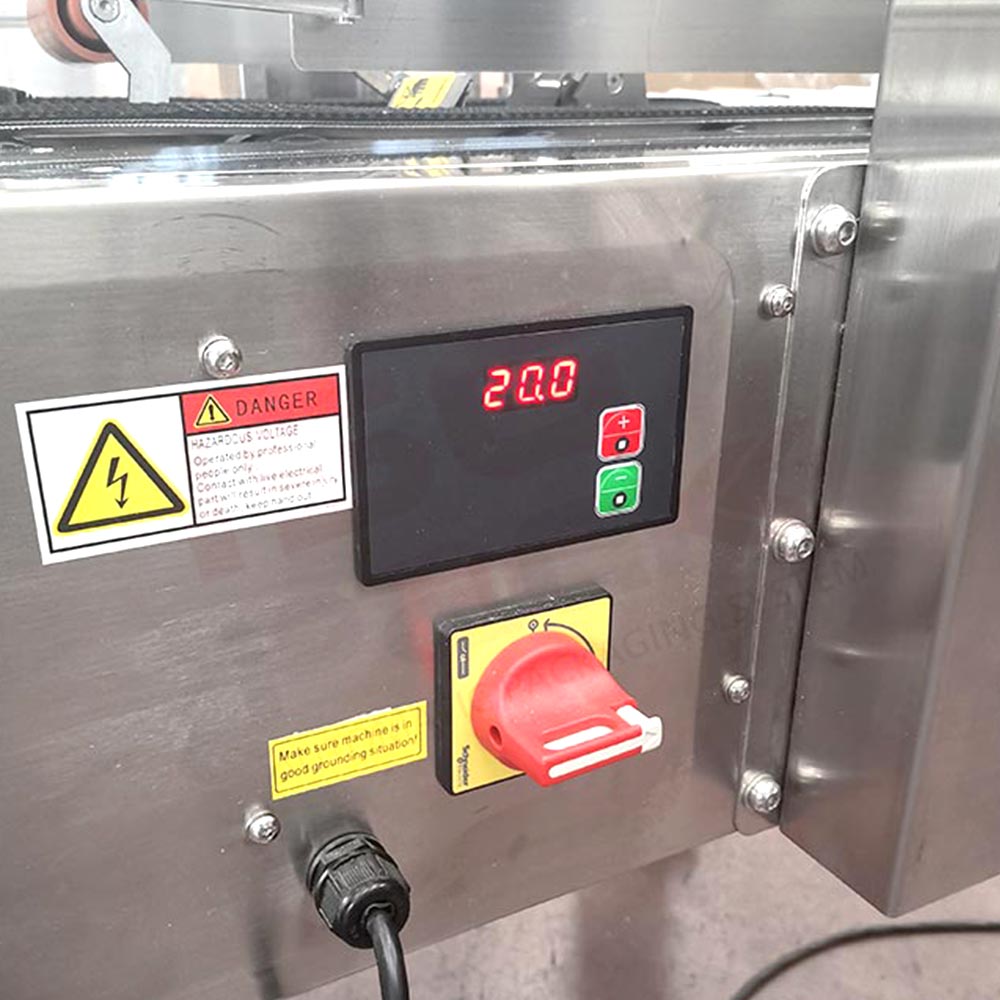

The advancement of the box takes place through two drive belts placed in the lower and upper part of the machine, which guarantee maximum uniformity of sliding. The result is a perfect alignment of the flaps and therefore an optimal sealing, which is performed by the performing taping heads. The presence of the “energy saving” system allows the timed stopping of the drive with the taping completed.

Features
  • Weight: 120 kg
  • Structure in stainless steel
  • Power supply: 220 Volts 50/60 Hz
  • Energy Saving System
  • Environmental humidity conditions ≤ 90%
  • Box transfer speed: 22 mt / min
  • Use temperature: + 0 ° C to + 40 ° C
  • Maximum Noise: 75 db
  • Electrical Protection: IP 54
  • AdhesiveTape: Kraft, polypropylene, PVC
  • Standard taping heads: 50 – 60 mm
  • Working table height: 690 – 750 mm
  • Installed power: 0,24 Kw



Misure scatola nastratrice semiautomatica Eco Tape 50 TBB
Nastro adesivo nastratrice semiautomatica

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Machine dimensions

L 1610 x W 760 x H 1340 – 1490 mm

Net weight

120 Kg

Power supply

220 Volt

Power supply frequency

50/60 Hz

Installed power

0,34 kW

Maximum noise

75 dB

Taping head

50 – 75 mm

Closing system

Tape

Adhesive tape

Kraft, polipropilene, pvc

Sealing speed

Fino a 15 scatole min

Transfer speed

20 mt/min

Working table height

H 600/750 mm

Dimension Min. product

L 150 x W 180 x H 120 mm

Max product size
Type of boxes

American type
