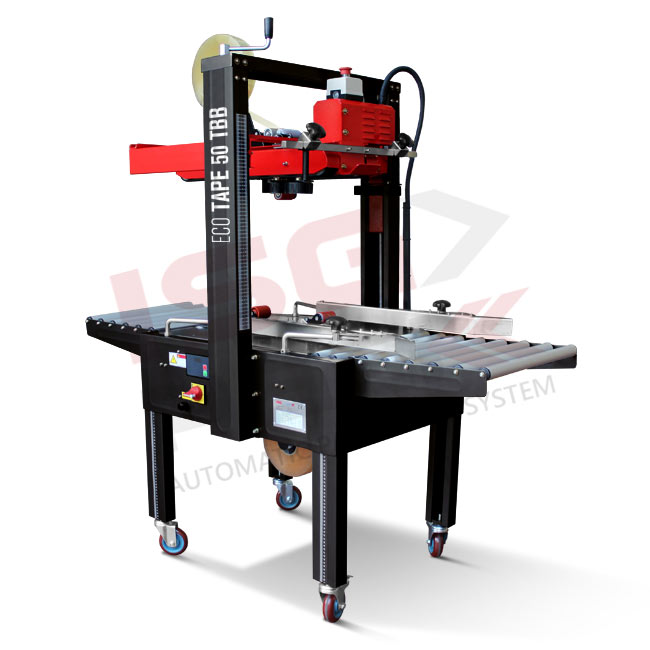

Semi-automatic taping machine Eco Tape 50 TBB a manual sizing

The Eco Tape 50 TBB is a semi-automatic “entry level” carton sealer with manual dimensioning, which seals with the self-adhesive tape the lower and upper part of fixed size American type boxes. The feature made in this 2019 model is to have the interchangeable taping head system. The machine can be used by non-specialized operators as it requires very simple adjustment operations.

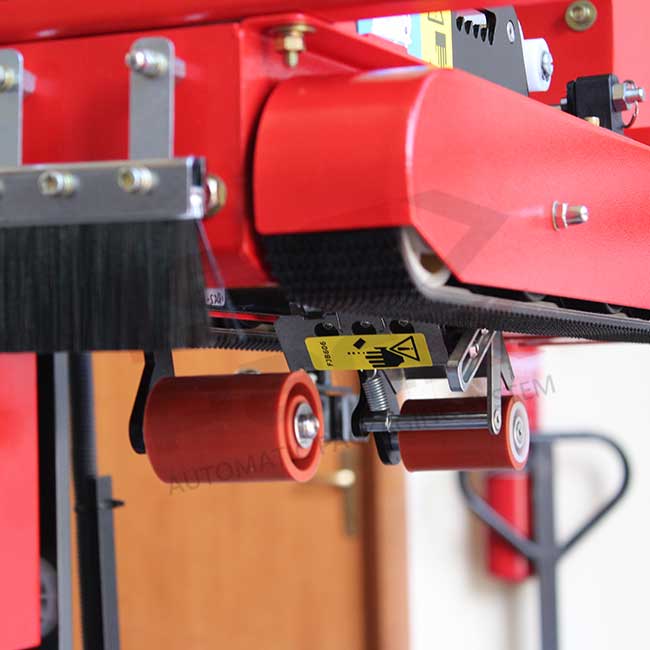

The advancement of the box takes place through two drive belts placed in the lower and upper part of the machine, which guarantee maximum uniformity of sliding. The result is a perfect alignment of the flaps and therefore an optimal sealing, which is performed by the performing taping heads. The presence of the “energy saving” system allows the timed stopping of the drive with the taping completed.

Features

Weight: 120 kg
Power supply: 220 Volts 50/60 Hz
Environmental humidity conditions ≤ 90%
Box transfer speed: 22 mt / min
Use temperature: + 0 ° C to + 40 ° C
Maximum Noise: 75 db
Electrical Protection: IP 54
AdhesiveTape: Kraft, polypropylene, PVC

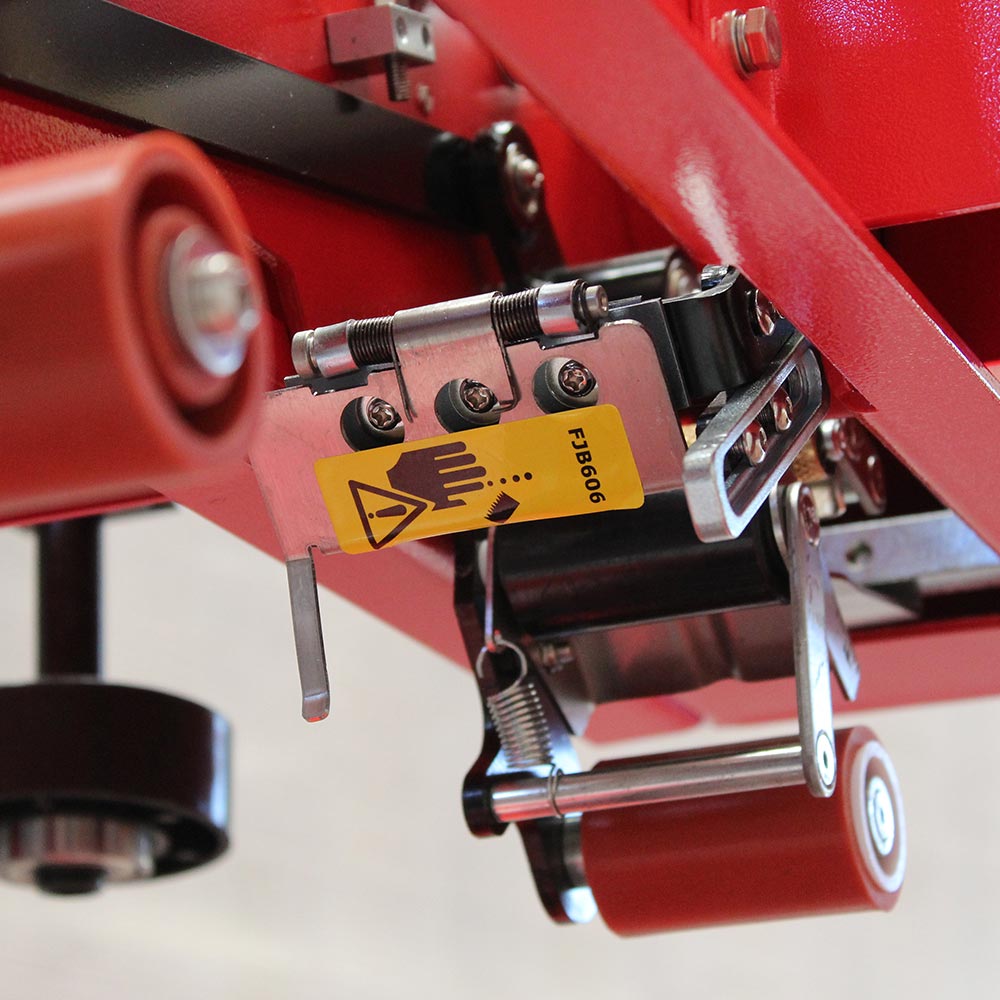

Standard taping heads: 50 – 60 mm
Working table height: 690 – 750 mm
Installed power: 0,24 Kw

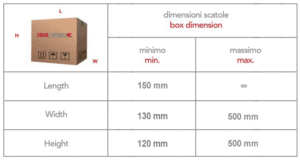

Misure scatola nastratrice semiautomatica Eco Tape 50 TBB

Nastro adesivo nastratrice semiautomatica

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

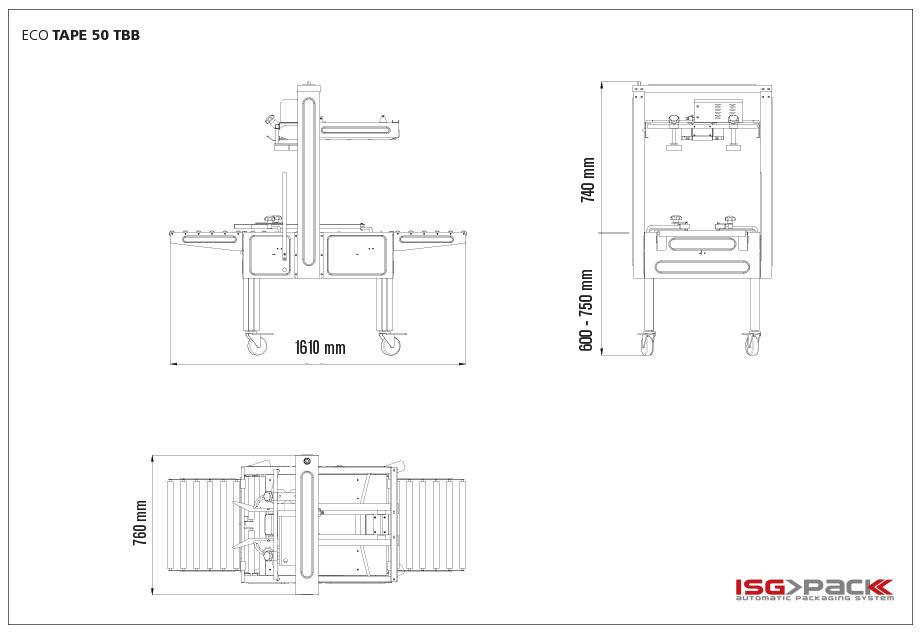

Machine size	L 1610 x W 760 x H 1340 – 1490 mm
Net weight	120 Kg
Power supply	220 Volt
Power supply frequency	50/60 Hz
Installed power	0,34 kW
Taping head	50 – 75 mm
Closing system	Taping
Adhesive tape	Kraft, polipropilene, pvc
Sealing speed	Fino a 15 scatole min
Transfer speed	20 mt/min
Working table height	H 600/750 mm

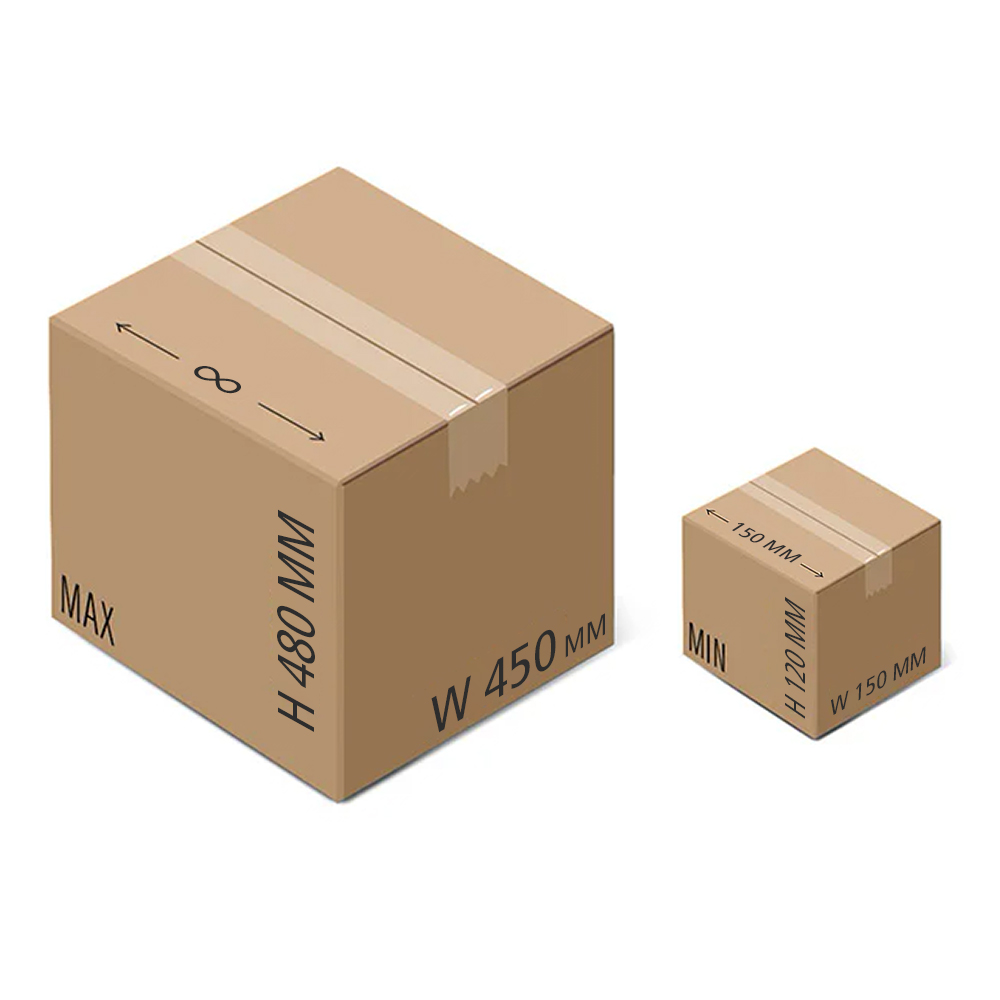

Dimension Min. product	L 150 x W 180 x H 120 mm
Max product size	L ∞ x W 450 x H 480 mm
Type of boxes	American type
