Carton sealer Low Tape 50 SB

In stock

REQUEST QUOTE NOW



The Low Tape 50 SB is a semiautomatic taping machine created for taping small boxes with a min. of L 130x W 80 x H 90 mm. Simple and practical to use, it requires minimal maintenance.



Semi-automatic Low Tape 50 SB taping machine. Taping of small boxes

The Low Tape 50 SB semiautomatic taping machine is an easy-to-use manual sizing machine, integrated with 2 motorized belts for dragging the box. This taping machine is suitable for taping small format boxes. Simultaneously performs the taping of both the lower and upper part. The final result is a perfect alignment of the flaps ensuring optimal sealing which is carried out by the performing taping heads. The taping machine is equipped with a support surface for the entry of the box, taping heads (fixed) and pivoting wheels to facilitate movement.

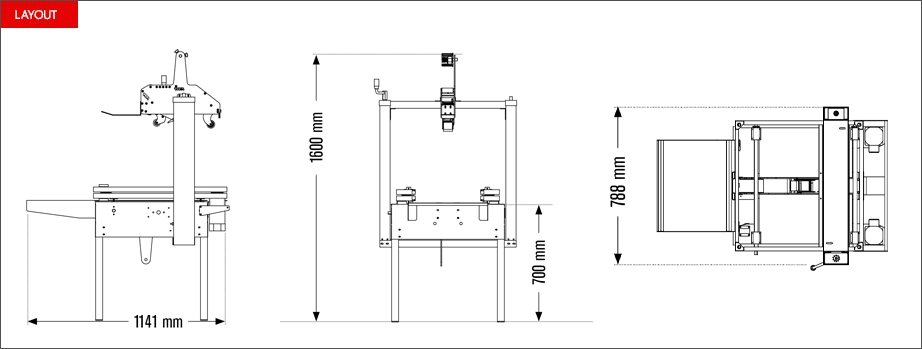

Layout nastratrice Low Tape 50 SB

Processing phases

With a new box format, the operator adjusts the height and width of the guides. When the box is on the work surface and pushed towards the entrance of the motorized belts, the upper and lower taping phases of the box take place in an automatic and timed manner, followed by transport to the exit of the box.

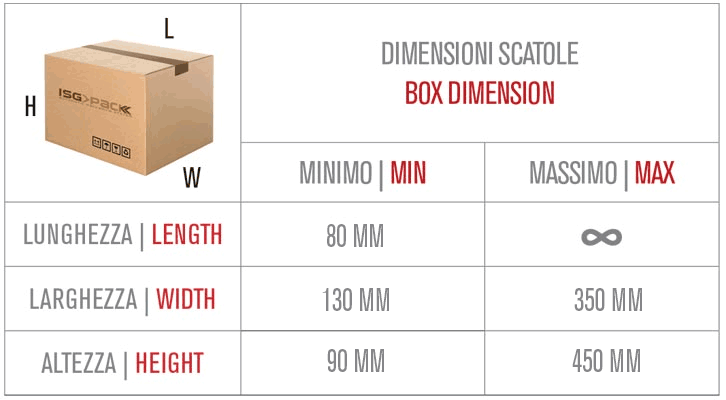

Misure scatola utilizzate dalla nastratrice

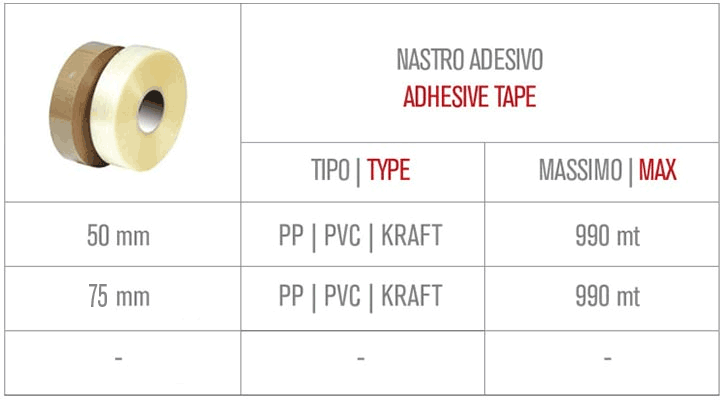

Adhesive tape used for semiautomatic taping machine

Features and parameters of the taping machine

Technical features
  • Weight taping machine: 130 Kg
  • Power supply: 220 Volts – 50 / 60 Hz
  • Sealing speed: 20 mt / min
  • Max box weight: 30 Kg
  • Machine dimensions: L 1141 x W 788 x H 1600 mm (variabile)
  • Max noise level: ≤ 75 db
  • Adhesive tape: Kraft, Polipropilene, PVC
  • Worktable height: 700 – 820 mm
Prodotto lavorabile
  • Minimum box dimensions: L 130 x W 80 x H 90 mm
  • Maximum box dimensions: L ∞ x W 350 x H 450 mm
  • Type of boxes: American type

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

    How did you find our Company??

    Additional information

    Machine size

    L 1141 x W 788 x H 1600 mm (variable)

    Net weight

    130 Kg

    Power supply

    220 Volt

    Power supply frequency

    50/60 Hz

    Installed power

    0,4 kW

    Adhesive tape

    Kraft, polipropilene, pvc

    Transfer speed

    20 mt/min

    Cinghie di trascinamento
    Working table height

    700 – 820 mm

    Dimension Min. product

    L 130 x W 80 x H 90 mm

    Max product size

    L ∞ x W 350 x H 450 mm

    Type of boxes

    American type

    LAYOUT LOW TAPE 50 SB
    LAYOUT LOW TAPE 50 SB
