Case erector Combi Former 50 SB

In stock

REQUEST QUOTE NOW

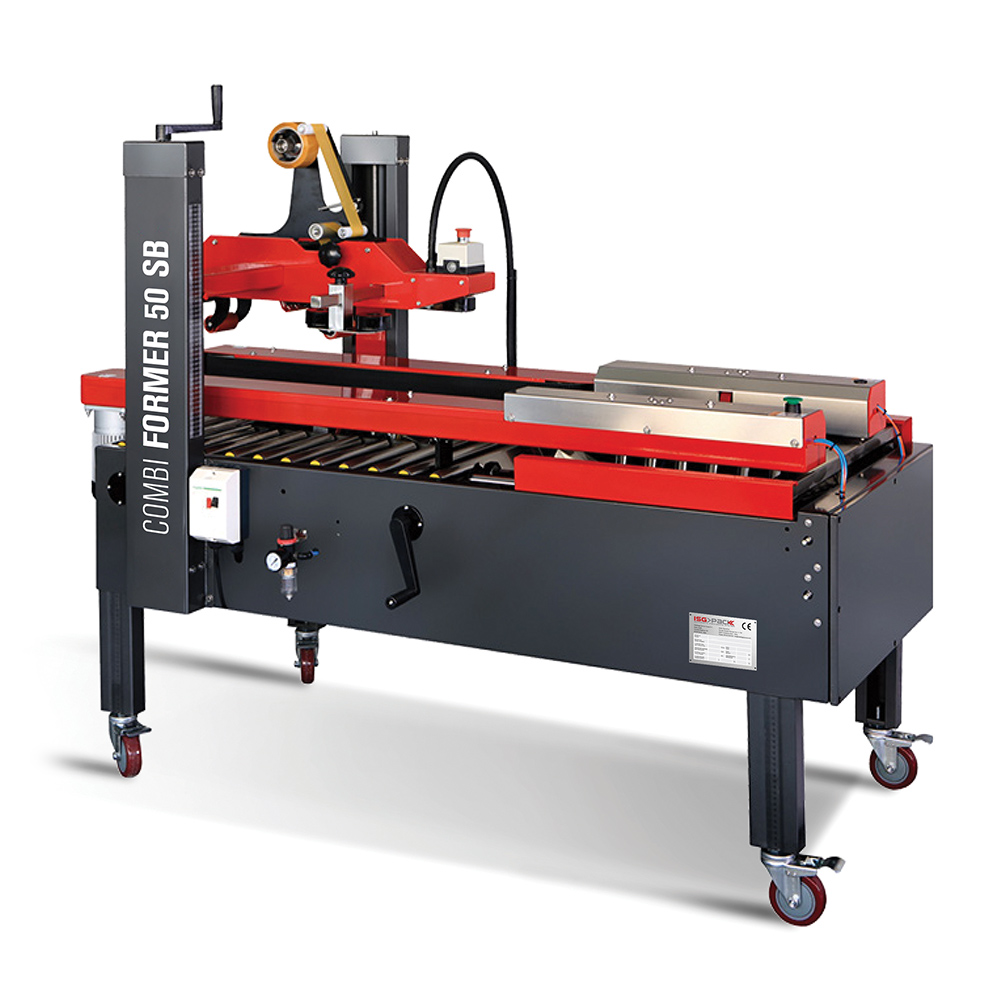

The Combi Former 50 SB is a forming and taping station consisting of a box forming section with a pusher cylinder and a sealing / taping section with two motorized side drive belts, suitable for packaging different sizes. The taping takes place both in the lower part and in the upper part of the box.

WEIGHT
260 kG

WITH
OPERATOR

UNIFORM
CARTON

BOTTOM
FORMING



Forming and taping case station composed of a case former part with a pushing cylinder and a sealing/taping part with two adjustable lateral drive belts for different box sizes with a large range for the box to slide. The packaging station Combi Former 50 SB is the right solution for forming and sealing American type boxes with the simultaneous application of adhesive tape on the top and bottom central line of the box.

The result is the perfect alignment of flaps and optimum sealing achieved by the efficient taping head.



FEATURES
  • Weight: 260 Kg
  • Power supply: 220 volts 1ph – 50/60 Hz
  • Environmental humidity conditions ≤ 90%
  • Box transfer speed: 22 mt / min
  • Air Supply: 4-6 kgf / cm2
  • Operating temperature range: from + 0 ° C to + 40 ° C
  • Maximum box weight: 40 kg
  • Machine dimensions: L1820 × W 920 x H 1330 – 1450 mm
  • Maximum Noise: 75 db
  • Electtrical protection: IP 54
  • Adhesive Tape: Kraft, polypropylene, pvc
  • Standard Taping head: 50 – 75 mm
  • Working table height: 630 – 750 mm
  • Installed power: 0,40 Kw

REQUEST A QUOTATION

Save time! Request a quote for this product without obligation. Fill in all the fields below correctly. One of our sales staff will answer you as soon as possible. Alternatively contact us at +39 06 9160 7561

Additional information

Machine dimensions

L 1820 x W 920 x H 1330/1450 mm

Net weight

260 Kg

Power supply

220 Volt 1Ph

Power supply frequency

50/60 Hz

Installed power

0,4 kW

Electrical protection

IP 54

Air consumption

2 Nlitri/min.

Air pressure

6 bar

Maximum noise

75 dB

Working table height

H 630/750 mm

Production capacity

10/12 boxes min

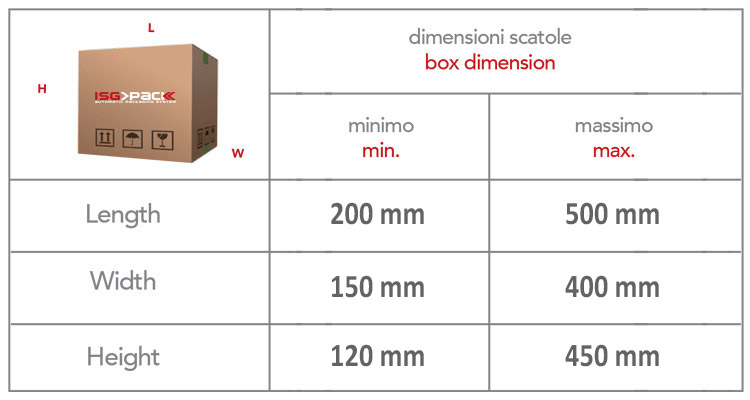

Dimension Min. product

L 200 x W 150 x H 120 mm

Max product size

L 500 x W 400 x H 450 mm

Type of boxes

American type
