Case former Easy Form 50

In stock

REQUEST QUOTE NOW

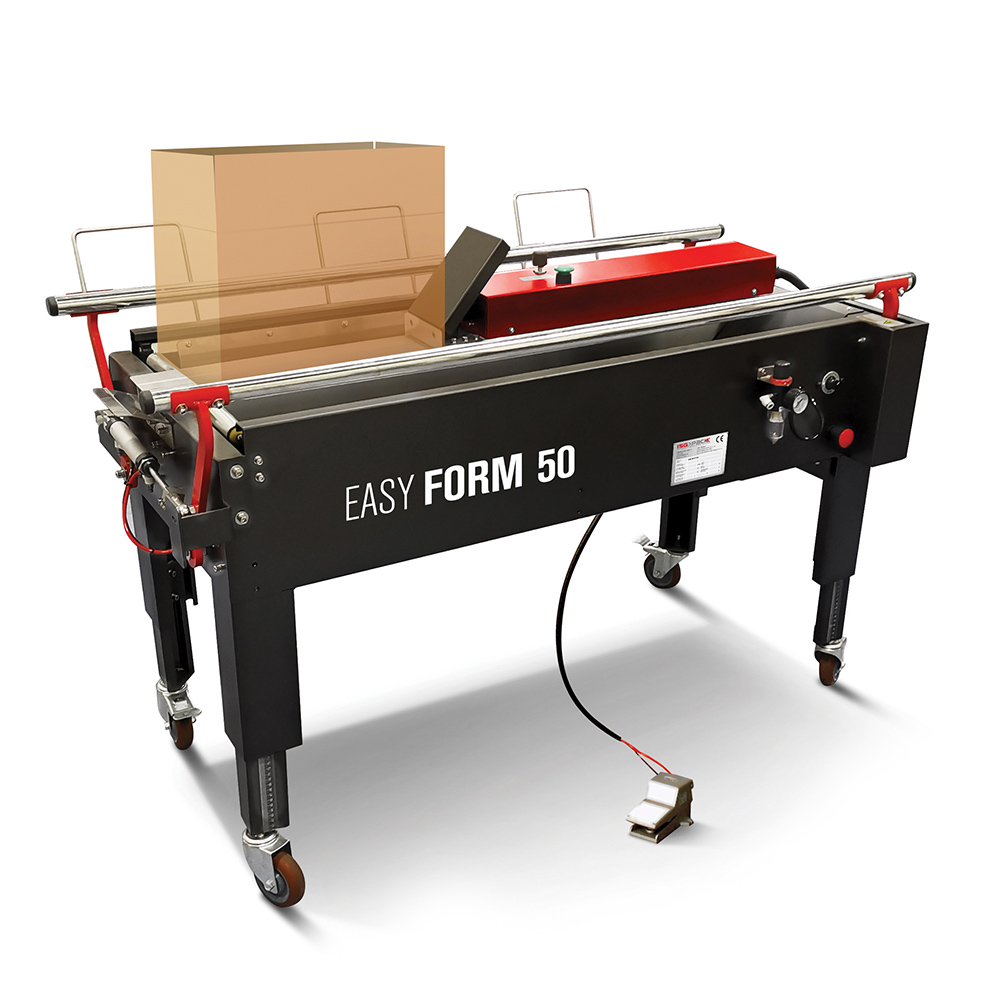

The Easy Form 50 is a semiautomatic machine for forming American-style cartons with the function of folding the four lower flaps and supporting them during an operator's filling operations.

WWIGHT
80 kG

WITH
OPERATOR

UNIFORM
CARTON

BOTTOM
FORMING



Semi-automatic case formers for closing the 4 flaps placed on the bottom of the box

Semi-automatic case former machine for American type boxes with the function of folding the four bottom flaps and supporting them during the filling operation by the operator. The EASY FORM 50, combined to a carton sealer and to an outfeed roller, represents a compact and productive semi-automatic packaging line.

Machine operation

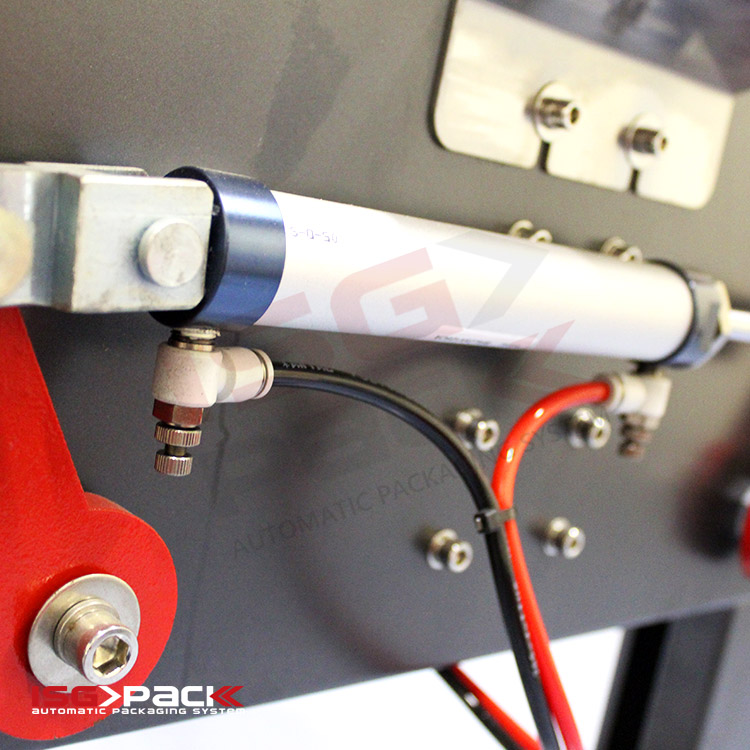

The box is inserted at an angle by pressing downwards to fold the front and back flaps.It is then pushed forwards in order to activate the lateral flap closer by a pneumatic control which keeps the bottom closed, facilitating the filling operation. Once finished, the operator closes the four upper flaps manually and accompanies the box to the sealing station; the operation is facilitated by the sliding of the box on the roller conveyor.



FEATURES
  • Weight: 80 kg
  • Environmental humidity conditions ≤ 90%
  • Operating temperature range: + 0 ° C to + 40 ° C
  • Machine dimensions: L 1450 × W 900 x 740-900 mm
  • Maximum Noise: 75 db

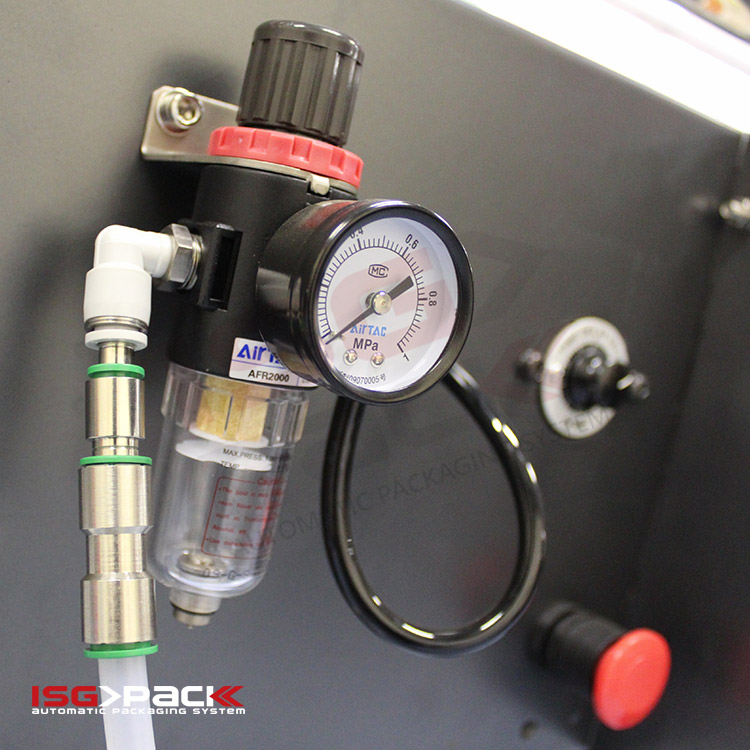

  • Air Supply: 4-6kgf / cm2
  • Working table height: 740 – 900 mm
  • Production capacity: from 0 to 5 boxes / min

REQUEST A QUOTATION

Save time! Request a quote for this product without obligation. Fill in all the fields below correctly. One of our sales staff will answer you as soon as possible. Alternatively contact us at +39 06 9160 7561

    How did you find our Company??

    Additional information

    Machine size

    L 1230 x W 950 x H 700/880 mm

    Net weight

    90 kg

    Air pressure

    6 bar

    Working table height

    700/880 mm

    Production capacity

    Up to 5 boxes min

    Dimension Min. product

    L 200 x W 160 x H 120 mm

    Max product size

    L 600 x W 480 x H 500 mm

    Type of boxes

    American type

    Box storage

    20 Boxes

    RICHIEDI ORA UN PREVENTIVO

    Request a free quote now

    Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

      How did you find our Company??

      Formacartoni semiautomatica easy form 50

      Case former Easy Form 50
