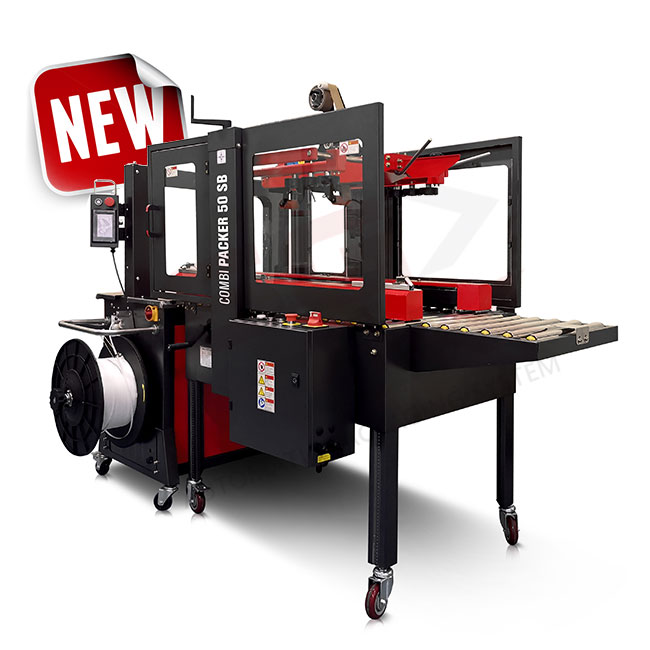

Combined strapping and taping machine Combi packer 50 SB

In stock

REQUEST QUOTE NOW

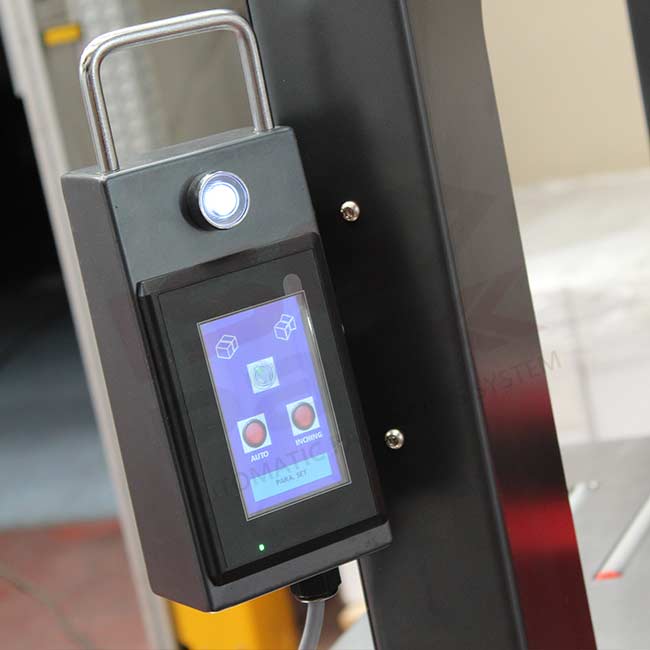

The Combi Packer 50 SB taping machine is a semi-automatic combined machine with manual dimensioning and automatic strapping machine. The machine has the possibility to tape and strap boxes. The two functions can be performed simultaneously or separately via touch screen panel.

WEIGHT
MACHINE 360 kG

WITH
OPERATOR

SEALING
AND STRAPPING

TOP/BOTTOM
SEALING



Semi-automatic Combi Packer 50 SB taping machine for an upper and lower taping of the box with single or double strapping

A combined machine, semi-automatic and manual dimensioning carton sealer with automatic arch strapping machine. Box feeding is regulated by two lateral belts controlled by two motors, ensuring the maximum sliding uniformity.

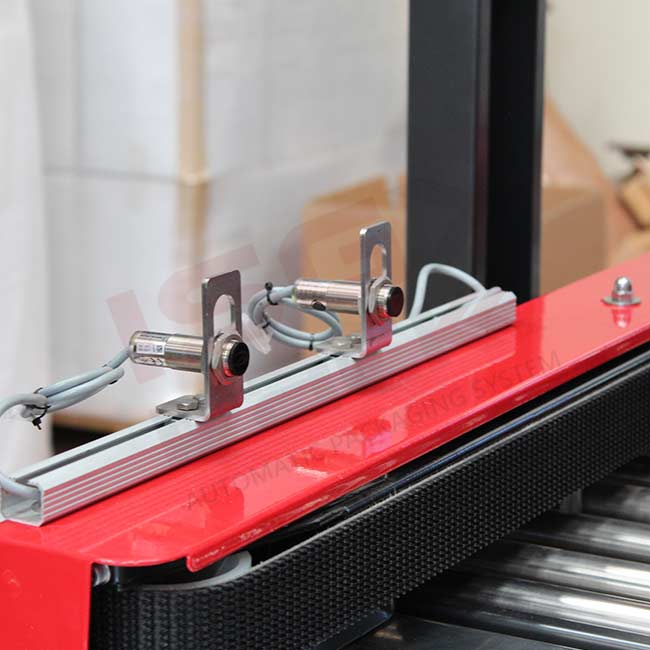

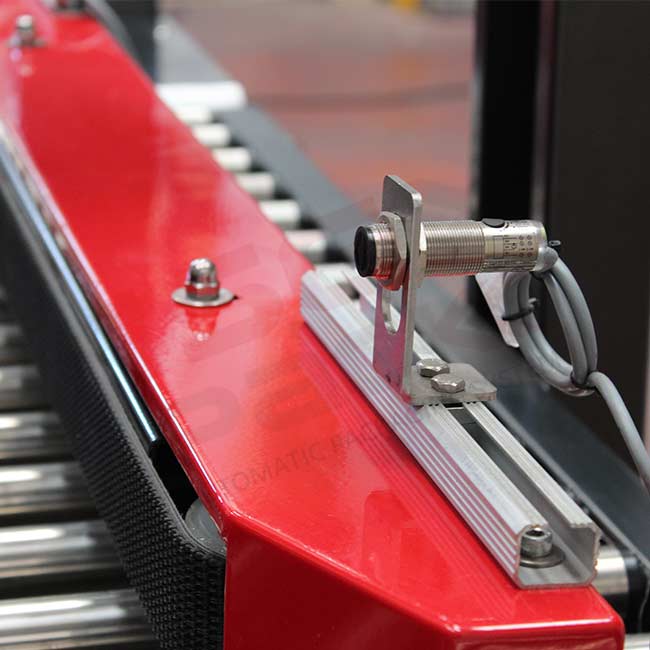

The result is a perfect alignment of box flaps and optimum sealing, thanks to the efficient taping head.The machine can be programmed for box taping / taping and strapping or taping and two strapping in parallel. The strapping distance can be adjusted by regulating the photocells placed on slide guides. It can be used by non-specialized operators because the machine requires simple adjustment operations.

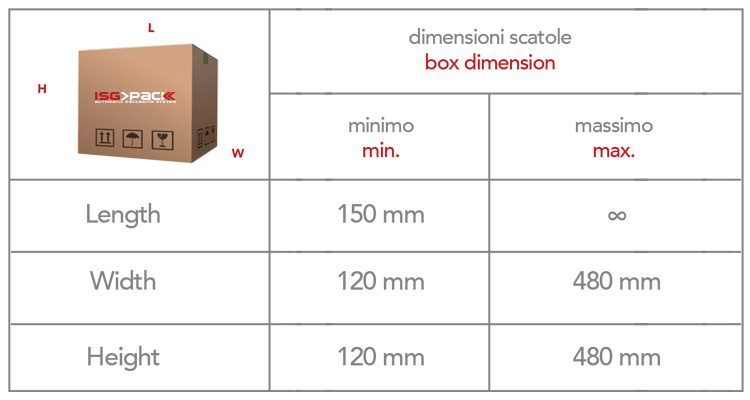

dimensioni scatole per macchina reggiatrice
formati nastri adesivi per macchina reggiatrice

nastratrici; combinate; semiautomatiche; autodimensionanti;

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Machine dimensions
Net weight
Power supply

220 Volt 1Ph

Power supply frequency

50/60 Hz

Installed power

0,4 kW

Maximum noise

75 dB

Taping head

50 – 75 mm

Closing system

Strapping, Tape

Adhesive tape

Kraft, polipropilene, pvc

Dimension strapping arch size

L 650 x H 500 mm

Strap max tensioning

Up to 45 Kg.

Strap width
Strap thickness
Sealing speed

6/8 scatole min.

Transfer speed

19 mt/min

Working table height
Dimension Min. product

L 150 x W 120 x H 120 mm

Max product size

L ∞ x W 480 x H 480 mm

Type of boxes

American type

Type of cartons

Single size

Taping type

+ Strap, Top and the bottom

Box forming

Manual
