Semi-automatic carton sealer with arch strapping machine

A combined machine, semi-automatic and manual dimensioning carton sealer with automatic arch strapping machine. Box feeding is regulated by two lateral belts controlled by two motors, ensuring the maximum sliding uniformity.

The result is a perfect alignment of box flaps and optimum sealing, thanks to the efficient taping head.The machine can be programmed for box taping / taping and strapping or taping and two strapping in parallel. The strapping distance can be adjusted by regulating the photocells placed on slide guides. It can be used by non-specialized operators because the machine requires simple adjustment operations.

Features

Weight: 360 Kg
Power supply: 220 Volts 50/60 Hz
Environmental humidity conditions ≤ 90%
Box transfer speed: 19 mt / min
Use temperature: + 0 °C to + 40°C
Arch size: 650 x 500mm
Maximum strap tension: up to 45 Kg
Strap size: 9 – 12 mm
Thickness: 0,5 – 0,7 mm
Maximum box weight: 40 kg
Maximum Noise: 75 db
Electrical protection: IP 54
Adhesive tape: Kraft, polypropylene, PVC
Standard taping heads: 50 – 75 mm
Working table height: 860 mm
Installed power: 1,1 Kw

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Machine size	L 2820 x W 1250 x H 2143 mm.
Net weight	450 Kg
Power supply	380 Volts
Power supply frequency	50/60 Hz
Installed power	0,4 kW
Adhesive tape	Kraft, polipropilene, pvc
Dimension strapping arch size	L 650 x H 500 mm
Strap max tensioning	Up to 45 Kg.
Strap width	5 – 9 – 12 mm.
Strap thickness	0,45 – 0,65 mm
Sealing speed	8/10 scatole min.
Transfer speed	19 mt/min
Working table height	H 850 mm

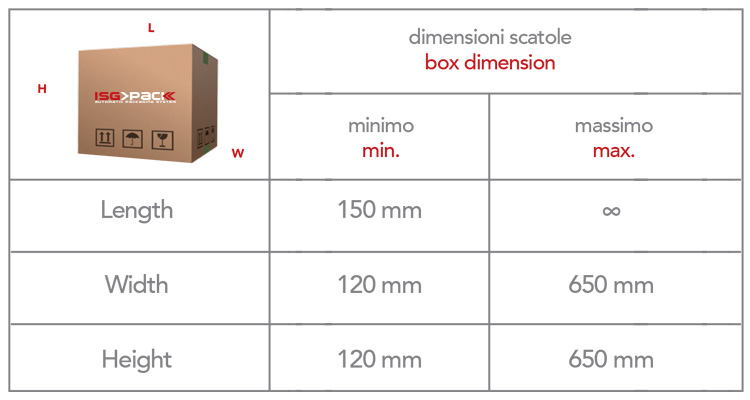

Dimension Min. product	L 200 x W 150 x H 120 mm
Max product size	L 600 x W 500 x H 480 mm
Type of boxes	American type
