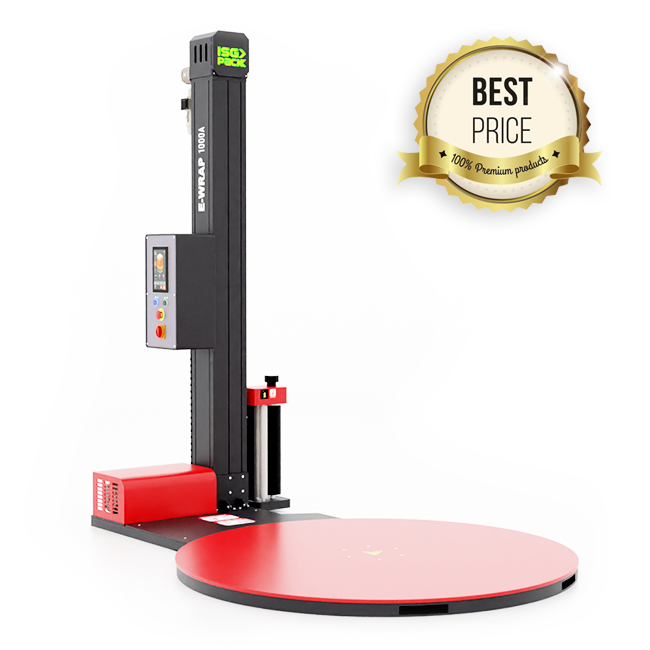

E-Wrap 1000A is the new ISG PACK machine with best value for money on the market. It is a semiautomatic stretch wrapper suitable for all the standard applications thanks to 6 working programs. This machine has an integrated pc board that gives alarm and error signals during the wrapping cycles (on a touch screen 7.2’’). Moreover, there is a luminous system at the top of the column that informs the operators if machine is working, in home position or in error/emergency.

Economic stretch wrapping machine E-Wrap 1000 A with mechanical brake

E-Wrap 1000A is the new ISG PACK machine with best value for money on the market. It is a semiautomatic stretch wrapper suitable for all the standard applications thanks to 6 working programs. This machine has an integrated pc board that gives alarm and error signals during the wrapping cycles (on a touch screen 7.2’’). Moreover, there is a luminous system at the top of the column that informs the operators if machine is working, in home position or in error/emergency.

Stretch wrapper features

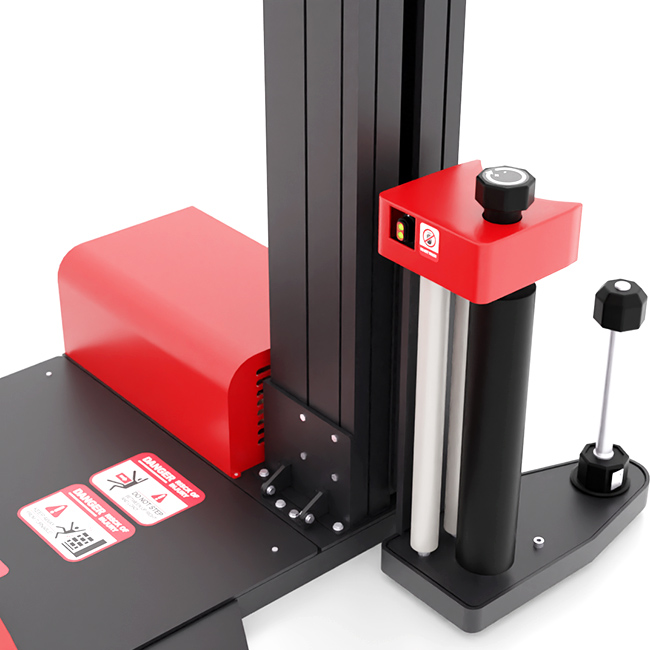

The rotating turntable of the E-Wrap 1000A has a diameter of 1500 mm and a maximum loading capacity of 1500Kg. The table rotation is activated by a driving chain and controlled by a magnetic sensor which verifies the number of rounds, the slowdown times and the home position of the table at the end of the working cycle. The standard column allows to wrap pallets up to a height of 2200mm.  The carriage is equipped with mechanical brake and a photoelectric sensor for detecting products.

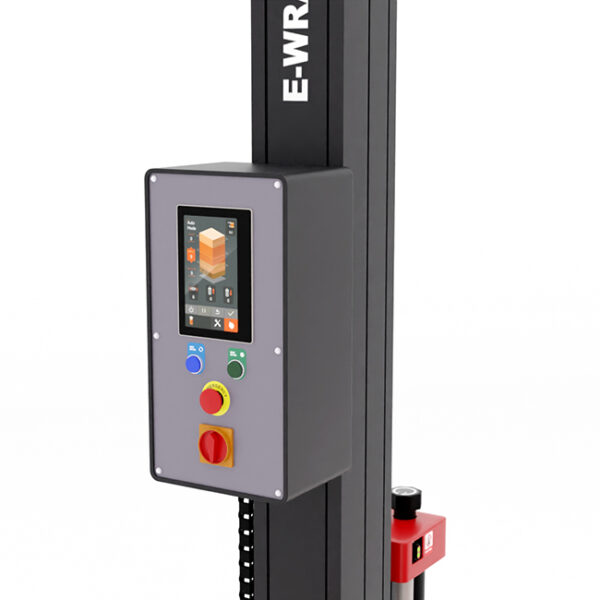

Touch screen functions

From the home page of the touch screen , it is possible to program many wrapping parameters in a very simple and intuitive way: number of wrapping rounds at the top and at the bottom of the pallet, number of cycles top and down of the carriage, turntable speed rotation, speed of the carriage, setting the photocell delay for the stretch film overlap.

Moreover, there are other integreted functions like the manual mode wrapping cycle, administrator system settings, a record of the machine job statistics and a technical area for monitoring the input and output signals, historical alarm database, maintainance operations done on the stretch wrapper.

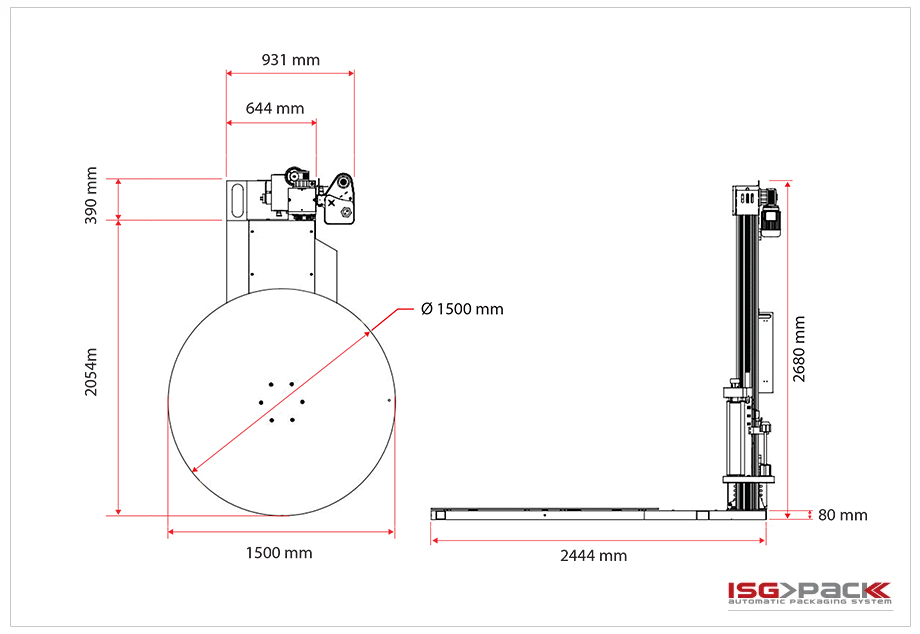

Layout

Layout avvolgipallet economico e-wrap 1000A

E-Wrap 1000A features

Technical details
  • Machine structure in steel and aluminium
  • Aluminium extrusion column hinged at the base of the machine for a fast installation
  • Carriage activated by a double driving chain
  • Machine equipped with an integrated pc board controlled by touch screen 7.2’’
  • Emergency stop device in compliance with the CE regulations

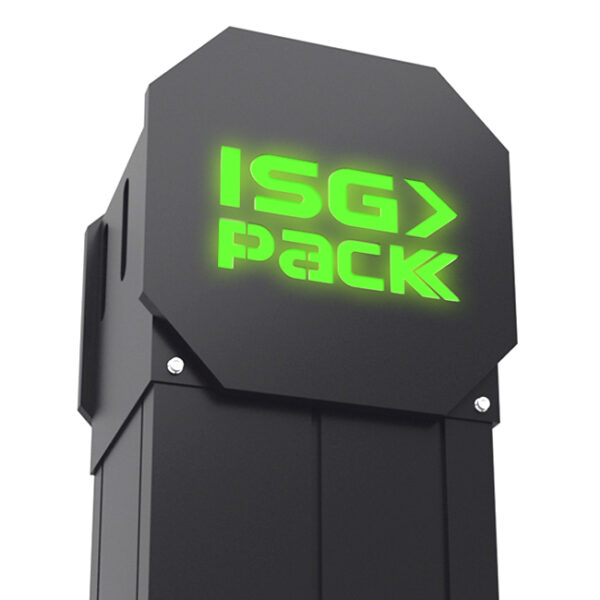

  • 3 colors luminous alarm device at the top of the column
  • Error solutions by touch screen
  • Start, stop and reset activated by touch screen or button
  • Stretch film tension by mechanical brake carriage
  • Emergency stop in compliance with the CE regulations
  • Machine in operation reset button in compliance with the CE regulations
  • Soft start and indexed stop of the turntable
  • Statistics, times and number of wrapped pallets
  • Manual mode wrapping cycle
  • Wrapping cycle restart after error recovery or stretch film roll change

Technical details, programs and wrapping cycles

From the control panel, it is possible to manage digitally:
  • Number of wrapping cycles
  • Turntable rotation speed from 0-12 rpm.
  • Adjustable photocell delay for the film overlap
  • Number of wrapping rounds at the top and at the bottom of the pallet
  • Carriage up and down speed (separated) 0- 5,9 mt/min
Cycles actived by control panel
  • Ascending and discending carriage cycle
  • Only ascending carriage cycle
Product features
  • Max pallet size: L 800 x W 1200 mm (with turntable diam. 1500 mm).
  • Max wrapping pallet height: H 2200 mm.
  • Max loading capacity: 1500 Kg.
Stretch film features

Max external roll diameter: 280 mm.


Inner core: 76 mm.

Film roll height: 500 mm.

Max film roll weight: 16 Kg.

Options
  • Turntable diam.1650 mm (for pallet of 1000 x 1200 mm)
  • Access ramp (for turntable diam. 1500 mm)
  • Access ramp (for turntable diam. 1650 mm)
  • High column for a useful wrapping height of 2600 mm
  • Photocell to detect black products

REQUEST A FREE QUOTE NOW

Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

Additional information

Machine size
Net machine weight

450 Kg

Turntable diameter

1500 mm

Turntable speed

0 – 12 (rpm)

Power supply

220 Volt 1Ph

Power supply frequency

50/60 Hz

Installed power

1.2 Kw

Max dimension film roll

H 500 mm Ø 280 mm

Film roll thickness

12 – 35 (µm)
