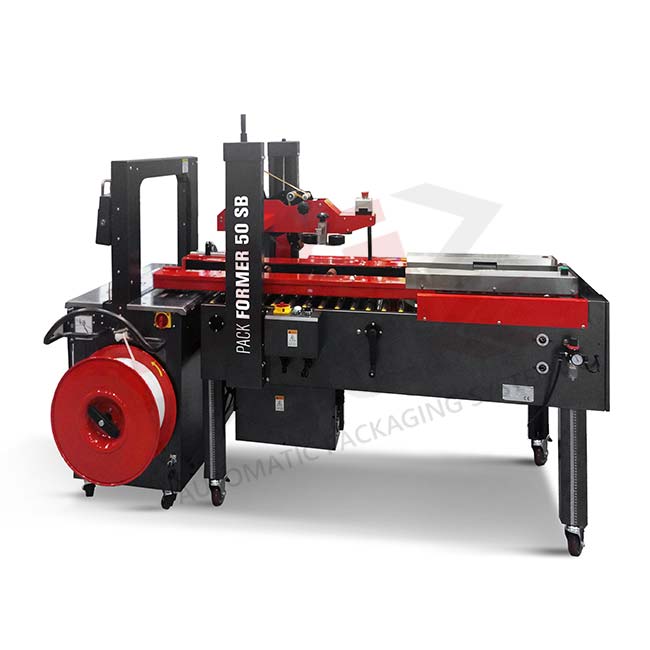

Forming taping Pack Former 50 SB

In stock

REQUEST QUOTE NOW



The Combi Former 50 SB is a forming, taping and strapping station consisting of a box forming section with pusher cylinder and a taping and strapping section. It has a box transfer speed of 22 m / min. and is powered both by air and electrically.

WIGHT
360 kG

WITH
OPERATOR

UNIFORM
CARTON

FORMING
TAPING
STRAPPING



Forming,taping and strapping packaging station composed by a case former with a pushing cylinder and by a taping and strapping part. It is equipped with two adjustable lateral drive belts for the sliding of different box sizes. The Pack Former 50 SB is the right solution for forming,sealing and strapping American type boxes with the simultaneous application of adhesive tape on the top and bottom central line of the box.

The result is the perfect alignment of the flaps and the optimum sealing thanks to the efficient taping head. After taping, the box slides to the strapping machine that automatically applies one or two parallel strappings. The distance between the strapping can be adjusted by regulating the fotocells that detact the box. The machine includes the outfeed roller conveyor and represents a simple and practical packaging station.

Features

  • Weight: 360 Kg
  • Power supply: 220 volts 1ph – 50/60 Hz
  • Environmental humidity conditions ≤ 90%
  • Box transfer speed: 22 mt / min
  • Air Supply: 4-6 kgf / cm2
  • Operating temperature range: from + 0 ° C to + 40 ° C

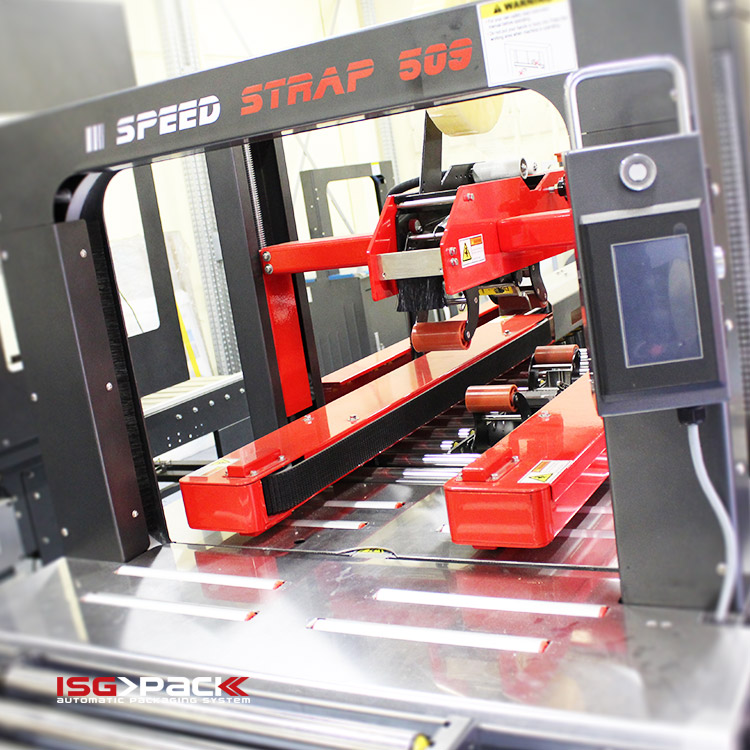

  • Arch size: 650 x 500 mm
  • Maximum strap tension: up to 45 Kg
  • Strap size: 9 – 12 mm
  • Thickness: 0,5 – 0,7 mm
  • Maximum box weight: 40 kg
  • Machine dimensions: L 2500 × W 1170 x H 1330 – 1450 mm
  • Maximum Noise: 75 db
  • Electtrical protection: IP 54
  • Adhesive Tape: Kraft, polypropylene, pvc
  • Standard Taping head: 50 – 75 mm
  • Working table height: 860

REQUEST A QUOTATION

Save time! Request a quote for this product without obligation. Fill in all the fields below correctly. One of our sales staff will answer you as soon as possible. Alternatively contact us at +39 06 9160 7561

Additional information

Machine dimensions

L 2500 x W 1170 x H 1330/1450 mm

Net weight

360 Kg.

Power supply

220 Volt 1Ph

Power supply frequency

50/60 Hz

Installed power

1,1 kW

Electrical protection

IP 54

Air consumption

2 Nlitri/min.

Air pressure

6 bar

Maximum noise

75 dB

Working table height

H 630/750 mm

Production capacity

10/12 boxes min

Dimension strapping arch size

L 650 x H 500 mm

Strap max tensioning

Up to 45 Kg.

Strap width

9 – 12 mm.

Strap thickness

0,5 – 0,7 mm

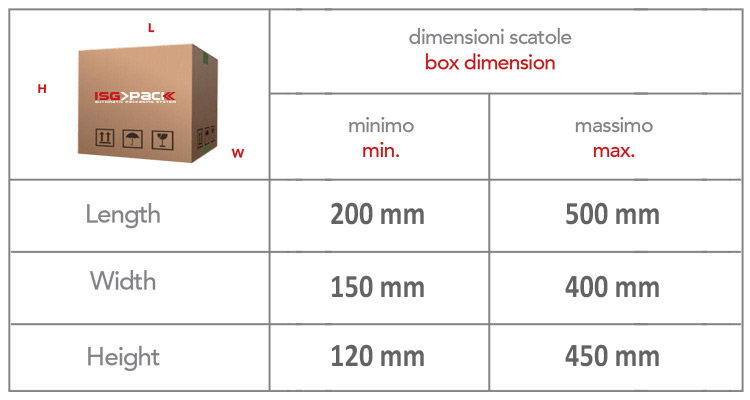

Dimension Min. product

L 200 x W 150 x H 120 mm

Max product size

L 500 x W 400 x H 450 mm

Type of boxes

American type

Forming,taping and strapping station Pack Former 50 SB
