Heigh speed carton erector Ultra Former 40 T

In stock

REQUEST QUOTE NOW



The Ultra Form 40 T is a high speed automatic carton machines. It has a production capacity of 40 minutes. Equipped with a warehouse with a capacity of 80/90 boxes. It automatically molds and tapes the bottom of the cardboard. The boxes can be closed with a tape or hot glue with a Nordson "Mesa" melter.

WEIGHT
2600 kG

WITHOUT
OPERATOR

UNIFORM
CARTON

BOTTOM FORMING
SEALING



The box is closed with auto-adhesive tape or Nordson hot melt system mod. ”Mesa”

High speed carton erector, mod. Ultra Form 40 T, forms boxes suited for horizontal filling and automatic flap closure. Boxes are manually placed on a vertical motorized storage in order to have them in a correct position when picked up by a gripping head with suction cups applied on a mechanical arm.

Operation of the machine

Forming speed from 30 to 40 boxes per minute. Electropneumatic devices allow a safe box forming and squared-folding. The box sizes can be regulated by SIEMENS plc with touch screen. The machine is equipped with safety guards controlled by microswitch. The box is closed with auto-adhesive tape or Nordson hot melt system mod.”Mesa”.

Feature

  • Power supply: 380 volts 3 ph – 50/60 Hz
  • Environmental humidity conditions ≤ 90%
  • Use temperature range: + 0 ° C to + 40 °C
  • Maximum Noise: 75 db
  • Air Supply: ≥6kgf / cm2
  • Electrical Protection: IP 54
  • AdhesiveTape: Kraft, polypropylene, pvc
  • Standard Taping head: 50 – 75 mm
  • Working table height: 1040+50 mm
  • Installed power: from 1,6 to 3,4 Kw
  • Production capacity: from 30 to 40 boxes/min
  • Storage capacity: 800 mm
  • (80-90 boxes according to box thickness)

REQUEST A QUOTATION

Save time! Request a quote for this product without obligation. Fill in all the fields below correctly. One of our sales staff will answer you as soon as possible. Alternatively contact us at +39 06 9160 7561

Additional information

Machine dimensions

L 3940 x W 1760 x 2100 mm

Net weight

2600 Kg.

Power supply

380 Volts 3 ph

Power supply frequency

50/60 Hz

Installed power

3,4 kW

Electrical protection

IP 54

Air consumption

7 Nlitri/min

Air pressure

6 bar

Taping head

50 – 75 mm

Adhesive tape

Kraft, polipropilene, pvc

Working table height

H 1040+50 mm

Maximum noise

75 dB

Production capacity

40 boxes min

Box storage

80/90 boxes

Type of boxes

American type

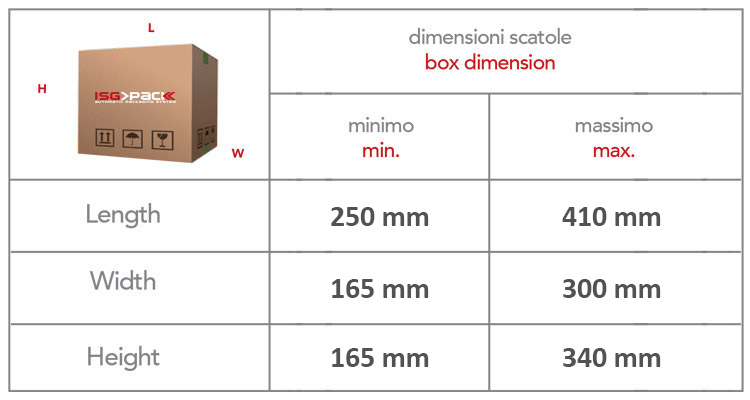

Dimension Min. product

L 250 x W 165 x H 165 mm

Max product size

L 410 x W 300 x H 340 mm
