Industrial vacuum packaging machine Ultra Vac 550SP

In stock

REQUEST QUOTE NOW

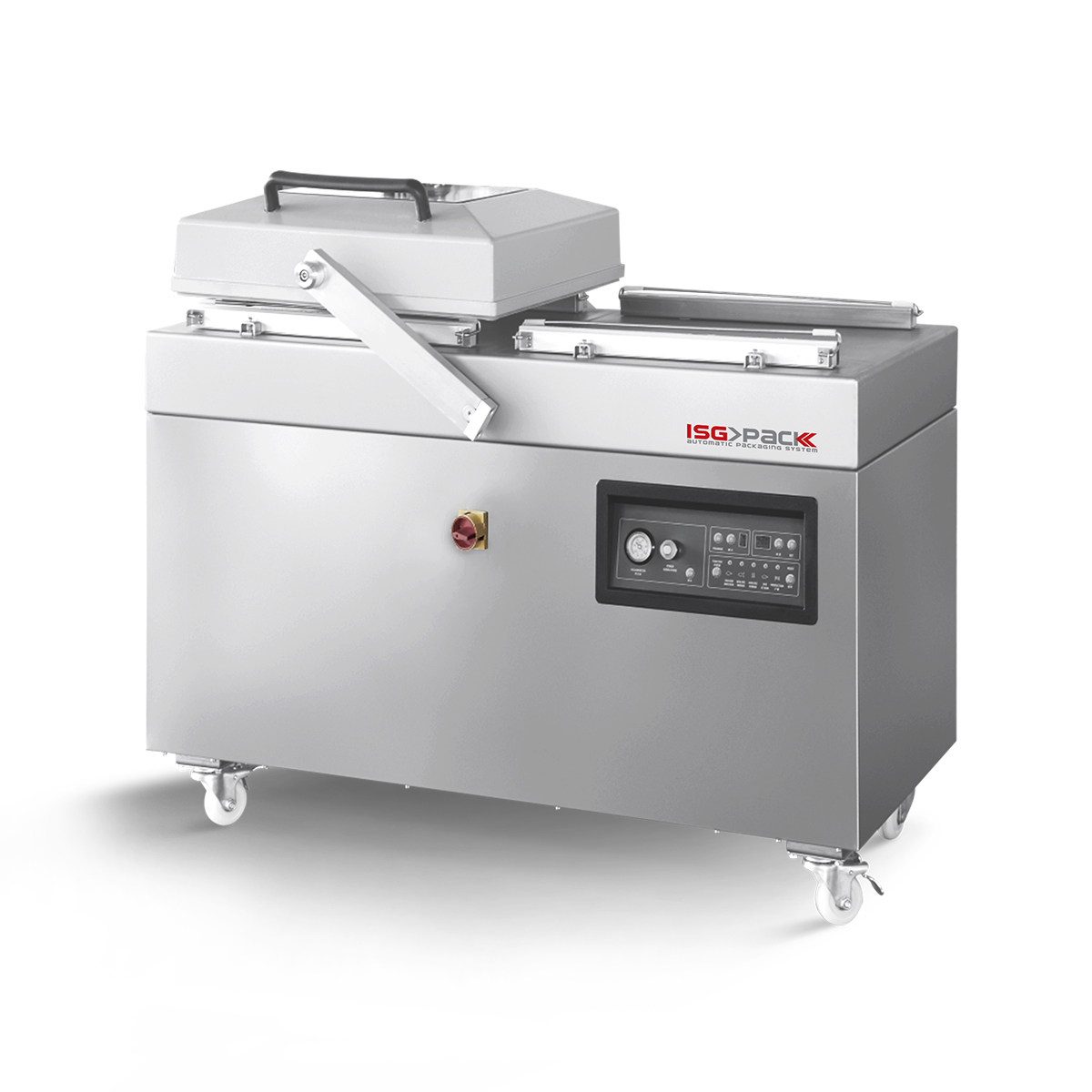

The Ultra Vac 550 SP is a trolley-mounted industrial vacuum machine ideal for large spaces. Equipped with 4 sealing bars and a translating bell. It mounts a 45 m³ / h vacuum pump to ensure, in addition to a fast vacuum, also a higher packaging speed.

Packaging machine equipped with 4 sealing bars to reach high production capacities

The ULTRA VAC 550SP has been built for packaging industrial and food products that require a high production capacity. They are in stainless steel for ensuring high standard of hygiene and resistance to acid, mold and rust. The shifting chamber allows high speed packaging.

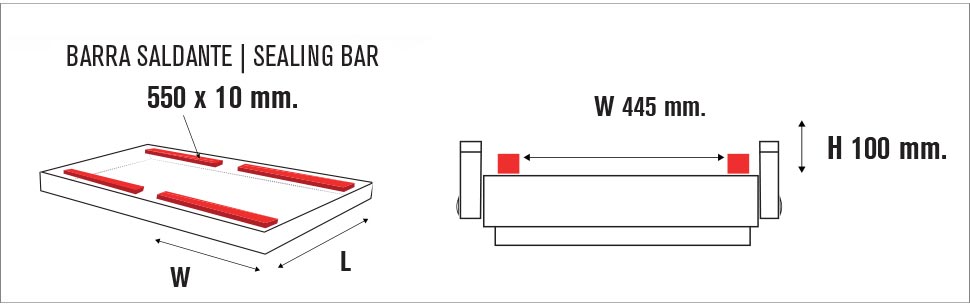

Misure camera Ultra Vac 550 SP

Optional
  • Stainless cover
  • Gas injection kit

FROM THE CONTROL PANEL IS POSSIBLE TO SET:

10 MEMORIES FOR DIFFERENT WORKING CYCLES

VACUUM TIME

  • Time of vacuum in the chamber.
    On the vacuum gauge it is possible to check the vacuum value.

TECHNICAL GAS INJECTION TIME

  • On the models with the predisposition, it is possible to decide the quantity of gas injection adjusting the “gas injection time”

SEALING TIME

  • Time of bag sealing. It depends on the bag thickness and material. Usually it takes 1 or 2 seconds.

COOLING TIME OF THE SEALING

  • The chamber remains closed and it makes a pressure on the sealing bar. It ensures a resistant bag sealing.

TWO-DIGIT COUNTER

  • The counter displays the number of working cycles.
DATA SHEET PDFDownload PDF vacuum machine Ultra Vac 550SP

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Power supply

380 Volts 3 ph

Power supply frequency

50/60 Hz

Installed power

2,2 kW

Machine size

L 1310 x W 800 x H 1000 mm

Net weight

200 Kg

Dimension sealing bar

L 550 x W 10 mm

Sealing bar

4 Lateral

Vacuum pump

45 m³/h

Work cycle

20 – 40 (SEC/CYCLE)
