Industrial vacuum packaging machine Ultra Vac 600 SA

In stock

REQUEST QUOTE NOW

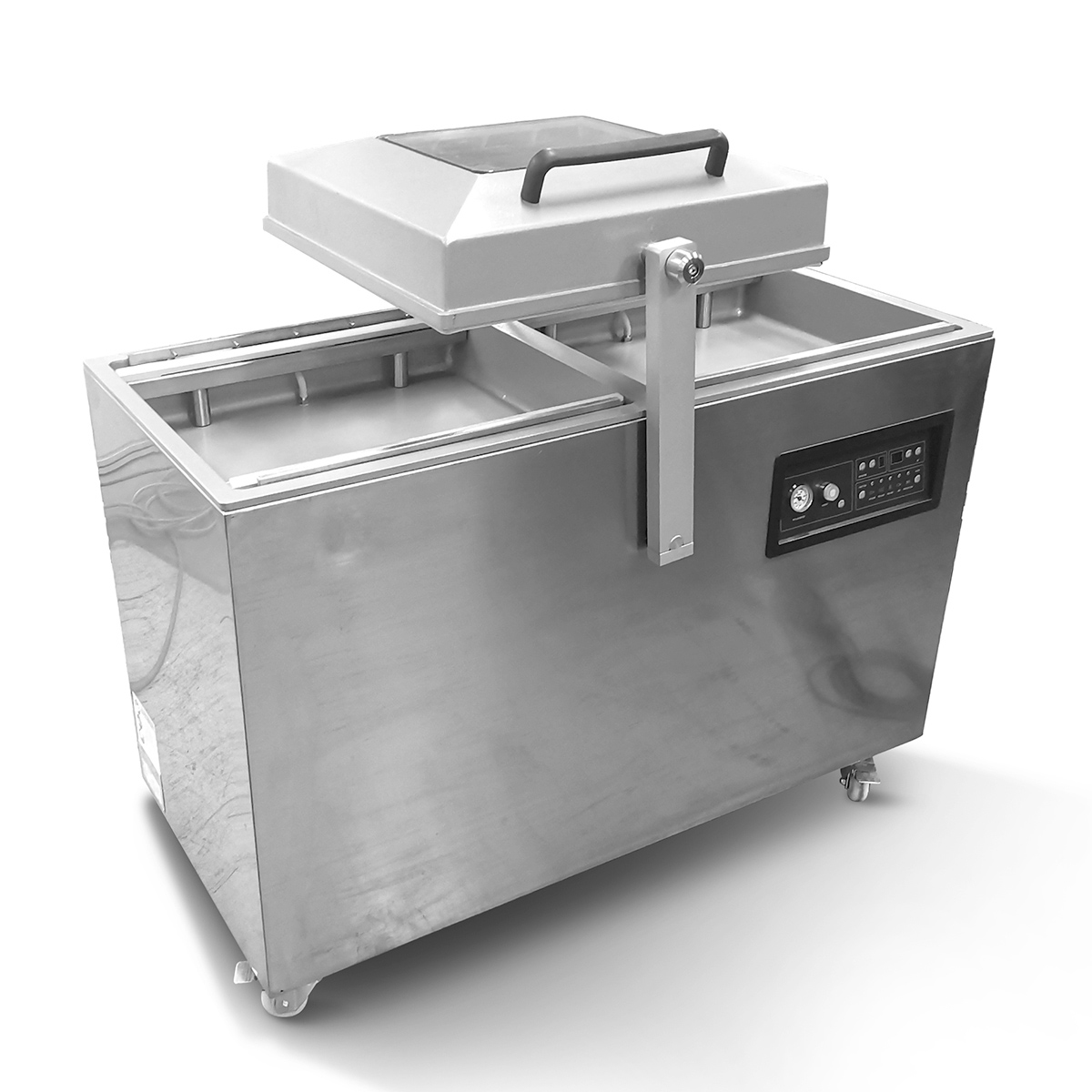

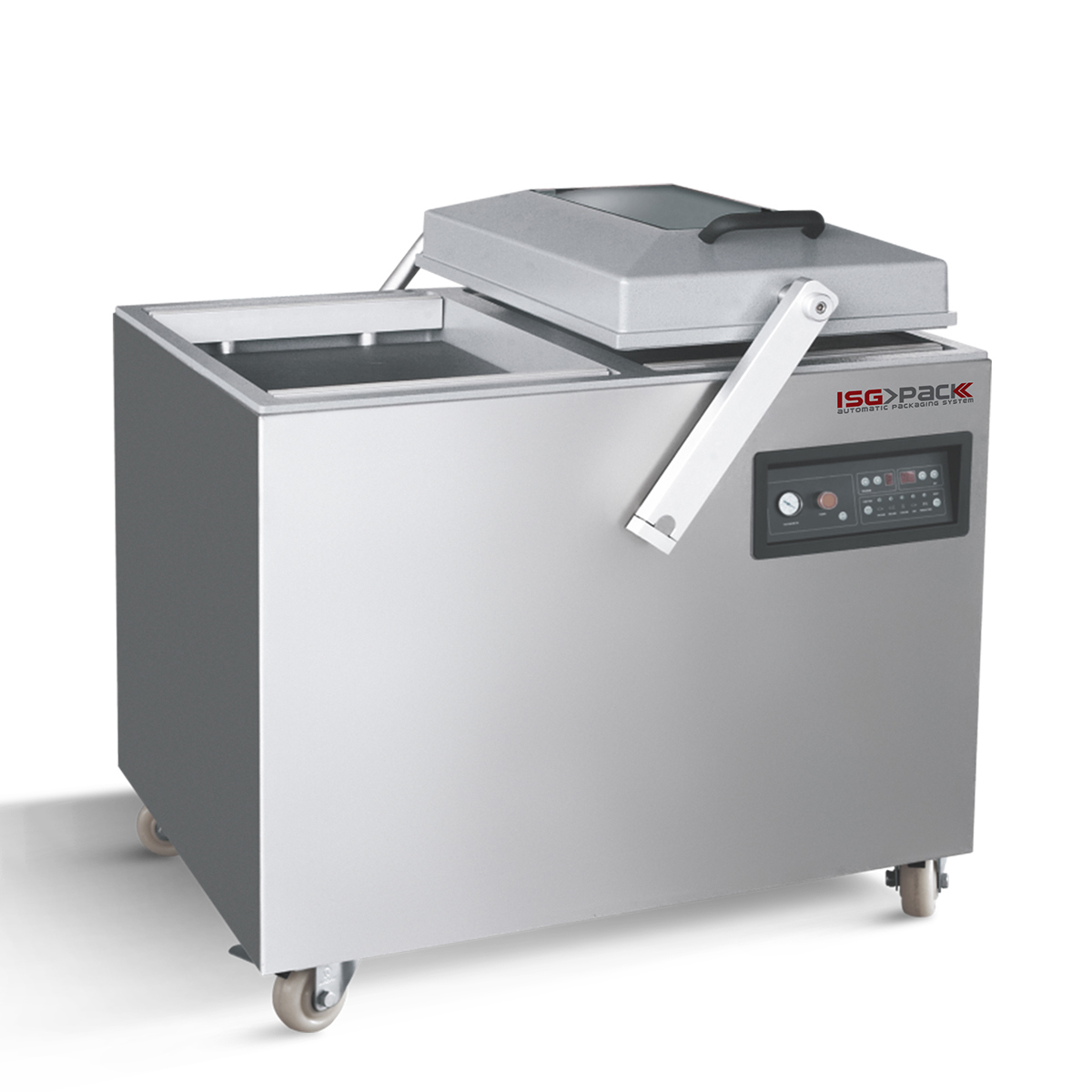

The Ultra Vac 600 SA is a wheeled industrial vacuum packing machine ideal for large spaces. Equipped with 4 sealing bars and a translating bell. It mounts a 63 m³ / h vacuum pump to guarantee, in addition to a fast vacuum, also a higher packaging speed.



The Ultra Vac 600 SA vacuum packing machine has been designed for industrial and food packaging that requires high production capacities. They are machines equipped with wheels, thanks to which they are ideal for large spaces, benefiting from a single machine to be moved according to needs. The stainless steel construction ensures high standards of hygiene and resistance to acids, mold and corrosion. Thanks to the presence of 4 sealing bars, the large work surface and the translating closing of the bell, it allows to reach high packing speeds.

Misure vasca sottovuoto Ultra Vac 600SA

Optional accessories
  • Aluminum tub and cover with tempered glass
  • Gas injection kit

Confezionatrice sottovuoto industriale

FROM THE CONTROL PANEL IS POSSIBLE TO SET:

10 MEMORIES FOR DIFFERENT WORKING CYCLES

VACUUM TIME

  • Time of vacuum in the chamber.
    On the vacuum gauge it is possible to check the vacuum value.

TECHNICAL GAS INJECTION TIME

  • On the models with the predisposition, it is possible to decide the quantity of gas injection adjusting the “gas injection time”

SEALING TIME

  • Time of bag sealing. It depends on the bag thickness and material. Usually it takes 1 or 2 seconds.

COOLING TIME OF THE SEALING

  • The chamber remains closed and it makes a pressure on the sealing bar. It ensures a resistant bag sealing.

TWO-DIGIT COUNTER

  • The counter displays the number of working cycles.
Download PDF vacuum machine

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

How did you find our Company??


Additional information

Power supply

380 Volts 3 ph

Power supply frequency

50/60 Hz

Installed power

2,2 kW

Machine size

L 1310 x W 800 x H 1127 mm

Net weight

200 Kg

Dimension sealing bar

L 600 x W 10 mm

Sealing bar

4 Lateral

Vacuum pump

63 m³/h

Work cycle

20 – 40 (SEC/CYCLE)
