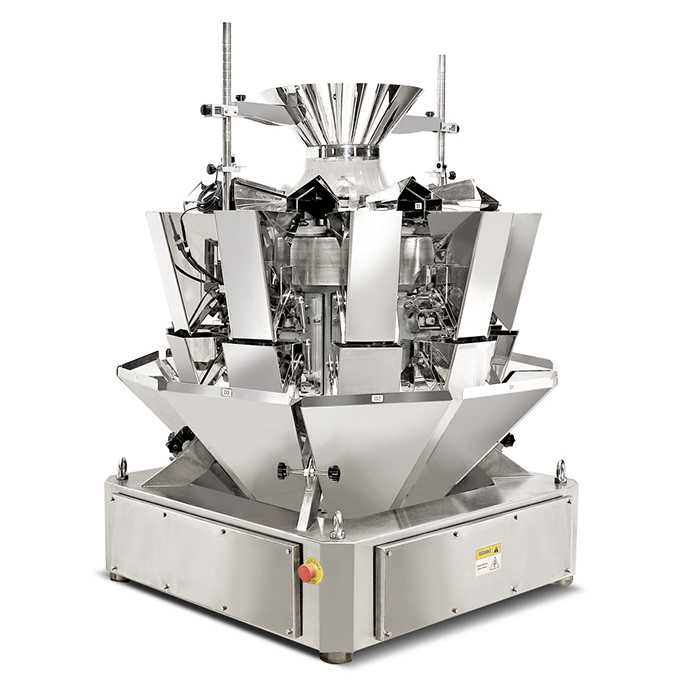

Multi-head weighers MW 10

In stock

REQUEST QUOTE NOW



The MW 10 multi-head weigher is made with high quality standards and can be customized according to the needs of each customer. The MW line has been designed to constantly and accurately weigh a wide range of products of various sizes and weights at various speeds

Icona kg

WEIGHT
MULTI-HEAD 380 KG

Icona alimentazione elettrica Isg Pack

POWERED
ELECTRIC AND AIR

Confezione a 3 saldature

MAX PRODUCTION
65 BAGS/MIN

icona-multitesta

NUMBER
BASKETS 10





Multi-head weigher suitable for seeds, peanuts, walnuts, almonds, raisins, candied, pistachios, chips, dumplings and other granules, materials of round and linear shape.

Multi-head weighers, MW 10, are built with high quality standard and can be customized according to customer requirements. The MW line has been designed to weight in a constant and accurate way a large range of products with various size and weight at adjustable speed. The range includes weighers from 10 heads and can be used in dry or wet environments.

Optionals and features

Optionals
  • Hopper 0,5 / 2,5 / 5 liter
  • 9,7’’ touch screen
  • Stainless Steel AISI 316
Features
  • Compact design
  • Reception hopper
  • Vibrating cone to direct the products to the channels
  • 10 vibrating channels to supply the pre-dosage baskets
  • 10 pre-dosage baskets that flow the products to the weighing baskets
  • 10 weighing baskets placed on load cells
  • Discharge cone at 52° easy to disassemble without tools
  • Vibrating cone and channels adjustable by increasing or reducing the vibration width and time by keyboard

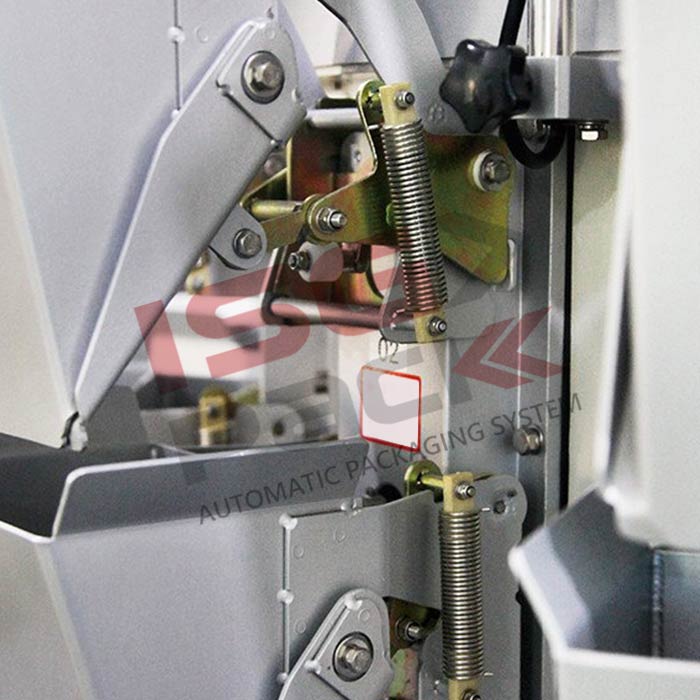

  • Opening and closing of the pre-dosage and weighing baskets controlled mechanically and individually by step by step motors
  • Interfacing with any packaging machine
  • Automatic zero control (auto-tare) by keyboard
  • Control panel with digital touch screen 7’’
  • 99 programs
  • Man/Auto mode
  • Machine complies with the CE directives

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

How did you find our Company??


Additional information

Power supply

220 Volt 1Ph

Installed power

1 Kw

Range weight

10 – 1000 Gr

Max production

65 Bags/min

Weight tolerance

+/- 0,5 Gr

Weigh bucket

1.6 – 2.5 Liter

Machine size

L 1620 x W 1080 x H 1120 mm

Net weight

380 Kg.

Drive motor

stepper motor
