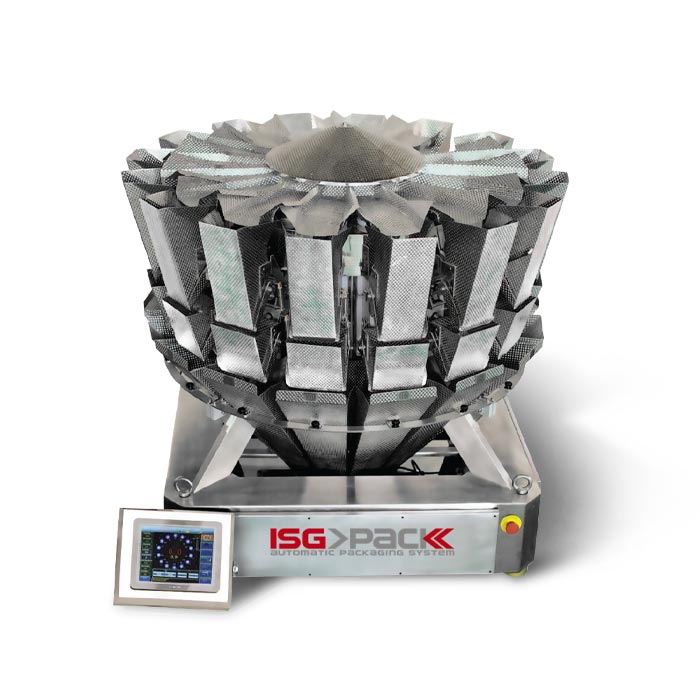

Multi-head weigher suitable for seeds, peanuts, walnuts, almonds, raisins, candied, pistachios, chips, dumplings and other granules, materials of round and linear shape.

Multi-head weighers, MW 24, are built with high quality standard and can be customized according to customer requirements. The MW line has been designed to weight in a constant and accurate way a large range of products with various size and weight at adjustable speed. The range includes weighers from 24 heads and can be used in dry or wet environments.

Optionals and features

Optionals

Hopper 0,5 / 2,5 / 5 liter
9,7’’ touch screen
Stainless Steel AISI 316

Features

Compact design
Reception hopper
Vibrating cone to direct the products to the channels
24 vibrating channels to supply the pre-dosage baskets
24 pre-dosage baskets that flow the products to the weighing baskets
Twentyfour weighing baskets placed on load cells
Discharge cone at 52° easy to disassemble without tools
Vibrating cone and channels adjustable by increasing or reducing the vibration width and time by keyboard
Opening and closing of the pre-dosage and weighing baskets controlled mechanically and individually by step by step motors
Interfacing with any packaging machine
Automatic zero control (auto-tare) by keyboard
Control panel with digital touch screen 7’’
99 programs
Man/Auto mode
Machine complies with the CE directives

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Power supply	220 Volt 1Ph
Installed power	1 Kw
Range weight	5 – 240 Gr
Max production	60 Bags/min
Weight tolerance	+/- 0,5 Gr
Weigh bucket	0,5 Liter
Machine size	L 1800 x W 1250 x H 1100 mm
Net weight	440 Kg
Drive motor	stepper motor
