Your cargo is safe with Slim Wrap 2020 B

You are slouching to ship a load of delicate products. Are you afraid they will be damaged in transit? With Slim Wrap 2020 B, you can rest assured. This new semi-automatic wrapper is designed to protect your products effectively. The low height rotary table (31 mm) allows you to load the pallet from any side, (with a traditional pallet truck) thanks to the 270° access ramps that facilitate loading and reduce the risk of damage. In addition, the motorized pre-stretch carriage provides significant film savings, resulting in savings in packaging costs.

General features of the winder

The Slim Wrap 2020 B pallet wrapper has a table diameter of 1650 mm (standard) with a thickness of only 31 mm. It can process products with dimensions of L 1000 x W 1200 x H 2200 mm, supporting a maximum plate weight of 1200 kg. The pallet wrapper is equipped with Siemens PLC controlled by a 7.2 color touch screen display that allows for numerous machine adjustments.

Features and parameters

Technical details

Machine structure in painted steel sheet
Column hinged at the base for easy and quick installation
Film carriage by transmission chain
Turntable transmission with patented system
Turntable diameter ø 1650 mm
Turntable thickness 31 mm

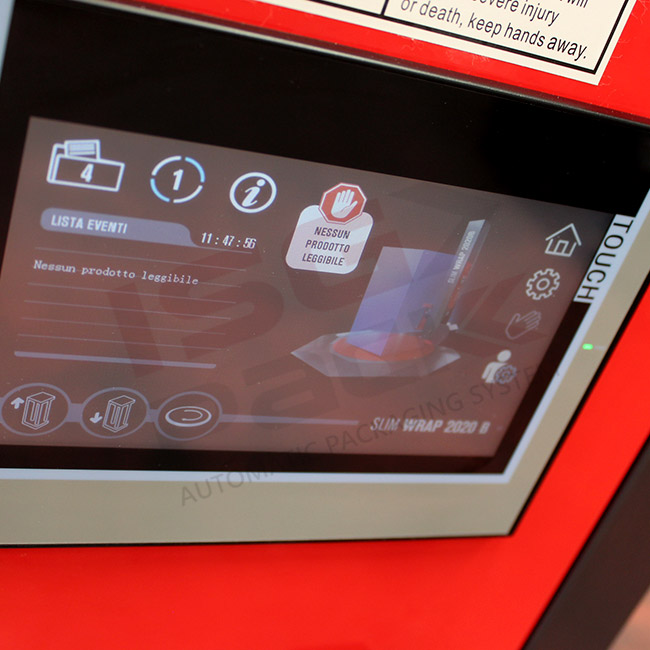

Machine controlled by PLC and color touch screen7,2”
Lock/unlock brake device for easy film hooking to the pallet
Acoustic warning with light signal at the start cycle
Motorized pre-stretch set at 200% with possibility to interchange pre-stretch ratio
100%, 150%, 250%
Pre-stretch film carriage, adjustment by touch screen
Emergency stop in compliance with CE regulations
Reset button in compliance with CE regulations
Inverter for soft start and indexed stop of the turntable
Cycle counter
Manual machine working mode

Parameters adjustable by control panel

Number of rounds at the bottom of the pallet
Number of rounds at the top of the pallet
Adjustable turntable speed from 0 to 10 rpm
Digital pre-stretch adjustment
Adjustable ascending and descending carriage speed
Adjustable number of ascending and descending cycles
Adjustable photocell delay
Film tension adjustment

Cycles activated by control panel

Ascending and descending cycle
Only ascending cycle
Reinforce cycle at a programmed height (ascending cycle, ascending / descending cycle)
Top sheet cycle (ascending/descending)
N° 10 programmable cycles by touch screen according to the product/pallet to wrap

Product features

Product dimensions: L 800 x W 1200 mm.
Max product height: H 2200 mm.
Max product weight: 1500 Kg.

Film roll features

Film roll external diameters: 280 mm.

Film roll internal diameter: 76 mm.

Film roll height: 500 mm.

Film roll max weight: 16 Kg.

Download PDF of the machine

REQUEST A FREE QUOTE NOW

Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

Additional information

Power supply	220 Volt 1Ph
Power supply frequency	50/60 Hz
Installed power	1,40 kw

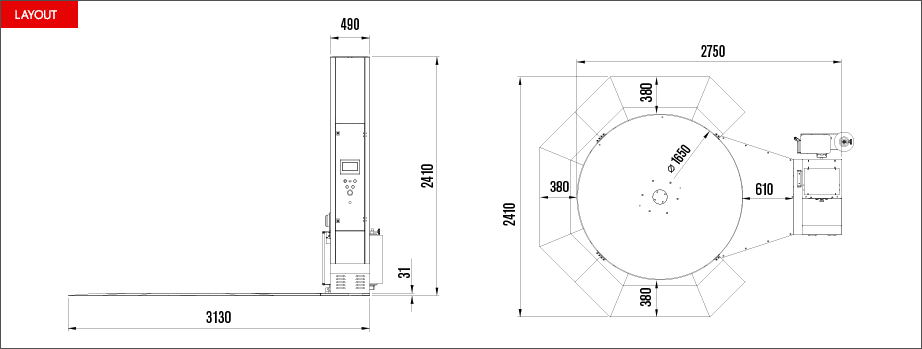

Machine size
Net machine weight	480 Kg
Turntable diameter	1650 mm
Turntable speed	0 – 10 rpm
Carriage	Powered pre-stretch film carriage
Product reading	Sandard photocell
Product dimension	L 1000 x W 1200 mm
Max product height	H 2200 mm
Max. product weight	1200 Kg
