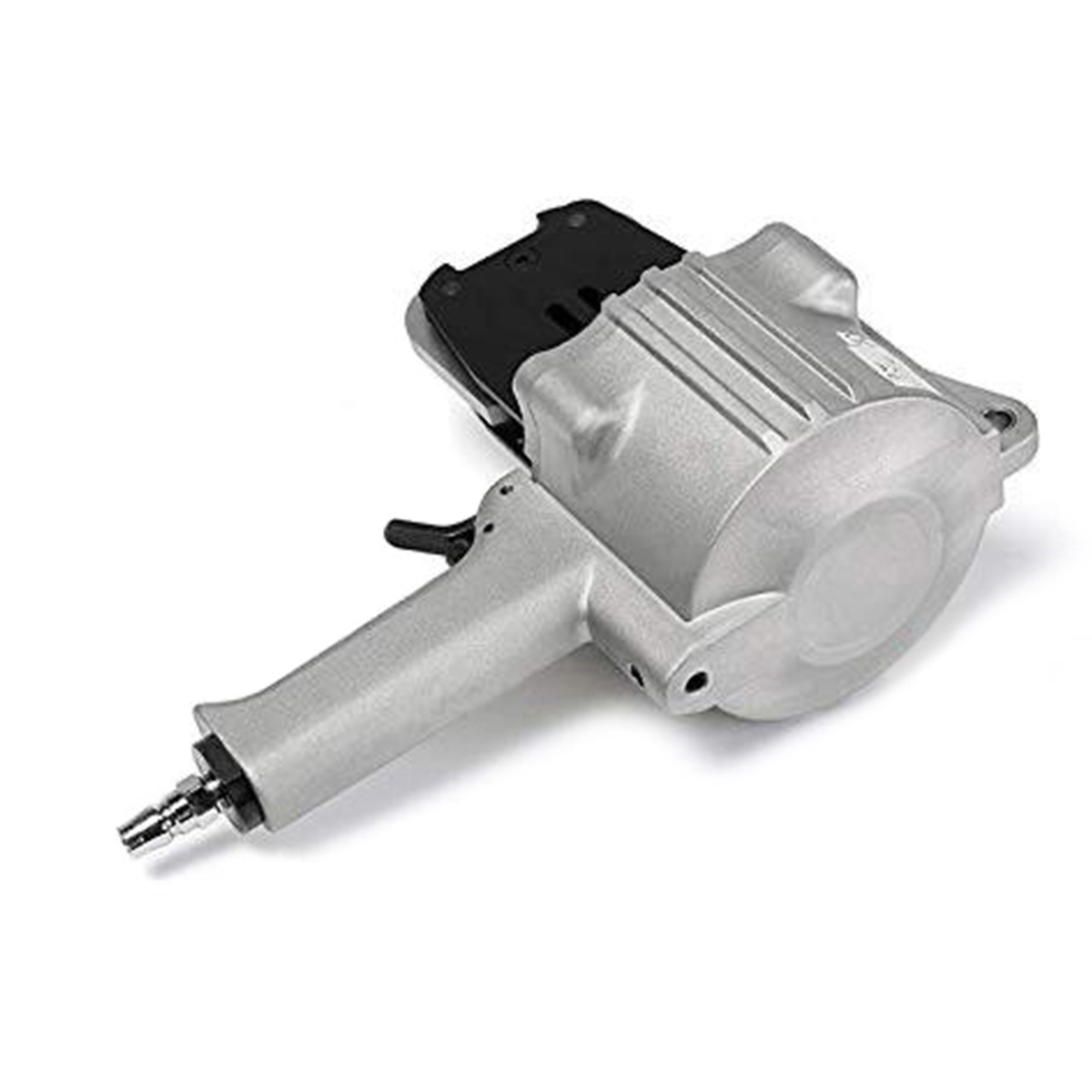

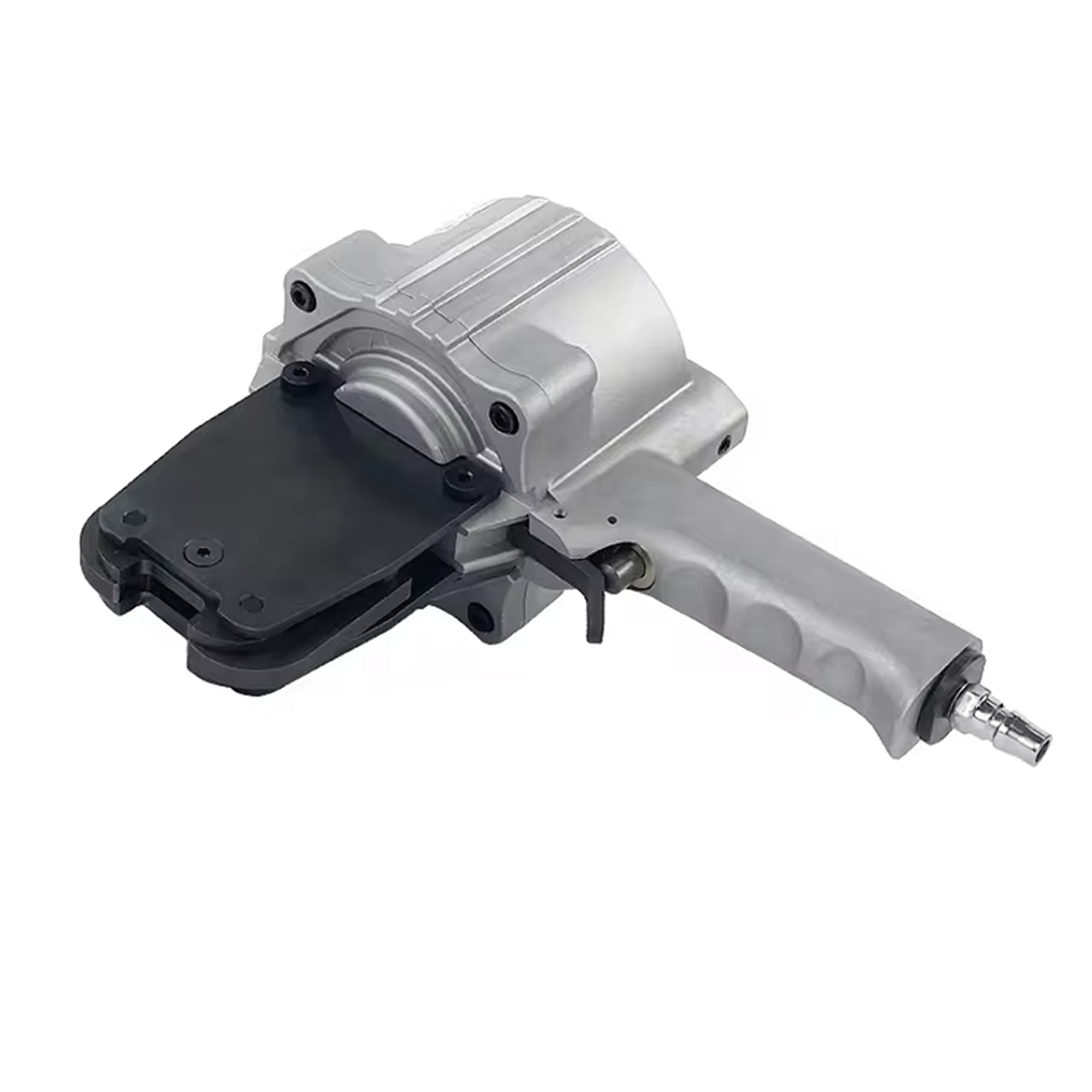

Pneumatic sealer EOS S 19-32

In stock

REQUEST QUOTE NOW



Pneumatic clamp EOS S for metal strap with seal with width from 19 - 25 - 32 mm. Designed for application in the heavy industry sector for flat and round necks. To be used in combination with the EOS T 19-32 socket.



Catatteristiche pinza pneumatica per reggia metallica

EOS S pneumatic gripper with single incision for metal strap with seal

Pneumatic sealer with single notch for steel strap with seal. It is easy to use, strong and reliable, designed for industrial applications for flat and round products. To be used in conjuction with the tensioner EOS T 19-32.

Catatteristiche pinza pneumatica per reggia metallica

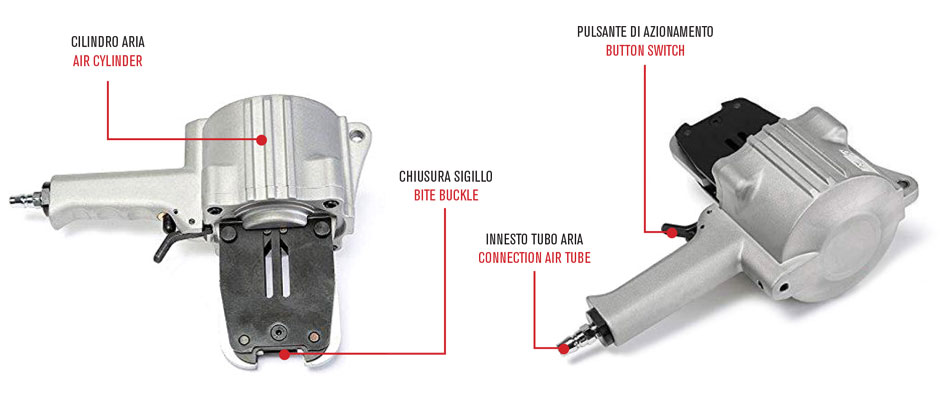

Dimensioni e caratteristiche pinza pneulatica


DATA SHEET
  • Pneumatic supply: 6 bar
  • Air pressure: 0,49 – 0,63 Mpa
  • Strap tension: 15000 N
  • Net weight: 3,1 Kg
  • Dimension strapping tool: L 300 x W 210 x H 130 mm
SPECIFIC STRAP USED
  • Strap type: Metallica lucida/blu RMAX 850 N/mm2 e alta resistenza RMAX 1100 N / mm2
  • Strap width: 19 – 25 – 32 mm
  • Strap tickness: 0,8 – 1,2 mm

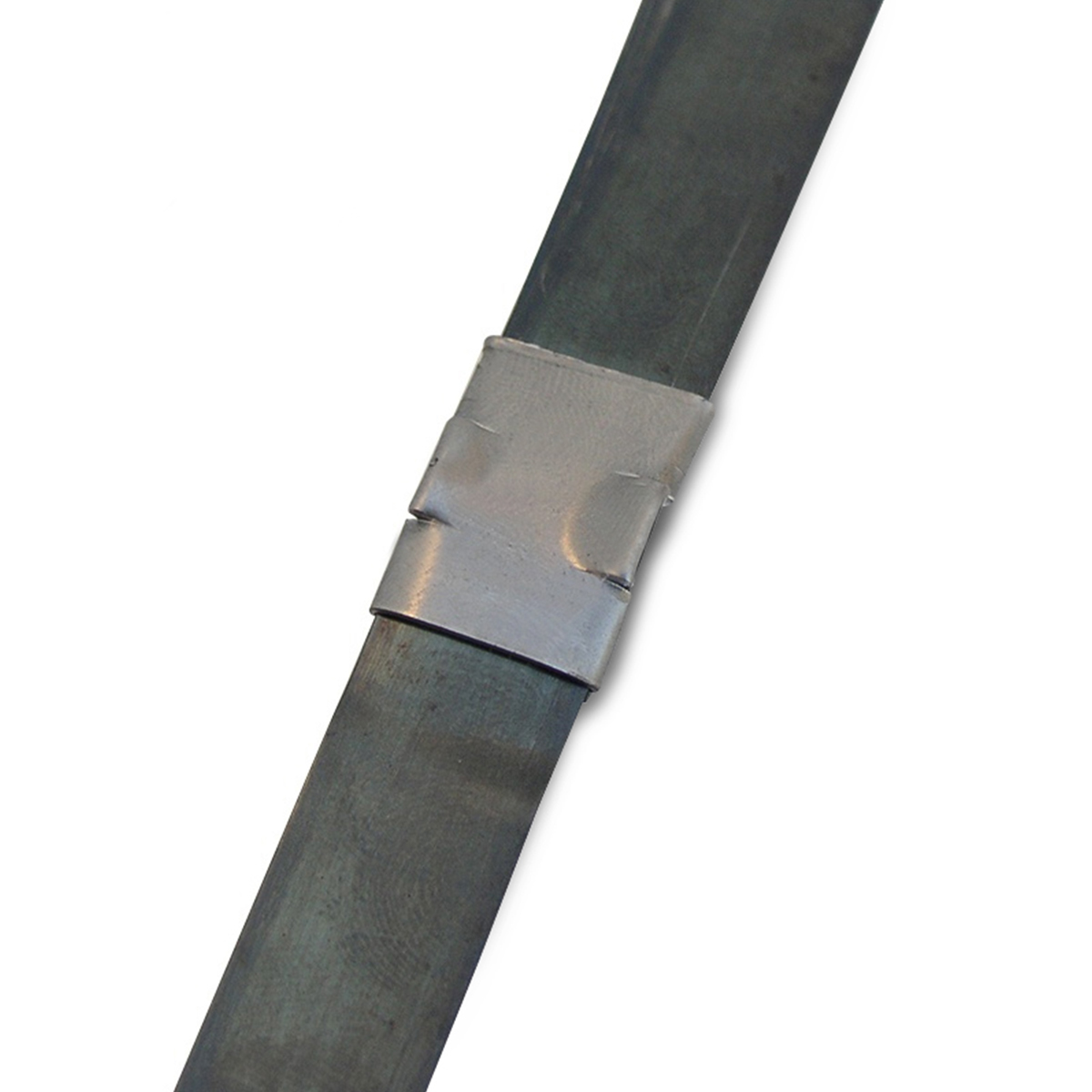

  • Closure: Single incision overlap seal

Technical sheet PDF

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Supply

Ad aria – 6 bar

Air pressure

0,49 – 0,63 Mpa

Strap tension

15000 N

Closing system

Single incision overlap seal

Net weight

3,1 Kg

Machine dimensions

L 300 x W 210 x H 130 mm.

Strap type

Metallica lucida/blu RMAX 850 N/mm2 e alta resistenza RMAX 1100 N / mm2

Strap width

19 – 25 – 32 mm

Strap thickness

0,8 – 1,2 mm
