Pneumatic strapping tool Hurricane 13-19 PN

In stock

REQUEST QUOTE NOW



The Hurricane Strapping Tool 13-25 PN is a pneumatic machine that performs vibration welding (heating by friction) for PET polyester strap with a width of mm. 13 - 16 - 19 and 19 - 25 with max. Thickness mm. 1.5. Lightweight and easy to use, it is suitable for closing any kind of flat packaging.




Caratteristiche tendireggia pneumatico per reggetta in PET

Pneumatic strapping tool for PET strap, compact, handy and easy to use

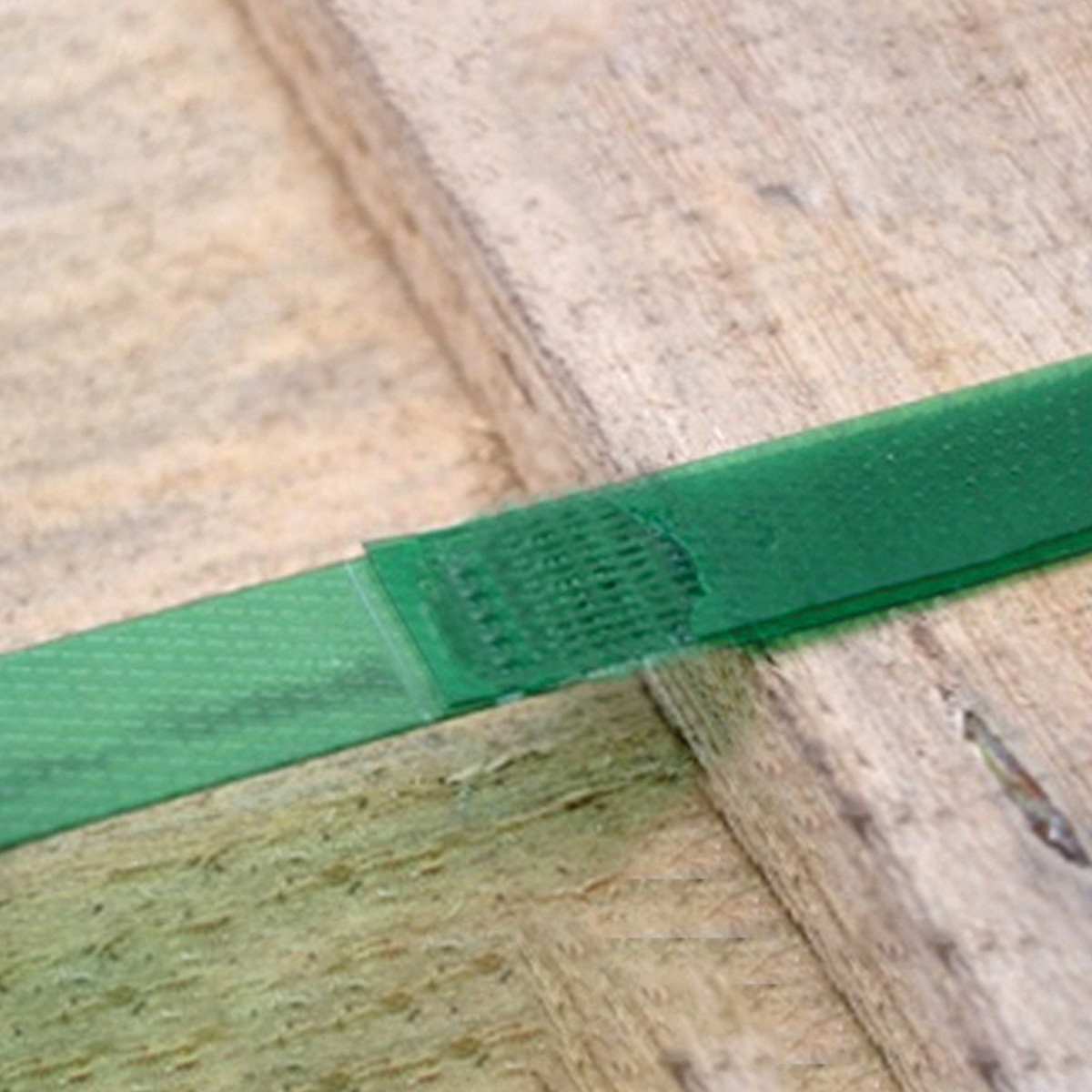

The strapping tool Hurricane 13 – 19 PN and 19 – 25 PN are tools that carry out the welding of the strap by vibration (heating by friction). The straps used are in PET polyester with a width of mm. 13 – 16 – 19 and 19 – 25 with max. 1.5 mm. Compact, handy, easy to use, it is suitable for closing all kinds of flat packaging. Thanks to the very short base and the roller rotation inversion command, round packages with limited width and round packages with a minimum diameter of 700 mm can be strapped.

Caratteristiche tendireggia pneumatico Hurricane 13-25 per reggetta in PET




Caratteristiche tendireggia pneumatico Hurricane 13-19 per reggetta in PP e PET

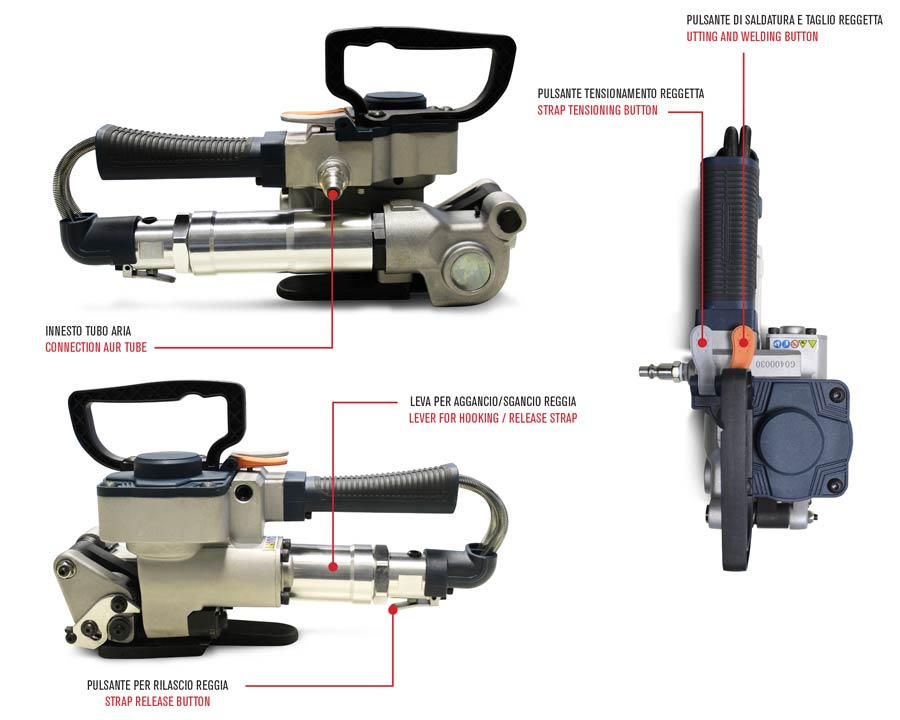

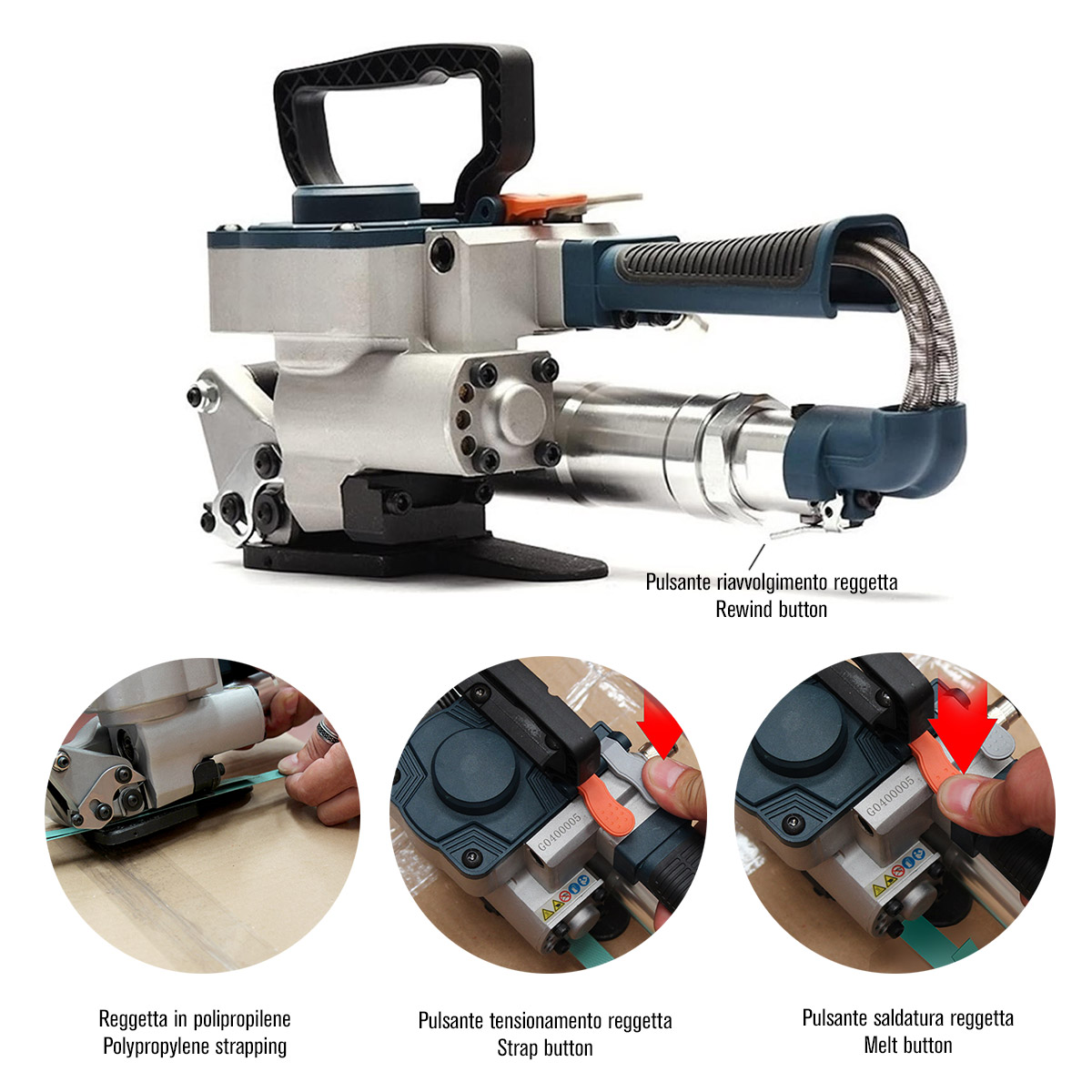

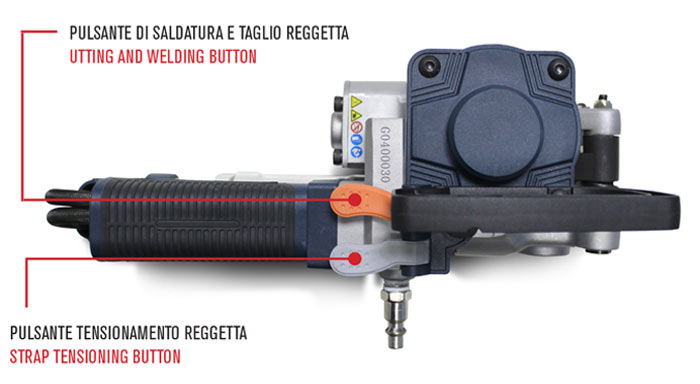

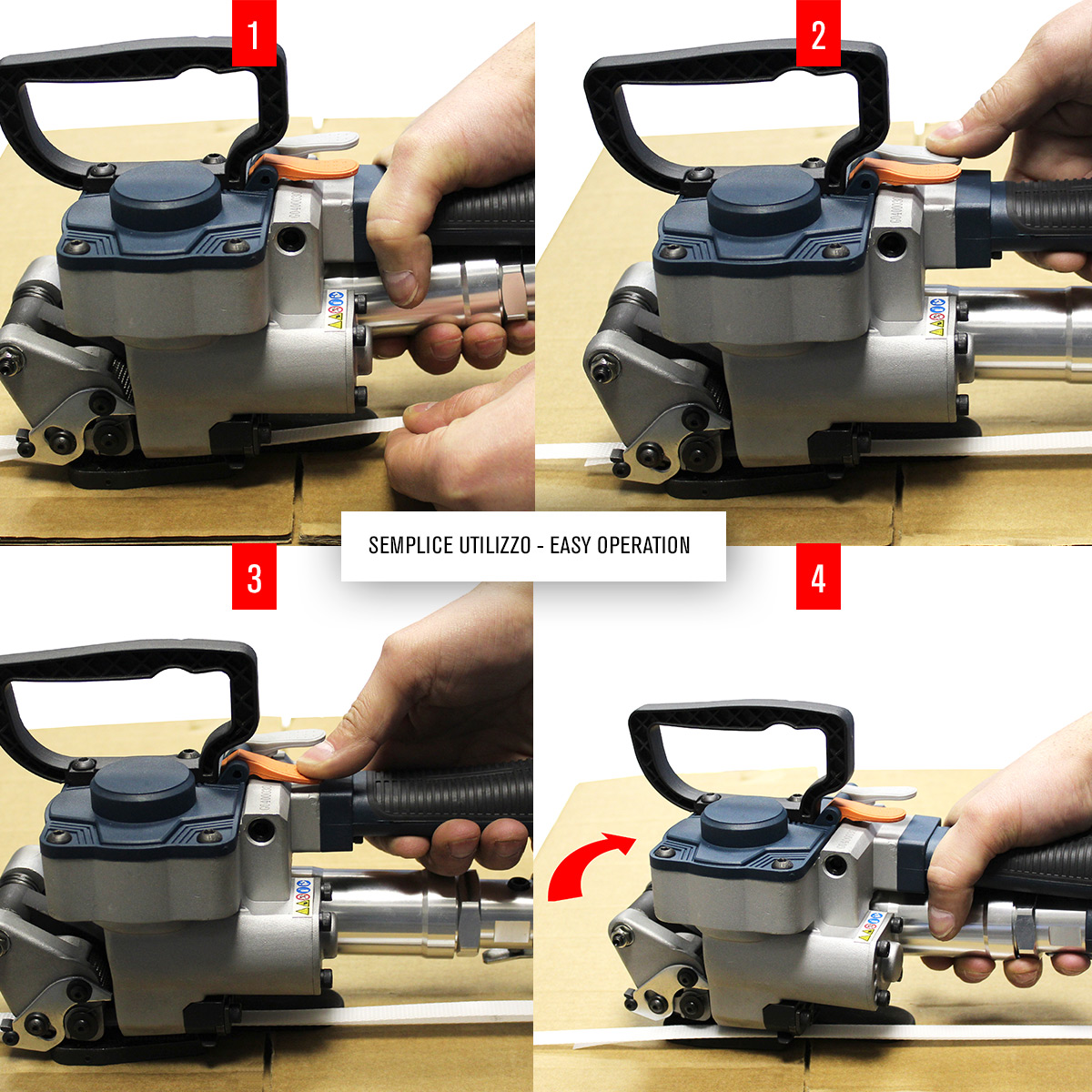

The operator simply has to insert the two overlapping strips of strap in the device, press a button to perform the tensioning, a second button to obtain the vibration welding and finally a third button facilitates the extraction of the strapping tool.

GENERAL FEATURES
  • Compact and ergonomic
  • Uses strap up to 25 mm
  • Can be positioned both vertically and horizontally
  • Works with PET strap
  • Tension from 60 to 3500 N
  • Tensioning speed up to 100 mm / sec
  • Friction welding system
  • Air powered
  • Small size
  • Low maintenance costs
TECHNICAL DATA
  • Pneumatic feeding: 0.3 Nliters
  • Air pressure: 5.0 / 7.0 bar
  • Tensioning speed: 60 – 100 mm / sec
  • Strap tension: 60 – 3500 N
  • Closure: Friction welding
  • Net weight: 3.80 Kg

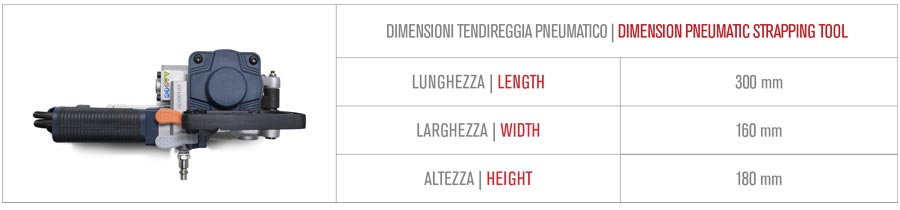

  • Strapping tool size: L 300 x W 160 x H 180 mm
STRAP SPECIFICATIONS USED
  • Type of strap: PET
  • Strap width 13 – 16 – 19 mm and 19 – 25 mm
  • Strap thickness: 0.7 – 1.2 mm – 0.7 – 1.5 mm

PDF technical sheet of the Strapping tool

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Machine size

L 300 x W 160 x H 180 mm

Net weight

3,8 kg.

Tensioning speed

60 – 100 mm/sec

Strap type

PET

Strap tension

da 60 a 3500 N

Strap width

13 – 19 mm, 19-25 mm

Strap thickness

0,7 – 1,2 mm, 0,7 – 1,5 mm

Closing system

Vibration sealing
