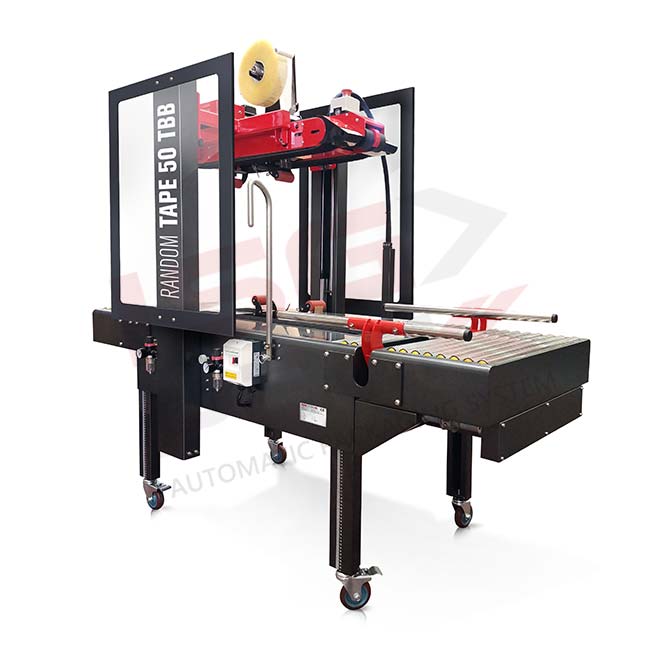

Self-dimensioning carton sealer Random Tape 50 TBB

In stock

REQUEST QUOTE NOW



The Random Tape 50 TBB carton sealer  is a semi-automatic self-adjusting machine with four drive belts. The machine taps both the upper and lower part of the American-type boxes with variable format simultaneously. Equipped with inlet and outlet rollers, it is a simple and practical packing station

WEIGHT
MACHINE 280 kG

WITH
OPERATOR

ADESIVE TAPE
KRAFT PP, PVC

TOP/BOTTOM
SEALING



Self-dimensioning carton sealer ideal for taping high and short or unstable cardboard boxes

Semi-automatic ans self- dimensioning carton sealer with four feeding flat belts (two upper and two lower)wich seals the top and the bottom of variable size boxes with adhesive tape.This carton sealer is particulary suited for tall or unstable boxes.

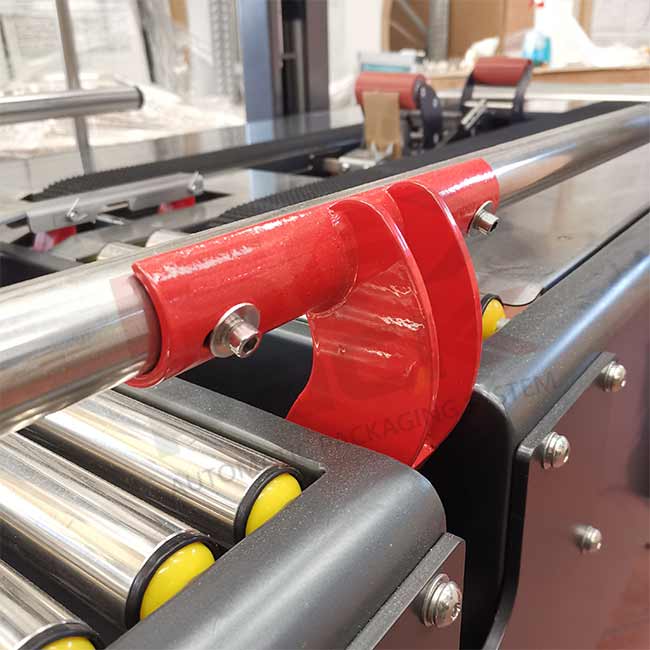

The operator squares the box,folds the bottom flaps ,inserts it in the centering /holding unit where the box can be filled without having to keep it with his hands,folds the top flaps.Thereafter,he guides it into the machine wich activates the microswitch of the upper taping head wich rises to the heightof the box.while the boxes pass through the machine,the top and the bottom flaps will be sealed by the taping heads simultaneously. Machine includes infeed center rollers and outfeed rollers.

Features
  • Weight: 280 Kg
  • Power supply: 220 Volts 50/60 Hz
  • Environmental humidity conditions ≤ 90%
  • Box transfer speed: 22 mt / min
  • Air Supply: 4-6 kgf / cm2
  • Use temperature : + 0 ° C to + 40 ° C
  • Maximum box weight: 40 kg
  • Maximum Noise: 75 db
  • Electrical Protection: IP 54
  • Adhesive Tape: Kraft, polypropylene, PVC
  • Standard Taping head: 50 – 75 mm
  • Working table height: 590 – 750 mm
  • Installed power: 0,40 Kw



REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Machine dimensions

L 1964 x W 946 x H 1470/1630 mm

Net weight

280 Kg.

Power supply

220 Volt

Power supply frequency

50/60 Hz

Installed power

0,4 kW

Electrical protection

IP 54

Air pressure

6 bar

Air consumption

7 Nlitri/min

Maximum noise

75 dB

Taping head

50 – 75 mm

Closing system

Tape

Adhesive tape

Kraft, polipropilene, pvc

Sealing speed

Fino a 15 scatole min

Transfer speed

22 mt/min

Working table height

L 150 x W 180 x H 130 mm

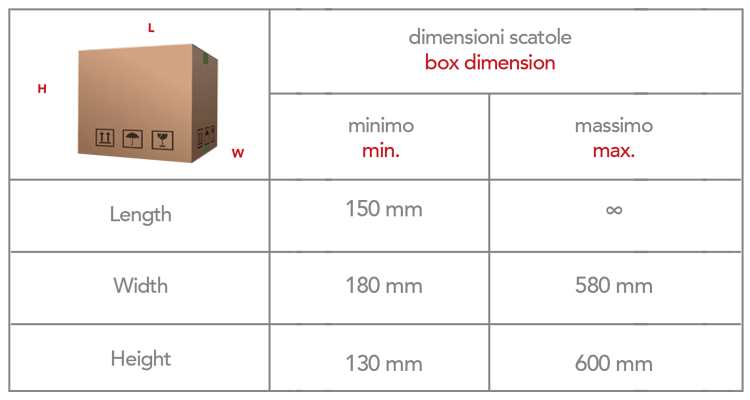

Max product size

L ∞ x W 580 x H 600 mm

Type of boxes

American type
