Semi-automatic carton sealer Easy Tape 50 TBB

In stock

REQUEST QUOTE NOW



The Easy Tape 50 TBB is a semiautomatic taping machine easy to use, equipped with four flat drive belts, two lower and two upper, guaranteeing uniform product dragging. This machine is particularly suitable for high and short or unstable boxes. The taping machine is also available in a stainless steel version.

WEIGHT
MACHINE 250 kG

WITH
OPERATOR

ADESIVE TAPE
KRAFT PP, PVC

TOP/BOTTOM
SEALING



Semiautomatic carton sealer ideal for closing unstable boxes

Semi-automatic manual dimensioning carton sealer with four feeding flat belts (two upper and two lower). The machine tapes the top and bottom of American-type fixed size boxes with adhesive tape. This carton sealer is particularly suited for tall and short or unstable boxes.

The result is a perfect alignment of box flaps and optimum sealing, performed by the efficient taping head. Machine includes infeed and outfeed rollers and represents a practical and simple packaging station.

Features
  • Weight: 250 kg
  • Power supply: 220 Volts 50/60 Hz
  • Environmental humidity conditions ≤ 90%
  • Box transfer speed: 20 mt / min
  • Maximum box weight: 40 kg
  • Use temperature : + 0 °C to + 40 ° C
  • Maximum Noise: 75 db
  • Electrical protection: IP 54
  • Adhesive tape: Kraft, polypropylene, PVC
  • Standard taping head: 50 – 75 mm
  • Working table height: 590 – 750 mm
  • Installed power: 0,40 Kw
Nastratrice semiautomatica Easy Tape 50 TBB
Nastratrice semiautomatica Easy Tape 50 TBB

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Machine dimensions

L 1820 x W 905 x H 1560 mm

Net weight

250 Kg.

Power supply

220 Volt

Power supply frequency

50/60 Hz

Installed power

0,4 kW

Electrical protection

IP 54

Maximum noise

75 dB

Taping head

50 – 75 mm

Closing system

Tape

Adhesive tape

Kraft, polipropilene, pvc

Sealing speed

Fino a 15 scatole min

Transfer speed

20 mt/min

Working table height

H 590/750 mm

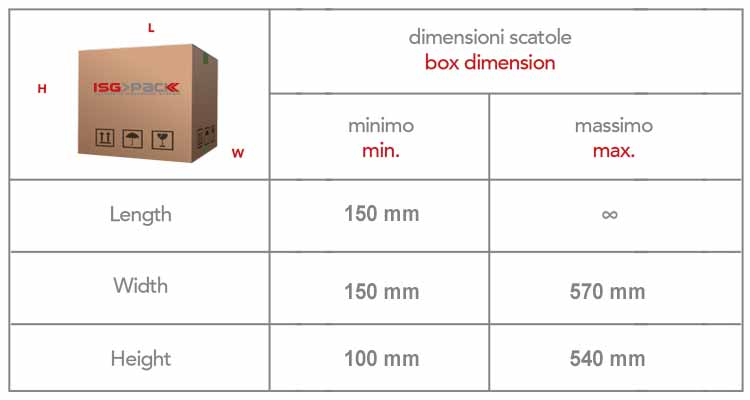

Dimension Min. product

L 150 x W 150 x H 100 mm

Max product size

L ∞ x W 570 x H 540 mm

Type of boxes

American type
