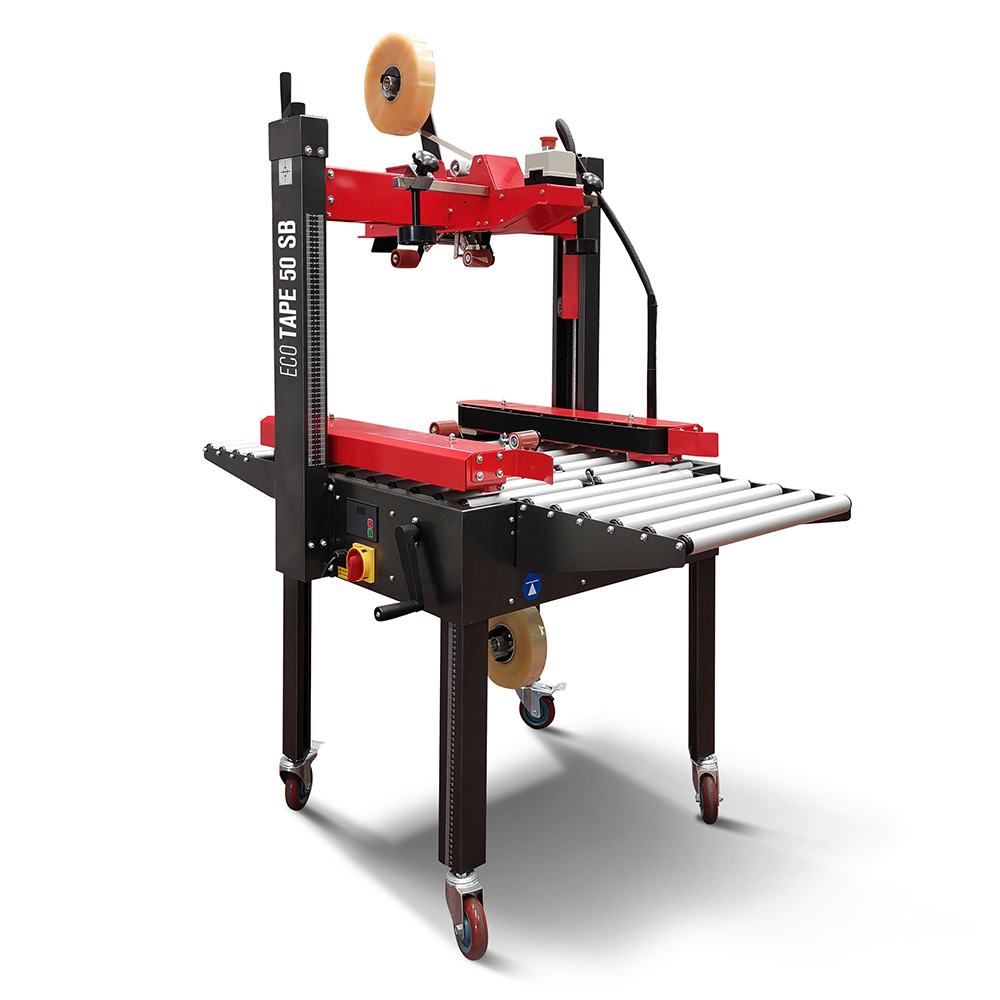

Carton sealer Eco Tape 50 SB

In stock

REQUEST QUOTE NOW



The Eco Tape 50 SB is an "entry level" semi-automatic taping machine for taping boxes with a maximum size of L ∞ W 500 H 480 mm. The machine can be used by non-specialized operators as it requires very simple adjustment operations. The machine can be ordered with dimensions on request.

WEIGHT
MACHINE 120 kG

WITH
OPERATOR

ADESIVE TAPE
KRAFT PP, PVC

TOP/BOTTOM
SEALING



Semi-automatic Eco tape 50 SB taping machine with manual sizing

Semi-automatic “entry level” manual dimensioning carton sealer which seals the top and the bottom of American type fixed size boxes with adhesive tape. The machine can be used by non-specialized operator thanks to easy adjusting operations.

Box feeding is regulated by two lateral belts controlled by two motors and this system ensures the maximum sliding uniformity. The result is a perfect alignment of the box flaps and optimum sealing, performed by the efficient taping head. The carton sealer is equipped with an ‘Energy Saving’ timing stop system when taping and sealing operation finishes. Fixed taping heads not removable from machine.

Features

Weight: 120 kg
Power supply: 220 Volts 50/60 Hz
Environmental humidity conditions ≤ 90%
Box transfer speed: 22 mt / min
Use temperature: + 0 ° C to + 40 ° C
Maximum Noise: 75 db
Electrical Protection: IP 54
AdhesiveTape: Kraft, polypropylene, PVC
Standard taping heads: 50 – 60 mm
Working table height: 690 – 750 mm
Installed power: 0,24 Kw

nastratrice semiautomatica
Nastro adesivo nastratrice semiautomatica



REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Machine dimensions

L 1430 x W 960 x H 1460 – 1580 mm

Net weight

120 Kg

Power supply

220 Volt

Power supply frequency

50/60 Hz

Installed power

0,24 kW

Electrical protection

IP 54

Maximum noise

75 dB

Taping head

Standard 50 – 60 mm

Closing system

Tape

Adhesive tape

Kraft, polipropilene, pvc

Sealing speed

Fino a 15 scatole min

Transfer speed

22 mt/min

Working table height

H 690/750 mm

Dimension Min. product

L 150 x W 120 x H 100 mm

Max product size

L ∞ x W 500 x H 500 mm

Type of boxes

American type

Semi-automatic carton sealer Eco Tape 50 SB

Carton sealer Eco Tape 50 SB
