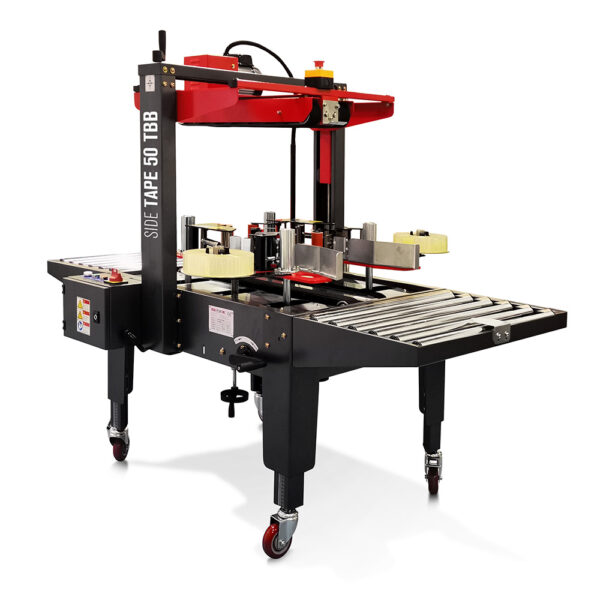

Semi-automatic carton sealer Side tape 50 TBB

In stock

REQUEST QUOTE NOW



The Side Tape 50 TBB Taping Machine is a machine particularly suitable for those who have to pack in horizontal position or for boxes with overlapping layers or to close bottom and lid of polystyrene boxes.

WEIGHT
MACHINE 220 kG

WITH
OPERATOR

ADESIVE TAPE
KRAFT PP, PVC

SIDE
SEALING



Semi-automatic carton sealer suitable for packaging products in a horizontal position or for closing bottom and lid of polystyrene boxes

Semi-automatic manual dimensioning carton sealer with four feeding flat belts (two upper and two lower). This machine is particularly suited for taping boxes in horizontal position, with overlapped flaps and for closing the bottom and cover of polystyrene boxes. Adjustable height of each taping head. Machine includes infeed and outfeed rollers and represents a practical and simple packaging station.



REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

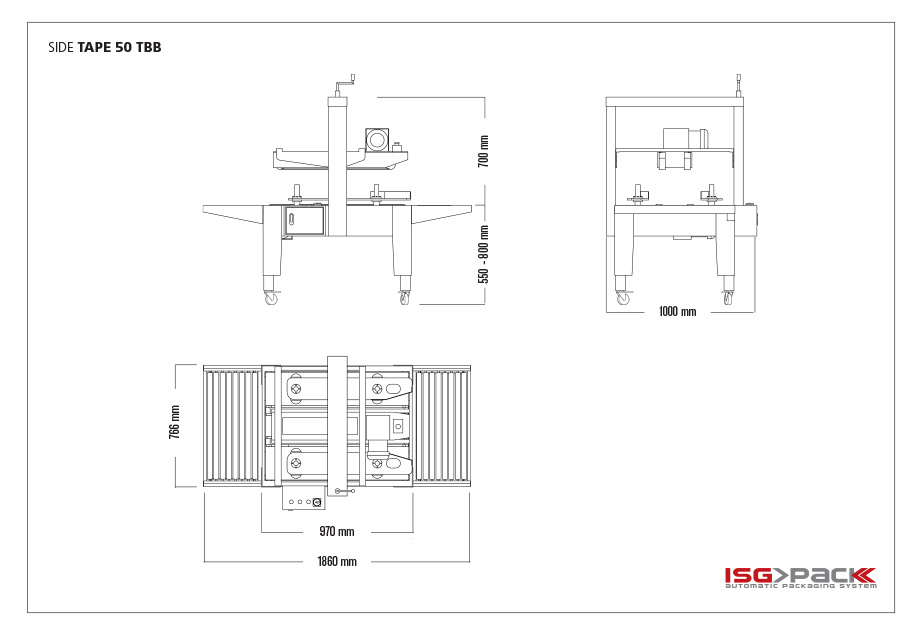

Machine dimensions

L 1805 x W 1050 x H 1300/1450 mm

Net weight

220 Kg.

Power supply

220 Volt

Power supply frequency

50/60 Hz

Installed power

0,4 kW

Electrical protection

IP 54

Maximum noise

75 dB

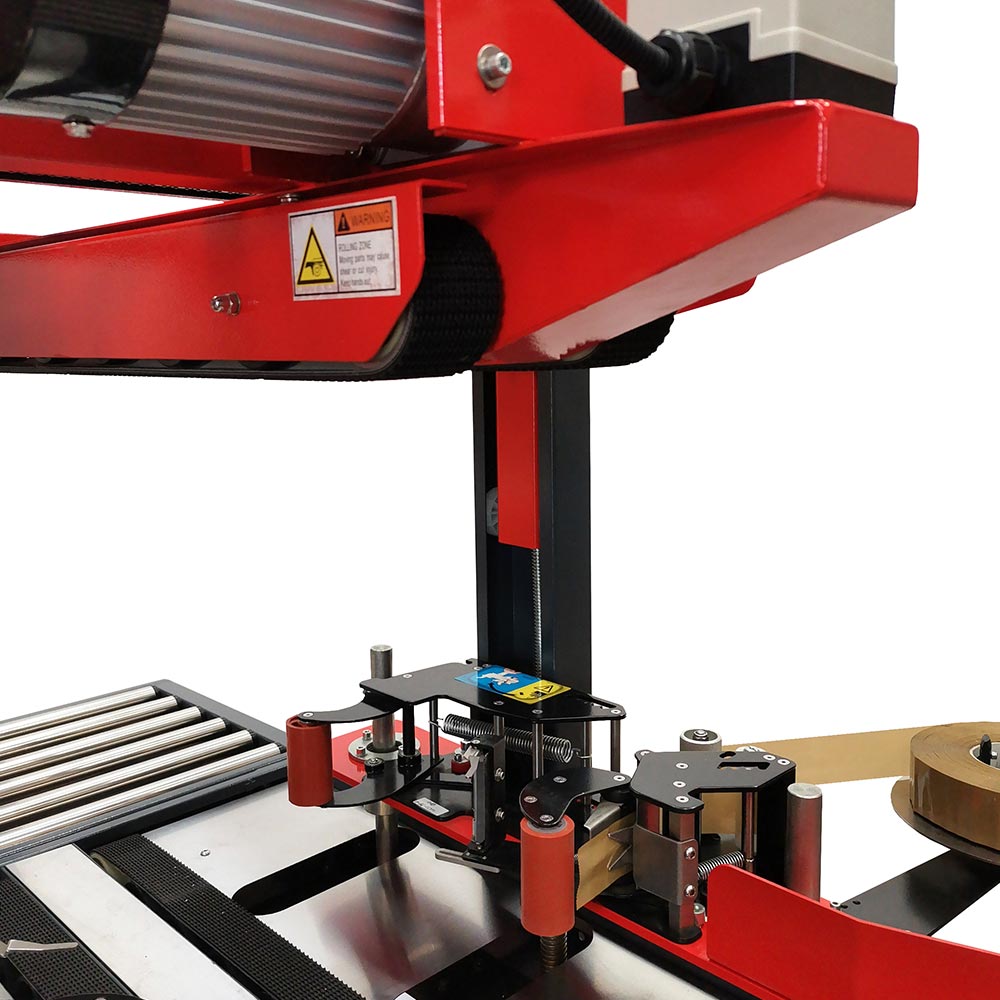

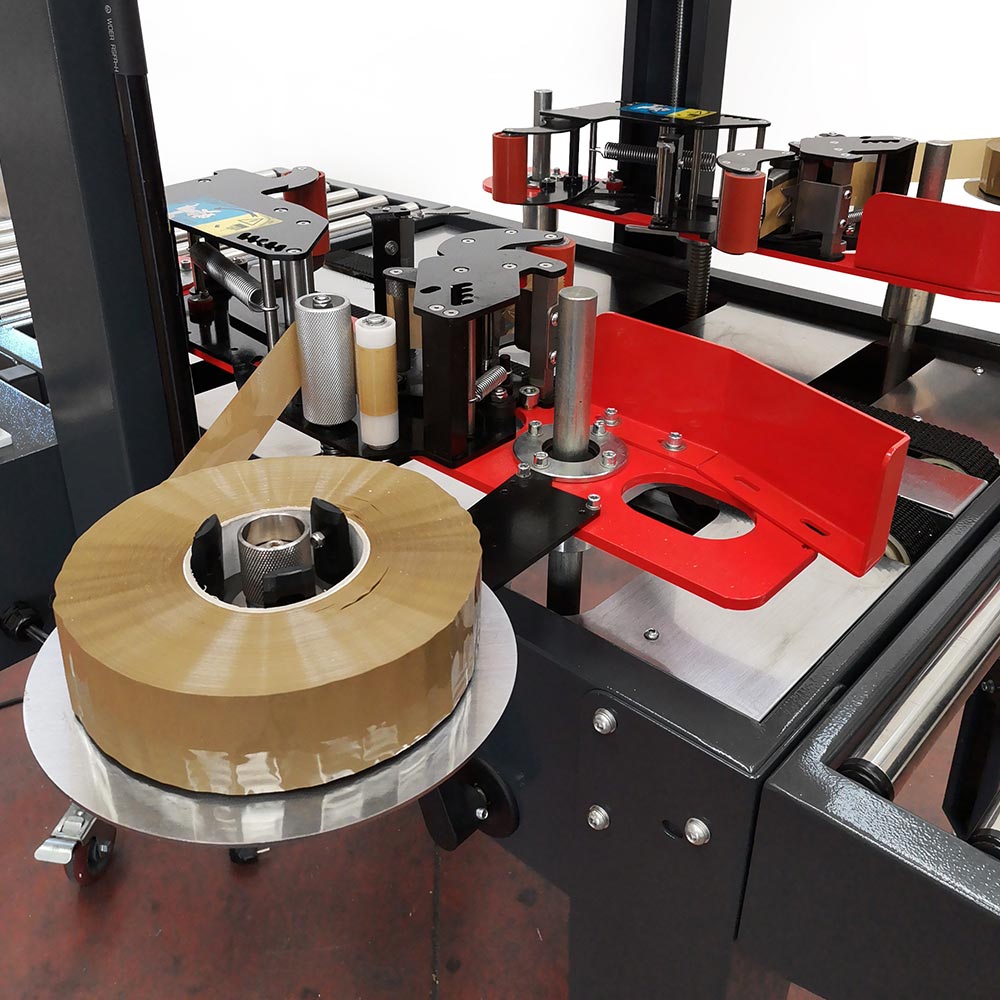

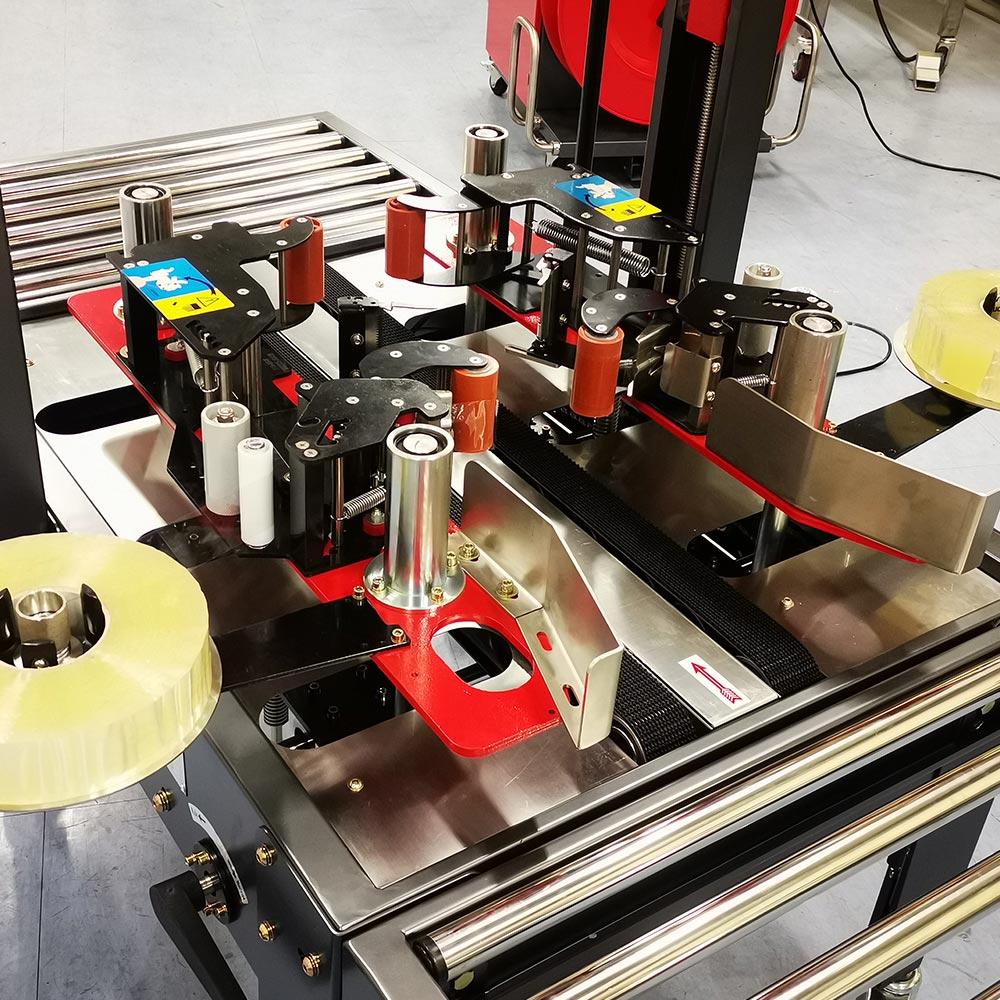

Taping head

50 – 75 mm

Closing system

Lateral tape

Adhesive tape

Kraft, polipropilene, pvc

Sealing speed

Fino a 15 scatole min

Transfer speed

19 mt/min

Working table height

H 600/750 mm

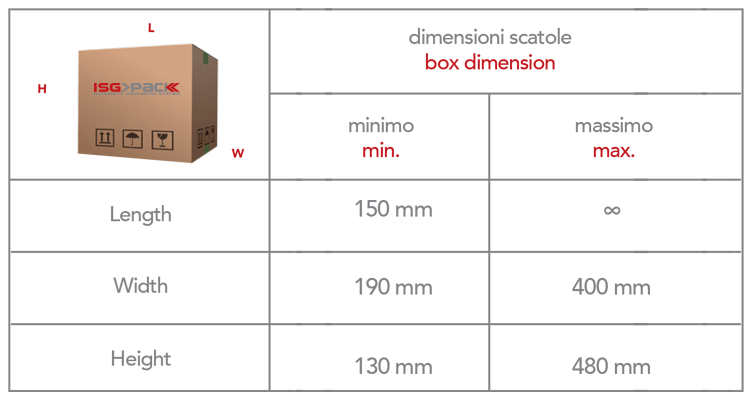

Dimension Min. product

L 150 x W 190 x H 130 mm

Max product size

L ∞ x W 400 x H 480 mm

Type of boxes

American type
