Shrink wrapping machine Easy Sealer 85

Shrink wrap machine Easy Sealer 85
Shrink wrapping machine | ISGPACK
Packaging machine closing system
Film punching system for packaging machine
Film punching system for packaging machine
Welding system Bell packaging machine
Welding system Packaging machine
Shrink wrap machine control panel
product packaging
Packaging of plastic products
product packaging
product packaging
product packaging
Roll over image to zoom in
Click to open expanded view

In stock

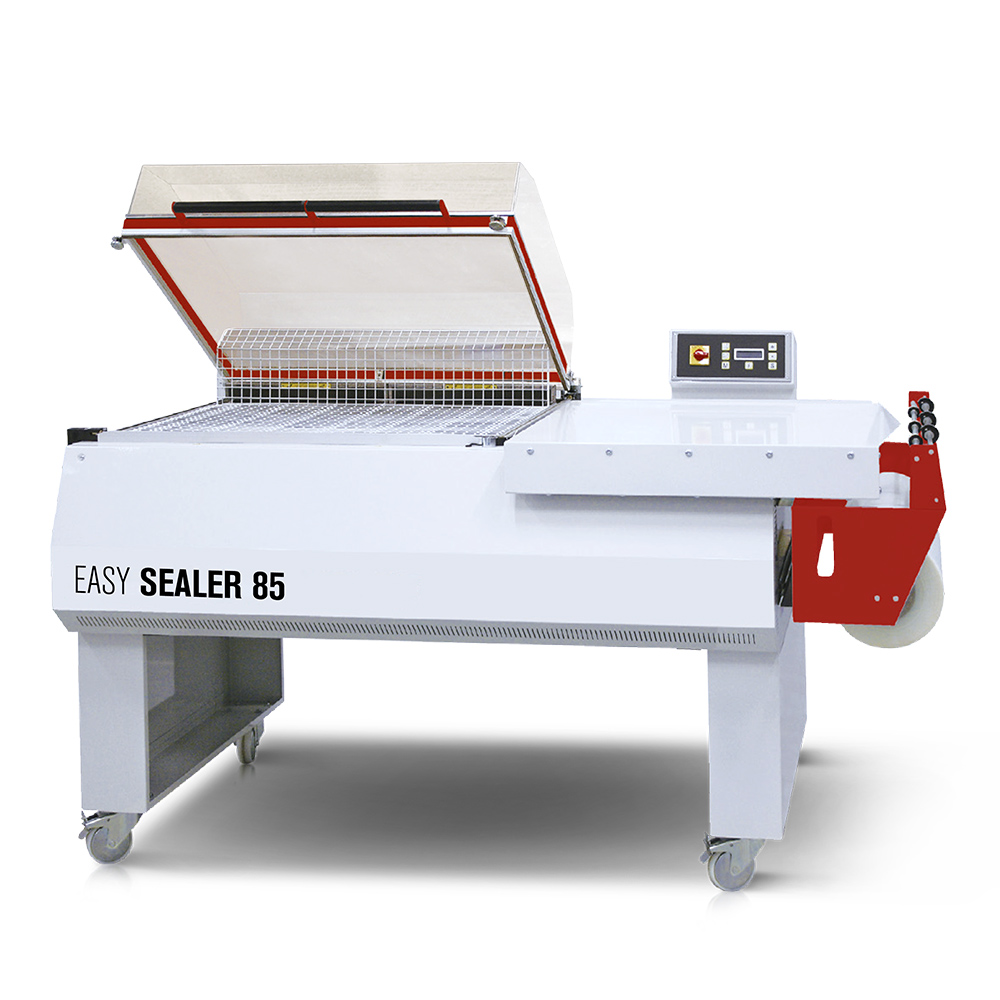

The Easy Sealer 85 packaging machine is a heat-shrinking machine structured with a solid steel structure, processing of products up to 310 mm high intuitive interface controls and a wide product packaging plan. Thanks to the possibility of storing up to 6 different work cycles, it results in an increase in productivity and simplification of use for setting the bell opening delay.

WITH
OPERATOR

INSTALLED
POWER 5,1 kW

MAX PACK
HEIGHT 310 mm.

SEALING BAR
L 870 x W 620 mm



Category:

The new chamber shrinking machines Easy sealer 85, have a solid structure in steel, latest generation electronics with a user-friendly control panel. They have a bigger worktable and several technical details that improve their performances. USE: The operator inserts the product into the shrink film, guides it inside the sealing area and close the chamber. Sealing and shrinking are simultaneous.

Features and optionals of the packaging machine

OPTIONAL
  • Double coil support
  • Recovery waste device
  • Worktable in stainless steel
FEATURES
  • Sealing and shrinking in one operation
  • PTFE-coated sealing blade
  • Height adjustment of the internal packaging plate
  • Mobile product-holding plate, loose from the film reel support to allow a better adjustment of the film to the pack seiz
  • Hood hold-down electromagnet
  • Automatic hood release
  • Air cooling of the machine frame
  • Flextron control system equipped with: Alphanumeric LCD control panel equipped with a 16-bit; microprocessor card, that allows a simple and precise control of all the machine operations, such as: machine status
    number of packs produced by an electronic pack counter; adjustment of the sealing temperature; adjustment of the shrinking time; adjustment of the shrinking chamber temperature; adjustment of the shrinking delay
    adjustment of the hood opening delay; possibility of scheduling up to 10 different work cycles, thus resulting in increased productivity and simplified use troubleshooting
  • Modular power section, separated from the control panel and characterized by: longer-lasting solid state relays providing easier maintenance in case of failure, possibility of replacing just the damaged module, without losing the data stored in the memory
  • Reduced power consumption
  • Compliance with CE regulations

confezionatrici; campana; termoretraibili, termoretraibile; film termoretraibile; carrellate, carrellata;

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

In che modo hai trovato la nostra azienda?


Additional information

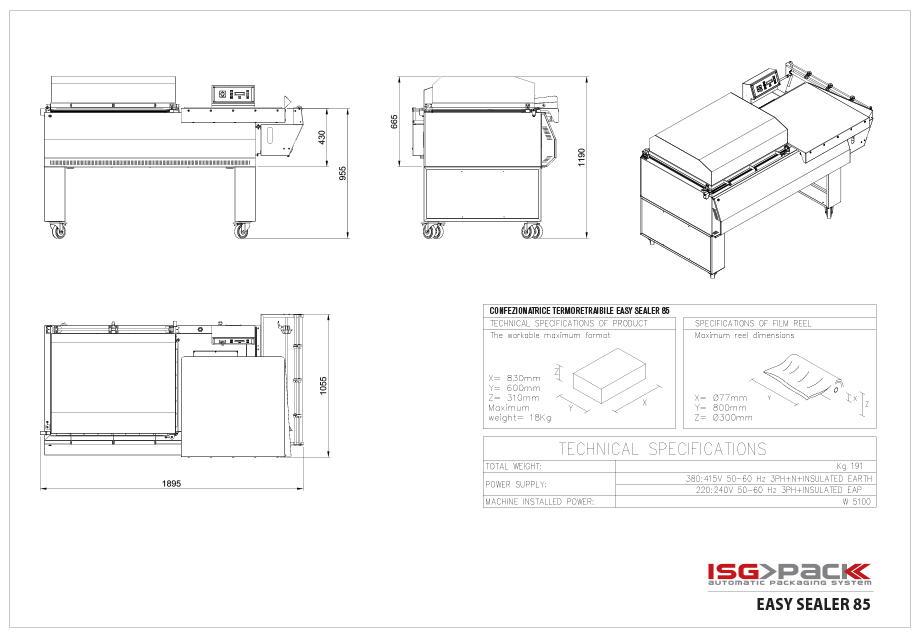

Machine size

L 1895 x W 1055 x H 1190 mm

Net weight

191 Kg.

Power supply

380 Volts 3 ph

Power supply frequency

50/60 Hz

Installed power

5,1 kW

Dimension sealing bar

L 870 x W 620 mm

Max production

Up to 300 pph

Max dimension film roll

800 – ø 300 mm

Packaging material

Pvc, Poliolefin

Film roll thickness

Up to 30 my
