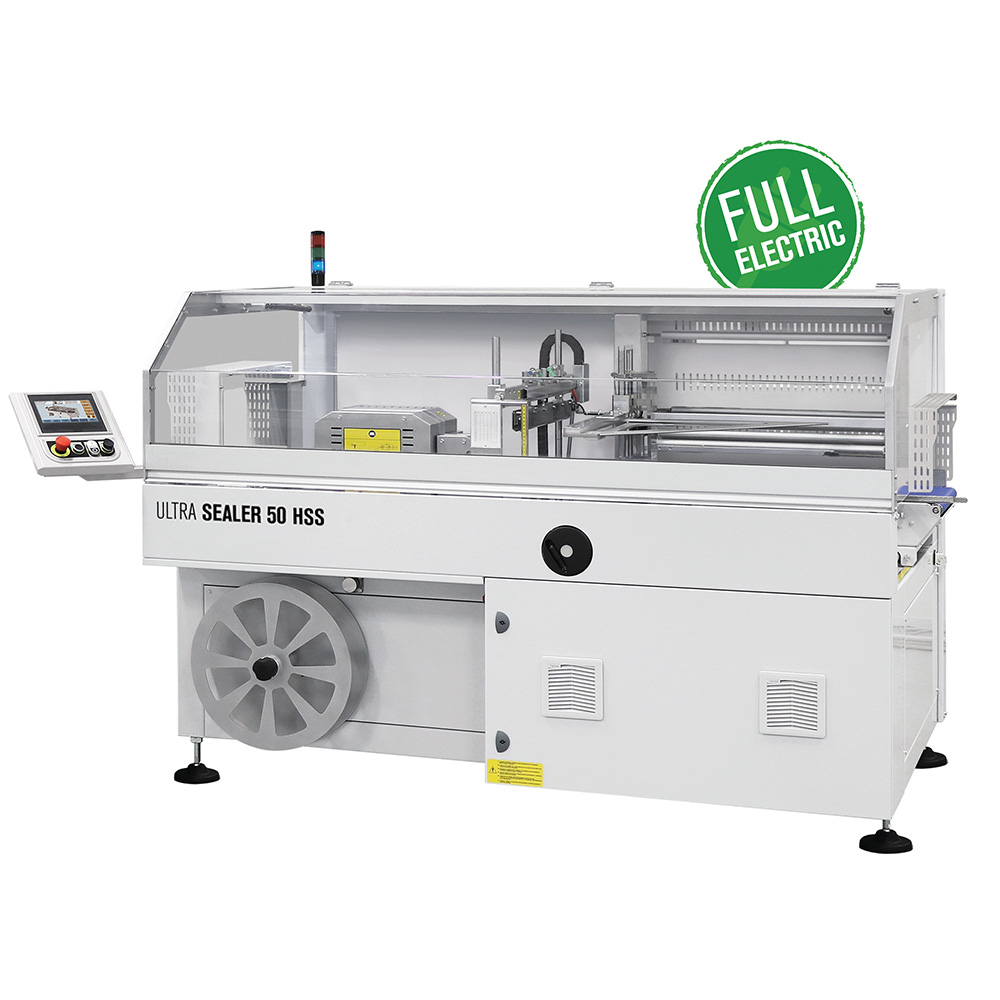

Shrink Wrapping Machines Ultra Sealer 50 HSS

In stock

REQUEST QUOTE NOW



The Ultra Sealer 50 HSS machine is an automatic angular packaging machine that stands out for its excellent value for money and its modularity. It can satisfy productions up to 6000 packages per hour. All models in this range can be supplied with and without retraction tunnel. Compared to traditional machines with angular welding this series offers innumerable advantages such as for example the possibility of packaging products with unlimited length.

WITHOUT
OPERATOR

INSTALLED
POWER 2,5 kW

MAX. PACK
HEIGHT 250 mm.

SEALING BAR
L 500 mm



The continuos automatic sealers with tunnel Ultra Sealer 50 HSS, have high quality and a very good price and is possible to get it with or without the shrinking tunnel.Compare to traditional L-sealer,this range offers several advanteges such as: packaging product with unlimited lenght,increase the production capacity,a significant reduction of film waste. The Ultra sealer series with continuos sealing and INTERMITTENT cycle can handle polyolefin and polyethylene,polypropylene centefolded or flat film with film folder and is suited to meet outputs of up to 6000 packs/hour.

Use, optionals and features

USE
The power conveyor moves the products into the center folded film, the photocells detect the products and the working cycle starts. The power supply, the film unwinding, the sealing and the product outfeed are fully automatic.
OPTIONAL
  • Printed film centering device
  • Save product photocell
  • Sealing bar for polyethylene from 15 to 60 my
  • Film cold perforator
  • Infeed roller conveyor increased by 500 mm
  • Protected outfeed roller conveyor pitch 46 mm length 1000 mm
FEATURES
  • Continuous packer with 2 belts
  • Intermittent working cycle
  • Transversal sealing bar with PTFE-coated sealing blade controlled by Inverter and Encoder
  • Side sealing system by friction with hot blade
  • FLXMOD® control system equipped with: Operator interface with panel PC and 7” full color touch screen display 4,3” graphic LCD control panel PLC
  • Power and control section consisting of: Inverters for each motor IN/OUT control modules with 16 digital inputs/outputs
  • Analog inputs control modules
  • Thermocouple-reading control modules
  • Compliance with CE regulations
OPERATIONS CONTROL
  • Adjustment of cross bar height
  • Dual sealing temperature adjustment, both for the longitudinal and the transversal sealer
  • Sealing time adjustment
  • Possibility of packaging individual packs or groups of products
  • Electronically controlled conveyor belt speed
  • Process statistics
  • Conveyor closing system included
  • Motorized center seal system 20 storable programs
  • Infeed conveyor released from the square to facilitate the film insertion
  • Systems for the leading guide and the decrease of the film tension placed before the transversal bar and the longitudinal
  • Lateral motion device of the longitudinal sealer
  • Emergency button
  • Reduced power consumption

confezionatrici; angolari; automatiche; termoretraibili, termoretraibile; film termoretraibile,

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

How did you find our Company??


Additional information

Machine size

L 2180 x W 1545 x H 1505/1665 mm

Net weight

730 Kg.

Power supply

380 Volts 3 ph

Power supply frequency

50 Hz

Air pressure

6 bar

Air consumption

0,6 Nlitri/min

Installed power

2,5 kW

Dimension sealing bar

500 mm.

Max production

6000 pph

Max dimension film roll

600 – ø 350 mm

Packaging material

Poliolefin

Film roll thickness

Up to 30 my
