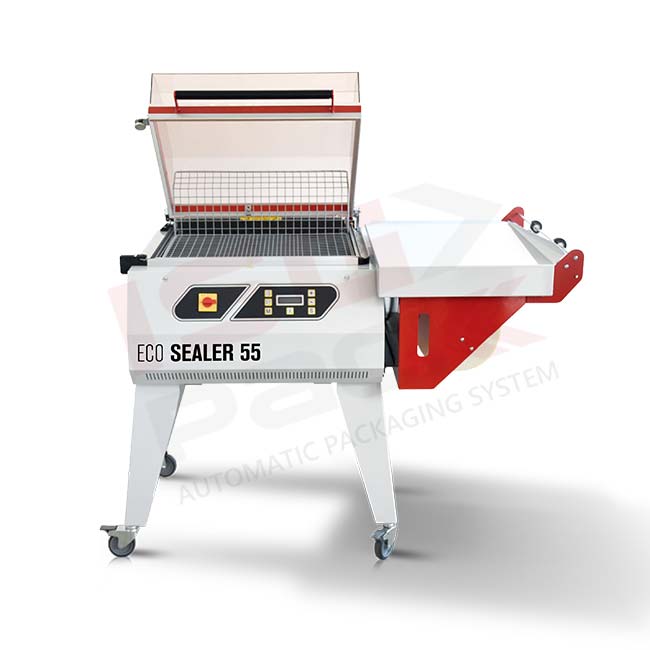

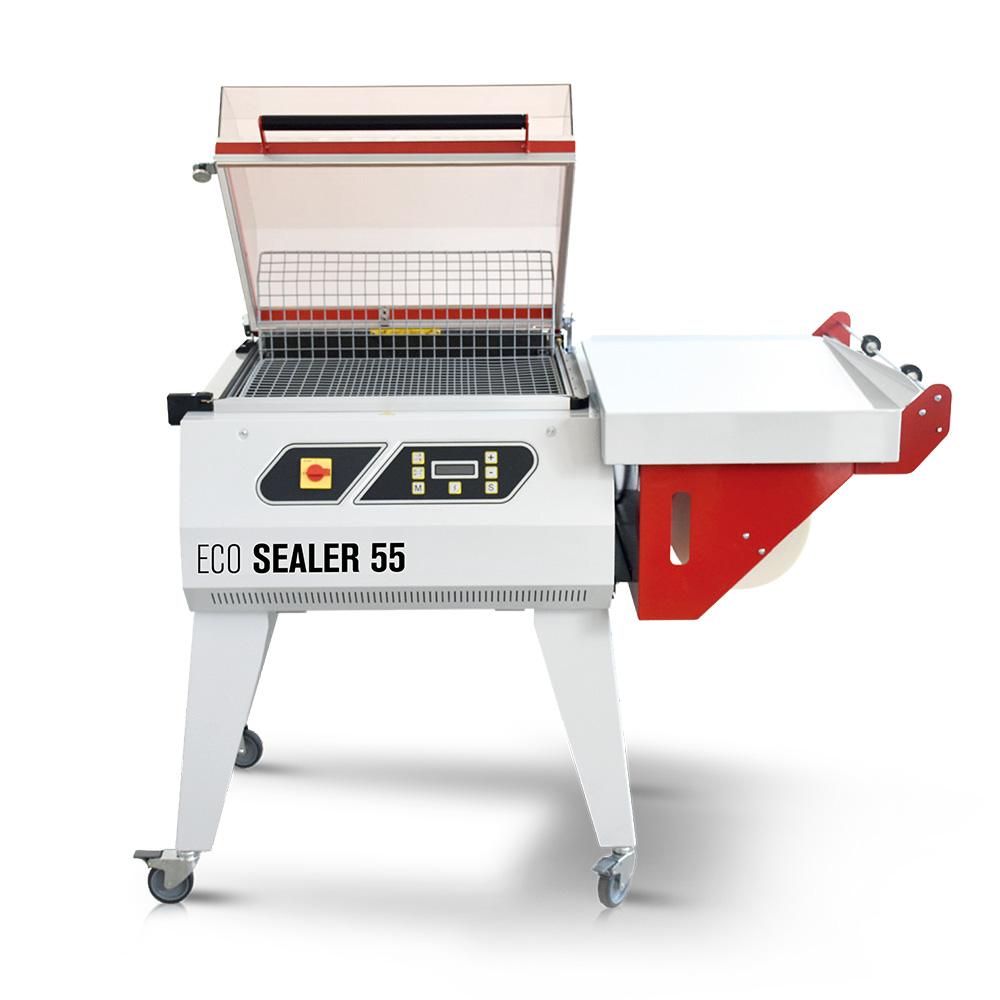

Shrink wrapping machine Eco Sealer 55

In stock

The Eco Sealer 55 packaging machine is a low-consumption heat-shrink machine suitable for medium / small production companies such as artisans, commercials, etc. The absolute reliability and high performance, combined with a high operating silence, low energy consumption and ease of use, unique of its kind, make it a cutting-edge product.

WITH
OPERATOR

INSTALLED
POWER 1,6 kW

MAX. PACK
HEIGHT 210 mm.

SEALING BAR
L 440 x W 330 mm

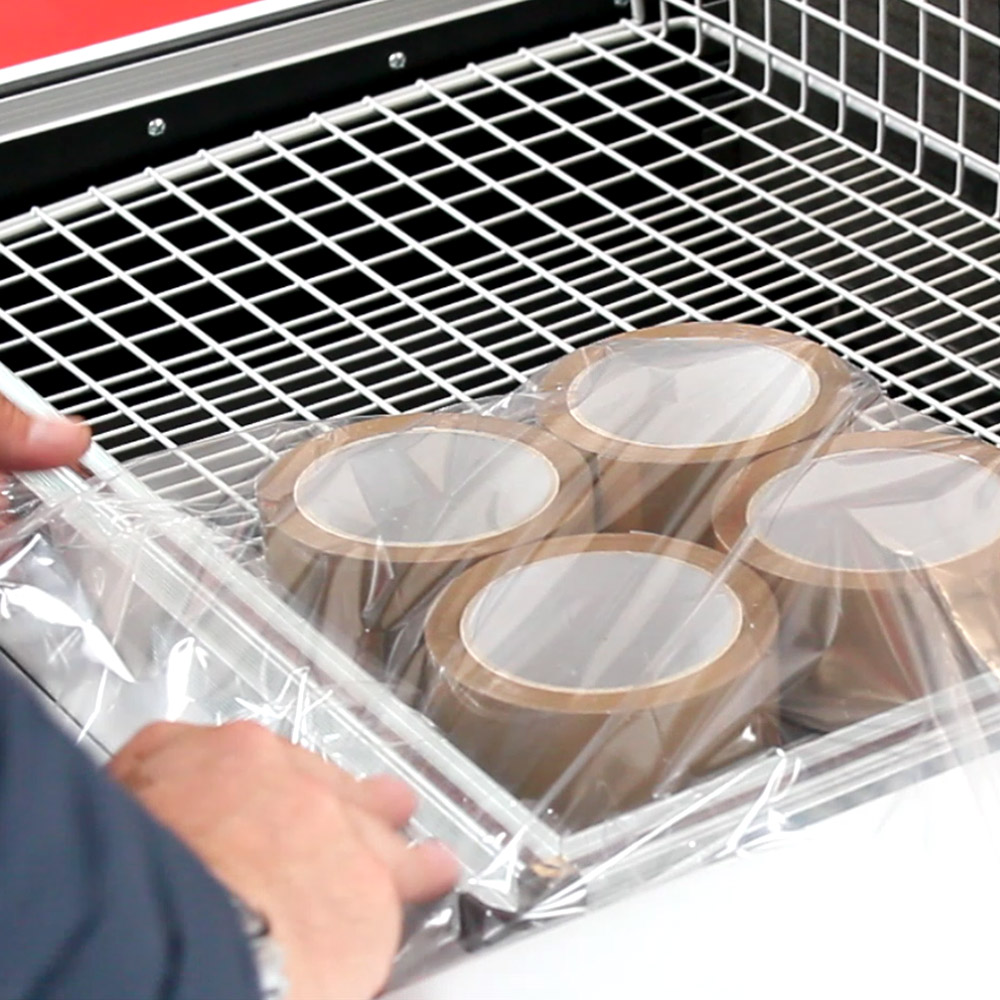

The shrinking machines, Eco sealer 55 series, are suited to the small/medium companies (artisan and commercial) and the functionality and small dimensions are their main advantages. They are characterized by high performance, reliability, low energy consumption, minimum noise and are very easy to use. All the machine functions are displayed and controlled by the digital control panel. USE: The operator inserts the product into the shrink film, guides it inside the sealing area and close the chamber. Sealing and shrinking are simultaneous.

FEATURES AND OPTIONS

OPTIONAL
  • Machine support
  • Worktable in stainless steel
FEATURES
  • Sealing and shrinking in one operation

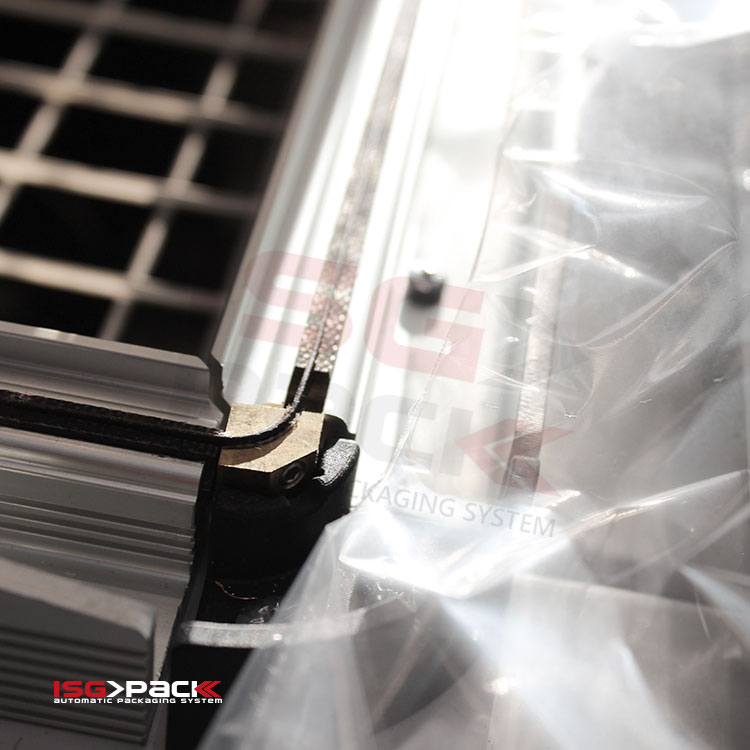

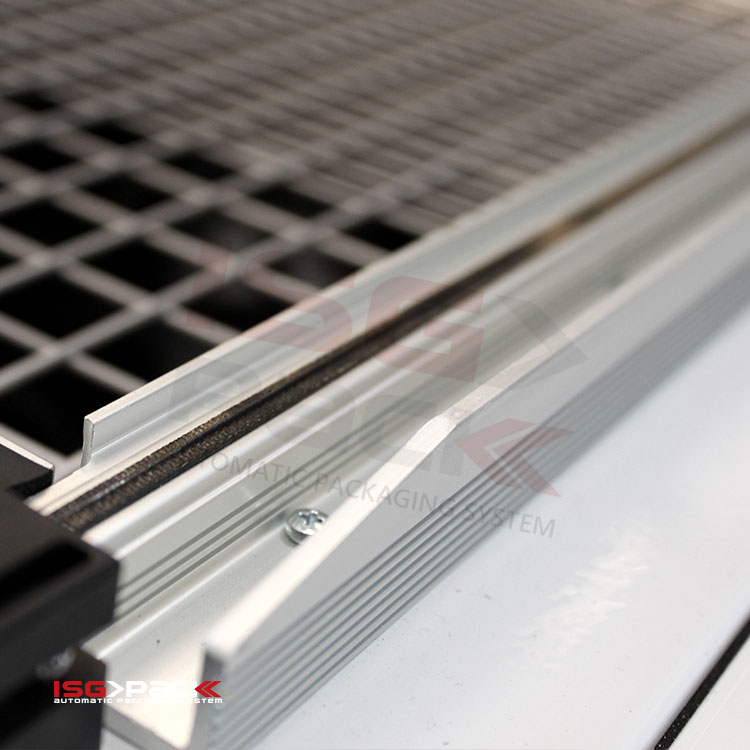

  • PTFE-coated sealing blade
  • Height adjustment of the internal packaging plate
  • Mobile product-holding plate, loose from the film reel support to allow a better adjustment of the film to the pack size

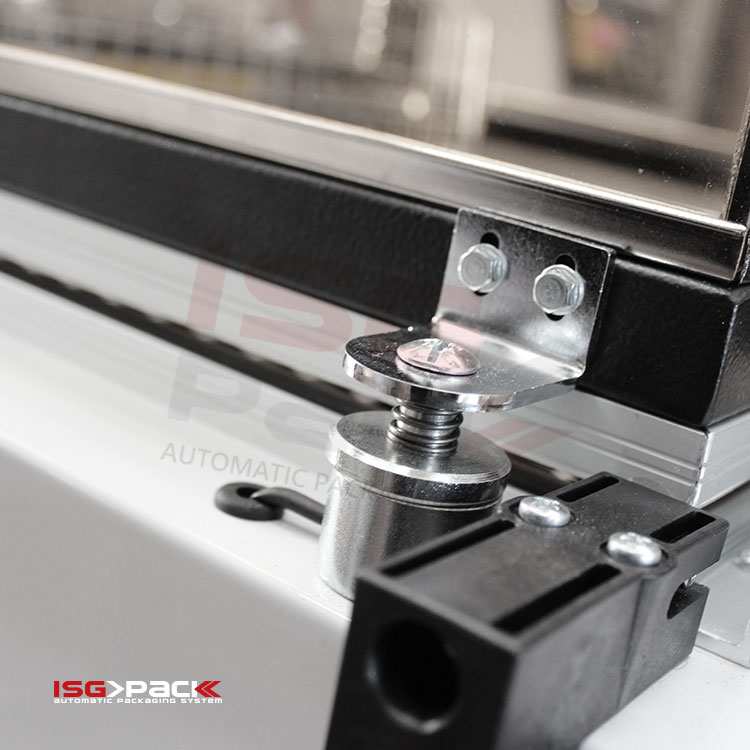

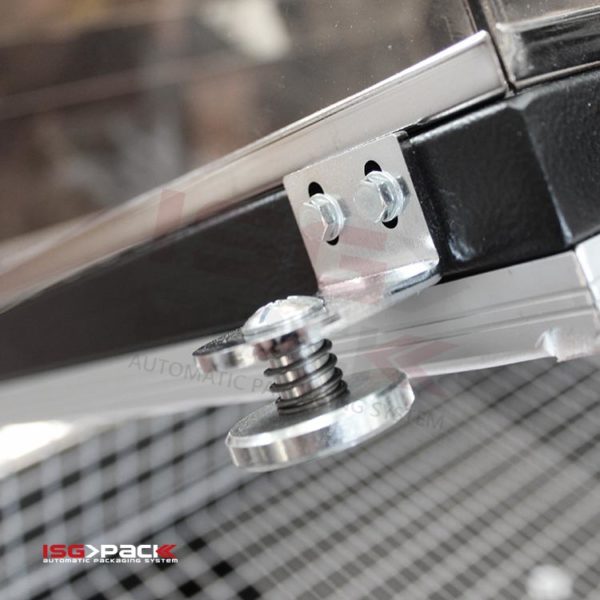

  • Hood hold-down electromagnet
  • Automatic hood release
  • Air cooling of the machine frame
  • Alphanumeric LCD control panel equipped with 6 storable work programs and a 16-bit microprocessor card, that allows a simple and precise control of all the machine operations, such as: machine status; number of packs produced by an electronic pack counter; adjustment of the sealing temperature; adjustment of the shrinking time; adjustment of the shrinking chamber temperature; adjustment of the shrinking delay; adjustment of the hood opening delay; troubleshooting
  • Long-lasting solid state relays providing easier maintenance
  • Reduced power consumption
  • Compliance with CE regulation

confezionatrici; campana; termoretraibili, termoretraibile; film termoretraibile; carrellate, carrellata;

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

Additional information

Machine dimensions

L 1260 x W 805 x h 1100 mm.

Net weight

88 Kg.

Power supply

220 Volt 1Ph

Power supply frequency

50/60 Hz

Installed power

3,7 Kg.

Electrical protection

IP 54

Dimension sealing bar

560 x 430 mm

Max height product

260 mm.

Max production

Up to 300 pph

Max dimension film roll

600 – ø 250 mm

Packaging material

Pvc, Poliolefin

Film roll thickness

Up to 30 my
