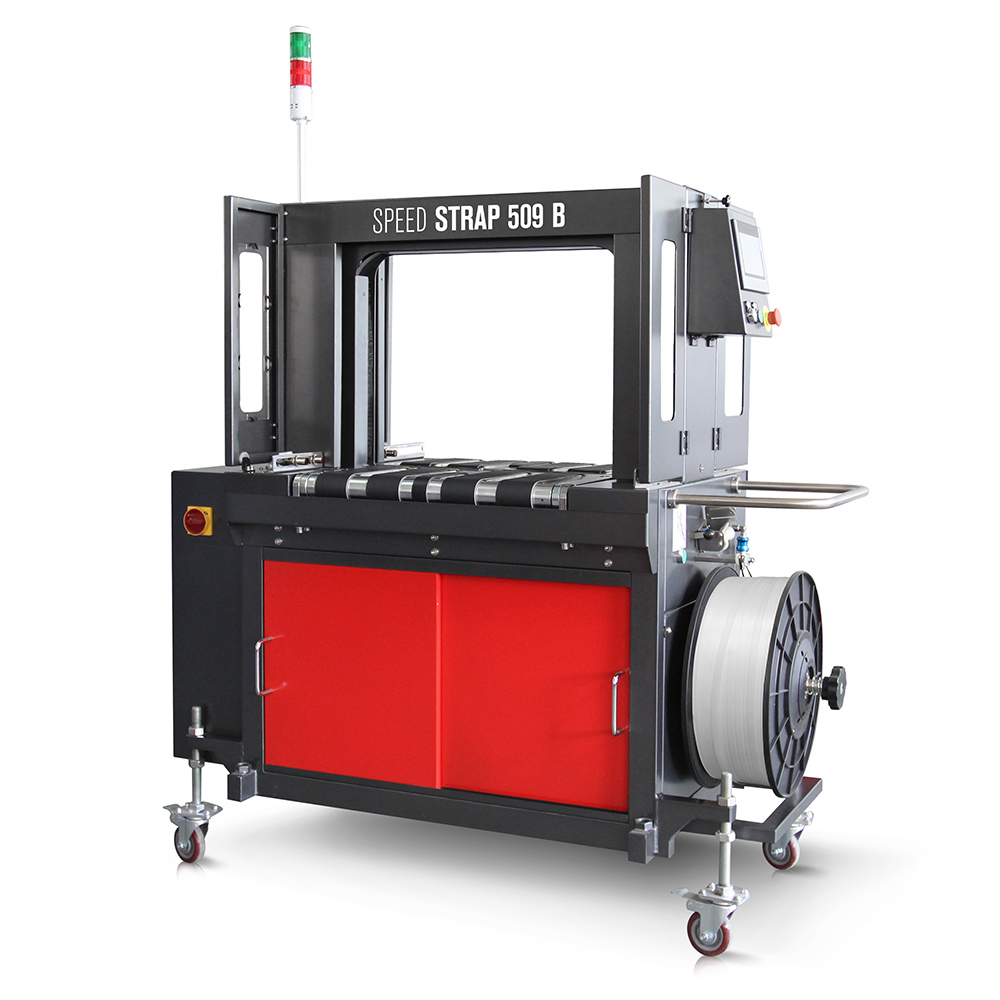

Speed Strap 505B – 509B – 512B

In stock

REQUEST QUOTE NOW



High-performance fully automatic high-speed strapping machine suitable for insertion into packaging lines, guaranteeing high production rates as well as high reliability standards. It has a strapping speed of 50 cycles per minute with a maximum adjustable tensioning force up to 45 Kg. Available on request with various strapping arch sizes.



Parametri reggiatrice ad alta velocità modello Speed Strap seire B

Fully automatic high speed strapping machine

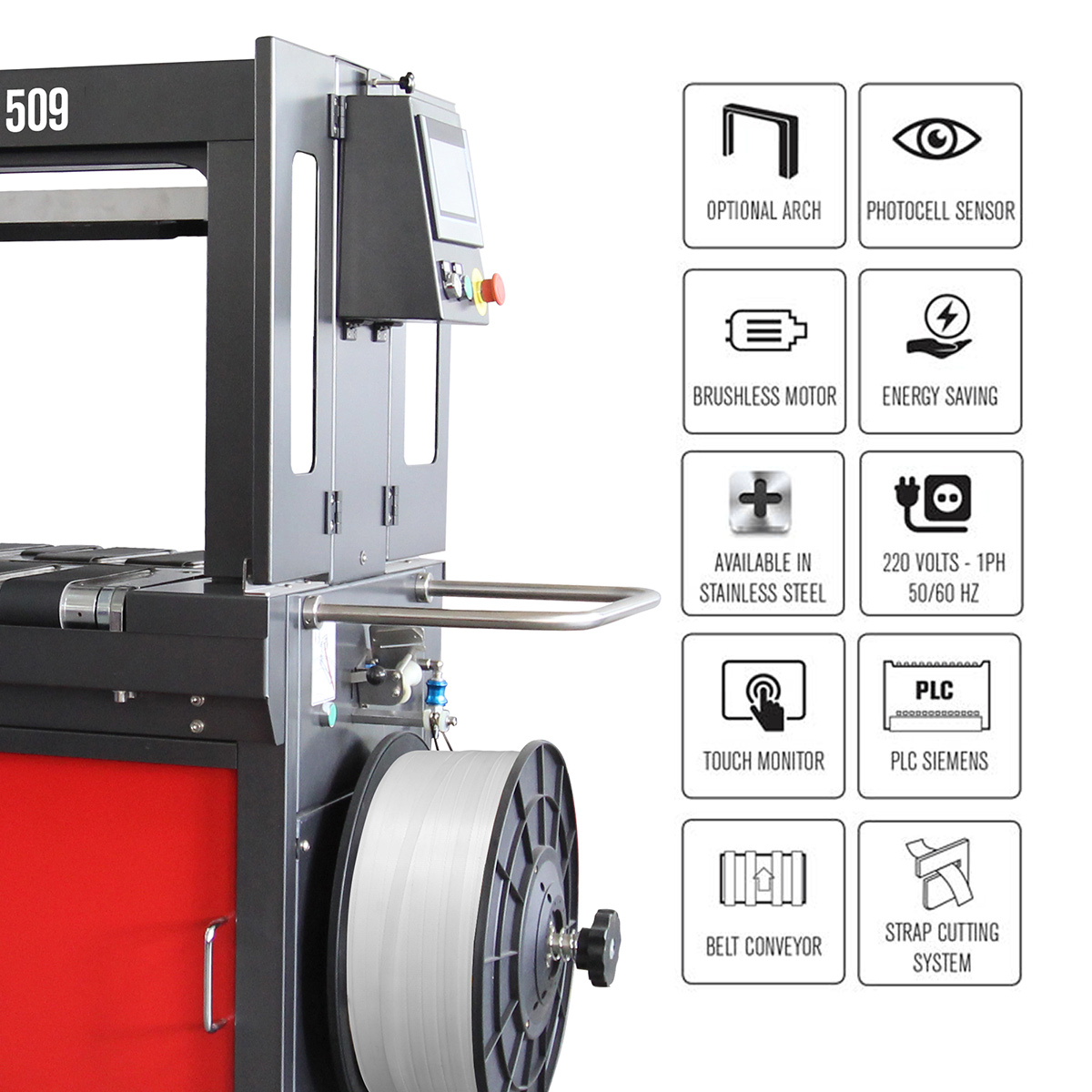

The Speed Strap B series is a high performance strapping machine that can be inserted also in automatic packaging lines, guaranteeing high production rates as well as high reliability standards. It works with 24 VOLT Vcc brushless motors arranged for each function of the machine and it has a working table integrated with 8 motorized conveyor belts, two of which are smaller and they are placed in the central part of the working table. This allows to strap even products of small dimensions. Photocells are installed at the entrance and at the exit of the product for the automatic execution of single, double or multiple straps. The strapping machine is also available in the version with pneumatic stabilizing press and in SUS 304 stainless steel version.

Caratteristiche generali della reggiatrice

The Speed ​​Strap fully automatic strapping machine uses a 220V power supply | 1 ph | 50/60 Hz and has an adjustable worktop height from H 870 to 970 mm. It has a strapping speed of 50 cycles per minute with a maximum adjustable tensioning force up to 45 Kg. The strapping machine is equipped with an integrated worktop with 8 motorized belts and 2 of reduced dimensions placed in the central part of the top, control panel 7.2 “touch screen, 2 photocells for the automatic execution of 1-2 or multiple straps, 3-color flashing column,” mode transit “function, without product strapping, easyfast® strap guide disassembly system (without tools ).

There is also: automatic ejection of a piece of strap at the end of the reel, adjustment of the welding cooling time (COOL TIME), adjustment of the sealing blade temperature, strap cutting cutter, automatic strap loading system, magnetic safety sensors. The strapping machine is available on request with various arch sizes.

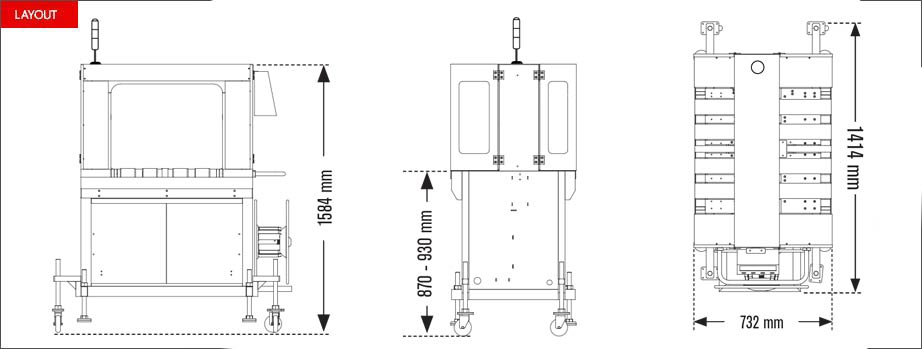

Layout reggiatrice automatica Speed Strap 505B

Features and parameters of the strapping machine

Technical characteristics of the strapping machine
  • Working table with motorized belt conveyor
  • Stainless steel safety handle
  • Safety guards with magnetic safety switches on each door
  • Automatic strap feeding
  • In & out signals displayed on the touch screen
  • Strapping group controlled by 24volt brushless motors
  • Single, double or multiple strappings
  • Transit mode without product strapping
  • Belts speed adjustable by inverter
  • Acoustic and 3 colors luminous signal
  • Loop ejection
  • 7,2’’ touch screen
  • Strap cutter device
  • Adjustable working table height
  • Four pivoting wheels, two of them with brake
  • Easyfast strap guide disassembly system (without any tool)
  • Automatic strap ejection at the end of the strap coil
  • Re-feed strap system
  • Possibility to use various strap sizes
  • Various arches dimension available
  • Strap tensioning up to 45 kg
Parameters adjustable from the control panel
  • Strap tension adjustment via potentiometer
  • Temperature adjustment of the sealing blade
  • Management of the “mode transit” function, without product strapping
  • Single, double or multiple strapping system adjustment
  • IN / OUT connection verification interface
Caratteristiche del prodotto lavorabile
  • Max. Product dimensions: W 600 x H 450 mm. (with arch from L 650 x H 500)
  • Product weight: 30 Kg.
Strap roll features

Internal diameter: 200 mm.


External diameter: 400 – 450 mm.

Strap width: 5 – 9 – 12 mm.

Strap thickness: 0,45 – 0,65 mm.
Strap type: PP (polipropilene)

Scarica la scheda tecnica della reggiatrice

REQUEST A FREE QUOTE NOW

Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

Scarica la scheda tecnica della reggiatrice

REQUEST A FREE QUOTE NOW

Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

Scarica la scheda tecnica della reggiatrice

REQUEST A FREE QUOTE NOW

Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

Easy Strap 309 – 312 – Easy Strap 309B – 312B  – Easy Strap 309BP – 312BP –  Easy Strap 309R – 312R – Easy Strap 309RP – 312RP

Additional information

Power supply

220 Volts

Power supply frequency

50/60 Hz

Installed power

1 Kw

Machine dimensions

L 1414 x W 732 x H 1584 mm.

Dimension strapping arch size

L 650 x H 500 mm, L 850 x H 500 mm., L 850 x H 600 mm., L 850 x H 800 mm.

Strapping speed

50 cicli/min

Tension strength

0 – 45 Kg

Type

Motorized belts

Control panel

Touch screen

Max product weight

30 Kg.

Reel internal diameter

200 mm.

Coil outer diameter

400 – 450 mm.

Strap width

5 – 9 – 12 mm.

Strap thickness

0,45 – 0,65 mm

Strap type

PP (polypropylene)
