Speed Strap 509BL – 512BL

In stock

REQUEST QUOTE NOW



The Speed Strap BL series automatic strapping machine uses a 220 V power supply | 1 ph | 50/60 Hz and has an adjustable worktop height. It has a strapping speed of 45 cycles per minute with a maximum adjustable tensioning force up to 30 Kg. Sturdy and compact, designed for general use and medium-high work volumes. It works with 24 Vdc brushless motors arranged for each mechanical function.



Parametri reggiatrice Speed Strap serie BL

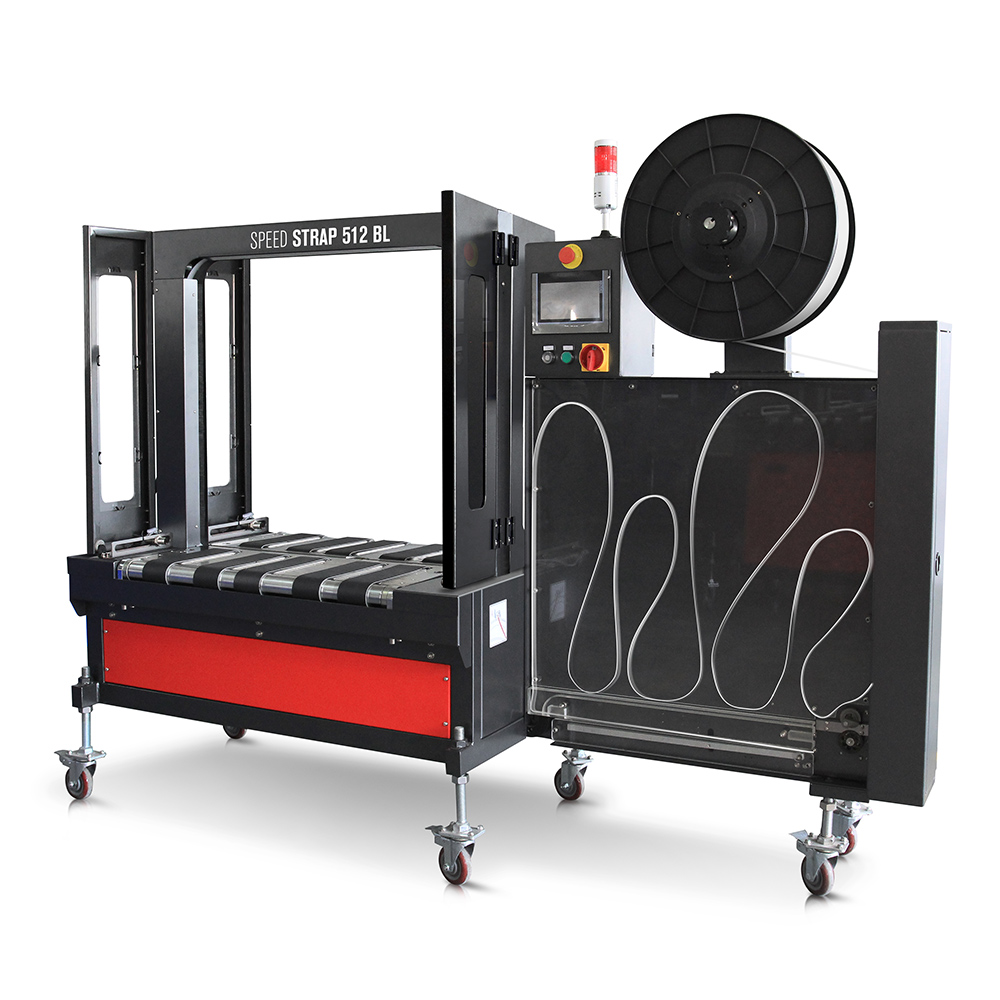

Automatic strapping machine with low table with motorized belts and 24 Vdc brushless motors

The Speed Strap BL series is a fully automatic low-table strapping machine that can be inserted in fully automatic packaging lines where a low height of the working table is required. It is equipped with motorized belt conveyor and photocells for single, double or multiple automatic strapping. It works with 24 Vcc brushless motors arranged for each mechanical function. Suitable for high production capacity and it is highly reliable. The 7,2” touch screen allows to adjust any working function, saving production time. This strapping machine is also available with top press and in SUS 304 stainless steel.

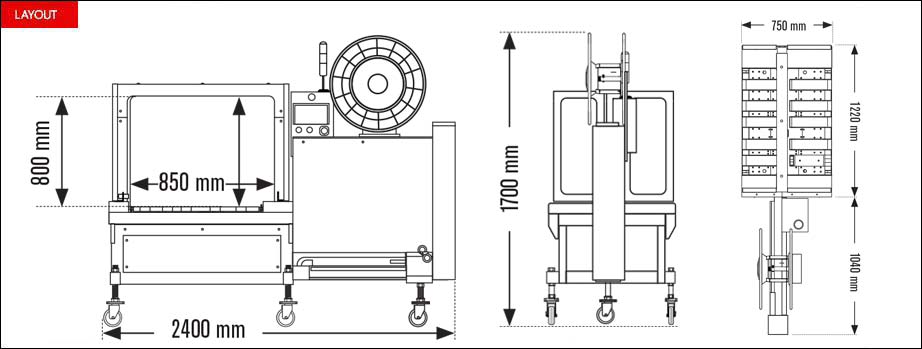

layout reggiatrice automatica Speed Strap serie BL

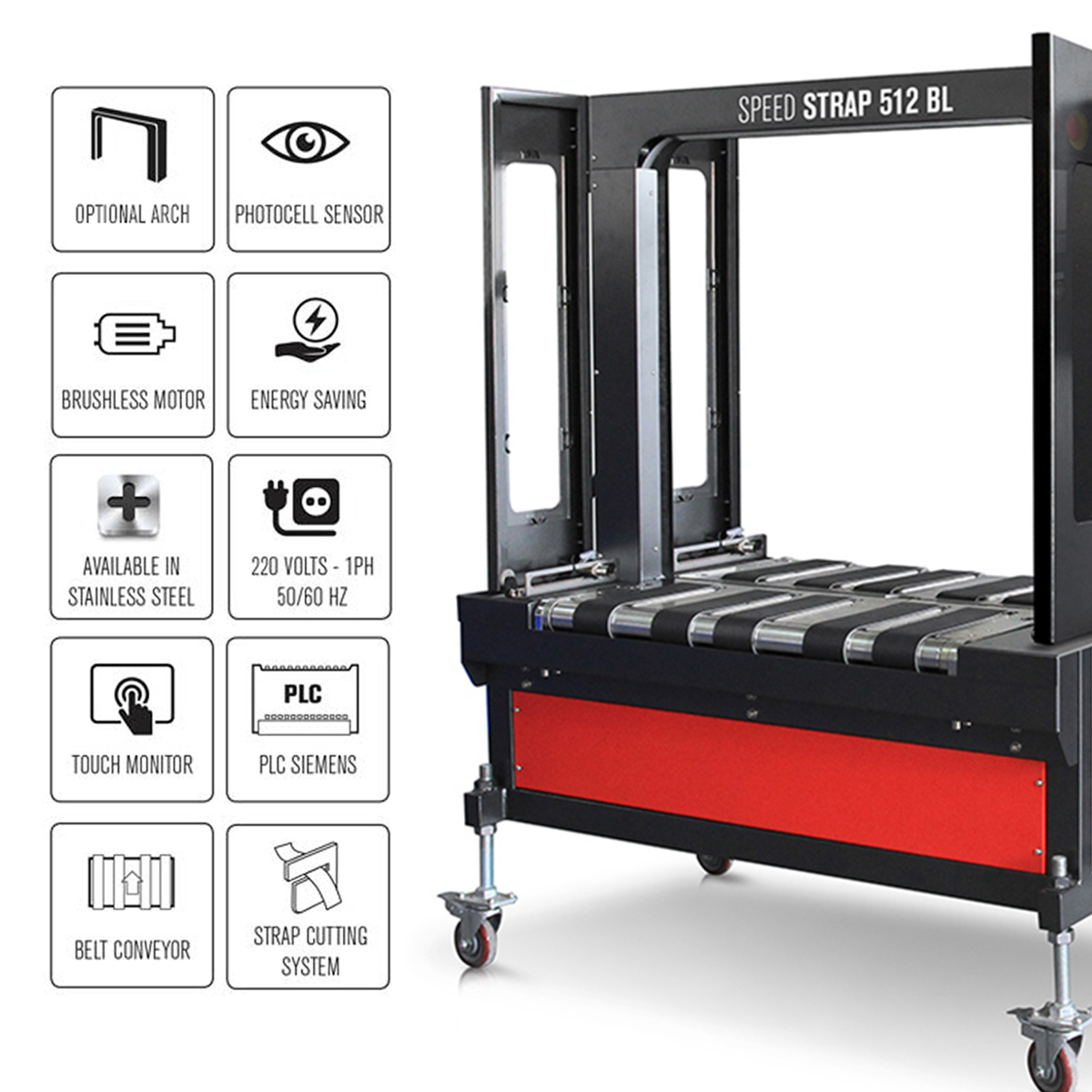

Features and parameters of the strapping machine

Technical characteristics of the strapping machine
  • Working table with motorized belt conveyor
  • Stainless steel safety handle
  • Automatic strap feeding
  • In & out signals displayed on the touch screen

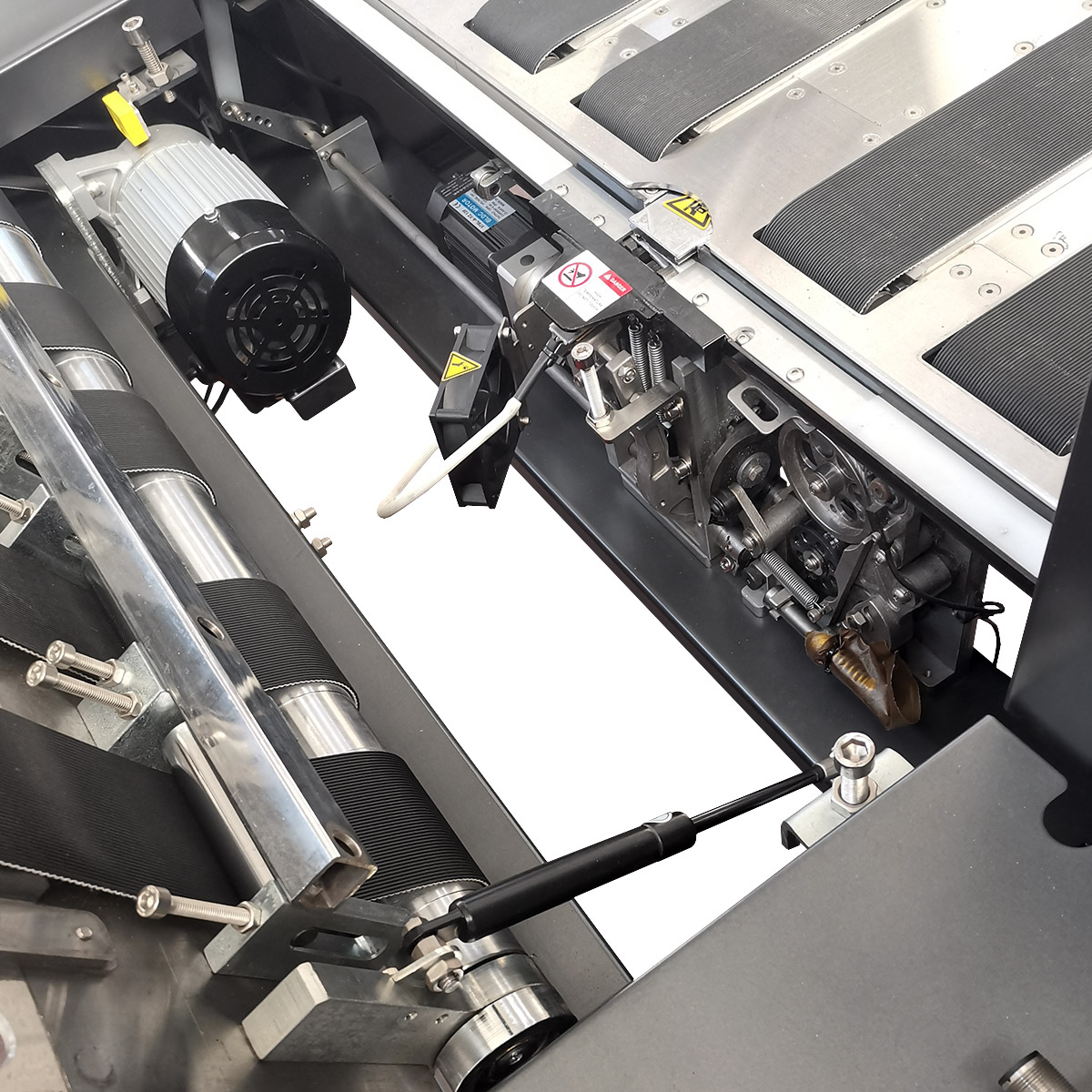

  • Strapping group controlled by 24volt brushless motors
  • Single, double or multiple strappings
  • Transit mode without product strapping
  • Belts speed adjustable by inverter
  • Acoustic and 3 colors luminous signal
  • Loop ejection

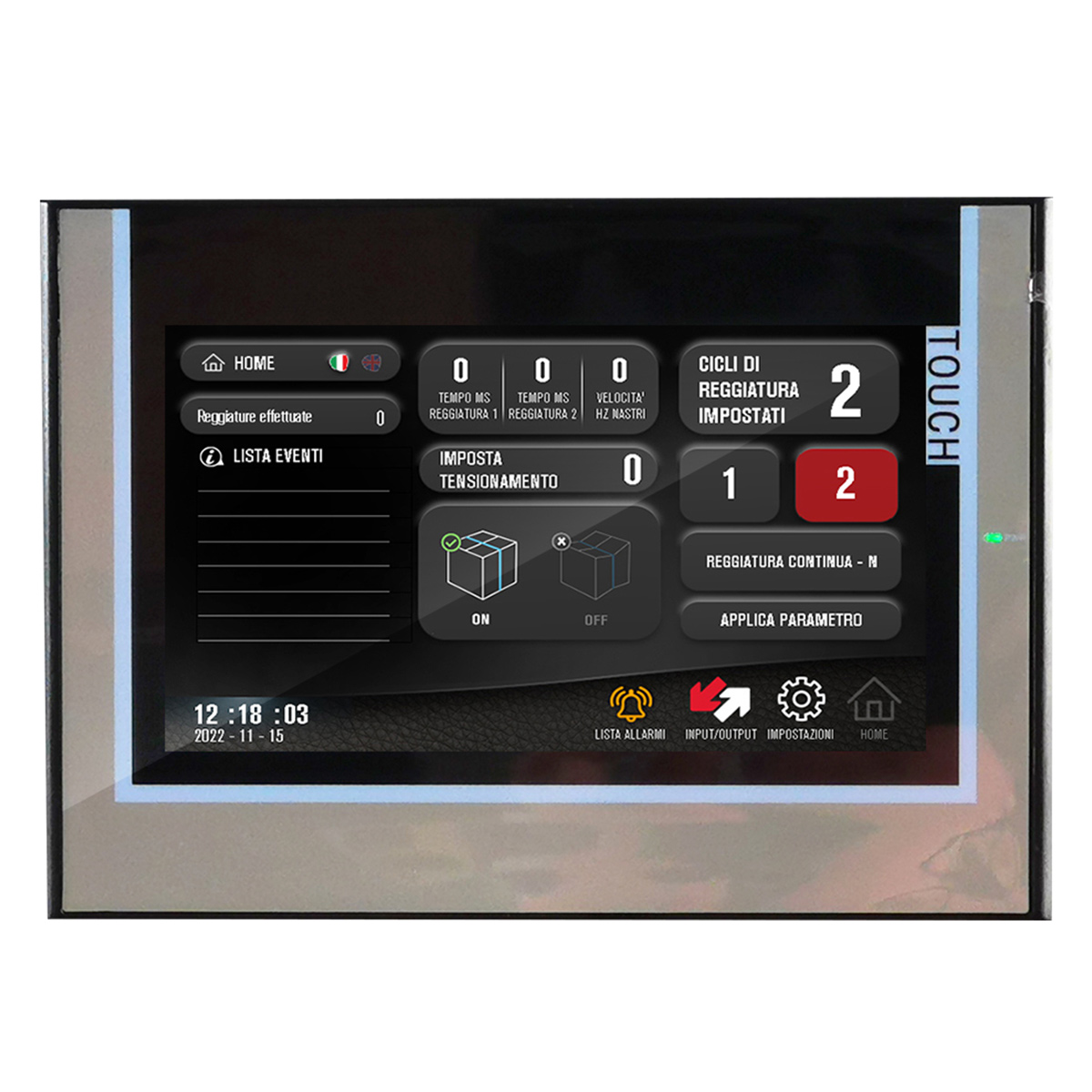

  • 7,2’’ touch screen
  • Strap cutter device
  • Adjustable working table height
  • Six pivoting wheels, three of them with brake
  • Easyfast strap guide disassembly system (without any tool)
  • Automatic strap ejection at the end of the strap coil
  • Re-feed strap system
  • Possibility to use various strap sizes
  • Various arches dimension available
  • Strap tensioning up to 45 kg

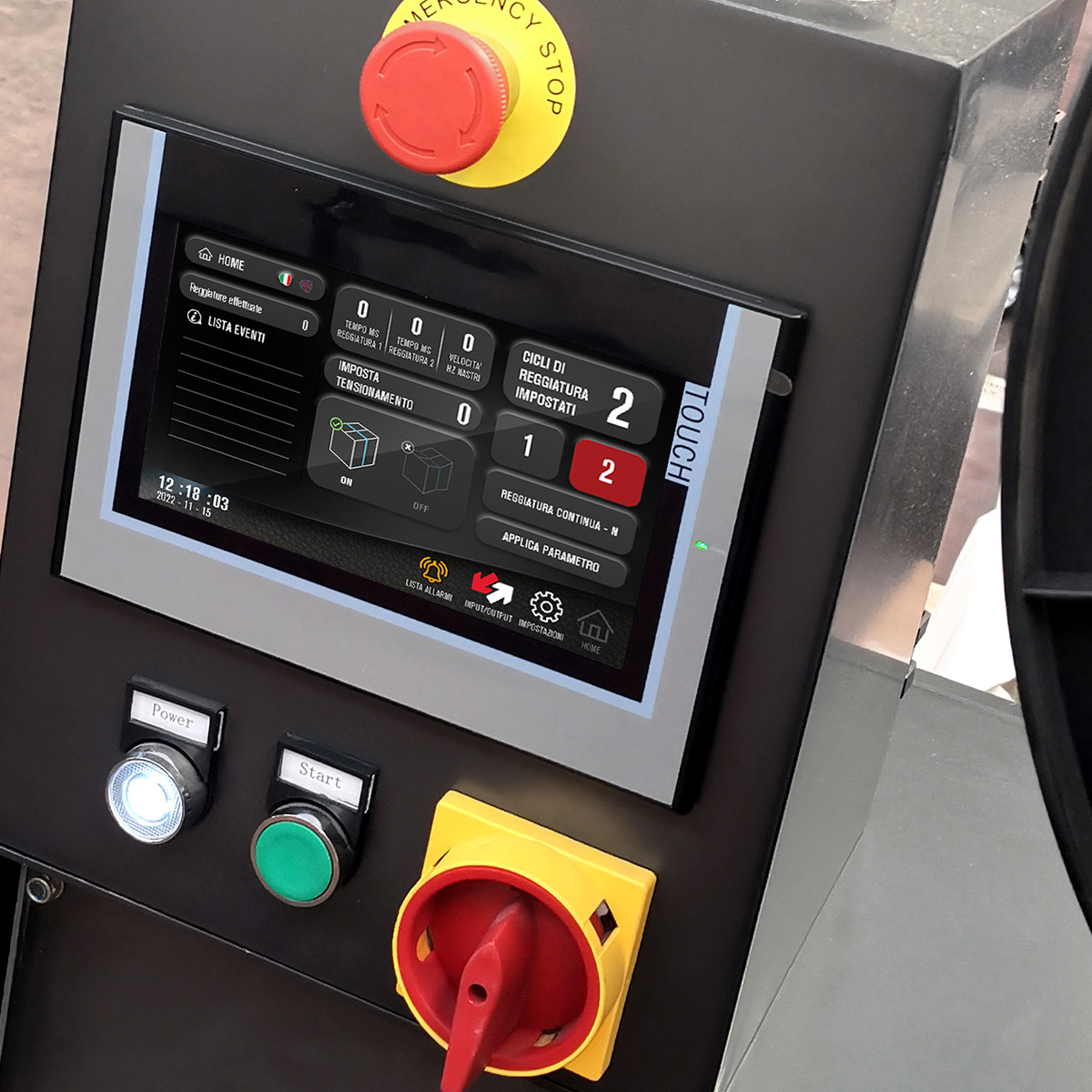

Control panel adjustments
  • Strap tension adjustment
  • Temperature adjustment of the sealing blade
  • Management of “mode transit” function, without product strapping
  • Single, double or multiple strapping system adjustment
  • IN / OUT connection verification interface
Strap roll features

Internal diameter: 200 mm.

External diameter: 400 – 450 mm.
Strap width: 9 – 12 mm.
Strap thickness: 0,45 – 0,65 mm.
Strap type: PP (Polypropylene)

Download the technical sheet of the strapping machine

REQUEST A FREE QUOTE NOW

Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.



Additional information

Power supply

220 Volts

Power supply frequency

50/60 Hz

Installed power

1 Kw

Machine dimensions

L 2600 x W 750 x H 1700 mm.

Dimension strapping arch size

L 650 x H 1000 mm., L 650 x H 500 mm, L 650 x H 600 mm., L 650 x H 800 mm., L 850 x H 1000 mm., L 850 x H 500 mm., L 850 x H 600 mm., L 850 x H 800 mm.

Strapping speed

45 cili/min.

Tension strength

0 – 30 Kg

Type

Motorized belts

Control panel

Touch screen

Max product weight

0 – 30 Kg

Reel internal diameter

200 mm.

Coil outer diameter

400 – 450 mm.

Strap width

9 – 12 mm

Strap thickness

0,45 – 0,65 mm

Strap type

PP (polypropylene)
