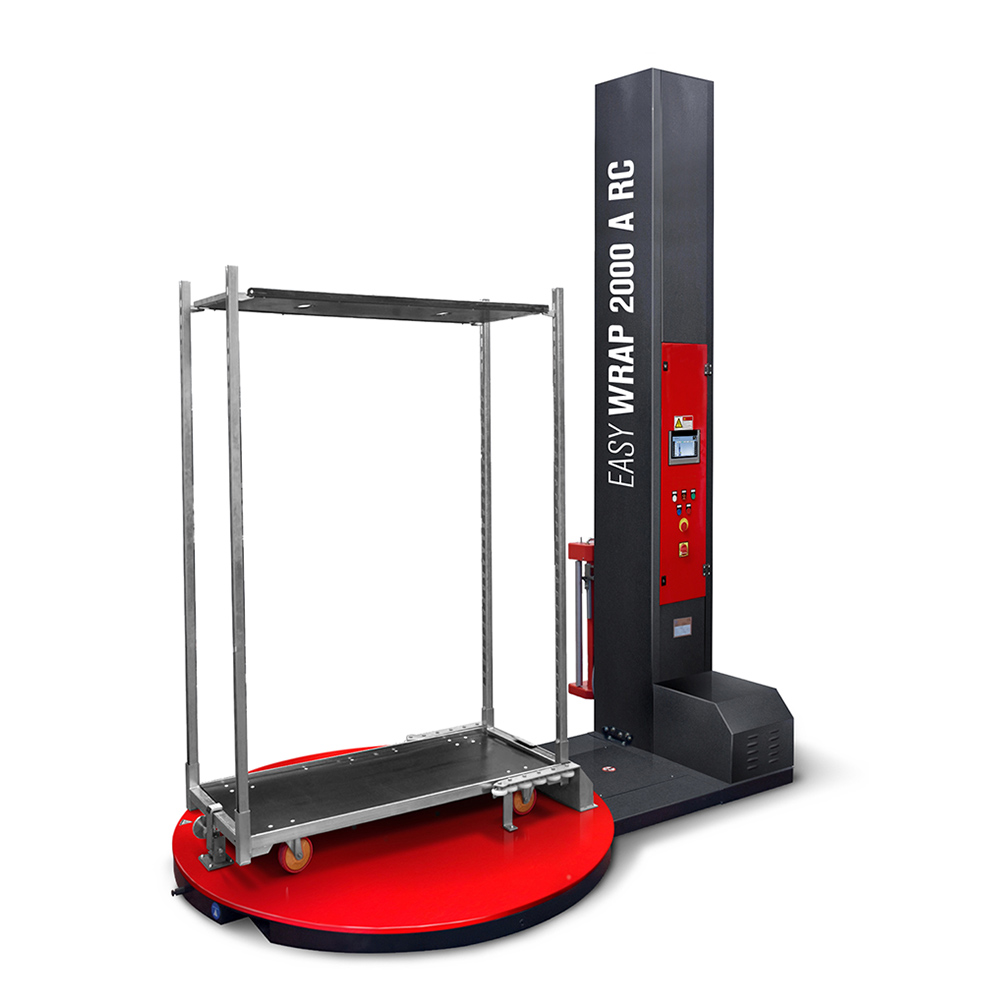

Model Easy Wrap 2000 A RC is a semi-automatic machine for stretch-film wrapping of palletized loads with the possibility to adjust the film tension by means of a mechanical brake or motorized prestretch.

Touch monitor

Graphic display

Photocell sensor

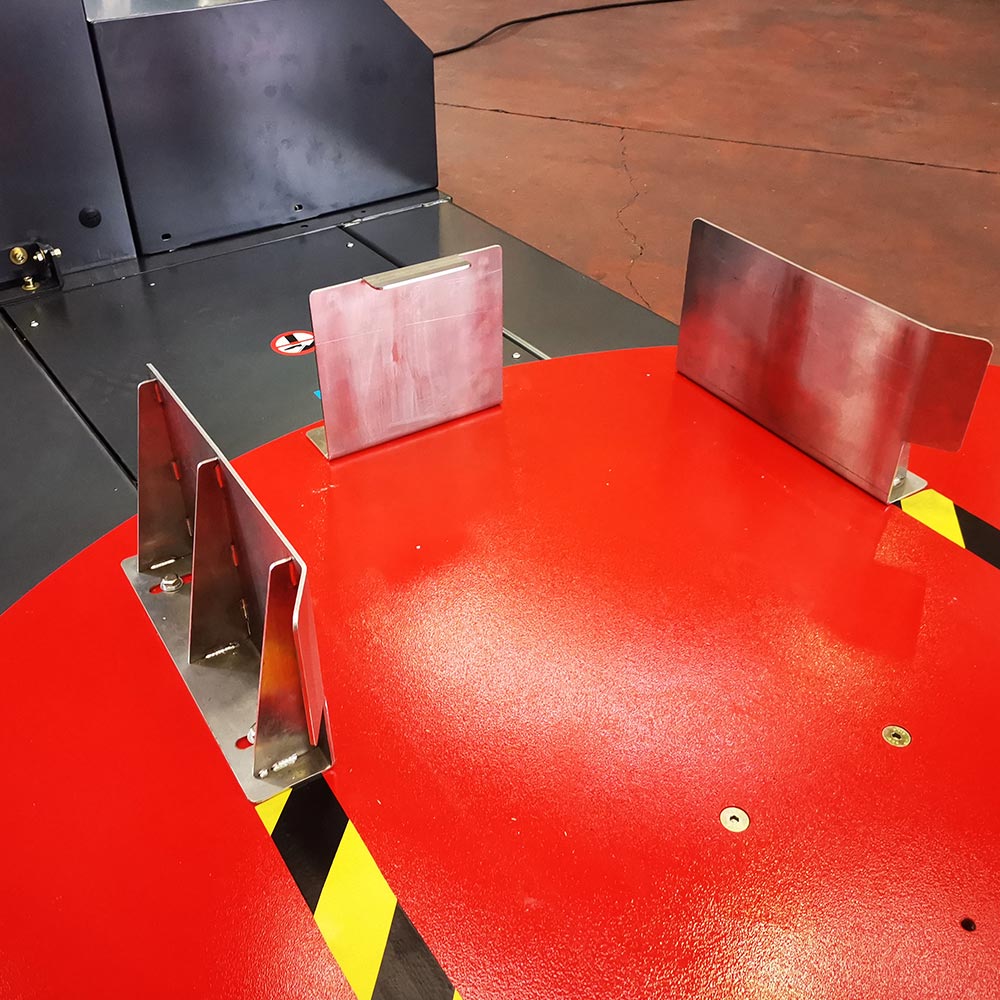

Carriage locking

Semi-automatic wrapping machine for carriages

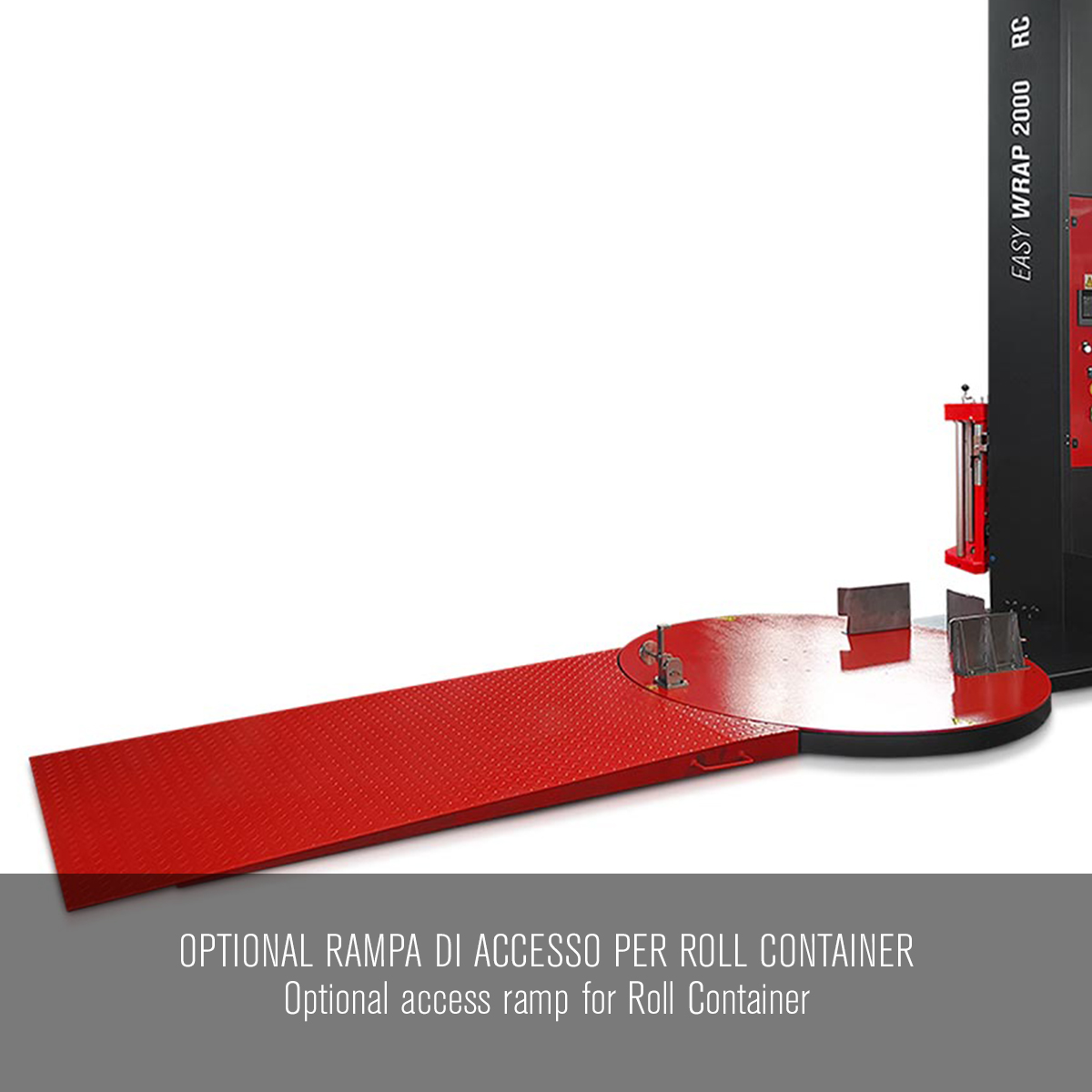

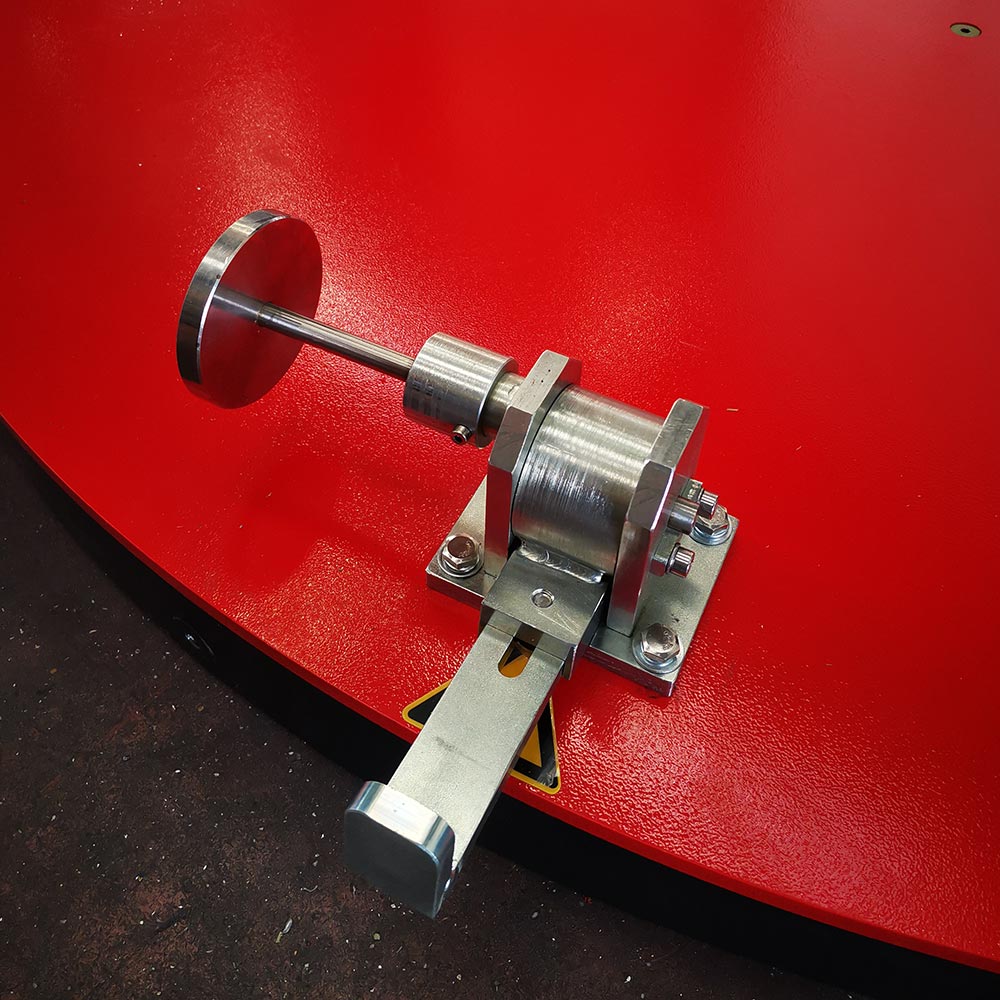

Wrapping machine with turntable mod. Easy Wrap 2000 A RC for wrapping carriages (roll container), with manual clamping and cutting of the film and wrapping cycle automatically, coil limit switches adjustable in height, coil limit switches adjustable at the base of the trolley to wrapping at the desired height, digital panel with 3 wrapping programs, guide for trolleys, mechanical foot lock, loading ramp for pallet trucks, inverter for soft starting and speed variation of rotating table, mechanical brake carriage for film tensioning or powered pre-stretch carriage.

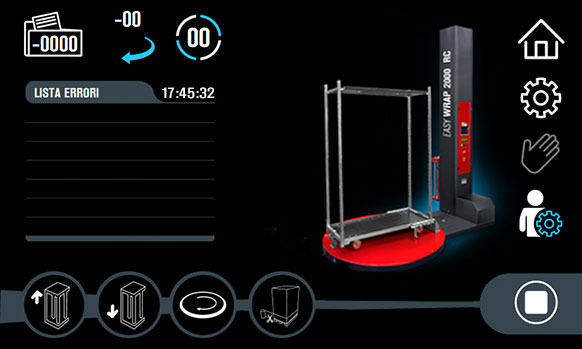

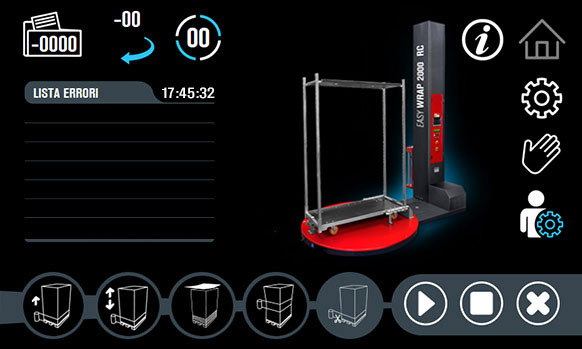

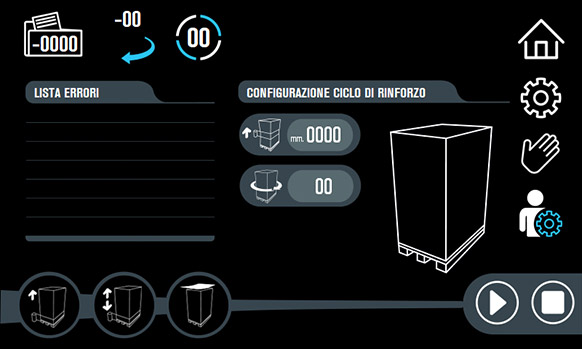

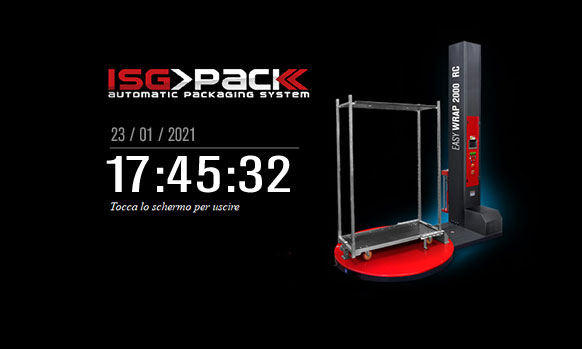

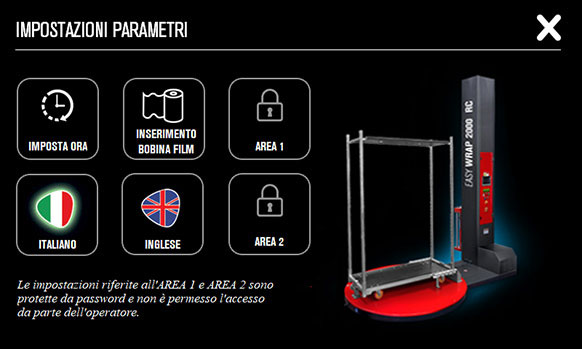

New graphic interface of the touch display

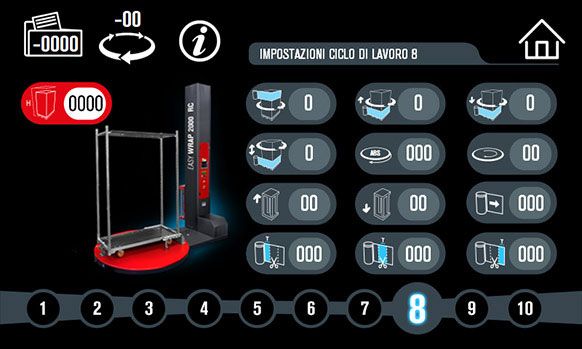

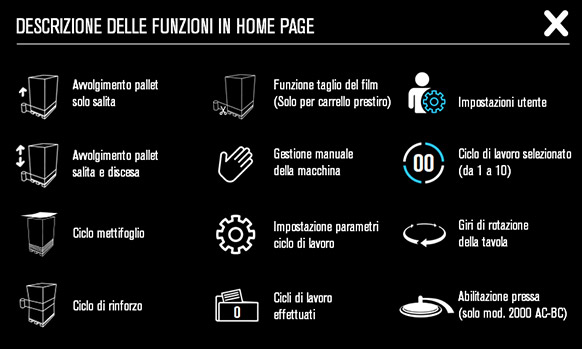

Since January 2021, significant improvements have been made in the use and management of the machine on the user side. In addition to the language selector, the navigation logics on the touch screen have been updated and simplified to make the most of the potential of this winder. Each screen is equipped with an information icon that briefly describes the specification of the commands on the display, with instant warnings that alert the operator of any anomalies or alarms during work operations. The operations aimed at reinforcement cycles on pallets and the settings of the work cycles have been revised, which give the possibility to manage and store up to 10 different work settings, optimizing (based on the values entered), a considerable saving of the stretch film.

General characteristics

The Easy Wrap 2000 A RC pallet wrapper has a plate diameter of 1500 mm (standard) and can process products with dimensions of L 565 x W 1350 x H 2200 mm, supporting a maximum weight on a plate of 1500 Kg. In addition, the pallet wrapper is equipped with a PLC electrical panel with 3 winding programs, guide for trolleys, inverter for progressive start-up and rotary table speed variation, photocell reading delay, cycle counter, etc.

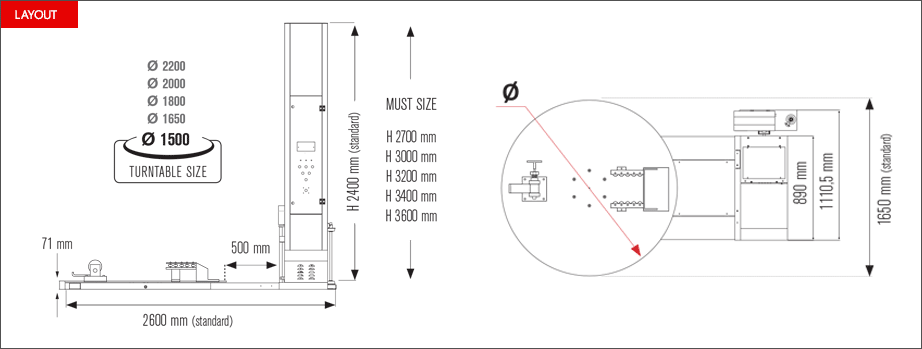

Layout Easy Wrap 2000RC

Features and parameters

FEATURES
  • Machine structure in painted steel sheet
  • Mast hinged at the base for easy and quick installation
  • Film carriage by chain transmission
  • Turntable ø 1500 mm
  • Max height products: 2200 mm
  • Environmental humidity conditions: ≤ 90%
  • Operating temperature range: + 0° C to + 40 ° C
  • Machine controlled by PLC and color 7,2” touch screen
  • Film carriage fall protection system
  • Acoustic wearning at the cycle start
  • Mechanical brake
  • Ermegency stop in compliance with CE regulations
  • Front and back holes for forklifting of the machine
  • Inverter for soft start and indexed stop of the turntable
Parameters adjustable by control panel
  • Number of rounds in bottom
  • Number of rounds in top
  • Adjustable turntable speed from 0 to 12 rpm
  • Carriage ascending and descending speed
  • Photoeye reading delay adjustable
  • Carriage ascending and descending functions
  • Cycle counter
Functions activated by control panel
  • Cycle ascending and descending
  • Cycle only ascending
  • Top sheet function with top and bottom cycle
  • 10 programmable wrapping cycles
Characteristics of the workable product
  • Dimension max product: L 565x W 1350mm.
  • Useful height: H 2200 mm.
  • Max weight product: 1500 Kg.
Film roll features

Film roll external diameters: 280 mm.


Film roll internal diameter: 76 mm.

Film roll height: 500 mm.

Film roll max weight: 16 Kg.

TECHNICAL SHEET PDF

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

Additional information

Machine dimensions

L 2600 x W 1650 x H 2400 mm

Weight machine

600 Kg

Turntable diameter

1500 mm

Max product weight

2000 Kg

Turntable speed

0 – 12 (rpm)

Carriage up-down speed

1,4 – 4 (m/min)

Maximum pallet dimensions

L 565 x W 1350 x H 2200 mm

Film tensioning

Mechanical brake

Power supply

220 Volt 1Ph

Power supply frequency

50/60 Hz

Installed power

1 Kw

Max dimension film roll

H 500 mm Ø 280 mm

Film roll max weight

16 Kg

Film roll thickness

12 – 35 (µm)

Photoeye to detect door height

std

Forklifting

Front and back
