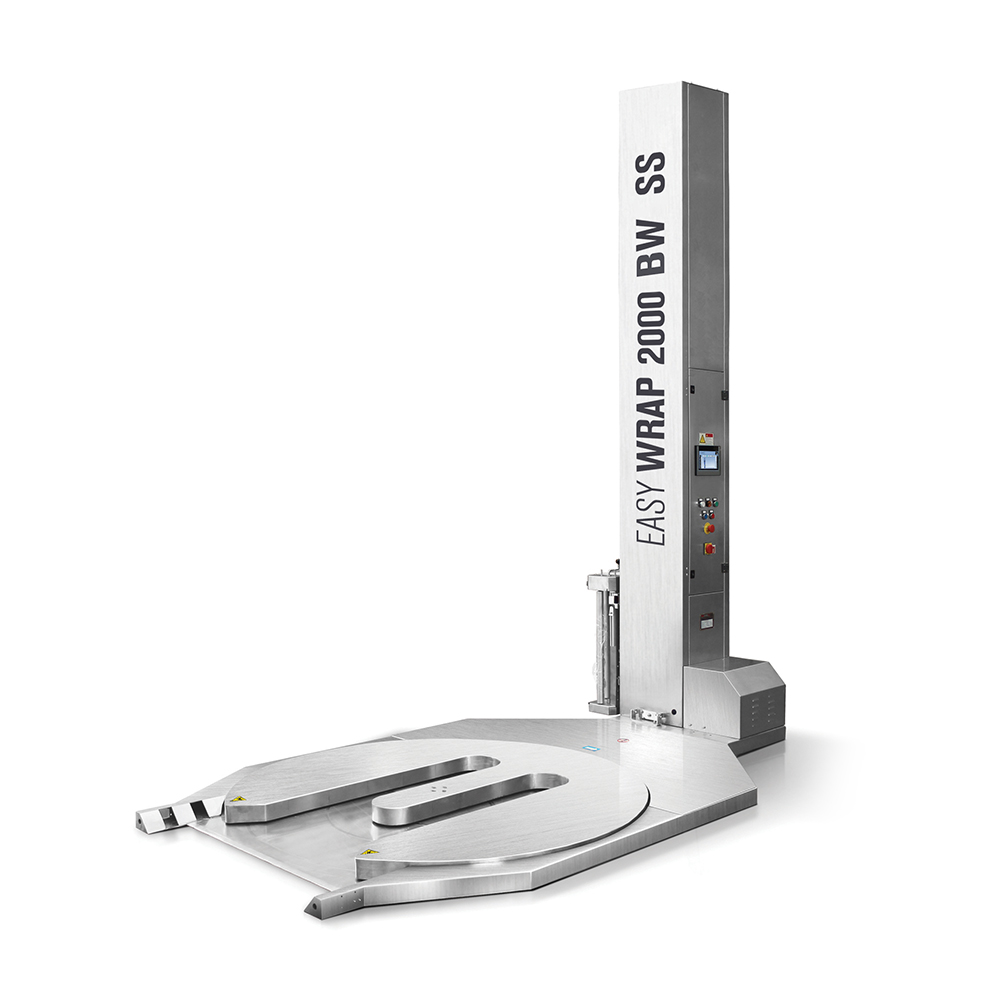

Stretch wrapping machine Easy Wrap 2000 AW SS

Avvolgipallet in acciaio inox con entrata transpallet modello Easy Wrap 2000 BW SS

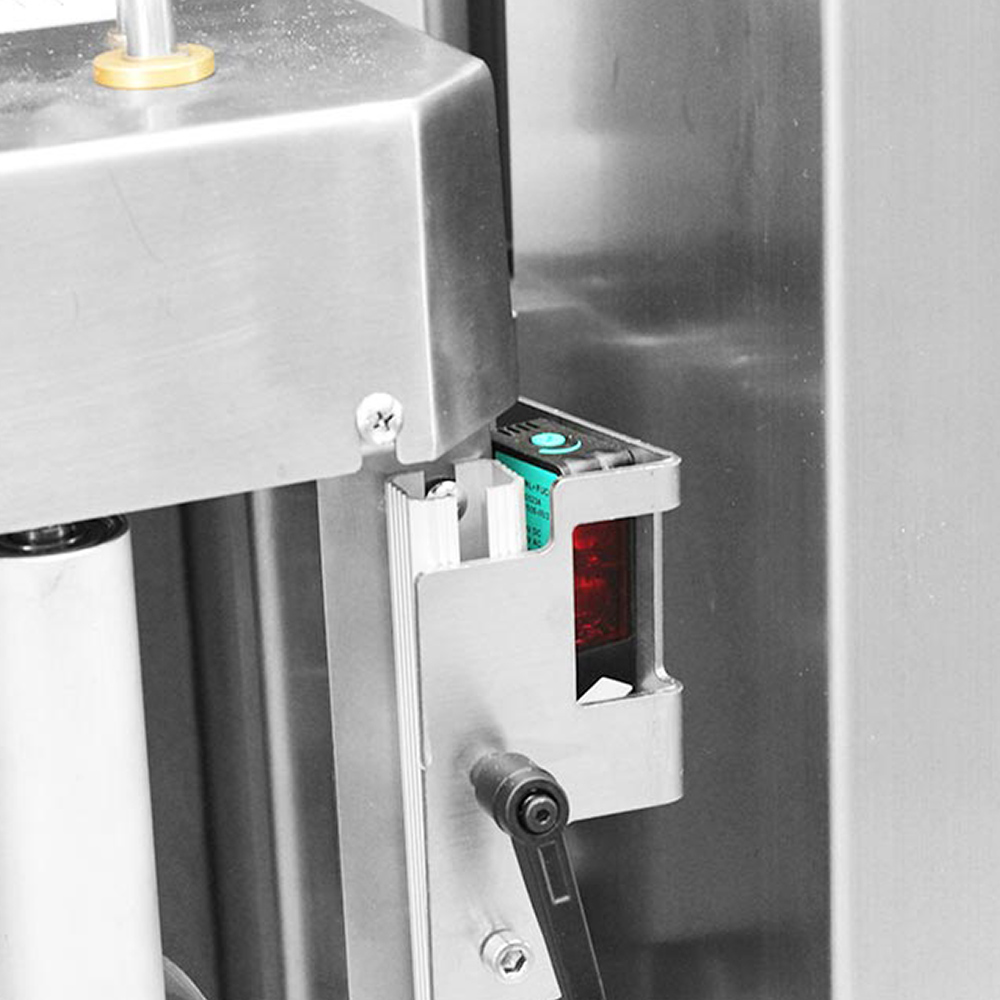

Fotocellula per lettura prodotti

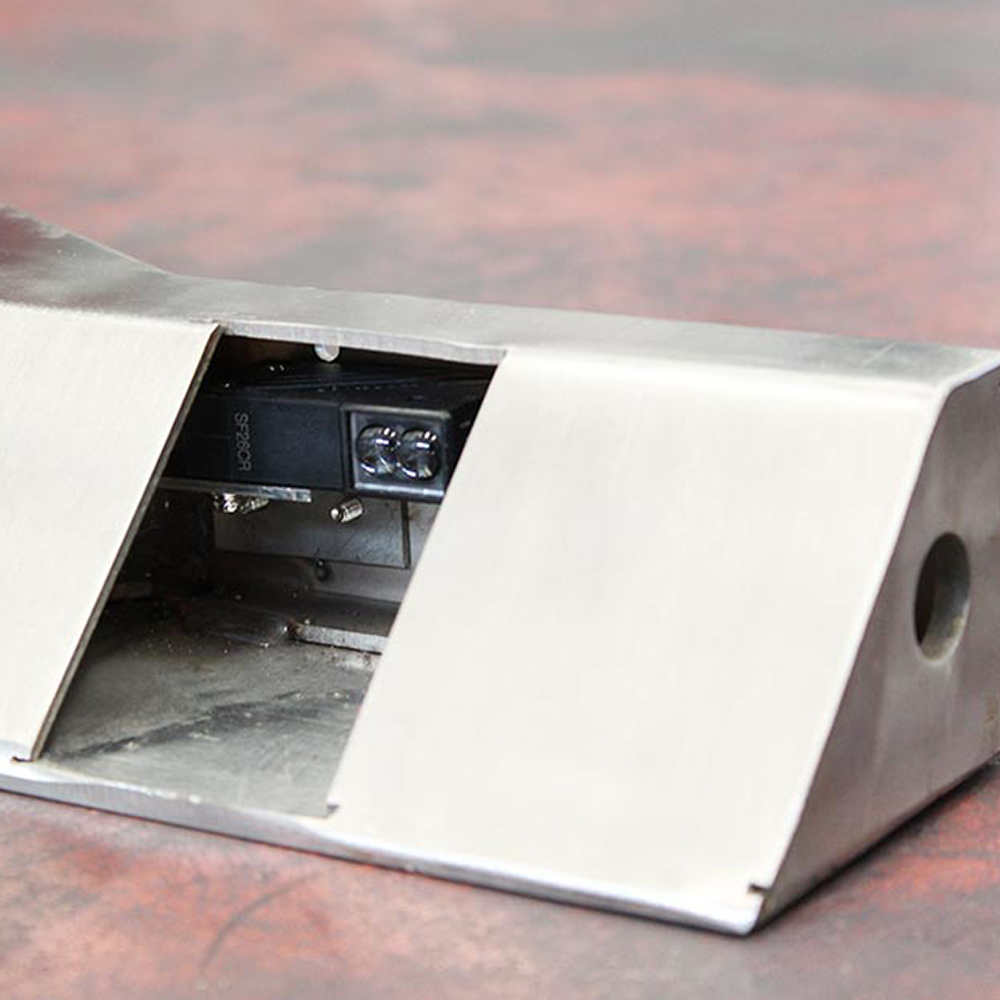

Fotocellula sicurezza ingresso transpallet

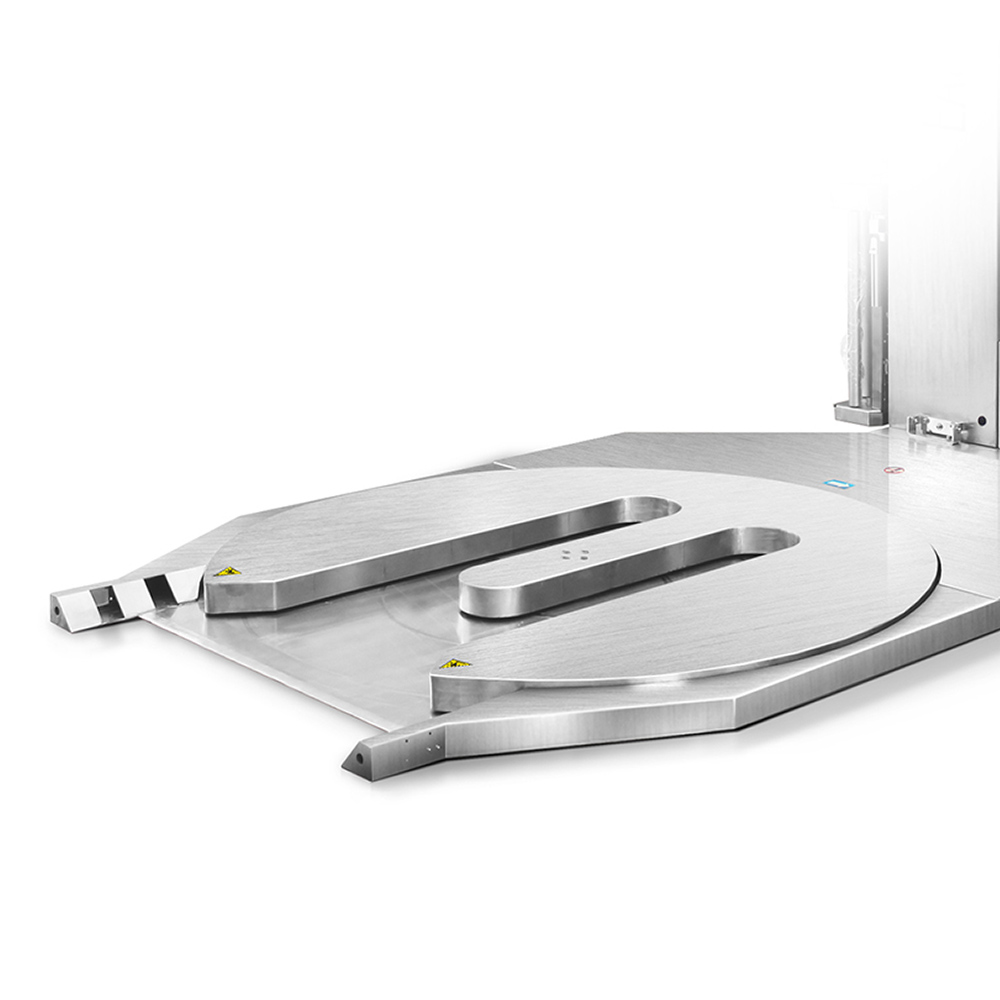

Tavola aperta avvolgipallet
Display touch avvolgipallet
Fotocellula laser
Fotocellula per lettura prodotti neri
Roll over image to zoom in
Click to open expanded view

In stock

REQUEST QUOTE NOW



The Easy Wrap 2000 AW SS pallet wrapper is a semi-automatic machine for wrapping palletised loads made of SUS 304 stainless steel. The film is tensioned by a mechanical clutch (positioned on the top of the reel holder trolley) which can be manually adjusted by the operator. The machine is equipped with a PLC and 7.2 "color touch screen display.





SKU: EW2000BWSS Category: Tag: Brand:

Stainless steel stretch wrapping machine with open table and film tensioning by mechanical brake carriage

Model Easy Wrap 2000 AW SS is a semi-automatic machine for stretch-film wrapping of palletized loads: with entry for transpallet for the easy loading of products with pallet track, the possibility to adjust the film tension by a mechanical brake or motorized prestretch, soft starting of the turntable by inverter, manual or automatic working cycle, the possibility to adjust the number of upward and downward rounds of the pallet. The machine is equipped with PLC and digital color display 7,2”.

Additional information

Power supply

220 Volt 1Ph
Power supply frequency

50/60 Hz
Installed power

1,25 Kw
Machine size

L 2925 x W 1750 x H 2400 mm
Net machine weight

600 Kg
Turntable diameter

1650 mm
Turntable speed

0 – 12 (rpm)
Carriage

Powered pre-stretch film carriage
Product reading

Sandard photocell
Product dimension

L 1000 x W 1200 mm
Max product height

H 2200 mm
Max. product weight

1200 Kg

Features and parameters

Features

  • Machine structure in painted steel sheet
  • Mast hinged at the base for easy and quick installation
  • Film carriage by transmission chain
  • Turntable ø 1650 mm with entry for transpallet
  • Useful height 2200 mm
  • Environmental humidity conditions: ≤ 90%
  • Operating temperature range: + 0° C to + 40 ° C
  • Machine controlled by PLC and color 7,2” touch screen
  • Film carriage fall protection system
  • Safety photocell with entry for transpallet
  • Acoustic wearning at the cycle start
  • Mechanical brake
  • Ermegency stop in compliance with CE regulations
  • Back holes for forklifting of the machine
  • Inverter for soft start and indexed stop of the turntable

Parameters adjustable by control panel

  • Number of rounds in bottom
  • Number of rounds in top
  • Adjustable turntable speed from 0 to 12 rpm
  • Carriage ascending and descending speed
  • Photoeye reading delay adjustable
  • Carriage ascending and descending functions
  • Cycle Counter

Functions activated by control panel

  • Cycle ascending and descending
  • Cycle only ascending
  • Top sheet function with top and bottom cycle
  • N°08 programmable wrapping cycles

Characteristics of the workable product

  • Dimension max product: L 1000 x W 1200 mm.
  • Useful height: H 2200 mm.
  • Max weight product: 1200 Kg.


Film roll features

Film roll external diameters: 280 mm.


Film roll internal diameter: 76 mm.

Film roll height: 500 mm.

Film roll max weight: 20 Kg.

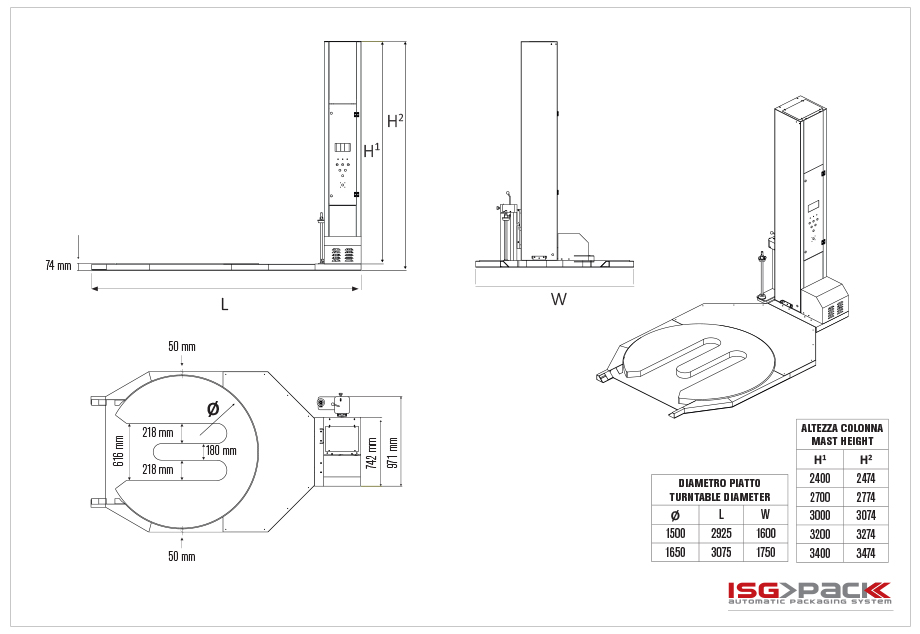

Layout Easy Wrap 2000W
LAYOUT EASY WRAP 2000W
SCHEDA PDF EASY WRAP 2000 W SS Scheda tecnica Avvolgipallet Easy Wrap 2000 W SS Scheda tecnica Avvolgipallet Easy Wrap 2000 W SS
