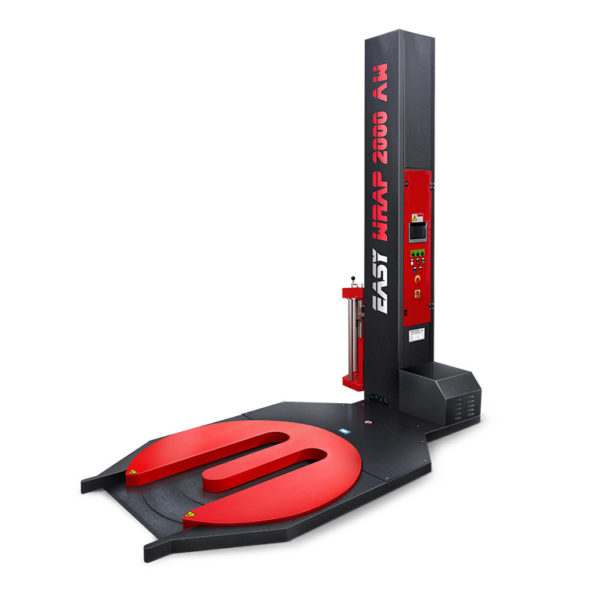

Stretch wrapping machine Easy Wrap 2000 AW

Fasciapallet semiautomatico a tavola aperta Easy Wrap 2000 AW. Scopri come acquistarla con il nostro tasso Zero 2019
Fotocellula sicurezza ingresso transpallet
Carrello con tensionamento manuale
Carrello con tensionamento manuale
Fotocellula carrello con tensionamento manuale
Fotocellula laser
Fotocellula per lettura prodotti neri
Display touch avvolgipallet
Roll over image to zoom in
Click to open expanded view

In stock

RICHIEDI UN PREVENTIVO ORA

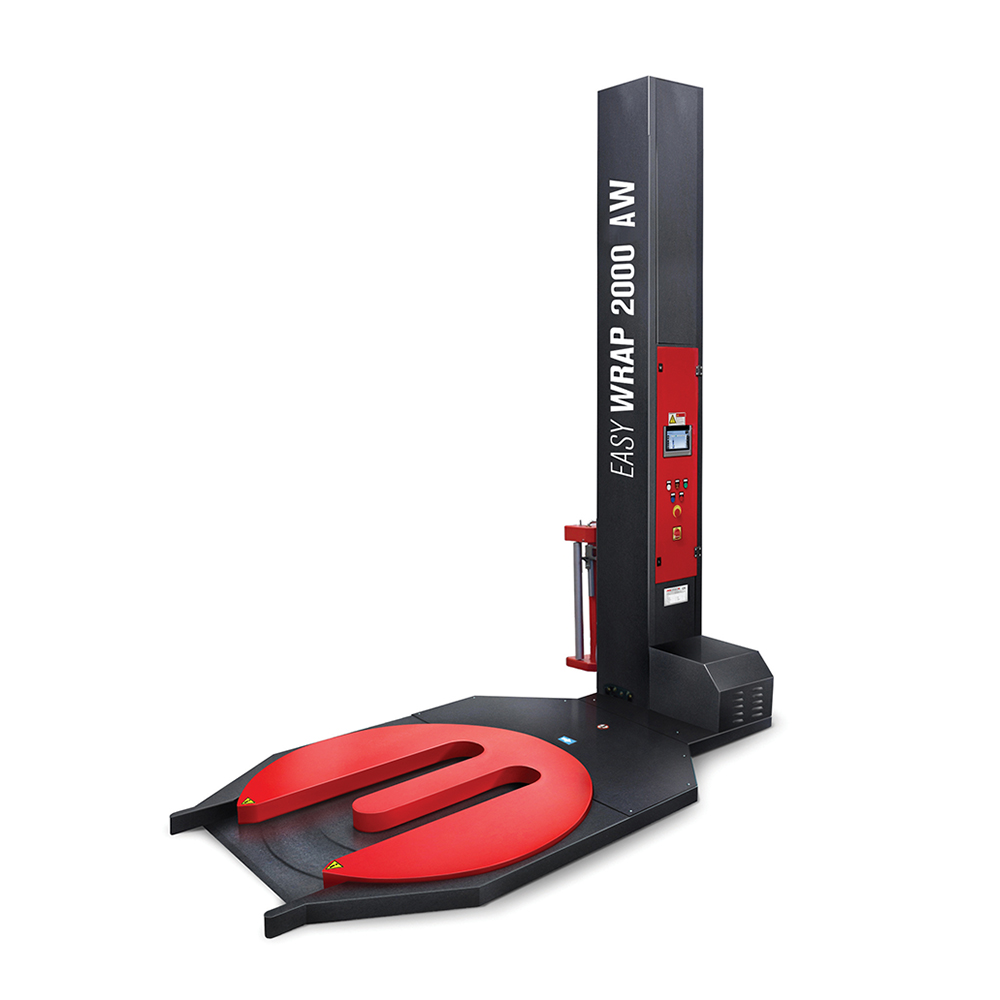

Il modello Easy Wrap 2000 AW è una macchina semiautomatica per l'avvolgimento di carichi pallettizzati con accesso del carico alla vasca tramite pallet. Il tensionamento del film avviene tramite una frizione meccanica (posizionata sulla parte superiore del carrello portabobina) regolabile manualmente dall'operatore. La macchina è dotata di PLC e display touch screen a colori da 7,2".

SKU: EW2000AW Category: Tag: Brand:

Semi-automatic wrapping machine with carriage tensioning by mechanical brake

The Easy Wrap 2000 AW model is a semi-automatic machine for wrapping palletized loads with stretch film. It features a pallet truck entry for easy loading of products with pallet rails, adjustable film tension via mechanical brake or motorized pre-stretch system, soft-start turntable controlled by inverter, manual or automatic wrapping cycles, and configurable number of upward and downward rotations. The machine is equipped with a PLC and a 7.2″ color digital display.

Additional information

Power supply

220 Volt 1Ph
Power supply frequency

50/60 Hz
Installed power

1 Kw
Machine size

L 2925 x W 1750 x H 2400 mm
Net machine weight

600 Kg
Turntable diameter

1650 mm
Turntable speed

0 – 12 (rpm)
Carriage

Mechanical brake carriage
Product reading

Sandard photocell
Product dimension

L 1000 x W 1200 mm
Max product height

H 2200 mm
Max. product weight

1200 Kg

Features and Parameters of the Wrapping Machine


Technical specifications

  • Machine structure in painted steel sheet
  • Reel carriage and turntable transmission via chain mechanism
  • Machine control by PLC with 7.2″ color touch-screen display
  • Safety stop device at the carriage base compliant with CE regulations
  • Brake engage/disengage mechanism to facilitate film attachment at pallet base
  • Audible and flashing signal at cycle start
  • Turntable diameter Ø 1650 mm, profiled for pallet truck entry
  • Film tensioning via mechanical friction clutch
  • Emergency stop mushroom button compliant with CE regulations
  • Machine reset button in operation for CE compliance
  • Rear forklift entry capability for machine handling
  • Inverter for progressive start and indexed stop of the turntable
  • Cycle counter
  • Manual operation mode of the machine


Cicli selezionabili da quadro comandi

  • Digital adjustment of rotations at pallet base (cycle start)
  • Digital adjustment of rotations at pallet top
  • Digital adjustment of rotations at pallet base (cycle end)
  • Digital adjustment of turntable rotation speed from 0 to 12 rpm
  • Digital adjustment of carriage ascent speed
  • Digital adjustment of carriage descent speed
  • Adjustment of number of complete cycles
  • Adjustment of turntable indexing time
  • Digital adjustment of film overhang


Processable product characteristics

  • Maximum product dimensions: L 1000 x W 1200 mm
  • Usable height: H 2200 mm
  • Maximum product weight: 1200 kg


Film roll characteristics

  • Maximum external diameter: 280 mm
  • Film core inner diameter: 76 mm
  • Film roll height: 500 mm
  • Maximum roll weight: 16 kg
  • Film thickness: 12–35 µm


Layout Easy Wrap 2000W
LAYOUT EASY WRAP 2000W
SCHEDA PDF EASY WRAP 2000 W
