Stretch wrapping machine Easy Wrap 2000 PA

In stock

REQUEST QUOTE NOW



Model Easy Wrap 2000 PA is a semi-automatic machine for stretch-film wrapping of palletized loads with the possibility to adjust the film tension by means of a mechanical brake.

WITH
OPERATOR

POWER
SUPPLY 1 Kw

FILM
ROLL

PALLETIZED
LOADS

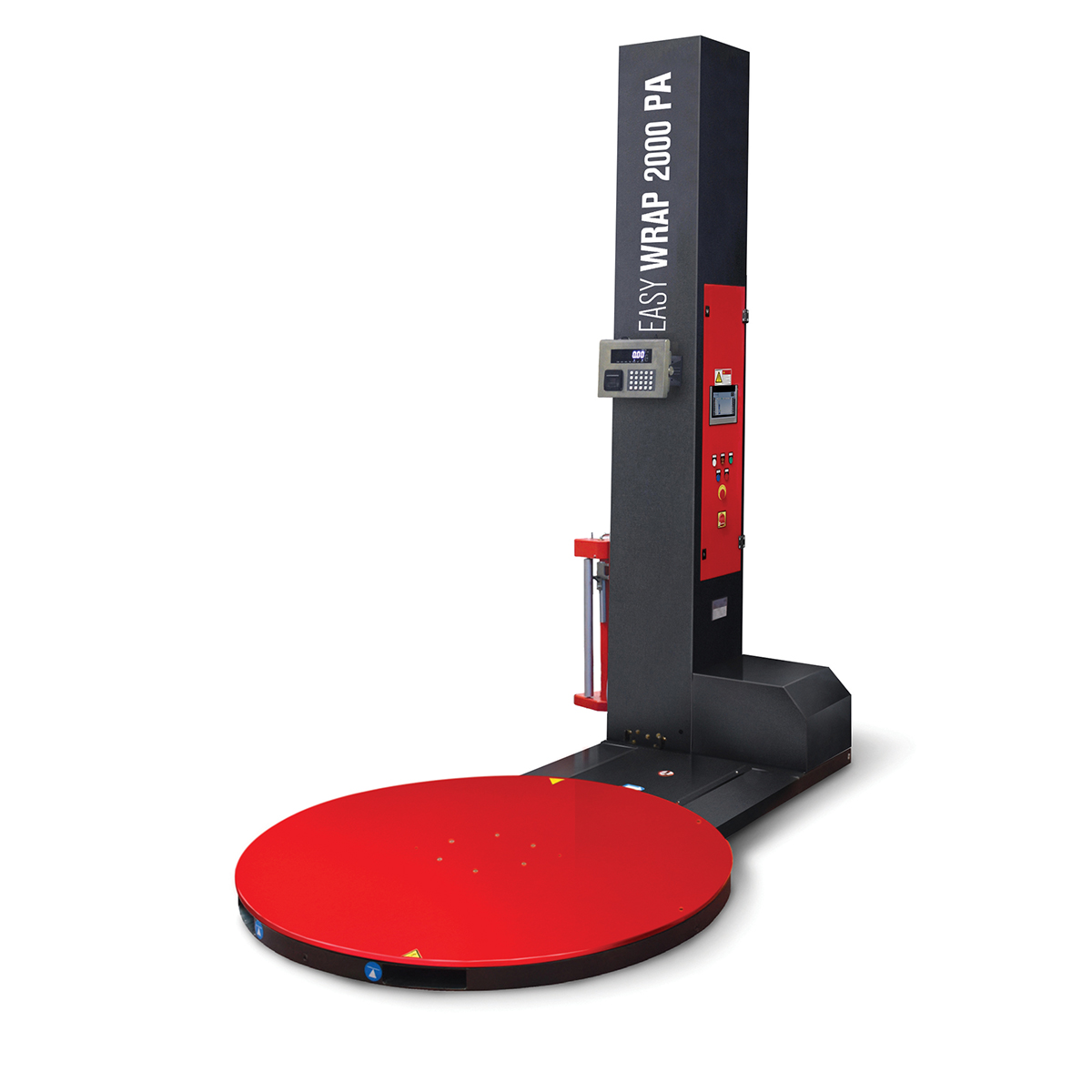

Semi-automatic Easy Wrap 2000 PA pallet wrapper with load weighing system

Model Easy Wrap 2000 PA is a semi-automatic machine for stretch-film wrapping of palletized loads and with weighing system including 6 loading cells and weight display and printer. It’s possible to adjust the film tension by a mechanical brake or motorized pre-stretch, soft start of the turntable by inverter, manual or automatic working cycle, the possibility to adjust the number of upward and downward rounds of the pallet. The machine is equipped with PLC and digital color display 7,2”.

General characteristics

The Easy Wrap 2000 PA pallet wrapper has a plate diameter of 1650 mm (standard) and can process products with dimensions of L 1000 x W 1200 x H 2200 mm, supporting a maximum weight on a plate of 1500 Kg. In addition to having the possibility to adjust the number of revolutions on the lower and upper part of the pallet, it is also possible to adjust the gradual start of the table by means of an inverter. The machine is equipped with a PLC and 7.2 color touch screen display that allows you to adjust additional parameters such as the speed of ascent and descent of the trolley, photocell reading delay, cycle counter, etc.

Features and parameters

Features
  • Machine structure in painted steel sheet
  • Weighing system integrated with 6 load cells with a display with RS 232 output for connection to printer
  • Turntable ø 1650 mm
  • Useful height 2200 mm
  • Environmental humidity conditions: ≤ 90%
  • Operating temperature range: + 0° C to + 40 ° C
  • Machine controlled by PLC and color 7,2” touch screen
  • Film carriage fall protection system
  • Acoustic wearning at the cycle start
  • Mechanical brake
  • Ermegency stop in compliance with CE regulations
  • Front and back holes for forklifting of the machine
  • Including/excluding mechanical top press unit
  • Inverter for soft start and indexed stop of the turntablee
Parameters adjustable by control panel:
  • Number of rounds in bottom
  • Number of rounds in top
  • Adjustable turntable speed from 0 to 12 rpm
  • Carriage ascending and descending speed
  • Photoeye reading delay adjustable
  • Carriage ascending and descending functions
  • Cycle counter
Parameters adjustable by control panel
  • Cycle ascending and descending
  • Cycle only ascending
  • Top sheet function with top and bottom cycle
  • N°08 programmable wrapping cycles
Functions activated by control panel
  • Dimension max product: L 1000 x W 1200 mm.
  • Useful height: H 2200 mm.
  • Max weight product: 1500 Kg.
Film roll features

Film roll external diameters: 280 mm.


Film roll internal diameter: 76 mm.

Film roll height: 500 mm.

Film roll max weight: 20 Kg.

TECHNICAL SHEET PDFDownload technical sheet PDF

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

How did you find our Company??


Additional information

Power supply

220 Volt 1Ph

Power supply frequency

50/60 Hz

Installed power

1 Kw

Machine size
Net machine weight

600 Kg

Turntable diameter

1650 mm

Turntable speed

0 – 12 (rpm)

Carriage

Mechanical brake carriage

Product reading

Sandard photocell

Product dimension

L 1000 x W 1200 mm

Max product height

H 2200 mm

Max. product weight

2000 Kg
