Stretch wrapping machine Easy Wrap 2000A DW

In stock

REQUEST QUOTE NOW



Model Easy Wrap 2000 A is a semi-automatic machine for stretch-film wrapping of palletized loads with the possibility to adjust the film tension by means of a mechanical brake or motorized prestretch.

WITH
OPERATOR

POWER
SUPPLY 1 Kw

FOAM AND
PLURIBALL

PALLETIZED
LOADS





Stretch wrapping machine for doors and windows.

Wrapping machine with rotating table mod. Easy Wrap 2000 A DW, suitable for wrapping the doors grid doors, windows, shower cabin, furniture, etc. vertically with manual film hooking and cutting and automatic wrapping cycle, height adjustable of the limit switches for stopping the coil holder carriage, adjustable limit switches at the base of the coil holder carriage for starting the wrapping cycle at the required height, digital panel with 3 wrapping programs, rotating table with guides for the products, electrical top press stabilizer with adjustable guides,inverter for soft start and variation speed.

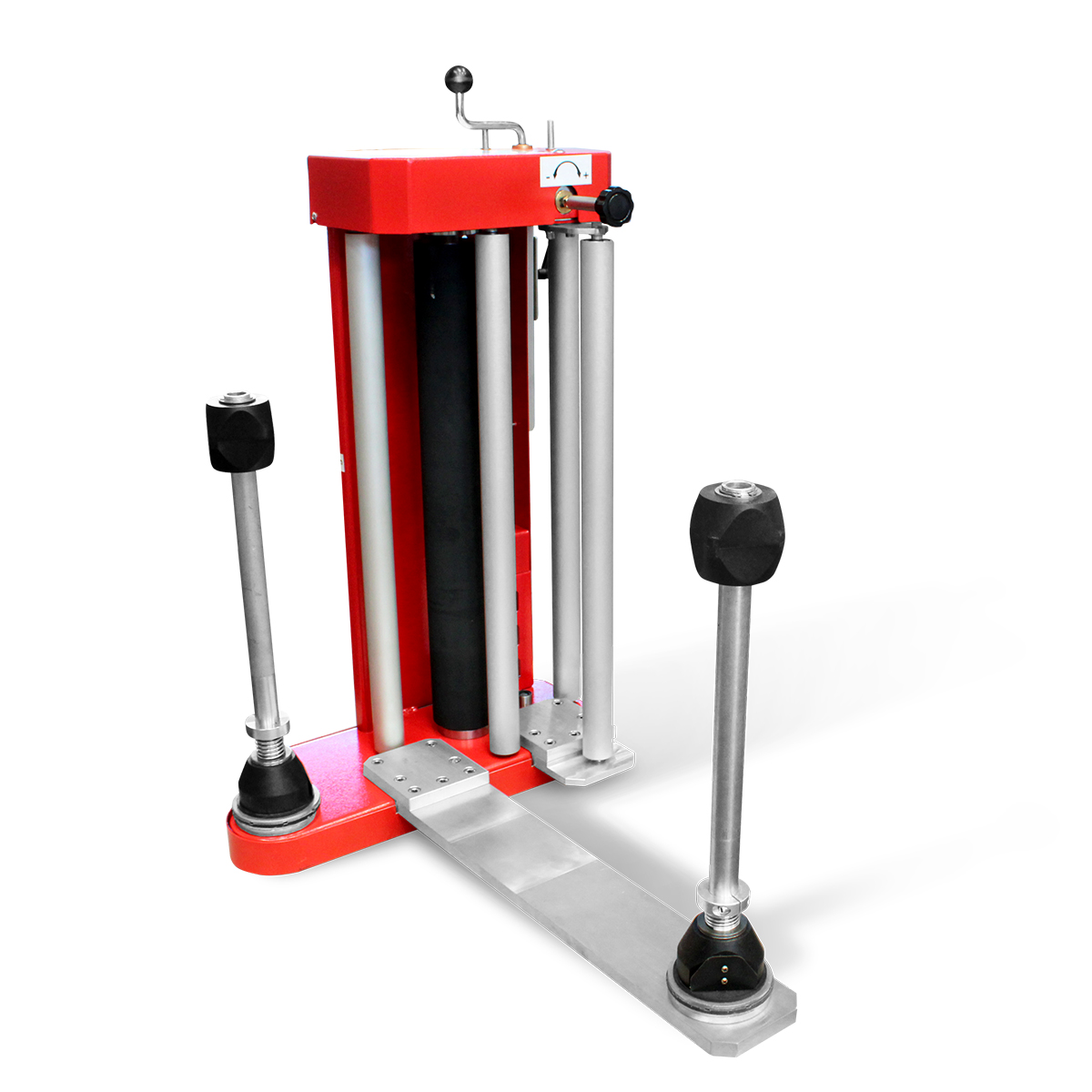

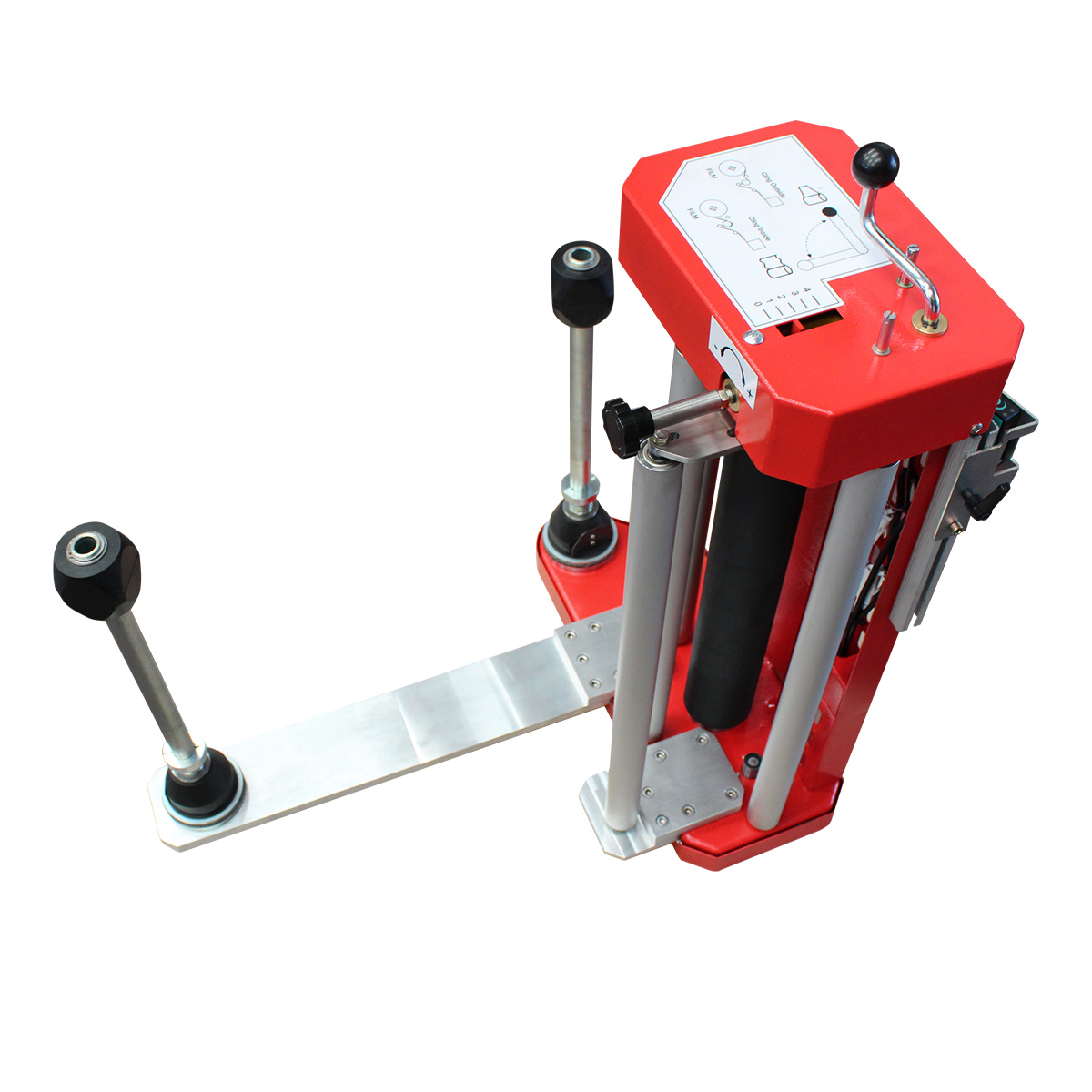

New double coil mechanical carriage

To achieve greater product protection, ISG PACK has developed a double-coil trolley system, which guarantees a packaging that is resistant to transport or storage, thanks to the combination of the stretch film and foam / bubble wrap. For the wrapping of light products, such as a door, the operator can operate in full autonomy without the help of another person.

Features and parameters

Features
  • Machine structure in painted steel sheet
  • Top press electrical unit
  • Film carriage by transmission chain
  • Turntable ø 1650 mm
  • Max workable product 1650 mm
  • Environmental humidity conditions: ≤ 90%
  • Machine controlled by PLC and color 7,2” touch screen
  • Film carriage fall protection system
  • Acoustic wearning at the cycle start
  • Mechanical brake
  • Height adjustable limit switch to stop coil holder carriage
  • Mechanical brake for pluriball tensioning
  • Double foot pedal for cycle start and up and down top press stabilizer
  • Front and back holes for forklifting of the machine
  • Inverter for soft start and indexed stop of the turntable
Parameters adjustable by control panel:
  • Number of rounds in bottom
  • Number of rounds in top
  • Adjustable turntable speed from 0 to 12 rpm
  • Carriage ascending and descending speed
  • Photoeye reading delay adjustable
  • Carriage ascending and descending functions
  • Cycle Counter
Parameters adjustable by control panel
  • Cycle ascending and descending
  • Cycle only ascending
  • Top sheet function with top and bottom cycle
  • N°08 programmable wrapping cycles
Functions activated by control panel
  • Dimension max product: L 1650 x W 50-200 mm.
  • Useful height: H 2000 mm.
  • Max weight product: 100 Kg.
Film roll features

Film roll external diameters: 280 mm.


Film roll internal diameter: 76 mm.

Film roll height: 500 mm.

Film roll max weight: 20 Kg.

Features roll Foam/Pluriball

Roll external diameters: 600 mm.


Internal diameter Foam: 76 mm.

Roll max weight: 500 mm.

[/su_accordion]

TECHNICAL SHEET PDFDownload technical sheet PDF

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

How did you find our Company??


Additional information

Power supply

220 Volt 1Ph

Power supply frequency

50/60 Hz

Installed power

1 Kw

Machine size
Net machine weight

800 Kg

Turntable diameter

1650 mm

Turntable speed

0 – 12 (rpm)

Carriage

Mechanical brake carriage

Product reading

Sandard photocell

Product dimension

L 1650 x W 50-200 mm

Max product height

H 2200 mm

Max. product weight

100 kg
