Stretch wrapping machine Slim Wrap 2000B

In stock

REQUEST QUOTE NOW



The Slim Wrap 2000 B pallet wrapper is a semi-automatic machine designed for wrapping palletized loads using stretch film. It is characterized by a rotary table only 26 mm high. Thanks to the access ramps, it is possible to load the pallets from each side (via transpallet) with access at 270 °.

Touch monitor

Graphic display

Photocell sensor

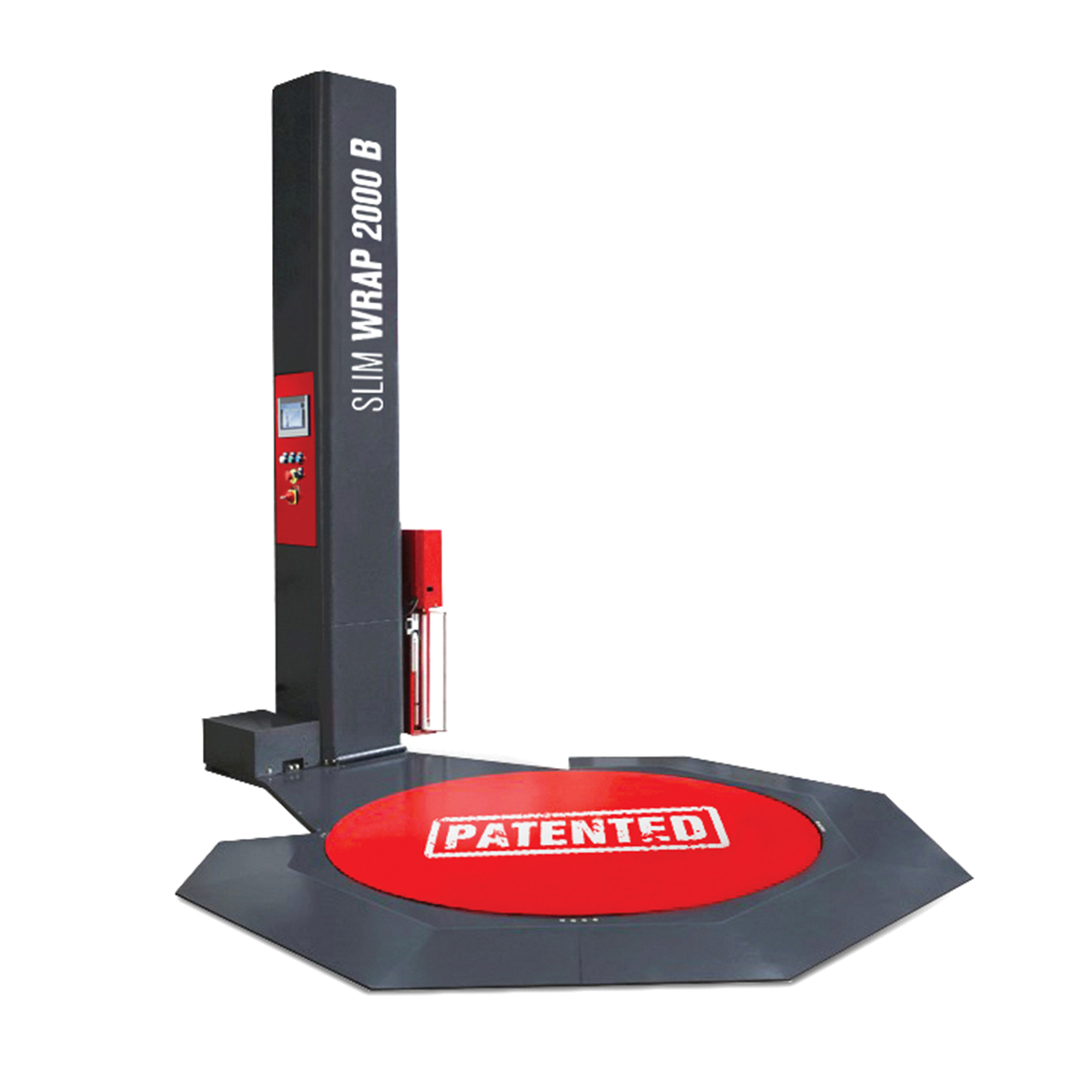

Semi-automatic pallet wrapper with turntable only 26 mm high

The Slim Wrap 2000 B model is a semi-automatic machine for wrapping palletised loads with stretch film, characterized by a turntable with a height of only 26 mm, which allows to avoid frequent accidental impacts with the forks of the forklift and a easy use of the machine by traditional pallet truck. Thanks to the presence of the access ramps it is possible to load the pallets from each side (by means of a transpallet) with access to 270°.

General characteristics of the wrapping machine

The Slim Wrap 2000 B pallet wrapper has a table diameter of 1650 mm (standard) with a thickness of only 26 mm. It can process products with dimensions equal to L 1000 x W 1200 x H 2200 mm, supporting a maximum weight on the plate of 1200 Kg. gradual start-up of the table by means of an inverter. The pallet wrapper is equipped with PLC and 7.2 color touch screen display that allow you to adjust parameters such as the carriage ascent and descent speed, digital pre-stretch ratio adjustment, digital film edge adjustment, cycle counter, etc.

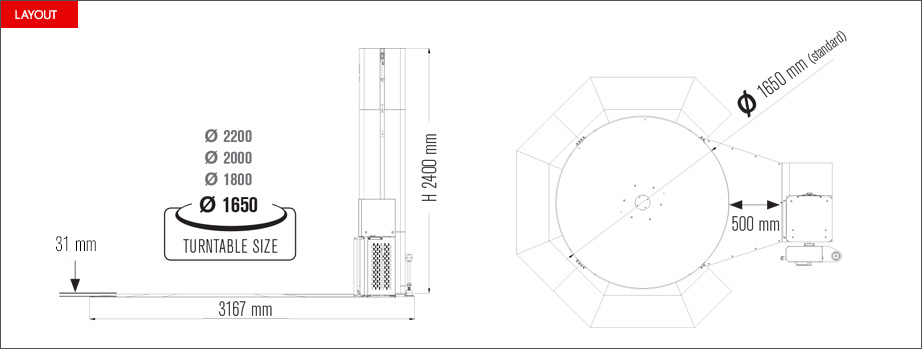

Layout avvolgipallet Slim Wrap 2000B

Characteristics and parameters of the packaging machine

Technical characteristics of the pallet wrapper
  • Machine structure in painted steel sheet
  • Column hinged at the base for easy and quick installation
  • Film carriage by transmission chain
  • Turntable transmission with patented system
  • Turntable diameter ø 1650 mm
  • Turntable thickness 26 mm
  • Machine controlled by PLC and color touch screen7,2”
  • Lock/unlock brake device for easy film hooking to the pallet
  • Acoustic warning with light signal at the start cycle
  • Motorized pre-stretch set at 200% with possibility to interchange pre-stretch ratio 100%, 150%, 250% (Slim Wrap 2000 B)
  • Independent double motorized pre-stretch film carriage, adjustment by touch screen (Slim Wrap 2020 B – pre-stretch ratio 0 – 400%)
  • Emergency stop in compliance with CE regulations
  • Reset button in compliance with CE regulations
  • Inverter for soft start and indexed stop of the turntable
  • Cycle counter
  • Manual machine working mode
Parameters adjustable from the control panel
  •  Number of rounds at the bottom of the pallet
  • Number of rounds at the top of the pallet
  • Adjustable turntable speed from 0 to 10 rpm
  • Digital pre-stretch adjustment (only mod. Slim Wrap 2020 B)
  • Adjustable ascending and descending carriage speed
  • Adjustable number of ascending and descending cycles
  • Adjustable photocell delay
  • Film tension adjustment
Cycles selectable from the control panel
  • Ascending and descending cycle
  • Only ascending cycle
  • Reinforce cycle at a programmed height (ascending cycle, ascending / descending cycle)
  • Top sheet cycle (ascending/descending)
  • N° 8 programmable cycles by touch screen according to the product/pallet to wrap
Characteristics of the workable product
  • Max Product Dimensions: L 1000 x W 1200 mm.
  • Useful height: H 2200 mm.
  • Max product weight: 1200 Kg.
Film reel features

Maximum external dimensions: 280 mm.


Internal film dimensions: 76 mm.

Film film height: 500 mm.

Maximum reel weight: 16 Kg.

Download the PDF of the machine

REQUEST A FREE QUOTE NOW

Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

Additional information

Weight machine

700 Kg

Turntable diameter

1650 mm

Max product weight

1200 Kg

Turntable speed

0 – 10 rpm

Carriage up-down speed

1,4 – 4 (m/min)

Film pre-stretch

Mechanical brake carriage

Maximum pallet dimensions

L 1000 x W 1200 x H 2200 mm

Power supply

220 Volt 1Ph

Power supply frequency

50/60 Hz

Installed power

1,25 Kw

Max dimension film roll

H 500 mm Ø 280 mm

Film roll max weight

16 Kg

Film roll thickness

12 – 35 (µm)

Photoeye to detect door height

std
