Automatic stretch wrapping machine

Model Easy Wrap 2000 A is a automatic machine for stretch-film wrapping of palletized loads with the possibility to adjust the film tension by means of a mechanical brake or motorized prestretch.

Automatic pallet wrapper equipped with gripper, cutting and tail sealing unit for a perfect seal of the film to the pallet

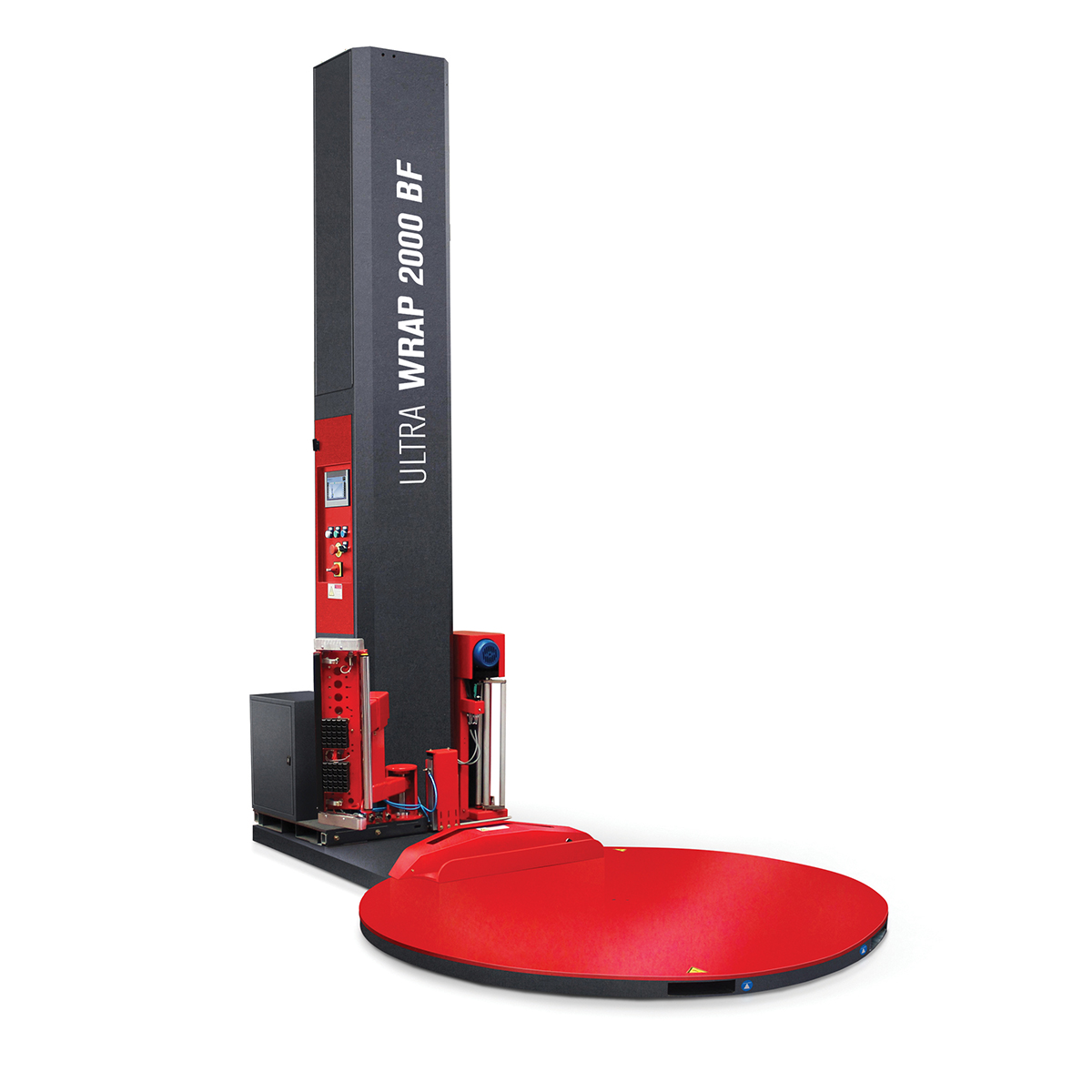

The Ultra Wrap 2000 BF pallet wrapper is an automatic machine and is the ideal solution to wrap the pallet in a completely automatic way. The machine is equipped with a gripper and cutting unit with a firm tail that ensure the hooking, cutting and sealing of the film, while remaining perfectly adherent to the pallet. The machine is electrically powered and requires an energy power of 1.25 Kw. It has a table rotation speed of 12 rpm (rotations per minute) and a carriage ascent and descent speed of 1.4 / 4 m-min.

General characteristics of the wrapping machine

The Ultra Wrap 2000 BF pallet wrapper has a plate diameter of 1650 mm (standard) and can process products with dimensions of L 1000 x W 1200 x H 2600 mm, supporting a maximum weight on a plate of 2000 Kg. to regulate the number of revolutions on the lower and upper part of the pallet, it is also possible to regulate the gradual start of the table by means of an inverter. On the rewinder there is also a PLC and 7.2 color touch screen display that allow you to adjust further parameters such as the carriage ascent and descent speed, photocell reading delay, cycle counter, etc.

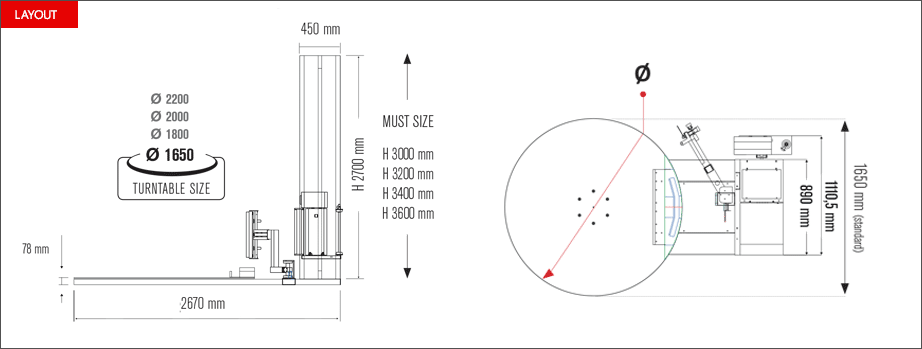

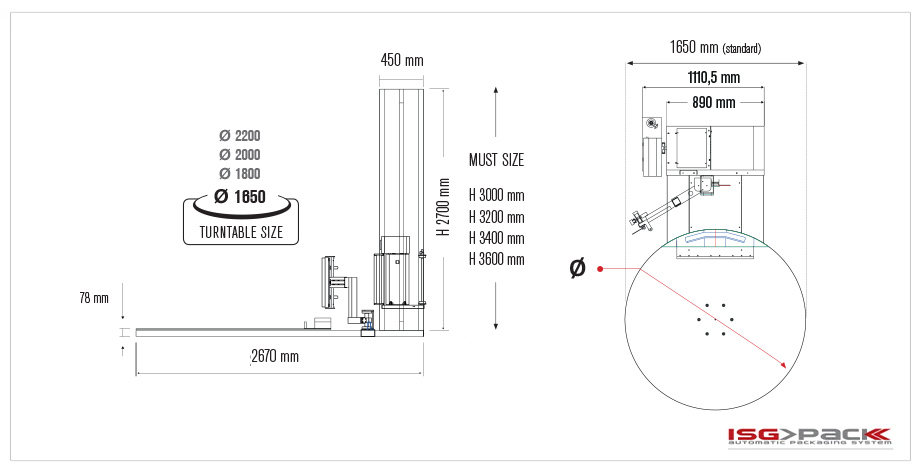

Layout Ultra Wrap 2000BF

Characteristics and parameters

Technical details
  •  Machine structure in painted steel sheet
  • Film carriage and turntable by transmission chain
  • Turntable diameter ø 1650 mm

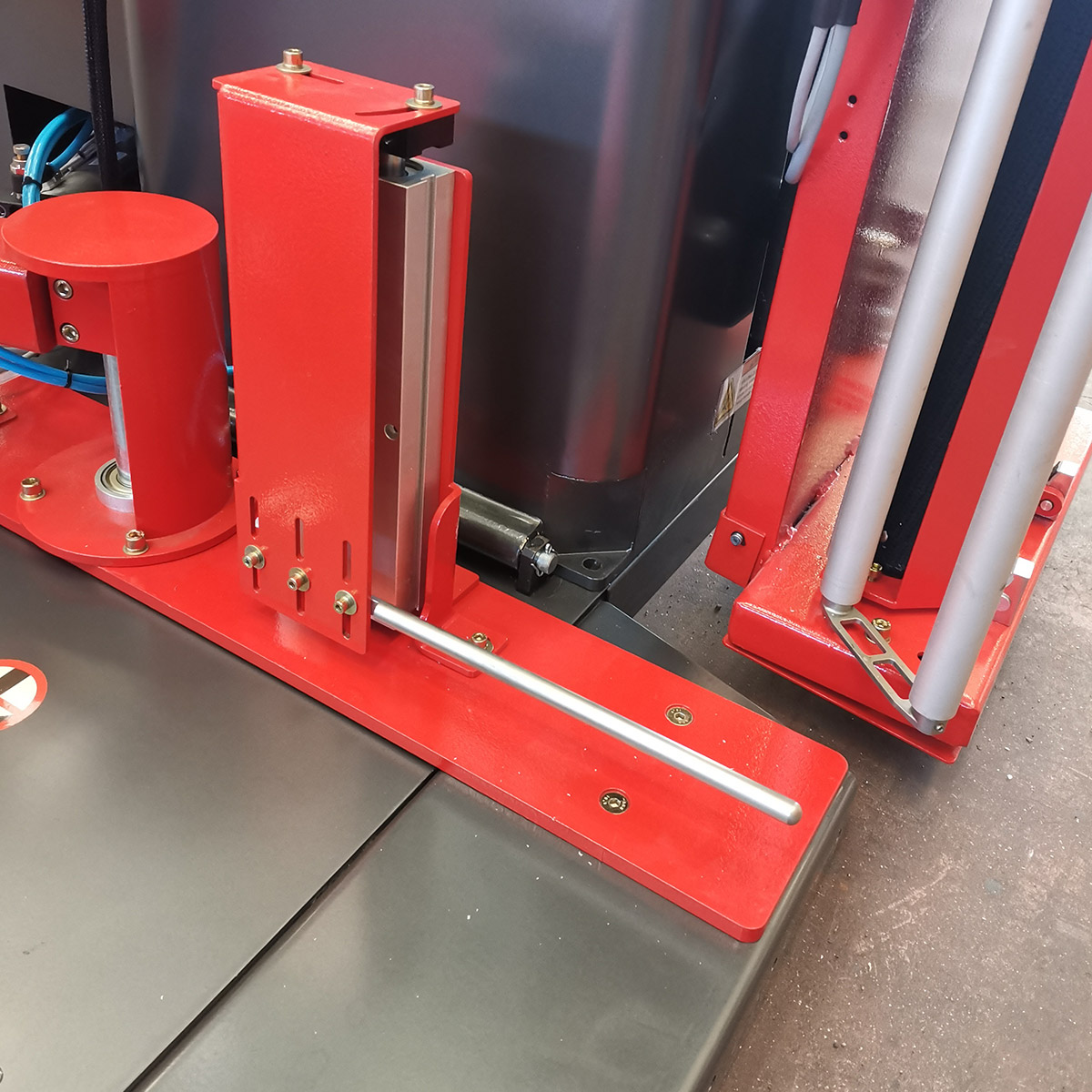

  • Film cut clamp and sealing system
  • Electric top press unit (Ultra Wrap 2000 BFC)

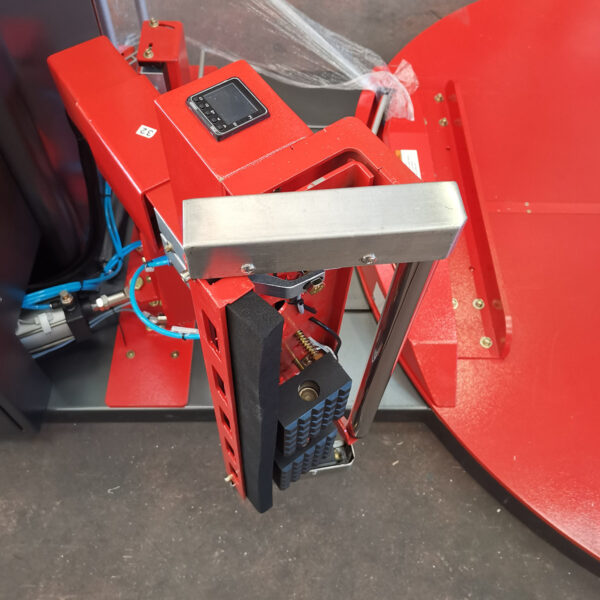

  • Film welding system controlled by temperature controller
  • Wrapping cycle activated by remote control
  • Machine controlled by PLC and color touch screen 7,2”
  • Safety stop device at the base of the carriage in compliance with the CE regulations
  • Lock/unlock brake device for easy film hooking to the pallet
  • Acoustic warning with light signal at the start cycle

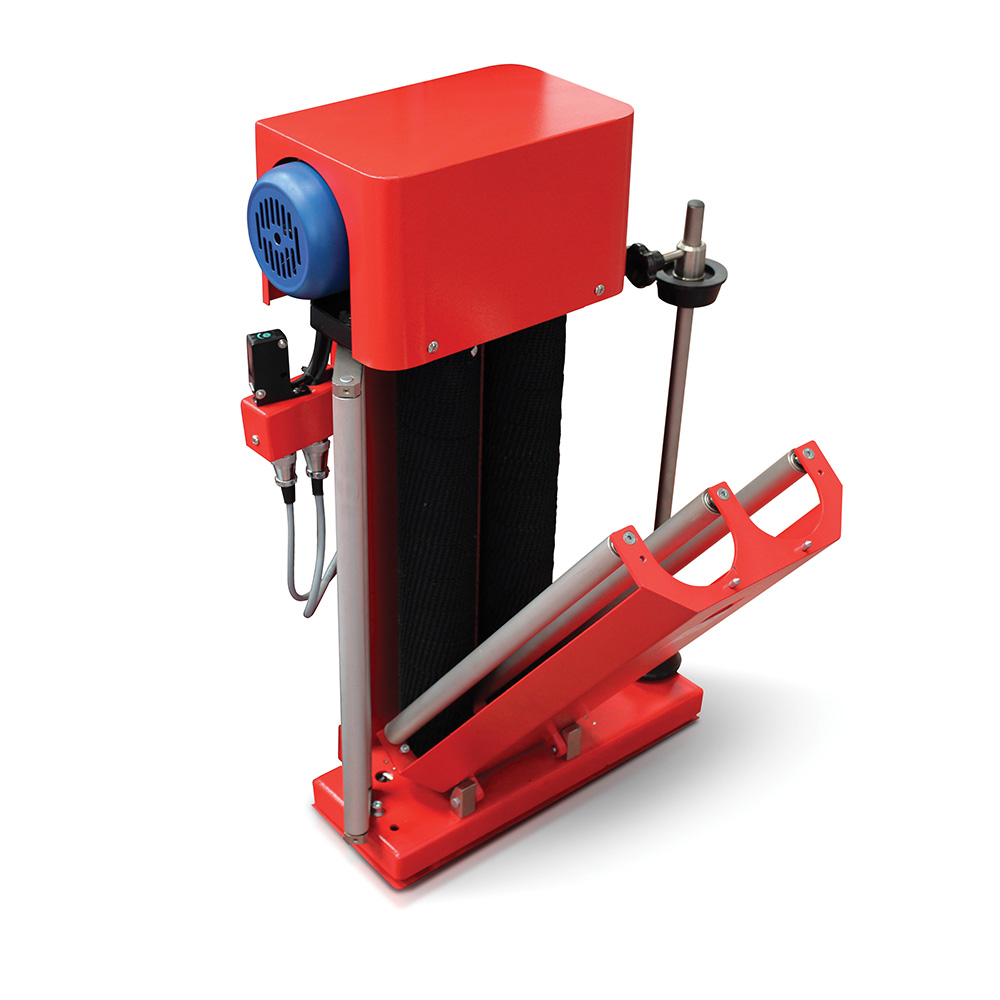

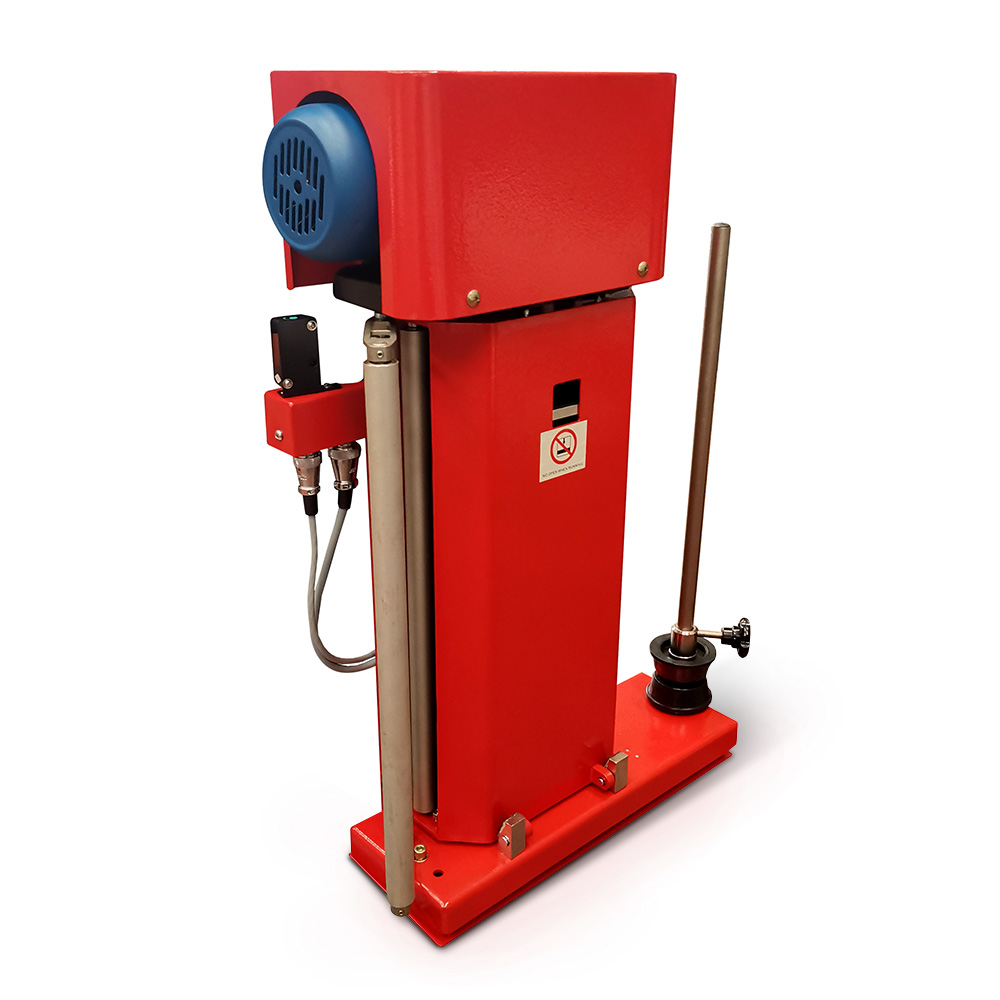

  • Motorized pre-stretch set at 200% with possibility to interchange
  • pre-stretch ratio 100%, 150%, 250%
  • Reset button in compliance with CE regulations
  • Inverter for soft start and indexed stop of the turntable
  • Cycle counter
  • Manual machine working mode
Parameters adjustable by control panel
  • Number of rounds at the bottom of the pallet (start cycle)
  • Number of rounds at the top of the pallet
  • Adjustable turntable speed from 0 to 10 rpm
  • Carriage height adjustment for opening the film clamp
  • Adjustable ascending carriage speed
  • Adjustable descending carriage speed
  • Adjustable number of ascending and descending cycles
  • Position adjustment and table slowdown at the end of the cycle

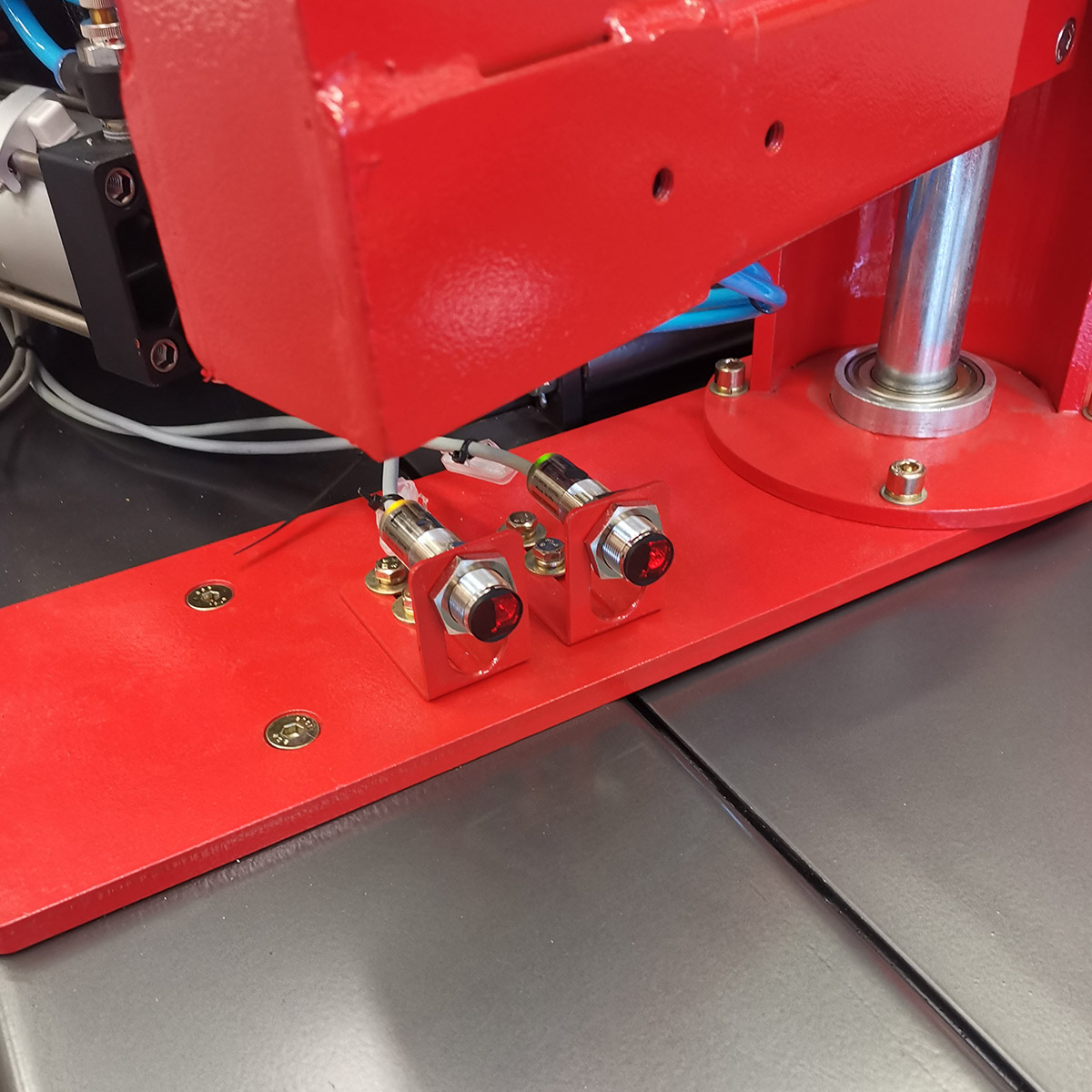

  • Adjustable photocell delay
  • Adjustment of the welding and film cutting parameters
  • Puff time adjustment eliminates tail
  • Film delivery speed adjustment
  • Digital fifth wheel speed adjustment
  • I/O for self-diagnosis
Cycles activated by control panel
  • Ascending and descending cycle
  • Ascent and descent cycle for sheet feeder
  • Top sheet cycle (ascending / descending)
  • N° 10 programmable cycles by touch screen according to the product / pallet to wrap
Product features
  • Product dimensions: L 1000 x W 1200 mm.
  • Max product height: H 2500 mm.
  • Max product weight: 2000 Kg.
Film roll features
  • Film roll external diameters: 280 mm.
  • Film roll internal diameter: 76 mm.
  • Film roll height: 500 mm.
  • Film roll max weight: 16 Kg.

Scarica il PDF della macchina

REQUEST A FREE QUOTE NOW

Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at 06.9160.7561.

Additional information

Machine dimensions

L 2670 x W 1650 x H 2700 mm

Turntable diameter

1650 mm

Max product weight

2000 Kg

Turntable speed

0 – 12 (rpm)

Carriage up-down speed

1,4 – 4 (m/min)

Film pre-stretch

Mechanical brake carriage

Maximum pallet dimensions

L 1000 x W 1200 x H 2500 mm

Power supply

220 Volt 1Ph

Power supply frequency

50/60 Hz

Installed power

1,25 Kw

Max dimension film roll

H 500 mm Ø 280 mm

Film roll max weight

16 Kg

Film roll thickness

12 – 35 (µm)

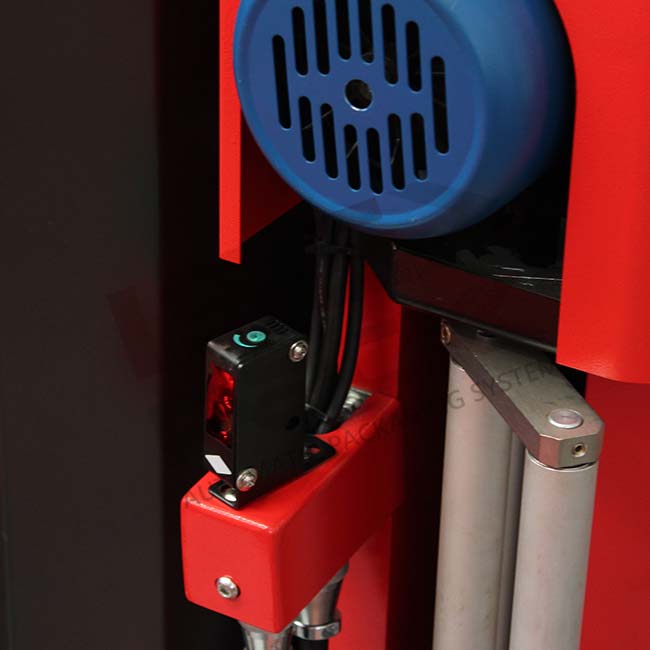

Photoeye to detect door height

std

Forklifting

Front and back
