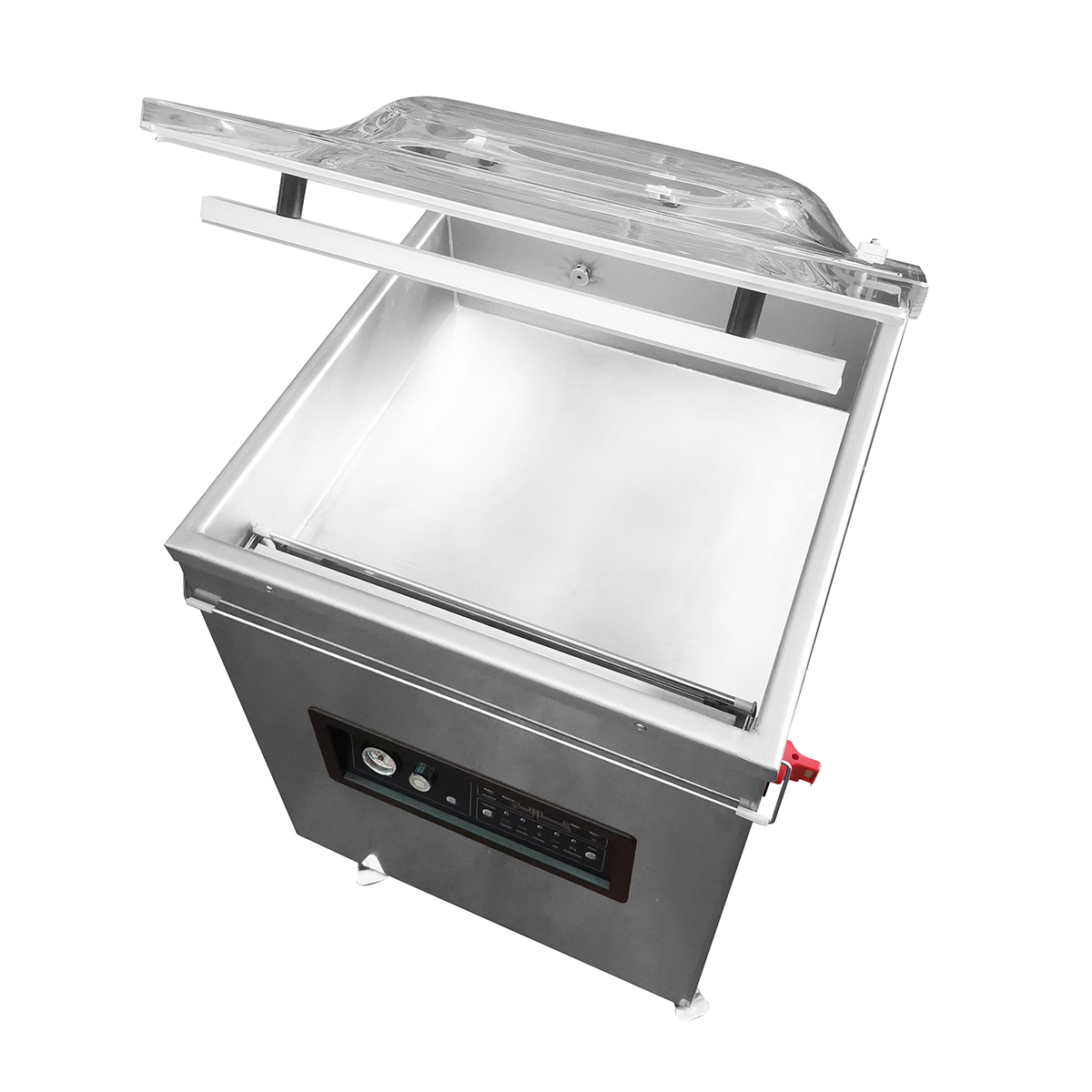

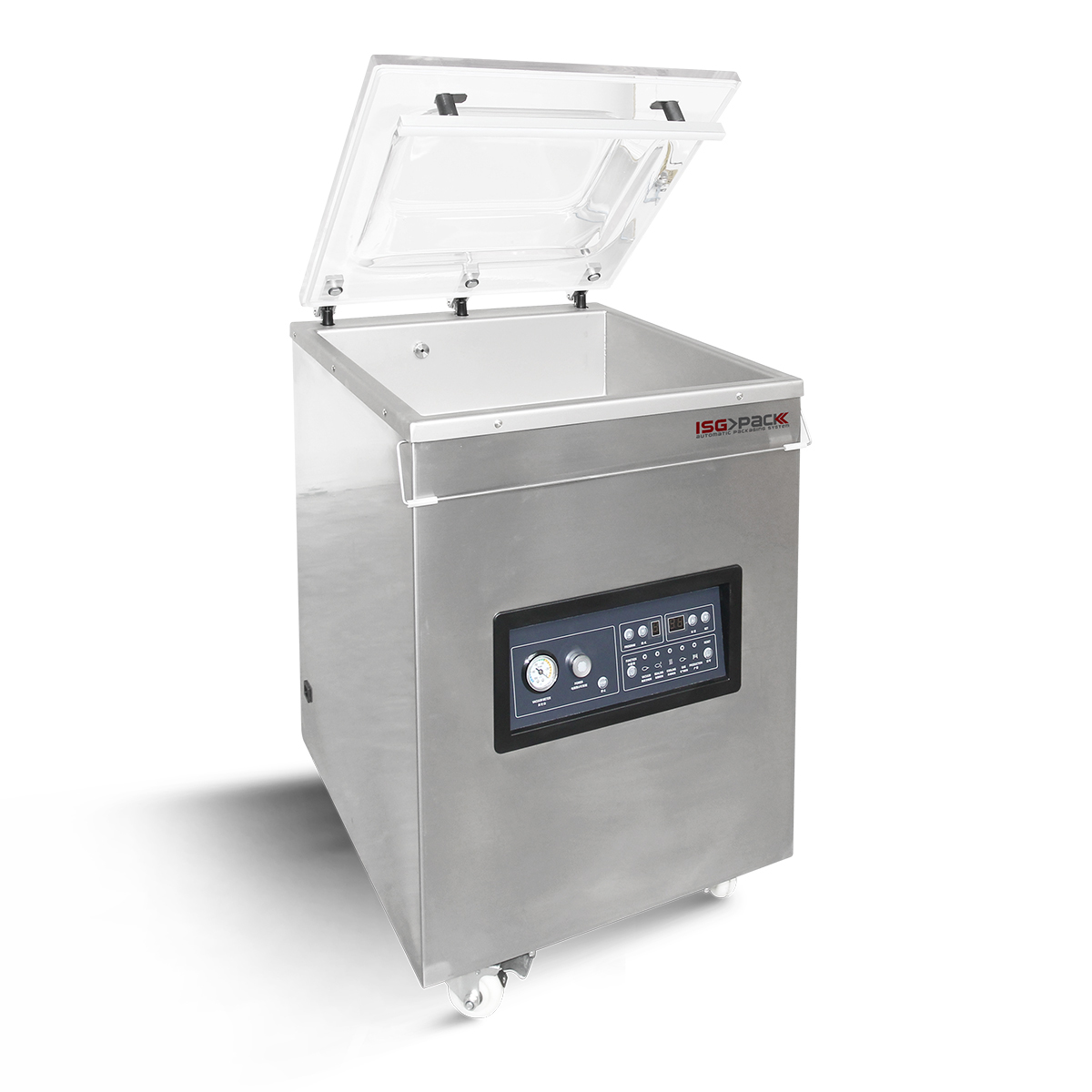

Trolley vacuum machine Easy Vac 500S FT

In stock

REQUEST QUOTE NOW



The Easy Vac500S FT is a vacuum packaging machine ideal for large spaces with 20 m³ / h vacuum. It is a trolley-mounted machine completely made of steel, equipped with a single horizontal sealing bar placed inside the vacuum chamber.

WEIGHT
90 Kg

POWER
220 V

VACUUM PUMP
DA 20 m³/h

VACUUM OF
PRODUCTS



Vacuum packaging machine with single sealing bar

The EASY VAC 500S FT includes the range of trolley vacuum packaging machines, in stainless steel with single or double sealing bars. They are suitable for big spaces thanks to the wheels that allow to move it easily according to the customer needs. These machines are suitable for vacuum packing various food like meat, fish, vegetables, pickles, frozen meat, pharmaceutical products, hardware etc.

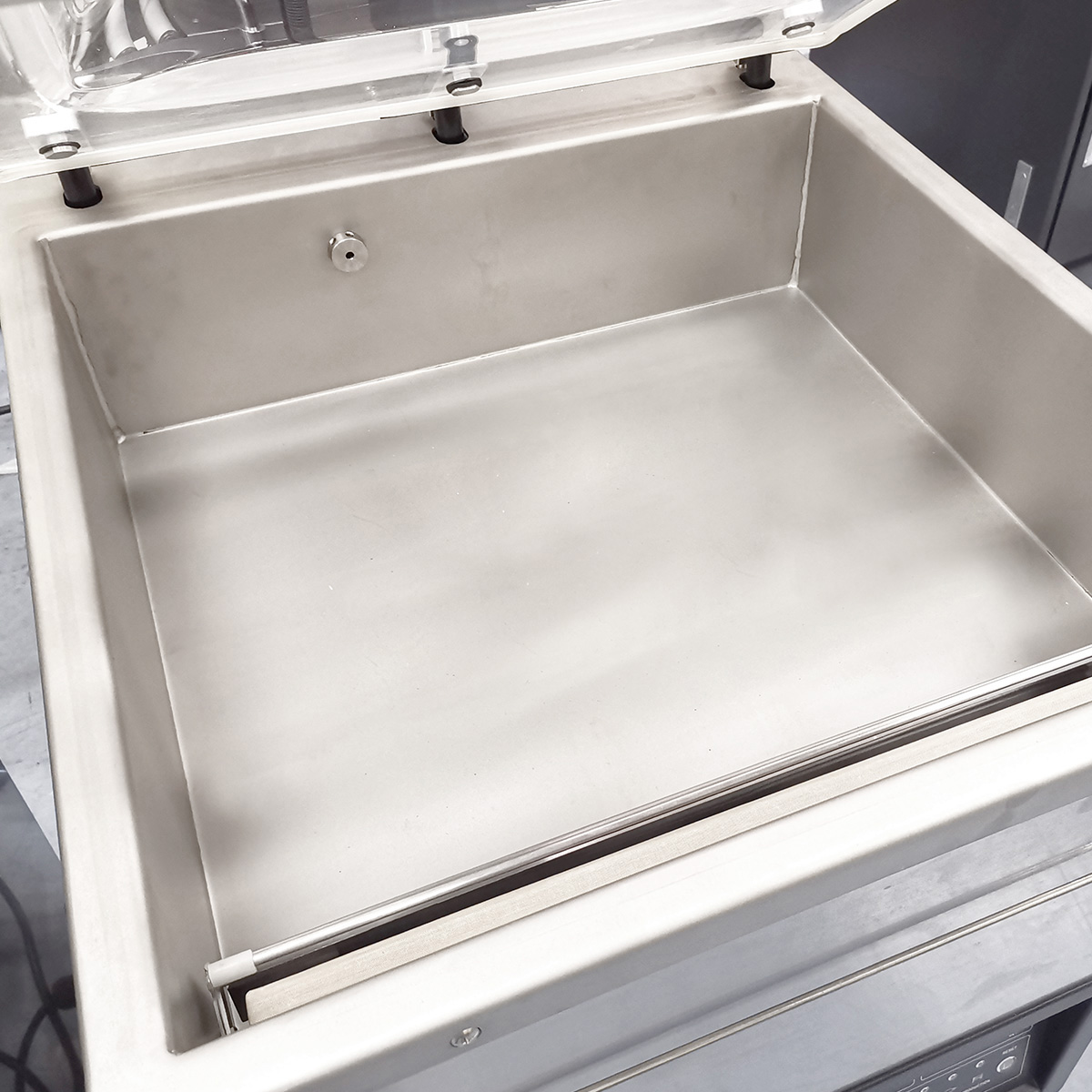

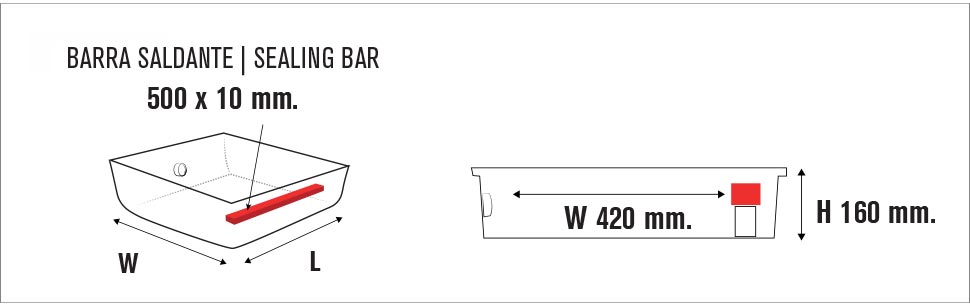

MISURE VASCA MACCHINA SOTTOVUOTO EASY VAC 500S FT

Optional
  • Gas-filling function
  • Vacuum pump 45 m3/h
  • Aluminum cover + tempered glass

FROM THE CONTROL PANEL IS POSSIBLE TO SET:

10 MEMORIES FOR DIFFERENT WORKING CYCLES

VACUUM TIME

  • Time of vacuum in the chamber.
    On the vacuum gauge it is possible to check the vacuum value.

TECHNICAL GAS INJECTION TIME

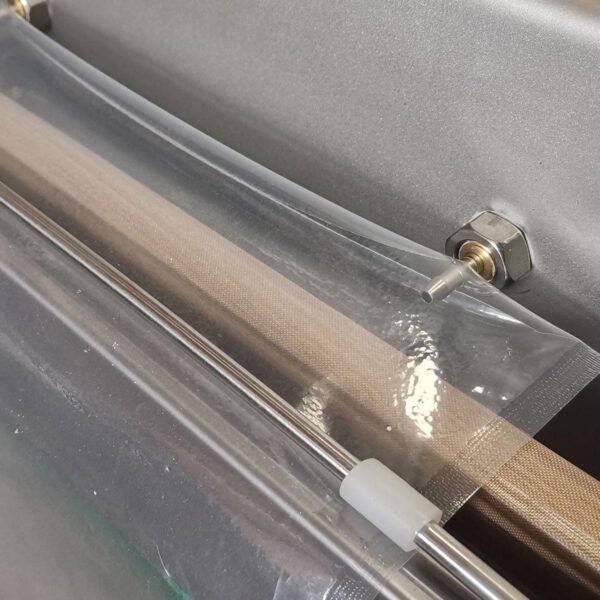

  • On the models with the predisposition, it is possible to decide the quantity of gas injection adjusting the “gas injection time”

SEALING TIME

  • Time of bag sealing. It depends on the bag thickness and material. Usually it takes 1 or 2 seconds.

COOLING TIME OF THE SEALING

  • The chamber remains closed and it makes a pressure on the sealing bar. It ensures a resistant bag sealing.

TWO-DIGIT COUNTER

  • The counter displays the number of working cycles.
DATA SHEET PDFDownload PDF vacuum machine Eco Vac 300S TB

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Machine dimensions

L 600 x W 635 x H 900 mm

Net weight

106 Kg

Power supply

220 Volt

Power supply frequency

50/60 Hz

Installed power

1 Kw

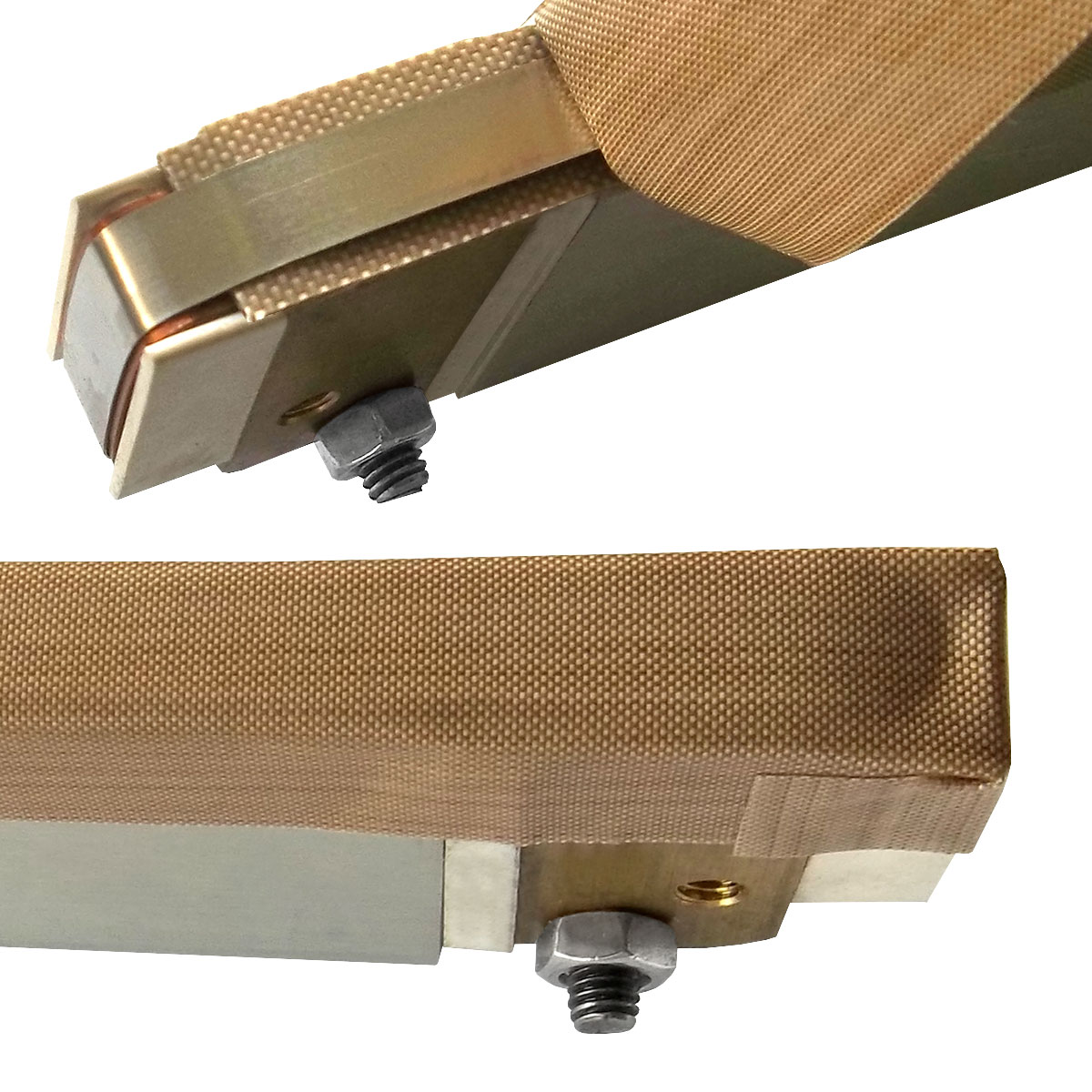

Dimension sealing bar

L 500 x W 10 mm

Sealing bar

1 Front

Max workable product

L 500 x W 420 x H 160 – 220 mm.

Vacuum pump

20 m³/h

Work cycle

40 – 60 (sec)
