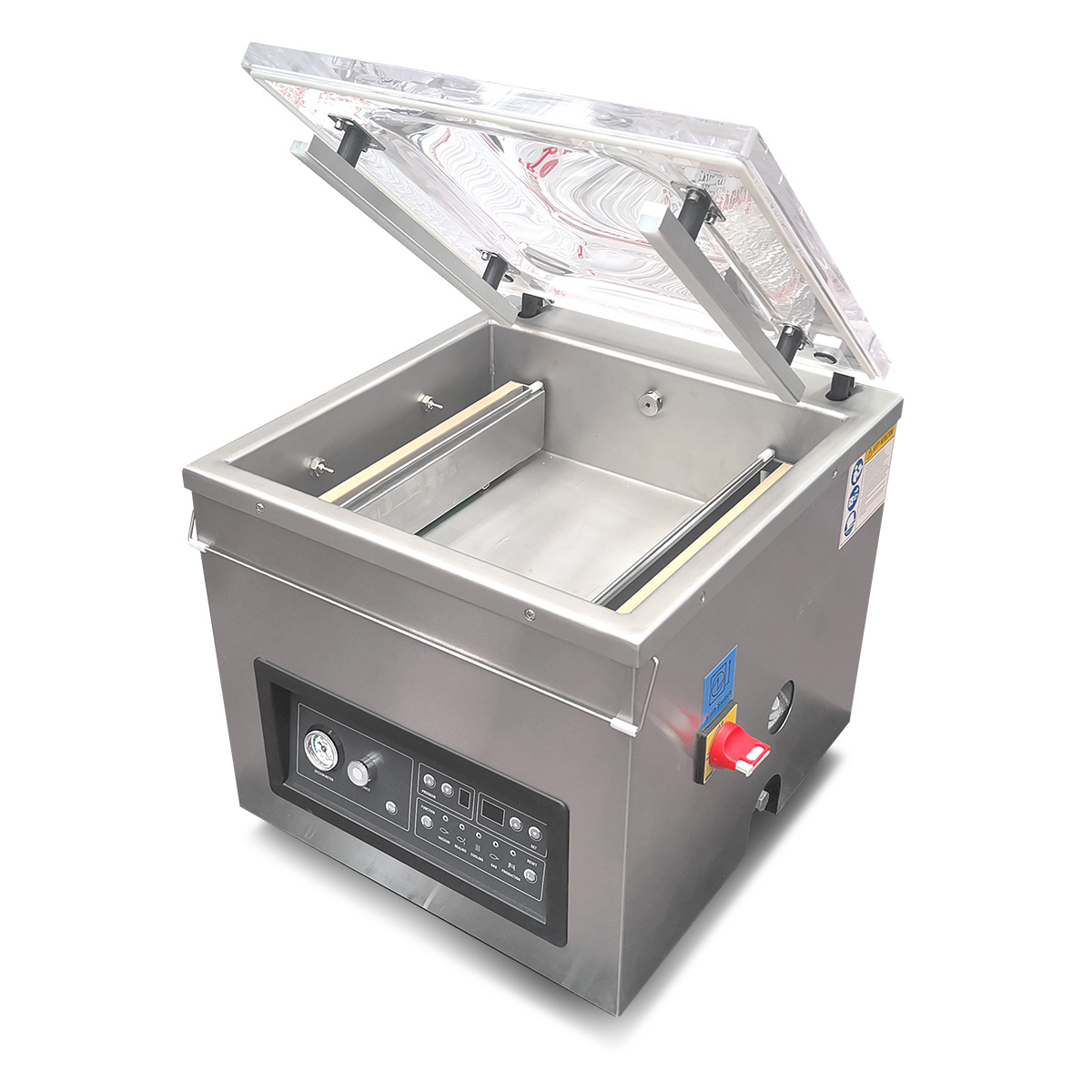

Tabletop Vacuum Packaging Machine Eco vac 400D TB

In stock

REQUEST QUOTE NOW

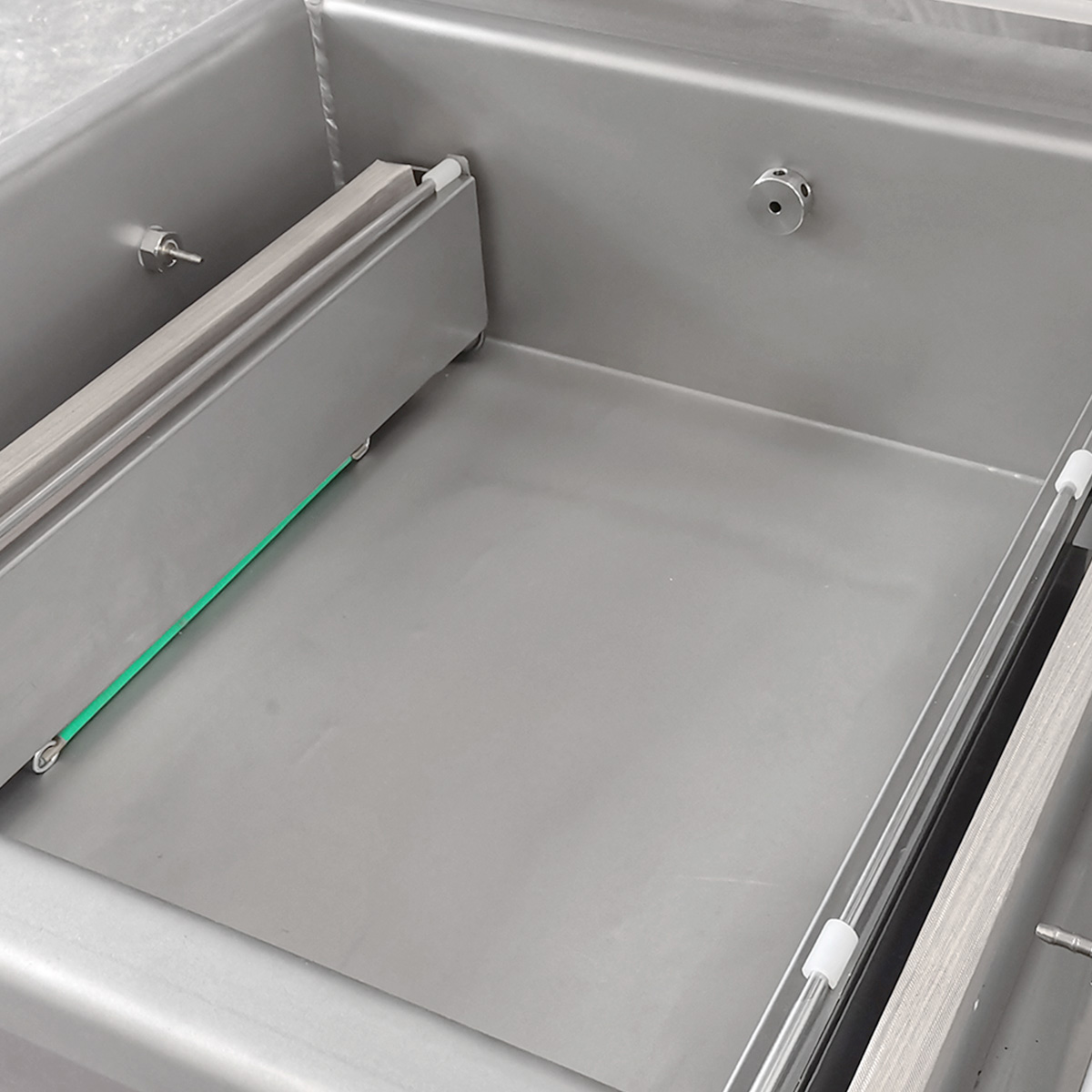

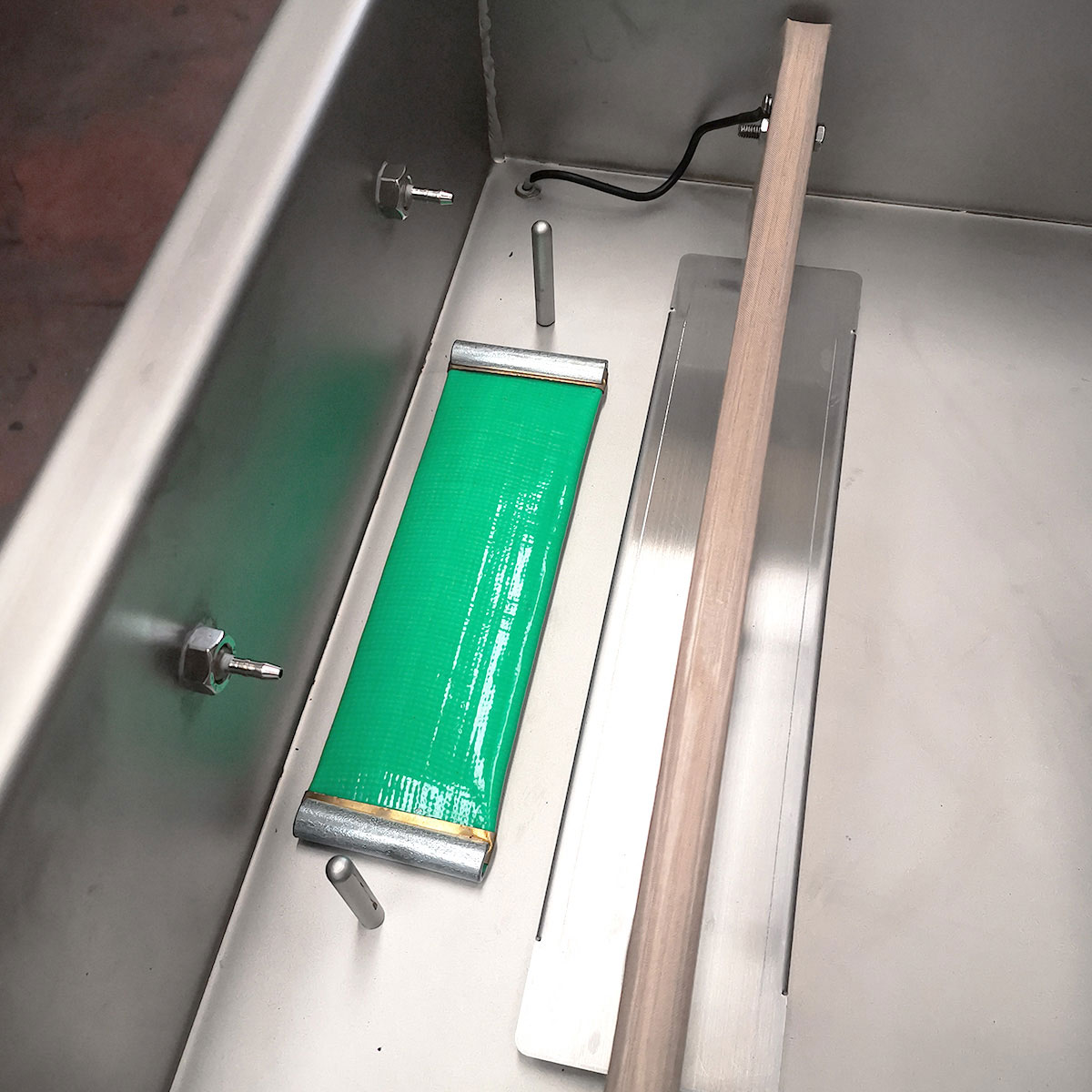

The ECO VAC 400D TB vacuum machine is equipped with 2 side sealing bars inside the vacuum chamber to speed up production cycles. It is a bench machine completely structured in stainless steel, equipped with a horizontal sealing bar placed inside the vacuum chamber.

WEIGHT
60 Kg

POWER
220 V

VACUUM
PUMP 20 m³/h

VACUUM OF
PRODUCTS



The ECO VAC SERIES includes the range of chamber vacuum packaging machines. They are compact table top machines, easy to use and in stainless steel for ensuring high standard of hygiene and resistance to acid, mold and rust.

These machines are suitable for vacuum packing various food like meat, fish, vegetables, pickles, frozen meat, pharmaceutical products, hardware etc. The ECO VAC 400D TB is equipped with double sealing bars for faster working cycles and the ECO VAC 420V TB is equipped with a vertical sealing bar for packing liquid and powder products

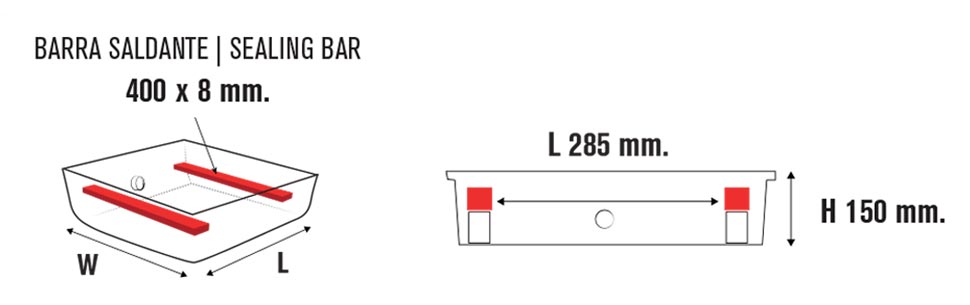

MISURE VASCA MACCHINA SOTTOVUOTO ECO VAC 400 D FT

Optional
  • Gas-filling function

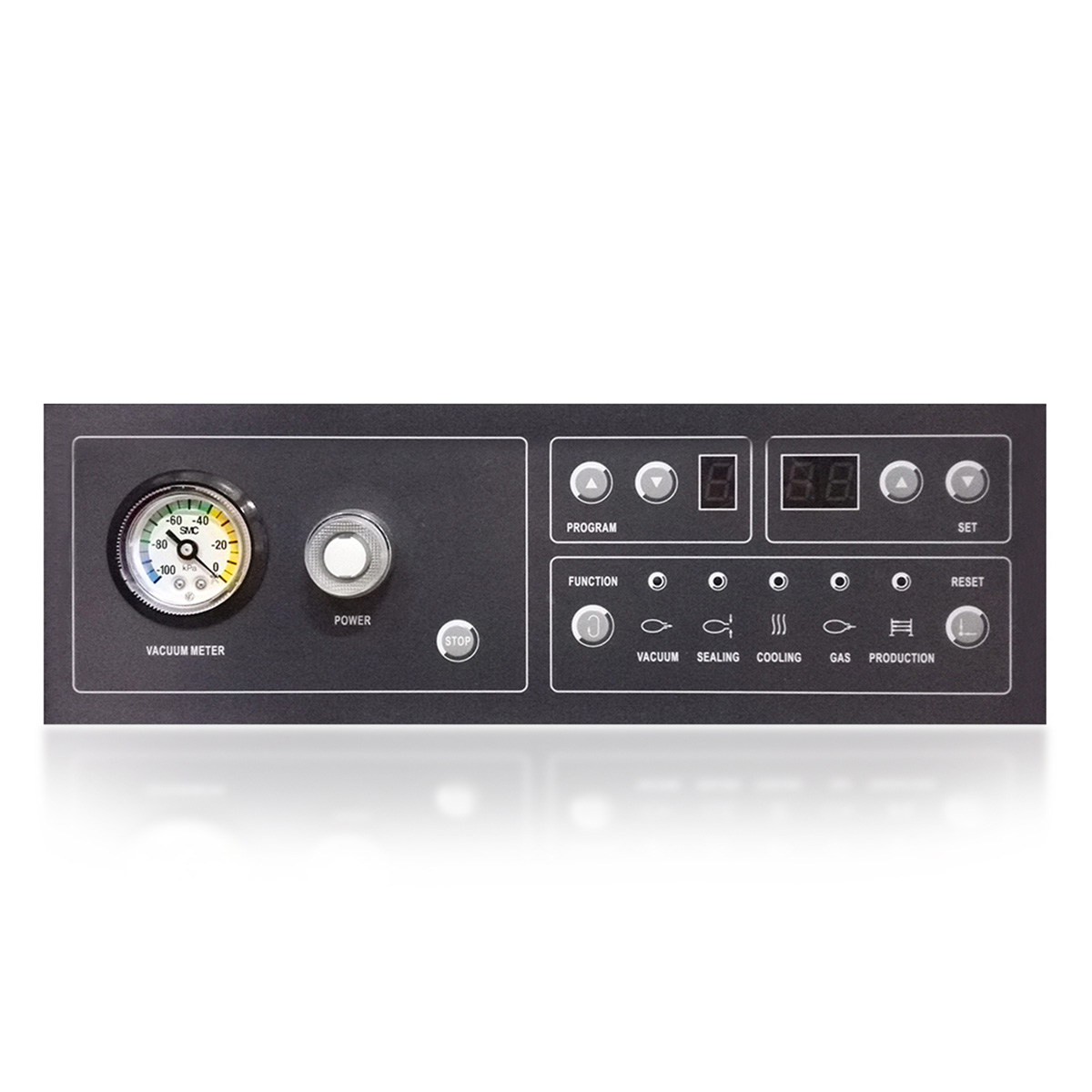

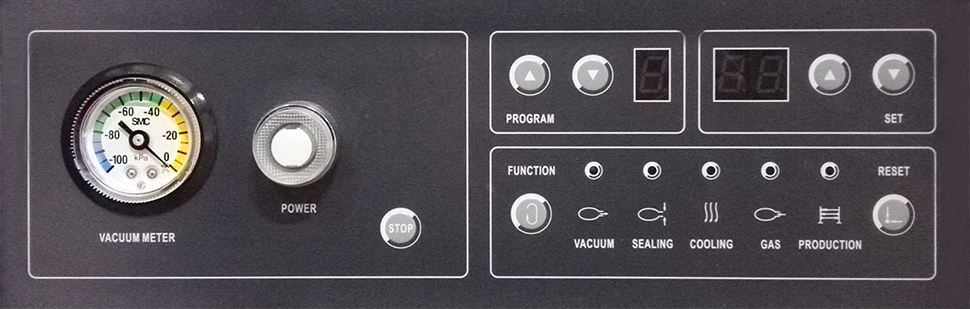

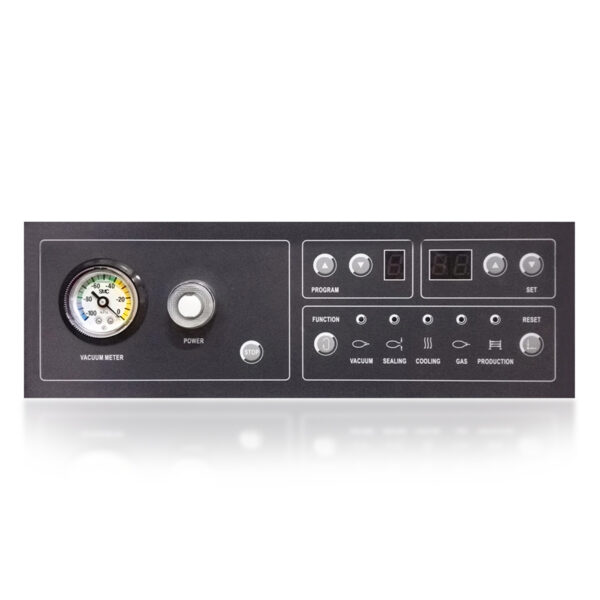

FROM THE CONTROL PANEL IS POSSIBLE TO SET:

10 MEMORIES FOR DIFFERENT WORKING CYCLES

VACUUM TIME

  • Time of vacuum in the chamber.
    On the vacuum gauge it is possible to check the vacuum value.

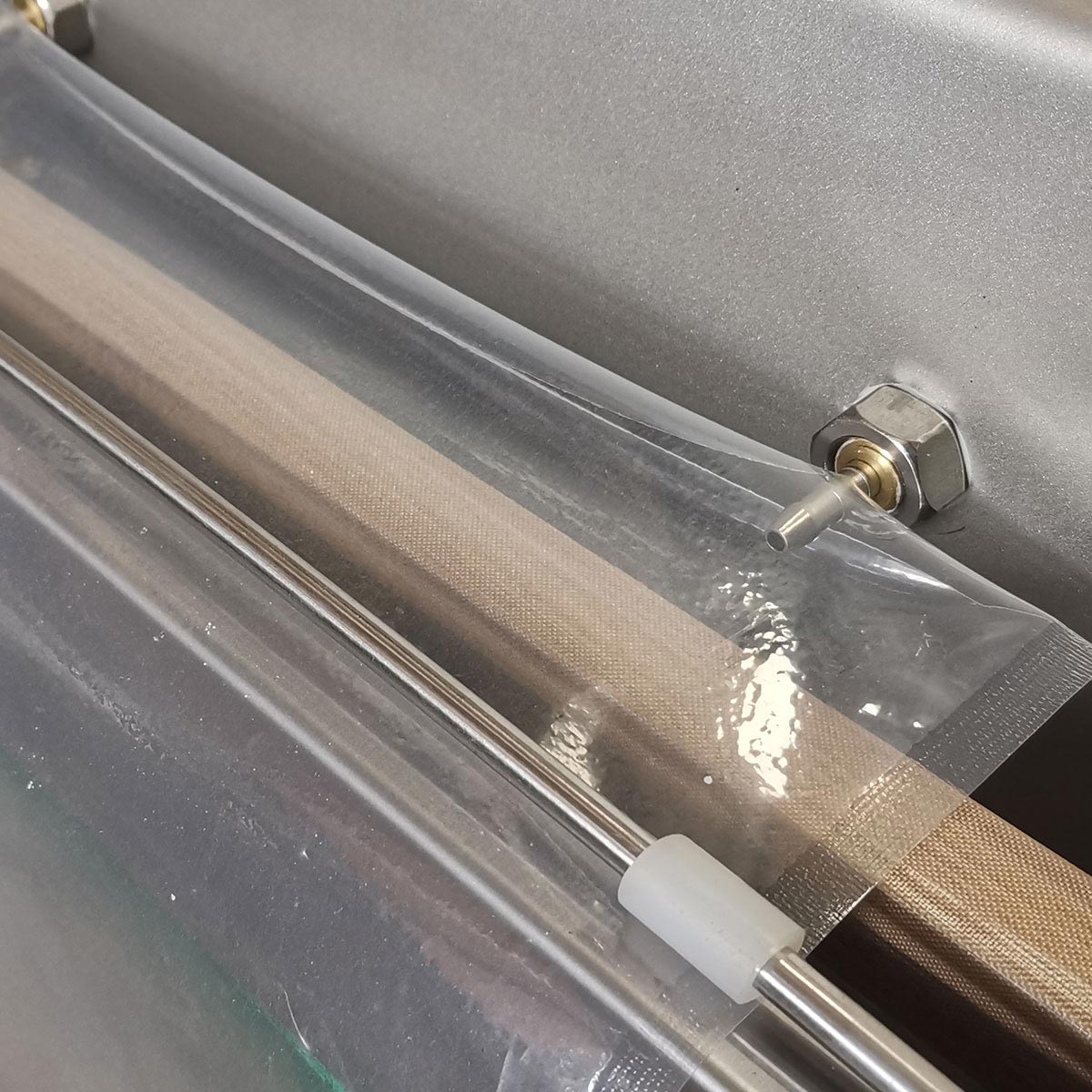

TECHNICAL GAS INJECTION TIME

  • On the models with the predisposition, it is possible to decide the quantity of gas injection adjusting the “gas injection time”

SEALING TIME

  • Time of bag sealing. It depends on the bag thickness and material. Usually it takes 1 or 2 seconds.

COOLING TIME OF THE SEALING

  • The chamber remains closed and it makes a pressure on the sealing bar. It ensures a resistant bag sealing.

TWO-DIGIT COUNTER

  • The counter displays the number of working cycles.
DATA SHEET PDFDownload PDF vacuum machine Eco Vac 300S TB

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Machine dimensions

L 500 x W 530 x H 490 mm

Net weight

60 Kg

Power supply

220 Volt

Power supply frequency

50/60 Hz

Installed power

1 Kw

Dimension sealing bar

L 400 x W 8 mm

Sealing bar

2 Lateral

Max workable product

L 400 x W 285 x H 80 – 140 mm.

Vacuum pump

20 m³/h

Work cycle

15 – 40 (sec)
