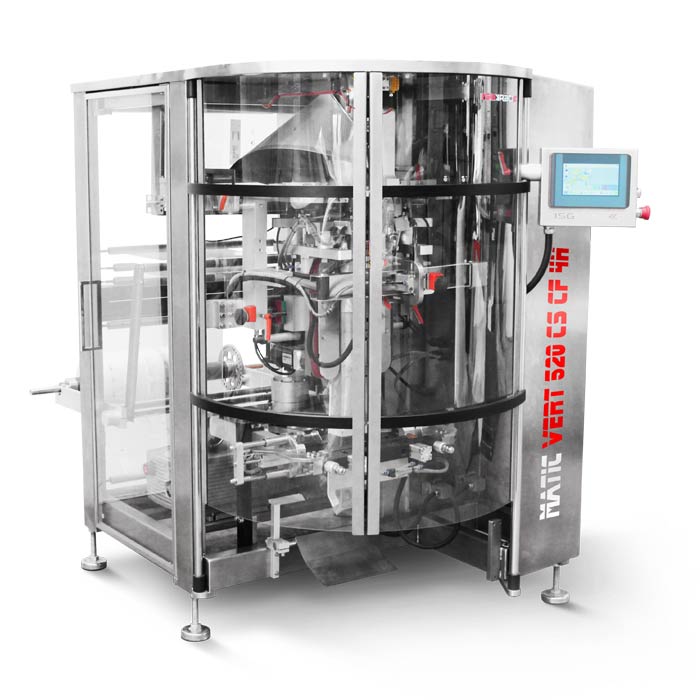

The Matic Vert CS CP 4H vertical packaging machine is an automatic machine specifically designed for intermittent welding of a wide variety of products. It is able to satisfy the most demanding requests of the market thanks to its ergonomics, easy cleaning and low maintenance.



icona operatore non richiesto

WITHOUT
OPERATOR

icona-aria-corrente

POWERED
ELECTRIC AND AIR

confezione a fondo quadro

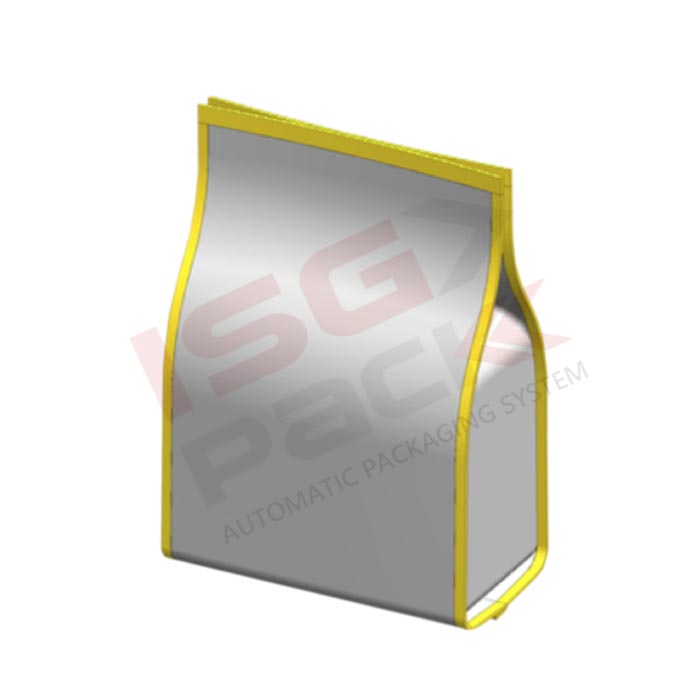

4 CORNER
SEAL BAG



Category:

Vertical packaging machine designed for intermittent welding of a wide variety of products

La confezionatrice automatica verticale della linea Matic Vert CP A è stata specificatamente concepita per il confezionamento a saldatura intermittente di una grande varietà di prodotti. La flessibilità relativamente ai cambi formato, alle dosi e alla versatilità per potersi adeguare a qualsiasi tipologia di film, unitamente alle sue alte prestazioni, la rendono una delle macchine più performanti del mercato. Questa confezionatrice verticale è stata progettata con una struttura in acciaio inox per soddisfare le richieste più esigenti del mercato attuale come ergonomia, facile pulizia e bassa manutenzione, usando per questo scopo materiali di alta qualità con trattamenti di ultima generazione.

Optionals and features

Optionals
  • Double film reel carri
  • bag former
  • Automatic joint system
  • Automatic corretion system
  • Dust extraction
  • Gas flushing
  • Sealing bar for PE
  • Exhaust device
  • Euroslot hole
  • Antistatic unit
  • Coders
  • Labers
  • Product discharge belts
Features
  • Stainless steel structure
  • Servo driven cross seal jaw (2 servomotors)
  • Servo driven film transport (2 servomotors)
  • 4 corner seal
  • Front and side frame opened construction
  • Film reel holders with Pneumatic chocks
  • One piece and easy change film former
  • Industrial PLC, colour touch screen (Berghoff 10”)
  • Capacity to program data for 100 items
  • Touch screen adjustment of sealing time, temperature and pressure for the horizontal seal jaws
  • Motorised centering of film roll holders
  • Key controlled Access to different operator level
  • Motorised film tracking with film tension control with load cells
  • Film Roll Holders with Pneumatic chocks
  • Automatic detection for the end of film roll
  • Film transport with belts and vacuum system with Becker pump
  • Zig-zag sealing mode
  • Precision Bag Length Control at High or Low Speed
  • Precision bag length control at high or low speed
  • Horizontal seal obstruction detection
  • Strings or double bag
  • Automatic detection of irregularities in the sealing temperature or in the pneumatic pressure of the system
  • Easy interface with peripheral equipment
  • Designed and manufactured in accordance with the (98/37/CEE) safety regulations.
Caratteristiche bobina film

Max thikness film: 40/80 my.

Packaging material: OPP/AL/PE PET/VMPET escluso PE
Max size of roll: 520 – ø ≤600mm

REQUEST A FREE QUOTE NOW

SAVE TIME! Make a request to receive our best offer on this product. Alternatively, for more information, you can always contact us at +39.06.9160.7561.

Additional information

Power supply

380 Volts 3 ph – 50 Hz

Installed power

5 kW

Max production

From 10 to 100 ppm

Film roll thickness

da 40 a 80 my

Packaging material

OPP/AL/PE – PET/VMPET excluding PE

Max dimension film roll

520 – ø ≤600mm

Packaging type

4 corner seal bag + bottom block

Machine dimensions

L 1800 x W 1270 x H 1615 mm

Net weight

680 Kg

Air pressure

0,5 MPa

Air consumption

0,32 Nlitri/min
